从 REST 迁移到 GraphQL 的一些思考与实践(创建资源)，参考 Shopify

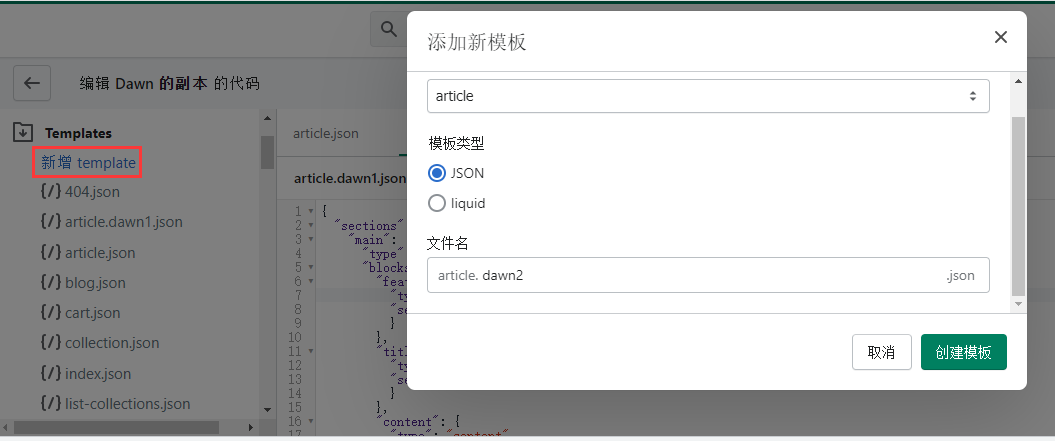

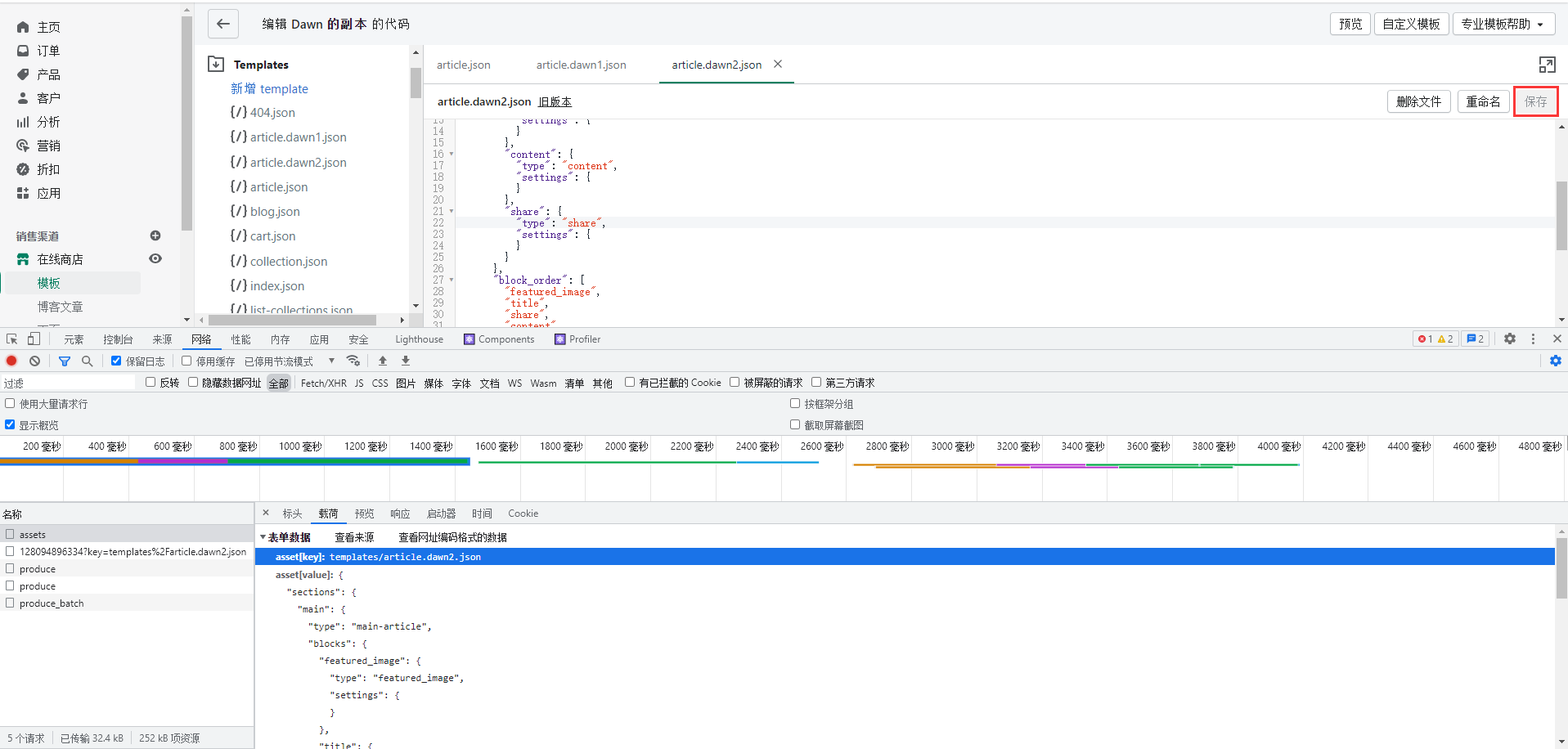

1、新增 template ，创建模板。如图1

2、点击保存按钮，查看网络请求。请求网址: https://xxx.myshopify.com/admin/themes/111/assets 。请求方法: POST。这是 REST 实现。如图2

请求的表单数据：

asset[key]: templates/article.dawn2.json
asset[value]: {
  "sections": {
    "main": {
      "type": "main-article",
      "blocks": {
        "featured_image": {
          "type": "featured_image",
          "settings": {
          }
        },
        "title": {
          "type": "title",
          "settings": {
          }
        },
        "content": {
          "type": "content",
          "settings": {
          }
        },
        "share": {
          "type": "share",
          "settings": {
          }
        }
      },
      "block_order": [
        "featured_image",
        "title",
        "share",
        "content"
      ],
      "settings": {
      }
    }
  },
  "order": [
    "main"
  ]
}

响应数据：

{
    "asset": {
        "key": "templates\/article.dawn2.json",
        "public_url": null,
        "created_at": "2022-02-22T22:23:17-08:00",
        "updated_at": "2022-02-22T22:23:17-08:00",
        "content_type": "application\/json",
        "size": 324,
        "checksum": "125d46765a7b7f96e7f3992a8bcfe22e",
        "theme_id": 128094896334
    }
}

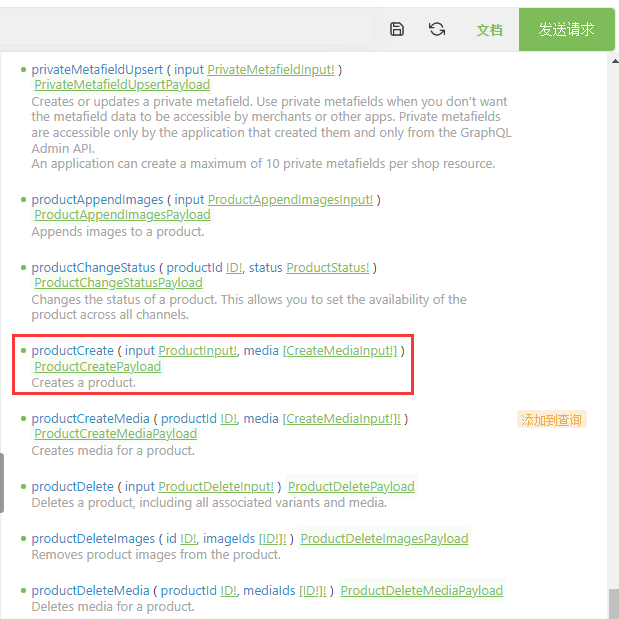

3、在 GraphQL 中未实现创建模板文件的 API。决定参考 productCreate ( input ProductInput!, media [CreateMediaInput!] ) ProductCreatePayload Creates a product.。如图3

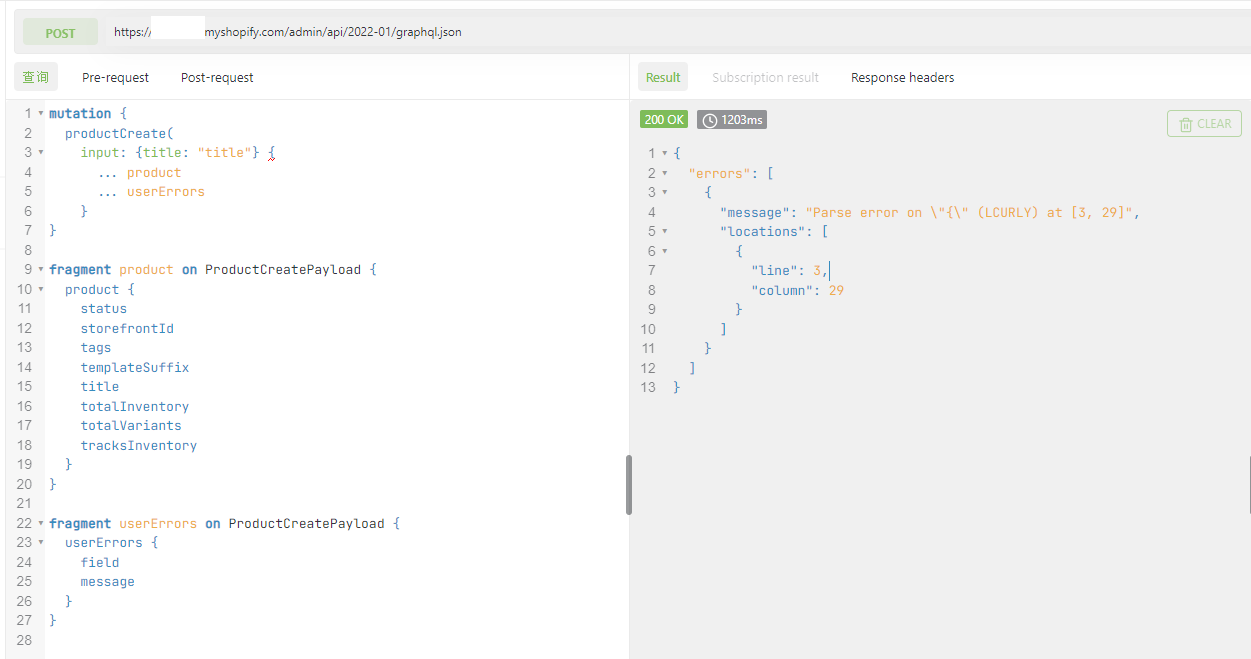

4、测试请求与响应结构，先测试响应失败的结构。如图4

请求数据：

mutation {
  productCreate(
    input: {title: "title"} {
      ... product
      ... userErrors
    }
}

fragment product on ProductCreatePayload {
  product {
    status
    storefrontId
    tags
    templateSuffix
    title
    totalInventory
    totalVariants
    tracksInventory
  }
}

fragment userErrors on ProductCreatePayload {
  userErrors {
    field
    message
  }
}

响应数据：

{
  "errors": [
    {
      "message": "Parse error on \"{\" (LCURLY) at [3, 29]",
      "locations": [
        {
          "line": 3,
          "column": 29
        }
      ]
    }
  ]
}

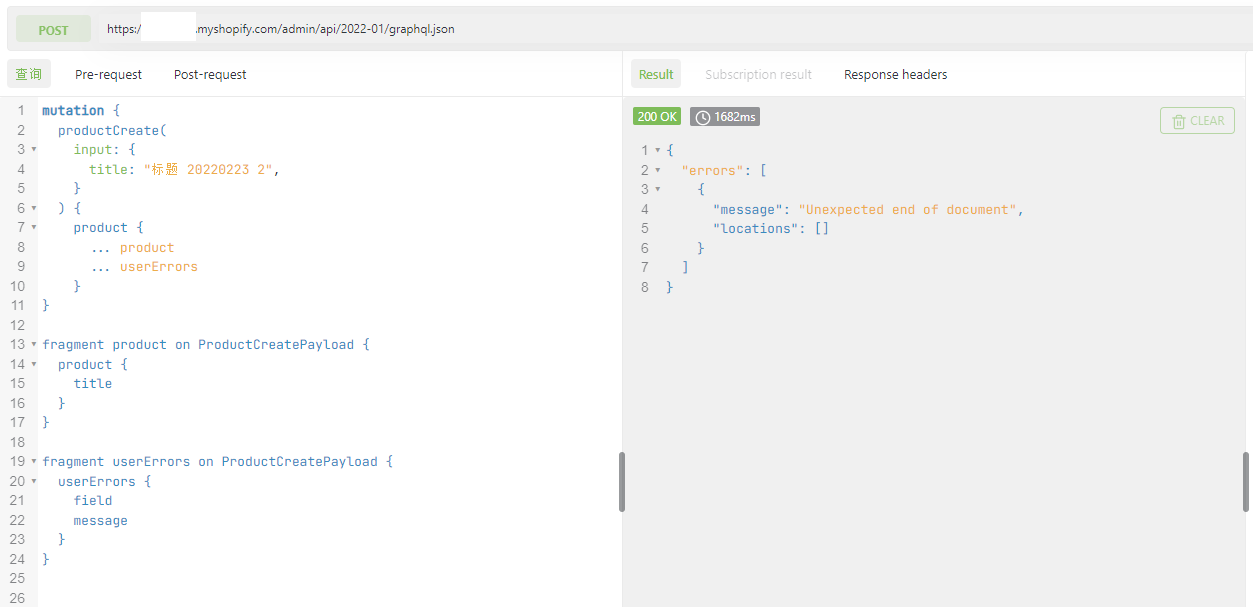

5、测试请求与响应结构，测试响应成功的结构。但是响应失败。如图5

请求数据：

mutation {
  productCreate(
    input: {
      title: "标题 20220223 2",
  	}
  ) {
    product {
      ... product
      ... userErrors
    }
}

fragment product on ProductCreatePayload {
  product {
    title
  }
}

fragment userErrors on ProductCreatePayload {
  userErrors {
    field
    message
  }
}

响应数据：

{
  "errors": [
    {
      "message": "Unexpected end of document",
      "locations": []
    }
  ]
}

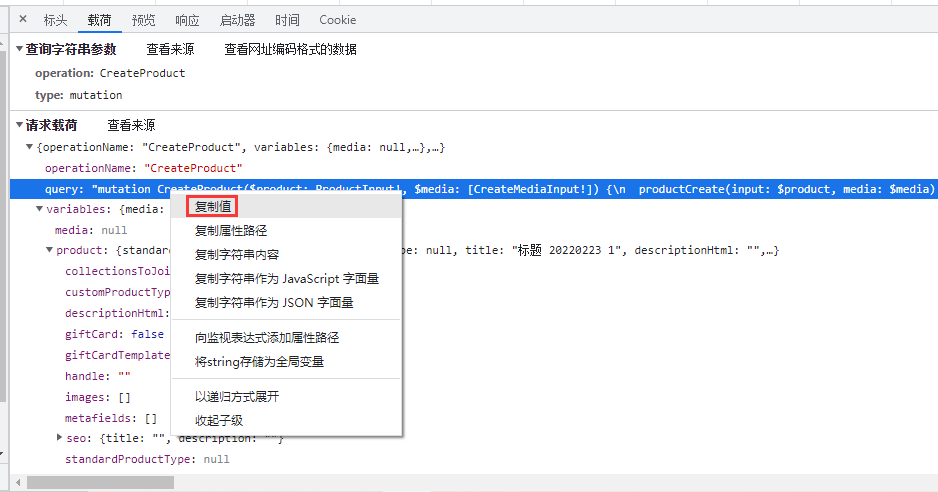

6、决定在 Shopify 后台 手动添加一件产品，查看网络请求，其是请求的 GraphQL API，参考其请求参数，复制至 Altair 的请求中。点击选择 query，然后右键复制值。如图6

7、粘贴至 Altair 的查询中。如图7

mutation CreateProduct($product: ProductInput!, $media: [CreateMediaInput!]) {
  productCreate(input: $product, media: $media) {
    product {
      id
      title
      handle
      descriptionHtml
      resourceAlerts {
        content
        dismissed
        dismissibleHandle
        severity
        title
        actions {
          primary
          title
          url
          __typename
        }
        __typename
      }
      firstVariant: variants(first: 1) {
        edges {
          node {
            id
            requiresShipping
            weight
            weightUnit
            barcode
            sku
            inventoryPolicy
            fulfillmentService {
              id
              __typename
            }
            inventoryItem {
              id
              unitCost {
                amount
                __typename
              }
              countryCodeOfOrigin
              provinceCodeOfOrigin
              harmonizedSystemCode
              tracked
              __typename
            }
            ...PricingCardVariant
            __typename
          }
          __typename
        }
        __typename
      }
      ...SEOCardProduct
      ...StandardProductType
      ...CustomProductType
      __typename
    }
    userErrors {
      field
      message
      __typename
    }
    __typename
  }
}

fragment PricingCardVariant on ProductVariant {
  id
  price
  compareAtPrice
  taxable
  taxCode
  presentmentPrices(first: 2) {
    edges {
      node {
        price {
          amount
          __typename
        }
        __typename
      }
      __typename
    }
    __typename
  }
  showUnitPrice
  unitPriceMeasurement {
    quantityValue
    quantityUnit
    referenceValue
    referenceUnit
    __typename
  }
  __typename
}

fragment SEOCardProduct on Product {
  seo {
    title
    description
    __typename
  }
  __typename
}

fragment StandardProductType on Product {
  standardProductType {
    productTaxonomyNodeId
    parentProductTaxonomyNodeId
    name
    fullName
    isLeaf
    isRoot
    __typename
  }
  inferredProductMetadata {
    standardProductType {
      productTaxonomyNodeId
      parentProductTaxonomyNodeId
      name
      fullName
      isLeaf
      isRoot
      __typename
    }
    __typename
  }
  __typename
}

fragment CustomProductType on Product {
  customProductType
  __typename
}

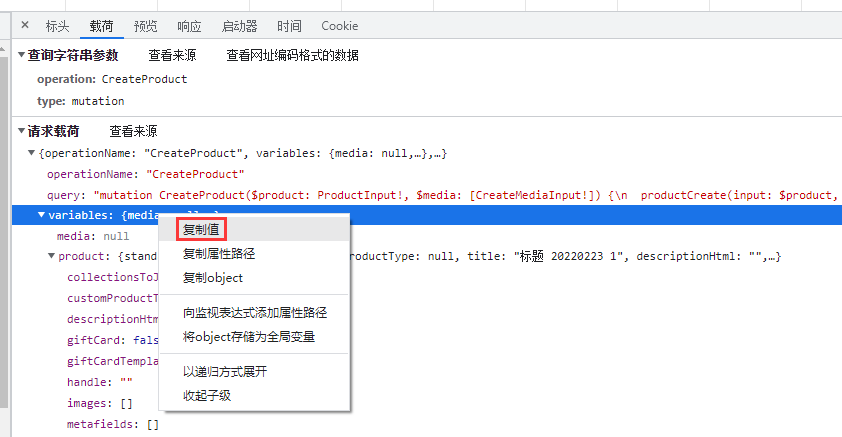

8、点击选择 variables，然后右键复制值。如图8

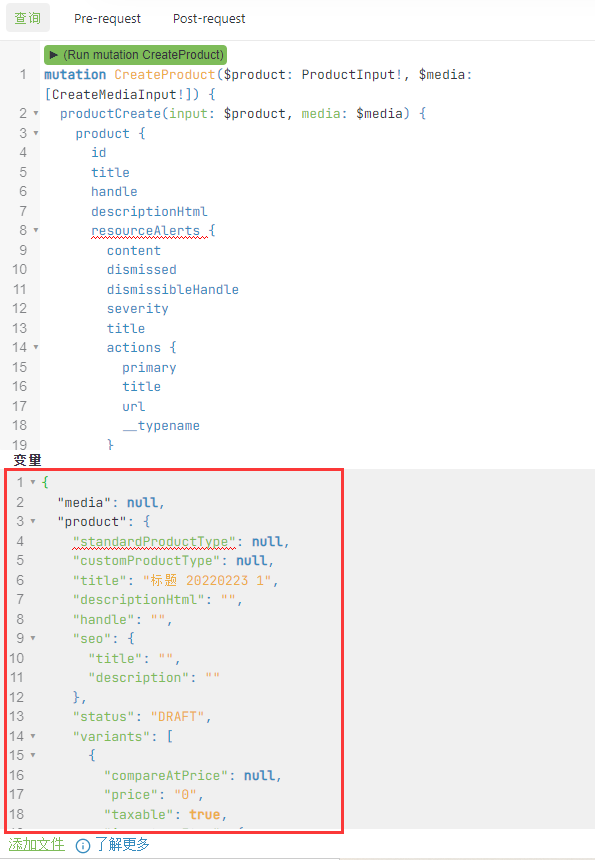

9、粘贴至 Altair 的变量中。如图9

{
  "media": null,
  "product": {
    "standardProductType": null,
    "customProductType": null,
    "title": "标题 20220223 1",
    "descriptionHtml": "",
    "handle": "",
    "seo": {
      "title": "",
      "description": ""
    },
    "status": "DRAFT",
    "variants": [
      {
        "compareAtPrice": null,
        "price": "0",
        "taxable": true,
        "inventoryItem": {
          "cost": null,
          "countryCodeOfOrigin": null,
          "provinceCodeOfOrigin": null,
          "harmonizedSystemCode": null,
          "tracked": true
        },
        "requiresShipping": true,
        "weight": 0,
        "weightUnit": "KILOGRAMS",
        "fulfillmentServiceId": "gid://shopify/FulfillmentService/manual",
        "sku": "",
        "barcode": "",
        "inventoryPolicy": "DENY",
        "showUnitPrice": false,
        "unitPriceMeasurement": {
          "quantityValue": 0,
          "quantityUnit": null,
          "referenceValue": 0,
          "referenceUnit": null
        },
        "taxCode": null,
        "inventoryQuantities": [
          {
            "availableQuantity": 0,
            "locationId": "gid://shopify/Location/66268496078"
          }
        ],
        "options": [
          "Default Title"
        ]
      }
    ],
    "images": [],
    "tags": [],
    "templateSuffix": "",
    "giftCardTemplateSuffix": "",
    "vendor": "",
    "giftCard": false,
    "collectionsToJoin": [],
    "workflow": "product-details-create",
    "metafields": []
  }
}

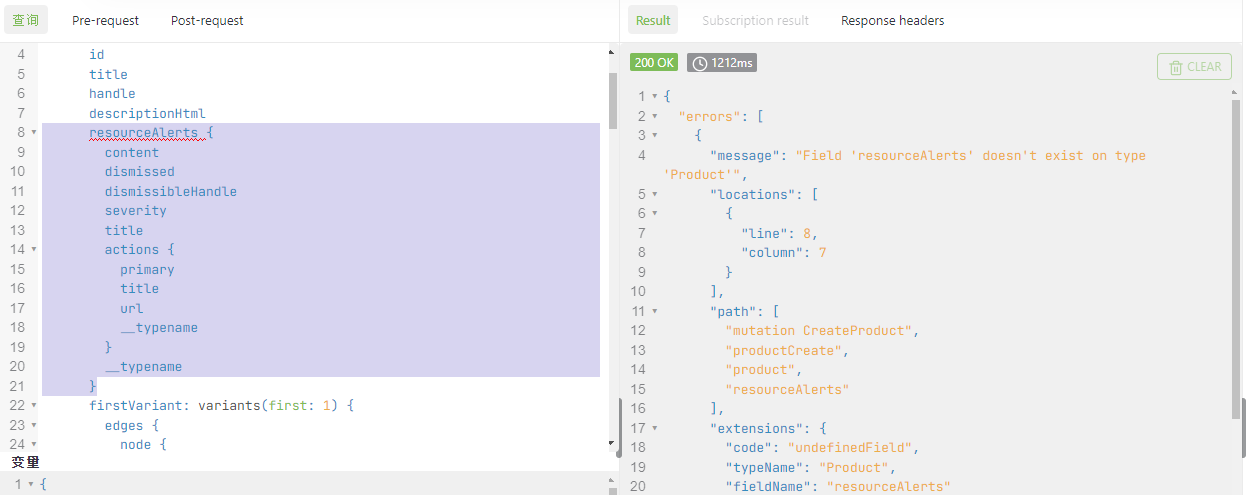

10、发送请求报错，响应：Field ‘resourceAlerts’ doesn’t exist on type ‘Product’。在查询中依次删除：resourceAlerts、showUnitPrice、unitPriceMeasurement、standardProductType。如图10

{
  "errors": [
    {
      "message": "Field 'resourceAlerts' doesn't exist on type 'Product'",
      "locations": [
        {
          "line": 8,
          "column": 7
        }
      ],
      "path": [
        "mutation CreateProduct",
        "productCreate",
        "product",
        "resourceAlerts"
      ],
      "extensions": {
        "code": "undefinedField",
        "typeName": "Product",
        "fieldName": "resourceAlerts"
      }
    },
    {
      "message": "Field 'showUnitPrice' doesn't exist on type 'ProductVariant'",
      "locations": [
        {
          "line": 88,
          "column": 3
        }
      ],
      "path": [
        "fragment PricingCardVariant",
        "showUnitPrice"
      ],
      "extensions": {
        "code": "undefinedField",
        "typeName": "ProductVariant",
        "fieldName": "showUnitPrice"
      }
    },
    {
      "message": "Field 'unitPriceMeasurement' doesn't exist on type 'ProductVariant'",
      "locations": [
        {
          "line": 89,
          "column": 3
        }
      ],
      "path": [
        "fragment PricingCardVariant",
        "unitPriceMeasurement"
      ],
      "extensions": {
        "code": "undefinedField",
        "typeName": "ProductVariant",
        "fieldName": "unitPriceMeasurement"
      }
    },
    {
      "message": "Field 'standardProductType' doesn't exist on type 'Product'",
      "locations": [
        {
          "line": 109,
          "column": 3
        }
      ],
      "path": [
        "fragment StandardProductType",
        "standardProductType"
      ],
      "extensions": {
        "code": "undefinedField",
        "typeName": "Product",
        "fieldName": "standardProductType"
      }
    },
    {
      "message": "Field 'inferredProductMetadata' doesn't exist on type 'Product'",
      "locations": [
        {
          "line": 118,
          "column": 3
        }
      ],
      "path": [
        "fragment StandardProductType",
        "inferredProductMetadata"
      ],
      "extensions": {
        "code": "undefinedField",
        "typeName": "Product",
        "fieldName": "inferredProductMetadata"
      }
    }
  ]
}

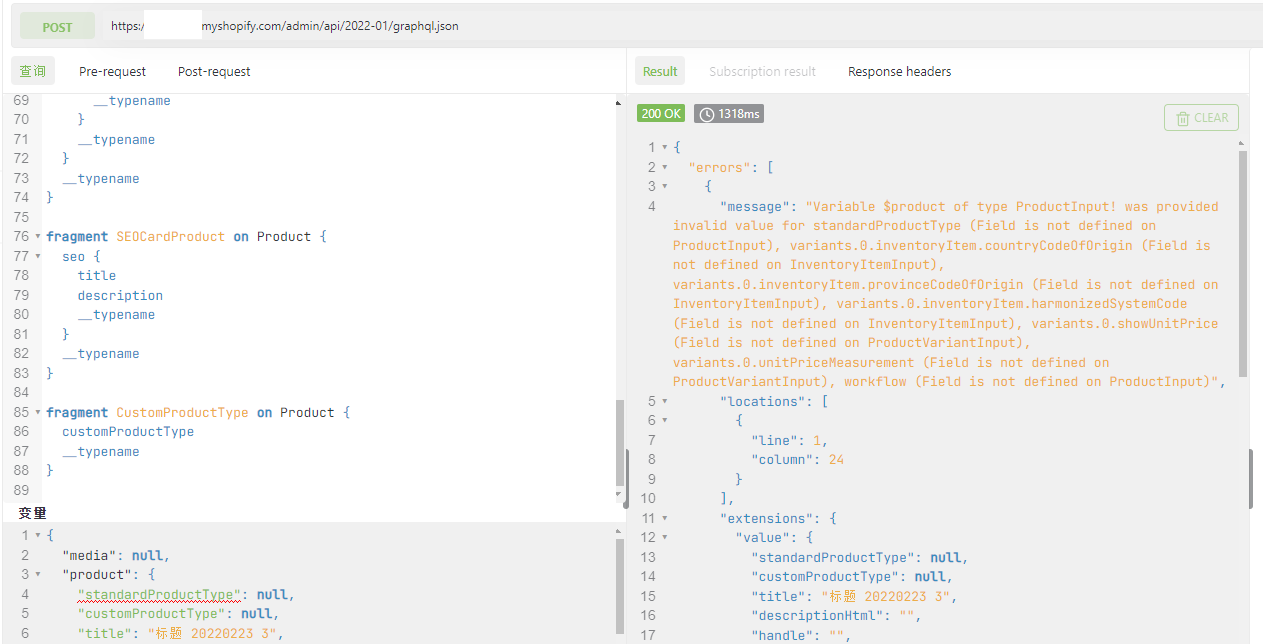

11、发送请求报错，响应：Variable $product of type ProductInput! was provided invalid value for standardProductType (Field is not defined on ProductInput), variants.0.inventoryItem.countryCodeOfOrigin (Field is not defined on InventoryItemInput), variants.0.inventoryItem.provinceCodeOfOrigin (Field is not defined on InventoryItemInput), variants.0.inventoryItem.harmonizedSystemCode (Field is not defined on InventoryItemInput), variants.0.showUnitPrice (Field is not defined on ProductVariantInput), variants.0.unitPriceMeasurement (Field is not defined on ProductVariantInput), workflow (Field is not defined on ProductInput)。在变量中依次删除：standardProductType、variants.0.inventoryItem.countryCodeOfOrigin、variants.0.inventoryItem.provinceCodeOfOrigin、variants.0.inventoryItem.harmonizedSystemCode、variants.0.showUnitPrice、variants.0.unitPriceMeasurement、workflow。如图11

{
  "errors": [
    {
      "message": "Variable $product of type ProductInput! was provided invalid value for standardProductType (Field is not defined on ProductInput), variants.0.inventoryItem.countryCodeOfOrigin (Field is not defined on InventoryItemInput), variants.0.inventoryItem.provinceCodeOfOrigin (Field is not defined on InventoryItemInput), variants.0.inventoryItem.harmonizedSystemCode (Field is not defined on InventoryItemInput), variants.0.showUnitPrice (Field is not defined on ProductVariantInput), variants.0.unitPriceMeasurement (Field is not defined on ProductVariantInput), workflow (Field is not defined on ProductInput)",
      "locations": [
        {
          "line": 1,
          "column": 24
        }
      ],
      "extensions": {
        "value": {
          "standardProductType": null,
          "customProductType": null,
          "title": "标题 20220223 3",
          "descriptionHtml": "",
          "handle": "",
          "seo": {
            "title": "",
            "description": ""
          },
          "status": "DRAFT",
          "variants": [
            {
              "compareAtPrice": null,
              "price": "0",
              "taxable": true,
              "inventoryItem": {
                "cost": null,
                "countryCodeOfOrigin": null,
                "provinceCodeOfOrigin": null,
                "harmonizedSystemCode": null,
                "tracked": true
              },
              "requiresShipping": true,
              "weight": 0,
              "weightUnit": "KILOGRAMS",
              "fulfillmentServiceId": "gid://shopify/FulfillmentService/manual",
              "sku": "",
              "barcode": "",
              "inventoryPolicy": "DENY",
              "showUnitPrice": false,
              "unitPriceMeasurement": {
                "quantityValue": 0,
                "quantityUnit": null,
                "referenceValue": 0,
                "referenceUnit": null
              },
              "taxCode": null,
              "inventoryQuantities": [
                {
                  "availableQuantity": 0,
                  "locationId": "gid://shopify/Location/66268496078"
                }
              ],
              "options": [
                "Default Title"
              ]
            }
          ],
          "images": [],
          "tags": [],
          "templateSuffix": "",
          "giftCardTemplateSuffix": "",
          "vendor": "",
          "giftCard": false,
          "collectionsToJoin": [],
          "workflow": "product-details-create",
          "metafields": []
        },
        "problems": [
          {
            "path": [
              "standardProductType"
            ],
            "explanation": "Field is not defined on ProductInput"
          },
          {
            "path": [
              "variants",
              0,
              "inventoryItem",
              "countryCodeOfOrigin"
            ],
            "explanation": "Field is not defined on InventoryItemInput"
          },
          {
            "path": [
              "variants",
              0,
              "inventoryItem",
              "provinceCodeOfOrigin"
            ],
            "explanation": "Field is not defined on InventoryItemInput"
          },
          {
            "path": [
              "variants",
              0,
              "inventoryItem",
              "harmonizedSystemCode"
            ],
            "explanation": "Field is not defined on InventoryItemInput"
          },
          {
            "path": [
              "variants",
              0,
              "showUnitPrice"
            ],
            "explanation": "Field is not defined on ProductVariantInput"
          },
          {
            "path": [
              "variants",
              0,
              "unitPriceMeasurement"
            ],
            "explanation": "Field is not defined on ProductVariantInput"
          },
          {
            "path": [
              "workflow"
            ],
            "explanation": "Field is not defined on ProductInput"
          }
        ]
      }
    }
  ]
}

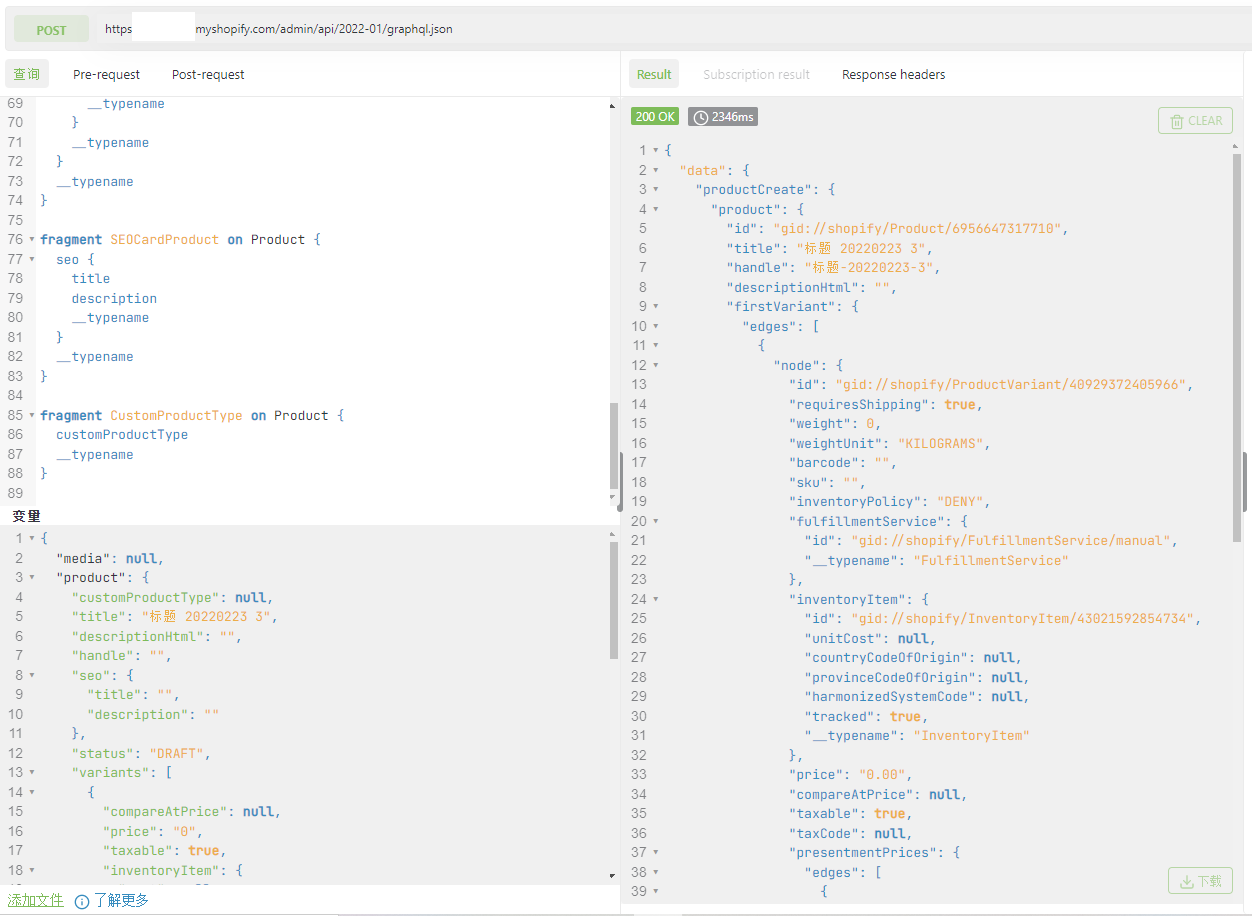

12、创建产品成功。响应 200。如图12

请求查询：

mutation CreateProduct($product: ProductInput!, $media: [CreateMediaInput!]) {
  productCreate(input: $product, media: $media) {
    product {
      id
      title
      handle
      descriptionHtml
      firstVariant: variants(first: 1) {
        edges {
          node {
            id
            requiresShipping
            weight
            weightUnit
            barcode
            sku
            inventoryPolicy
            fulfillmentService {
              id
              __typename
            }
            inventoryItem {
              id
              unitCost {
                amount
                __typename
              }
              countryCodeOfOrigin
              provinceCodeOfOrigin
              harmonizedSystemCode
              tracked
              __typename
            }
            ...PricingCardVariant
            __typename
          }
          __typename
        }
        __typename
      }
      ...SEOCardProduct
      ...CustomProductType
      __typename
    }
    userErrors {
      field
      message
      __typename
    }
    __typename
  }
}

fragment PricingCardVariant on ProductVariant {
  id
  price
  compareAtPrice
  taxable
  taxCode
  presentmentPrices(first: 2) {
    edges {
      node {
        price {
          amount
          __typename
        }
        __typename
      }
      __typename
    }
    __typename
  }
  __typename
}

fragment SEOCardProduct on Product {
  seo {
    title
    description
    __typename
  }
  __typename
}

fragment CustomProductType on Product {
  customProductType
  __typename
}

请求变量：

{
  "media": null,
  "product": {
    "customProductType": null,
    "title": "标题 20220223 3",
    "descriptionHtml": "",
    "handle": "",
    "seo": {
      "title": "",
      "description": ""
    },
    "status": "DRAFT",
    "variants": [
      {
        "compareAtPrice": null,
        "price": "0",
        "taxable": true,
        "inventoryItem": {
          "cost": null,
          "tracked": true
        },
        "requiresShipping": true,
        "weight": 0,
        "weightUnit": "KILOGRAMS",
        "fulfillmentServiceId": "gid://shopify/FulfillmentService/manual",
        "sku": "",
        "barcode": "",
        "inventoryPolicy": "DENY",
        "taxCode": null,
        "inventoryQuantities": [
          {
            "availableQuantity": 0,
            "locationId": "gid://shopify/Location/66268496078"
          }
        ],
        "options": [
          "Default Title"
        ]
      }
    ],
    "images": [],
    "tags": [],
    "templateSuffix": "",
    "giftCardTemplateSuffix": "",
    "vendor": "",
    "giftCard": false,
    "collectionsToJoin": [],
    "metafields": []
  }
}

响应：

{
  "data": {
    "productCreate": {
      "product": {
        "id": "gid://shopify/Product/6956647317710",
        "title": "标题 20220223 3",
        "handle": "标题-20220223-3",
        "descriptionHtml": "",
        "firstVariant": {
          "edges": [
            {
              "node": {
                "id": "gid://shopify/ProductVariant/40929372405966",
                "requiresShipping": true,
                "weight": 0,
                "weightUnit": "KILOGRAMS",
                "barcode": "",
                "sku": "",
                "inventoryPolicy": "DENY",
                "fulfillmentService": {
                  "id": "gid://shopify/FulfillmentService/manual",
                  "__typename": "FulfillmentService"
                },
                "inventoryItem": {
                  "id": "gid://shopify/InventoryItem/43021592854734",
                  "unitCost": null,
                  "countryCodeOfOrigin": null,
                  "provinceCodeOfOrigin": null,
                  "harmonizedSystemCode": null,
                  "tracked": true,
                  "__typename": "InventoryItem"
                },
                "price": "0.00",
                "compareAtPrice": null,
                "taxable": true,
                "taxCode": null,
                "presentmentPrices": {
                  "edges": [
                    {
                      "node": {
                        "price": {
                          "amount": "0.0",
                          "__typename": "MoneyV2"
                        },
                        "__typename": "ProductVariantPricePair"
                      },
                      "__typename": "ProductVariantPricePairEdge"
                    }
                  ],
                  "__typename": "ProductVariantPricePairConnection"
                },
                "__typename": "ProductVariant"
              },
              "__typename": "ProductVariantEdge"
            }
          ],
          "__typename": "ProductVariantConnection"
        },
        "seo": {
          "title": null,
          "description": null,
          "__typename": "SEO"
        },
        "__typename": "Product",
        "customProductType": null
      },
      "userErrors": [],
      "__typename": "ProductCreatePayload"
    }
  },
  "extensions": {
    "cost": {
      "requestedQueryCost": 20,
      "actualQueryCost": 19,
      "throttleStatus": {
        "maximumAvailable": 1000,
        "currentlyAvailable": 981,
        "restoreRate": 50
      }
    }
  }
}

13、为何 Shopify 后台调用 GraphQL API 的请求参数与最新版本的 GraphQL API 不相匹配，初步怀疑可能是版本不一致所导致。Shopify 后台调用 GraphQL API 的版本不是最新版本。现在最新版本为：2022-01。而后台调用的版本为：2020-07。如图13

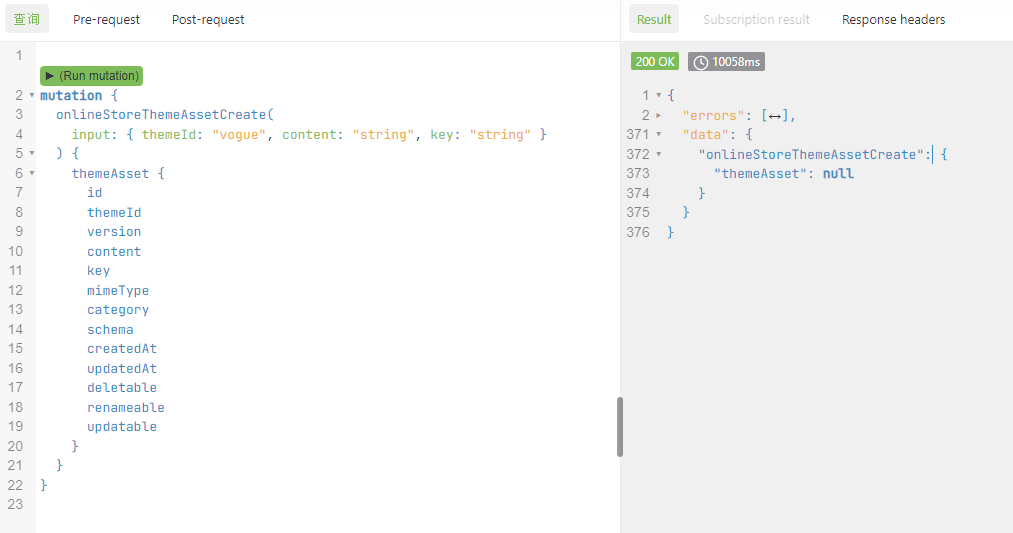

14、当请求响应报错时的结构。如图14

mutation {
  onlineStoreThemeAssetCreate(
    input: { themeId: "vogue", content: "string", key: "string" }
  ) {
    themeAsset {
      id
      themeId
      version
      content
      key
      mimeType
      category
      schema
      createdAt
      updatedAt
      deletable
      renameable
      updatable
    }
  }
}

{
  "errors": [
    {
      "debugMessage": "Undefined index: key",
      "message": "Internal server error",
      "extensions": {
        "category": "internal"
      },
      "locations": [
        {
          "line": 5,
          "column": 5
        }
      ],
      "path": [
        "onlineStoreThemeAssetCreate",
        "themeAsset"
      ],
      "trace": [
        {
          "file": "E:\\wwwroot\\object\\Modules\\ThemeStore\\Resolver\\OnlineStoreTheme\\ThemeAssetResolver.php",
          "line": 15,
          "call": "Illuminate\\Foundation\\Bootstrap\\HandleExceptions::handleError(8, 'Undefined index: key', 'E:\\wwwroot\\object\\Modules\\ThemeStore\\Resolver\\OnlineStoreTheme\\ThemeAssetResolver.php', 15, array(5))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Directives\\FieldDirective.php",
          "line": 52,
          "call": "Modules\\ThemeStore\\Resolver\\OnlineStoreTheme\\ThemeAssetResolver::__invoke(array(1), array(1), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Directives\\RenameArgsDirective.php",
          "line": 33,
          "call": "Nuwave\\Lighthouse\\Schema\\Directives\\FieldDirective::Nuwave\\Lighthouse\\Schema\\Directives\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Directives\\SpreadDirective.php",
          "line": 36,
          "call": "Nuwave\\Lighthouse\\Schema\\Directives\\RenameArgsDirective::Nuwave\\Lighthouse\\Schema\\Directives\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Directives\\ArgTraversalDirective.php",
          "line": 29,
          "call": "Nuwave\\Lighthouse\\Schema\\Directives\\SpreadDirective::Nuwave\\Lighthouse\\Schema\\Directives\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Validation\\ValidateDirective.php",
          "line": 53,
          "call": "Nuwave\\Lighthouse\\Schema\\Directives\\ArgTraversalDirective::Nuwave\\Lighthouse\\Schema\\Directives\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Directives\\ArgTraversalDirective.php",
          "line": 29,
          "call": "Nuwave\\Lighthouse\\Validation\\ValidateDirective::Nuwave\\Lighthouse\\Validation\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Directives\\TrimDirective.php",
          "line": 56,
          "call": "Nuwave\\Lighthouse\\Schema\\Directives\\ArgTraversalDirective::Nuwave\\Lighthouse\\Schema\\Directives\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Schema\\Factories\\FieldFactory.php",
          "line": 99,
          "call": "Nuwave\\Lighthouse\\Schema\\Directives\\TrimDirective::Nuwave\\Lighthouse\\Schema\\Directives\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 623,
          "call": "Nuwave\\Lighthouse\\Schema\\Factories\\FieldFactory::Nuwave\\Lighthouse\\Schema\\Factories\\{closure}(array(1), array(0), instance of Nuwave\\Lighthouse\\Schema\\Context, instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 550,
          "call": "GraphQL\\Executor\\ReferenceExecutor::resolveFieldValueOrError(instance of GraphQL\\Type\\Definition\\FieldDefinition, instance of GraphQL\\Language\\AST\\FieldNode, instance of Closure, array(1), instance of GraphQL\\Type\\Definition\\ResolveInfo)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 1195,
          "call": "GraphQL\\Executor\\ReferenceExecutor::resolveField(GraphQLType: OnlineStoreThemeAssetCreatePayload, array(1), instance of ArrayObject(1), array(2))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 1145,
          "call": "GraphQL\\Executor\\ReferenceExecutor::executeFields(GraphQLType: OnlineStoreThemeAssetCreatePayload, array(1), array(1), instance of ArrayObject(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 1106,
          "call": "GraphQL\\Executor\\ReferenceExecutor::collectAndExecuteSubfields(GraphQLType: OnlineStoreThemeAssetCreatePayload, instance of ArrayObject(1), array(1), array(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 793,
          "call": "GraphQL\\Executor\\ReferenceExecutor::completeObjectValue(GraphQLType: OnlineStoreThemeAssetCreatePayload, instance of ArrayObject(1), instance of GraphQL\\Type\\Definition\\ResolveInfo, array(1), array(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 654,
          "call": "GraphQL\\Executor\\ReferenceExecutor::completeValue(GraphQLType: OnlineStoreThemeAssetCreatePayload, instance of ArrayObject(1), instance of GraphQL\\Type\\Definition\\ResolveInfo, array(1), array(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 557,
          "call": "GraphQL\\Executor\\ReferenceExecutor::completeValueCatchingError(GraphQLType: OnlineStoreThemeAssetCreatePayload, instance of ArrayObject(1), instance of GraphQL\\Type\\Definition\\ResolveInfo, array(1), array(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 474,
          "call": "GraphQL\\Executor\\ReferenceExecutor::resolveField(GraphQLType: Mutation, null, instance of ArrayObject(1), array(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 857,
          "call": "GraphQL\\Executor\\ReferenceExecutor::GraphQL\\Executor\\{closure}(array(0), 'onlineStoreThemeAssetCreate')"
        },
        {
          "call": "GraphQL\\Executor\\ReferenceExecutor::GraphQL\\Executor\\{closure}(array(0), 'onlineStoreThemeAssetCreate')"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 859,
          "function": "array_reduce(array(1), instance of Closure, array(0))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 490,
          "call": "GraphQL\\Executor\\ReferenceExecutor::promiseReduce(array(1), instance of Closure, array(0))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 263,
          "call": "GraphQL\\Executor\\ReferenceExecutor::executeFieldsSerially(GraphQLType: Mutation, null, array(0), instance of ArrayObject(1))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\ReferenceExecutor.php",
          "line": 215,
          "call": "GraphQL\\Executor\\ReferenceExecutor::executeOperation(instance of GraphQL\\Language\\AST\\OperationDefinitionNode, null)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\Executor\\Executor.php",
          "line": 156,
          "call": "GraphQL\\Executor\\ReferenceExecutor::doExecute()"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\GraphQL.php",
          "line": 162,
          "call": "GraphQL\\Executor\\Executor::promiseToExecute(instance of GraphQL\\Executor\\Promise\\Adapter\\SyncPromiseAdapter, instance of GraphQL\\Type\\Schema, instance of GraphQL\\Language\\AST\\DocumentNode, null, instance of Nuwave\\Lighthouse\\Schema\\Context, array(0), null, null)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\webonyx\\graphql-php\\src\\GraphQL.php",
          "line": 94,
          "call": "GraphQL\\GraphQL::promiseToExecute(instance of GraphQL\\Executor\\Promise\\Adapter\\SyncPromiseAdapter, instance of GraphQL\\Type\\Schema, instance of GraphQL\\Language\\AST\\DocumentNode, null, instance of Nuwave\\Lighthouse\\Schema\\Context, array(0), null, null, array(29))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\GraphQL.php",
          "line": 268,
          "call": "GraphQL\\GraphQL::executeQuery(instance of GraphQL\\Type\\Schema, instance of GraphQL\\Language\\AST\\DocumentNode, null, instance of Nuwave\\Lighthouse\\Schema\\Context, array(0), null, null, array(29))"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\GraphQL.php",
          "line": 203,
          "call": "Nuwave\\Lighthouse\\GraphQL::executeParsedQuery(instance of GraphQL\\Language\\AST\\DocumentNode, instance of Nuwave\\Lighthouse\\Schema\\Context, array(0), null, null)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\GraphQL.php",
          "line": 162,
          "call": "Nuwave\\Lighthouse\\GraphQL::parseAndExecuteQuery('mutation {\n  onlineStoreThemeAssetCreate(\n    input: { themeId: \"vogue\", content: \"string\", key: \"string\" }\n  ) {\n    themeAsset {\n      id\n      themeId\n      version\n      content\n      key\n      mimeType\n      category\n      schema\n      createdAt\n      updatedAt\n      deletable\n      renameable\n      updatable\n    }\n  }\n}', instance of Nuwave\\Lighthouse\\Schema\\Context, array(0), null, null)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\GraphQL.php",
          "line": 121,
          "call": "Nuwave\\Lighthouse\\GraphQL::executeOperation(instance of GraphQL\\Server\\OperationParams, instance of Nuwave\\Lighthouse\\Schema\\Context)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Support\\Utils.php",
          "line": 99,
          "call": "Nuwave\\Lighthouse\\GraphQL::Nuwave\\Lighthouse\\{closure}(instance of GraphQL\\Server\\OperationParams)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\GraphQL.php",
          "line": 120,
          "call": "Nuwave\\Lighthouse\\Support\\Utils::applyEach(instance of Closure, instance of GraphQL\\Server\\OperationParams)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Support\\Http\\Controllers\\GraphQLController.php",
          "line": 32,
          "call": "Nuwave\\Lighthouse\\GraphQL::executeOperationOrOperations(instance of GraphQL\\Server\\OperationParams, instance of Nuwave\\Lighthouse\\Schema\\Context)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\ControllerDispatcher.php",
          "line": 48,
          "call": "Nuwave\\Lighthouse\\Support\\Http\\Controllers\\GraphQLController::__invoke(instance of Illuminate\\Http\\Request, instance of Nuwave\\Lighthouse\\GraphQL, instance of Illuminate\\Events\\Dispatcher, instance of Laragraph\\Utils\\RequestParser, instance of Nuwave\\Lighthouse\\Execution\\SingleResponse, instance of Nuwave\\Lighthouse\\Execution\\ContextFactory)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Route.php",
          "line": 219,
          "call": "Illuminate\\Routing\\ControllerDispatcher::dispatch(instance of Illuminate\\Routing\\Route, instance of Nuwave\\Lighthouse\\Support\\Http\\Controllers\\GraphQLController, '__invoke')"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Route.php",
          "line": 176,
          "call": "Illuminate\\Routing\\Route::runController()"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Router.php",
          "line": 681,
          "call": "Illuminate\\Routing\\Route::run()"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 130,
          "call": "Illuminate\\Routing\\Router::Illuminate\\Routing\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Support\\Http\\Middleware\\AttemptAuthentication.php",
          "line": 34,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Nuwave\\Lighthouse\\Support\\Http\\Middleware\\AttemptAuthentication::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\nuwave\\lighthouse\\src\\Support\\Http\\Middleware\\AcceptJson.php",
          "line": 27,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Nuwave\\Lighthouse\\Support\\Http\\Middleware\\AcceptJson::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 105,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Router.php",
          "line": 683,
          "call": "Illuminate\\Pipeline\\Pipeline::then(instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Router.php",
          "line": 658,
          "call": "Illuminate\\Routing\\Router::runRouteWithinStack(instance of Illuminate\\Routing\\Route, instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Router.php",
          "line": 624,
          "call": "Illuminate\\Routing\\Router::runRoute(instance of Illuminate\\Http\\Request, instance of Illuminate\\Routing\\Route)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Routing\\Router.php",
          "line": 613,
          "call": "Illuminate\\Routing\\Router::dispatchToRoute(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Kernel.php",
          "line": 170,
          "call": "Illuminate\\Routing\\Router::dispatch(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 130,
          "call": "Illuminate\\Foundation\\Http\\Kernel::Illuminate\\Foundation\\Http\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\barryvdh\\laravel-debugbar\\src\\Middleware\\InjectDebugbar.php",
          "line": 67,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Barryvdh\\Debugbar\\Middleware\\InjectDebugbar::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\app\\Http\\Middleware\\ChangeAppUrlMiddleware.php",
          "line": 23,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "App\\Http\\Middleware\\ChangeAppUrlMiddleware::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Middleware\\TransformsRequest.php",
          "line": 21,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Illuminate\\Foundation\\Http\\Middleware\\TransformsRequest::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Middleware\\TransformsRequest.php",
          "line": 21,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Illuminate\\Foundation\\Http\\Middleware\\TransformsRequest::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Middleware\\ValidatePostSize.php",
          "line": 27,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Illuminate\\Foundation\\Http\\Middleware\\ValidatePostSize::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Middleware\\CheckForMaintenanceMode.php",
          "line": 63,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Illuminate\\Foundation\\Http\\Middleware\\CheckForMaintenanceMode::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\fideloper\\proxy\\src\\TrustProxies.php",
          "line": 57,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Fideloper\\Proxy\\TrustProxies::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\dingo\\api\\src\\Http\\Middleware\\Request.php",
          "line": 111,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 171,
          "call": "Dingo\\Api\\Http\\Middleware\\Request::handle(instance of Illuminate\\Http\\Request, instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Pipeline\\Pipeline.php",
          "line": 105,
          "call": "Illuminate\\Pipeline\\Pipeline::Illuminate\\Pipeline\\{closure}(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Kernel.php",
          "line": 145,
          "call": "Illuminate\\Pipeline\\Pipeline::then(instance of Closure)"
        },
        {
          "file": "E:\\wwwroot\\object\\vendor\\laravel\\framework\\src\\Illuminate\\Foundation\\Http\\Kernel.php",
          "line": 110,
          "call": "Illuminate\\Foundation\\Http\\Kernel::sendRequestThroughRouter(instance of Illuminate\\Http\\Request)"
        },
        {
          "file": "E:\\wwwroot\\object\\public\\index.php",
          "line": 57,
          "call": "Illuminate\\Foundation\\Http\\Kernel::handle(instance of Illuminate\\Http\\Request)"
        }
      ]
    }
  ],
  "data": {
    "onlineStoreThemeAssetCreate": {
      "themeAsset": null
    }
  }
}

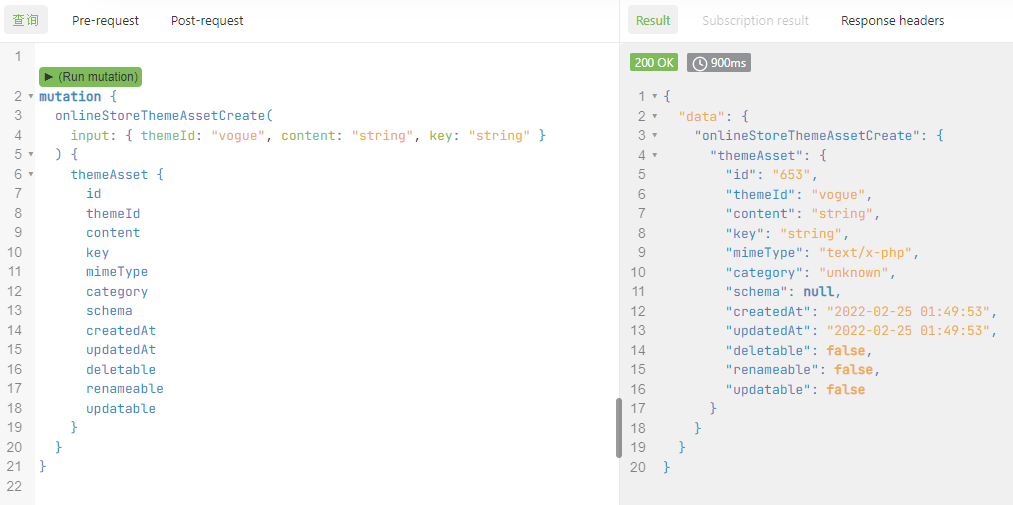

15、当请求响应成功时的结构。如图15

mutation {
  onlineStoreThemeAssetCreate(
    input: { themeId: "vogue", content: "string", key: "string" }
  ) {
    themeAsset {
      id
      themeId
      content
      key
      mimeType
      category
      schema
      createdAt
      updatedAt
      deletable
      renameable
      updatable
    }
  }
}

{
  "data": {
    "onlineStoreThemeAssetCreate": {
      "themeAsset": {
        "id": "653",
        "themeId": "vogue",
        "content": "string",
        "key": "string",
        "mimeType": "text/x-php",
        "category": "unknown",
        "schema": null,
        "createdAt": "2022-02-25 01:49:53",
        "updatedAt": "2022-02-25 01:49:53",
        "deletable": false,
        "renameable": false,
        "updatable": false
      }
    }
  }
}
