在 Yii 2.0 中，Redis 的活动记录(Active Record)，基于 row 查看结构，与模型字段顺序不一致的排查分析

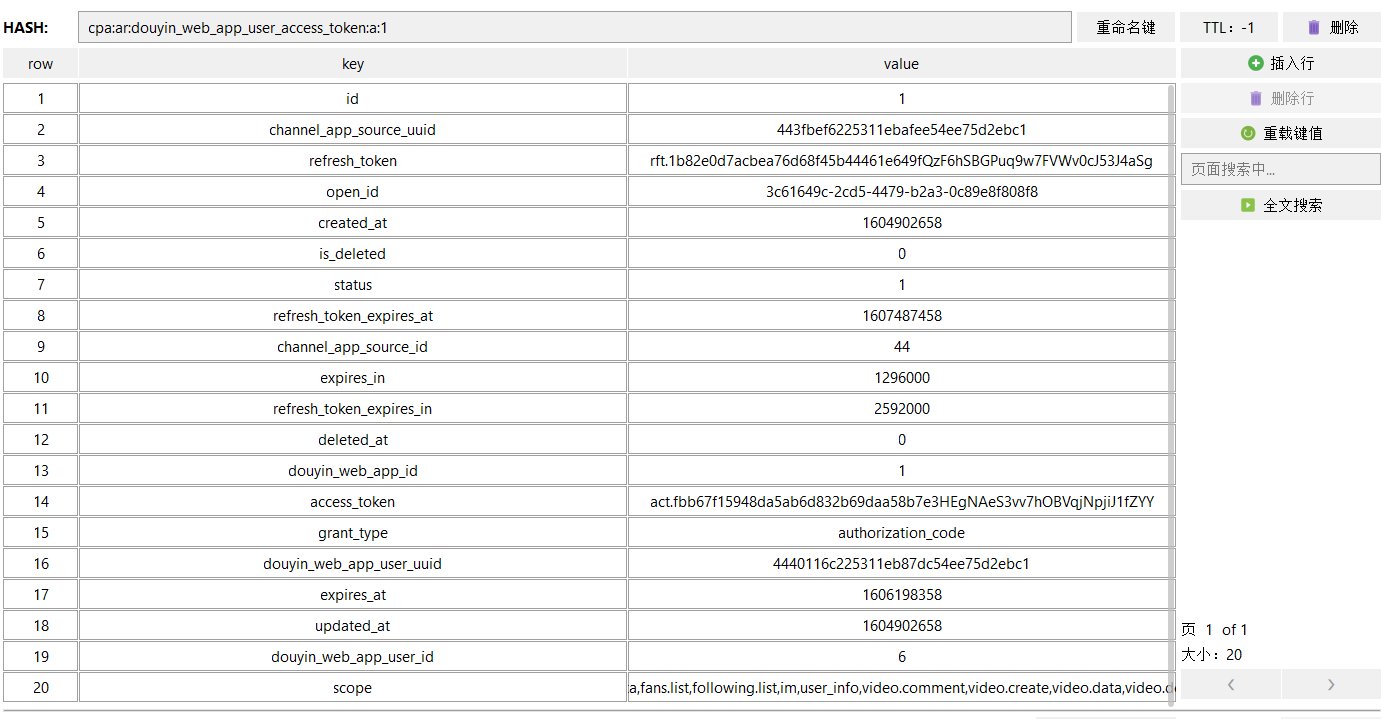

1、在 Yii 2.0 中，Redis 的活动记录(Active Record)，基于 row 查看结构，与模型字段顺序不一致。如图1
图1
2、查看 Redis 活动记录类，/common/models/redis/DouyinWebAppUserAccessToken.php
<?php
namespace common\models\redis;
use Yii;
use common\components\redis\ActiveRecord;
/**
* This is the model class for table "{{%douyin_web_app_user_access_token}}".
*
* @property integer $id
* @property integer $douyin_web_app_id 抖音的第三方服务平台网站应用ID
* @property integer $channel_app_source_id 渠道的应用的来源ID
* @property string $channel_app_source_uuid 渠道的应用的来源ID(UUID)
* @property integer $douyin_web_app_user_id 抖音的第三方服务平台网站应用的用户ID
* @property string $douyin_web_app_user_uuid 抖音的第三方服务平台网站应用的用户ID(UUID)
* @property string $grant_type 授权类型，authorization_code：第三方平台授权模式
* @property string $access_token 访问令牌
* @property integer $expires_in 访问令牌有效期，单位(秒)
* @property integer $expires_at 访问令牌有效截止时间
* @property string $refresh_token 刷新令牌
* @property integer $refresh_token_expires_in 刷新令牌有效期，单位(秒)
* @property integer $refresh_token_expires_at 刷新令牌有效截止时间
* @property string $scope 权限范围
* @property string $open_id 授权第三方用户的用户唯一标识
* @property integer $status 状态，0：禁用；1：启用
* @property integer $is_deleted 是否被删除，0：否；1：是
* @property integer $created_at 创建时间
* @property integer $updated_at 更新时间
* @property integer $deleted_at 删除时间
*/
class DouyinWebAppUserAccessToken extends ActiveRecord
{
/**
* @return array the list of attributes for this record
*/
public function attributes()
{
return ['id', 'douyin_web_app_id', 'channel_app_source_id', 'channel_app_source_uuid', 'douyin_web_app_user_id', 'douyin_web_app_user_uuid', 'grant_type', 'access_token','expires_in', 'expires_at', 'refresh_token', 'refresh_token_expires_in', 'refresh_token_expires_at', 'scope', 'open_id', 'status', 'is_deleted', 'created_at', 'updated_at', 'deleted_at'];
}
/**
* @inheritdoc
*/
public function rules()
{
return [
[['id', 'douyin_web_app_id', 'channel_app_source_id', 'channel_app_source_uuid', 'douyin_web_app_user_id', 'douyin_web_app_user_uuid', 'grant_type', 'access_token','expires_in', 'expires_at', 'refresh_token', 'refresh_token_expires_in', 'refresh_token_expires_at', 'scope', 'open_id', 'status', 'is_deleted', 'created_at', 'updated_at', 'deleted_at'], 'safe'],
];
}
/**
* @inheritdoc
*/
public function attributeLabels()
{
return [
'id' => Yii::t('model/redis/douyin-web-app-user-access-token', 'ID'),
'douyin_web_app_id' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Douyin Web App Id'),
'channel_app_source_id' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Channel App Source Id'),
'channel_app_source_uuid' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Channel App Source Uuid'),
'douyin_web_app_user_id' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Douyin Web App User Id'),
'douyin_web_app_user_uuid' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Douyin Web App User Uuid'),
'grant_type' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Grant Type'),
'access_token' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Access Token'),
'expires_in' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Expires In'),
'expires_at' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Expires At'),
'refresh_token' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Refresh Token'),
'refresh_token_expires_in' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Refresh Token Expires In'),
'refresh_token_expires_at' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Refresh Token Expires At'),
'scope' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Scope'),
'open_id' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Open Id'),
'status' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Status'),
'is_deleted' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Is Deleted'),
'created_at' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Created At'),
'updated_at' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Updated At'),
'deleted_at' => Yii::t('model/redis/douyin-web-app-user-access-token', 'Deleted At'),
];
}
/**
* {@inheritdoc}
* @return DouyinWebAppUserAccessTokenQuery the active query used by this AR class.
*/
public static function find()
{
return new DouyinWebAppUserAccessTokenQuery(get_called_class());
}
}
3、打印一下 Redis 的模型对象(更新前)，$redisDouyinWebAppUserAccessToken。
/**
* 基于 Access Token 插入/更新数据至抖音的第三方服务平台网站应用的用户的访问令牌(Redis)
* @param array $data 数据
* 格式如下：
*
* [
* 'douyinWebAppId' => 1, // 抖音的第三方服务平台网站应用ID
* 'channelAppSourceId' => 42, // 渠道的应用的来源ID
* 'channelAppSourceUuid' => '4dd4924a223d11ebb87054ee75d2ebc1', // 渠道的应用的来源ID(UUID)
* 'douyinWebAppUserId' => 4, // 抖音的第三方服务平台网站应用的用户ID
* 'douyinWebAppUserUuid' => '4dd5a770223d11eb988c54ee75d2ebc1', // 抖音的第三方服务平台网站应用的用户ID(UUID)
* 'grantType' => 'authorization_code', // 授权类型，authorization_code：第三方平台授权模式
* 'access_token' => 'act.fbb67f15948da5ab6d832b69daa58b7e3HEgNAeS3vv7hOBVqjNpjiJ1fZYY', // 访问令牌
* 'captcha' => '', //
* 'desc_url' => '', //
* 'description' => '', // 错误码描述
* 'error_code' => 0, // 错误码
* 'expires_in' => 1296000, // 访问令牌有效期，单位(秒)
* 'open_id' => '3c61649c-2cd5-4479-b2a3-0c89e8f808f8', // 授权第三方用户的用户唯一标识
* 'refresh_expires_in' => 2592000, // 刷新令牌有效期，单位(秒)
* 'refresh_token' => 'rft.1b82e0d7acbea76d68f45b44461e649fQzF6hSBGPuq9w7FVWv0cJ53J4aSg', // 刷新令牌
* 'scope' => 'fans.data,fans.list,following.list,im,user_info,video.comment,video.create,video.data,video.delete,video.list', // 权限范围
* ]
*
* @return array
* 格式如下：
*
* [
* 'status' => true, // 成功
* 'data' => [ // array
* 'channel_app_source_uuid' => 'ddb8822607ec11e9beda54ee75d2ebc1', // 渠道的应用的来源ID(UUID)
* ]
* ]
*
* [
* 'status' => false, // 失败
* 'code' => 214010, // 返回码
* 'message' => '', // 说明
* ]
*
* @throws ServerErrorHttpException
*/
public function saveModel($data)
{
/* 基于抖音的第三方服务平台网站应用的用户ID查找状态为启用的单个资源 */
$redisDouyinWebAppUserAccessToken = RedisDouyinWebAppUserAccessToken::find()->where(['douyin_web_app_user_id' => $data['douyinWebAppUserId']])->isDeletedNo()->enabled()->one();
if (!isset($redisDouyinWebAppUserAccessToken)) {
$redisDouyinWebAppUserAccessToken = new RedisDouyinWebAppUserAccessToken();
}
$time = time();
// 设置访问令牌的有效截止时间
$accessTokenExpireAt = $time + $data['expires_in'] - Yii::$app->params['accessToken']['timeOut'];
// 设置刷新令牌的有效截止时间
$refreshTokenExpireAt = $time + $data['refresh_expires_in'] - Yii::$app->params['refreshToken']['timeOut'];
$redisDouyinWebAppUserAccessToken->attributes = [
'douyin_web_app_id' => $data['douyinWebAppId'],
'channel_app_source_id' => $data['channelAppSourceId'],
'channel_app_source_uuid' => $data['channelAppSourceUuid'],
'douyin_web_app_user_id' => $data['douyinWebAppUserId'],
'douyin_web_app_user_uuid' => $data['douyinWebAppUserUuid'],
'grant_type' => $data['grantType'],
'access_token' => $data['access_token'],
'expires_in' => $data['expires_in'],
'expires_at' => $accessTokenExpireAt,
'refresh_token' => $data['refresh_token'],
'refresh_token_expires_in' => $data['refresh_expires_in'],
'refresh_token_expires_at' => $refreshTokenExpireAt,
'scope' => $data['scope'],
'open_id' => $data['open_id'],
'status' => RedisDouyinWebAppUserAccessToken::STATUS_ENABLED,
];
print_r($redisDouyinWebAppUserAccessToken);
exit;
$return = [];
if ($redisDouyinWebAppUserAccessToken->save()) {
$return = ['status' => true, 'data' => ['channel_app_source_uuid' => $data['channelAppSourceUuid']]];
} elseif ($redisDouyinWebAppUserAccessToken->hasErrors()) {
$firstError = '';
foreach ($redisDouyinWebAppUserAccessToken->getFirstErrors() as $message) {
$firstError = $message;
break;
}
$return = ['status' => false, 'code' => 215004, 'message' => Yii::t('error', Yii::t('error', Yii::t('error', '215004'), ['first_error' => $firstError]))];
} elseif (!$redisDouyinWebAppUserAccessToken->hasErrors()) {
throw new ServerErrorHttpException('Failed to insert/update the object (Douyin\'s third-party service platform website application user\'s access tokenn (Redis)) for unknown reason.');
}
return $return;
}
4、打印一下 Redis 的模型对象(更新前)，$redisDouyinWebAppUserAccessToken。结果如下：
frontend\models\redis\DouyinWebAppUserAccessToken Object
(
[_attributes:yii\db\BaseActiveRecord:private] => Array
(
[douyin_web_app_id] => 1
[channel_app_source_id] => 46
[channel_app_source_uuid] => 24a4a41a225a11eb8b4a54ee75d2ebc1
[douyin_web_app_user_id] => 7
[douyin_web_app_user_uuid] => 24a5cc46225a11ebb31154ee75d2ebc1
[grant_type] => authorization_code
[access_token] => act.fbb67f15948da5ab6d832b69daa58b7e3HEgNAeS3vv7hOBVqjNpjiJ1fZYY
[expires_in] => 1296000
[expires_at] => 1606201312
[refresh_token] => rft.1b82e0d7acbea76d68f45b44461e649fQzF6hSBGPuq9w7FVWv0cJ53J4aSg
[refresh_token_expires_in] => 2592000
[refresh_token_expires_at] => 1607490412
[scope] => fans.data,fans.list,following.list,im,user_info,video.comment,video.create,video.data,video.delete,video.list
[open_id] => 3c61649c-2cd5-4479-b2a3-0c89e8f808f8
[status] => 1
)
)
5、打印一下 Redis 的模型对象(更新后)，$redisDouyinWebAppUserAccessToken。
/**
* 基于 Access Token 插入/更新数据至抖音的第三方服务平台网站应用的用户的访问令牌(Redis)
* @param array $data 数据
* 格式如下：
*
* [
* 'douyinWebAppId' => 1, // 抖音的第三方服务平台网站应用ID
* 'channelAppSourceId' => 42, // 渠道的应用的来源ID
* 'channelAppSourceUuid' => '4dd4924a223d11ebb87054ee75d2ebc1', // 渠道的应用的来源ID(UUID)
* 'douyinWebAppUserId' => 4, // 抖音的第三方服务平台网站应用的用户ID
* 'douyinWebAppUserUuid' => '4dd5a770223d11eb988c54ee75d2ebc1', // 抖音的第三方服务平台网站应用的用户ID(UUID)
* 'grantType' => 'authorization_code', // 授权类型，authorization_code：第三方平台授权模式
* 'access_token' => 'act.fbb67f15948da5ab6d832b69daa58b7e3HEgNAeS3vv7hOBVqjNpjiJ1fZYY', // 访问令牌
* 'captcha' => '', //
* 'desc_url' => '', //
* 'description' => '', // 错误码描述
* 'error_code' => 0, // 错误码
* 'expires_in' => 1296000, // 访问令牌有效期，单位(秒)
* 'open_id' => '3c61649c-2cd5-4479-b2a3-0c89e8f808f8', // 授权第三方用户的用户唯一标识
* 'refresh_expires_in' => 2592000, // 刷新令牌有效期，单位(秒)
* 'refresh_token' => 'rft.1b82e0d7acbea76d68f45b44461e649fQzF6hSBGPuq9w7FVWv0cJ53J4aSg', // 刷新令牌
* 'scope' => 'fans.data,fans.list,following.list,im,user_info,video.comment,video.create,video.data,video.delete,video.list', // 权限范围
* ]
*
* @return array
* 格式如下：
*
* [
* 'status' => true, // 成功
* 'data' => [ // array
* 'channel_app_source_uuid' => 'ddb8822607ec11e9beda54ee75d2ebc1', // 渠道的应用的来源ID(UUID)
* ]
* ]
*
* [
* 'status' => false, // 失败
* 'code' => 214010, // 返回码
* 'message' => '', // 说明
* ]
*
* @throws ServerErrorHttpException
*/
public function saveModel($data)
{
/* 基于抖音的第三方服务平台网站应用的用户ID查找状态为启用的单个资源 */
$redisDouyinWebAppUserAccessToken = RedisDouyinWebAppUserAccessToken::find()->where(['douyin_web_app_user_id' => $data['douyinWebAppUserId']])->isDeletedNo()->enabled()->one();
if (!isset($redisDouyinWebAppUserAccessToken)) {
$redisDouyinWebAppUserAccessToken = new RedisDouyinWebAppUserAccessToken();
}
$time = time();
// 设置访问令牌的有效截止时间
$accessTokenExpireAt = $time + $data['expires_in'] - Yii::$app->params['accessToken']['timeOut'];
// 设置刷新令牌的有效截止时间
$refreshTokenExpireAt = $time + $data['refresh_expires_in'] - Yii::$app->params['refreshToken']['timeOut'];
$redisDouyinWebAppUserAccessToken->attributes = [
'douyin_web_app_id' => $data['douyinWebAppId'],
'channel_app_source_id' => $data['channelAppSourceId'],
'channel_app_source_uuid' => $data['channelAppSourceUuid'],
'douyin_web_app_user_id' => $data['douyinWebAppUserId'],
'douyin_web_app_user_uuid' => $data['douyinWebAppUserUuid'],
'grant_type' => $data['grantType'],
'access_token' => $data['access_token'],
'expires_in' => $data['expires_in'],
'expires_at' => $accessTokenExpireAt,
'refresh_token' => $data['refresh_token'],
'refresh_token_expires_in' => $data['refresh_expires_in'],
'refresh_token_expires_at' => $refreshTokenExpireAt,
'scope' => $data['scope'],
'open_id' => $data['open_id'],
'status' => RedisDouyinWebAppUserAccessToken::STATUS_ENABLED,
];
$return = [];
if ($redisDouyinWebAppUserAccessToken->save()) {
$return = ['status' => true, 'data' => ['channel_app_source_uuid' => $data['channelAppSourceUuid']]];
} elseif ($redisDouyinWebAppUserAccessToken->hasErrors()) {
$firstError = '';
foreach ($redisDouyinWebAppUserAccessToken->getFirstErrors() as $message) {
$firstError = $message;
break;
}
$return = ['status' => false, 'code' => 215004, 'message' => Yii::t('error', Yii::t('error', Yii::t('error', '215004'), ['first_error' => $firstError]))];
} elseif (!$redisDouyinWebAppUserAccessToken->hasErrors()) {
throw new ServerErrorHttpException('Failed to insert/update the object (Douyin\'s third-party service platform website application user\'s access tokenn (Redis)) for unknown reason.');
}
print_r($redisDouyinWebAppUserAccessToken);
exit;
return $return;
}
6、打印一下 Redis 的模型对象(更新后)，$redisDouyinWebAppUserAccessToken。符合预期。字段顺序与定义一致。结果如下：
frontend\models\redis\DouyinWebAppUserAccessToken Object
(
[_attributes:yii\db\BaseActiveRecord:private] => Array
(
[douyin_web_app_id] => 1
[channel_app_source_id] => 48
[channel_app_source_uuid] => 73d70b7e225d11eb932654ee75d2ebc1
[douyin_web_app_user_id] => 8
[douyin_web_app_user_uuid] => 73d82e5a225d11eb932554ee75d2ebc1
[grant_type] => authorization_code
[access_token] => act.fbb67f15948da5ab6d832b69daa58b7e3HEgNAeS3vv7hOBVqjNpjiJ1fZYY
[expires_in] => 1296000
[expires_at] => 1606202733
[refresh_token] => rft.1b82e0d7acbea76d68f45b44461e649fQzF6hSBGPuq9w7FVWv0cJ53J4aSg
[refresh_token_expires_in] => 2592000
[refresh_token_expires_at] => 1607491833
[scope] => fans.data,fans.list,following.list,im,user_info,video.comment,video.create,video.data,video.delete,video.list
[open_id] => 3c61649c-2cd5-4479-b2a3-0c89e8f808f8
[status] => 1
[is_deleted] => 0
[deleted_at] => 0
[created_at] => 1604907033
[updated_at] => 1604907033
[id] => 2
)
)

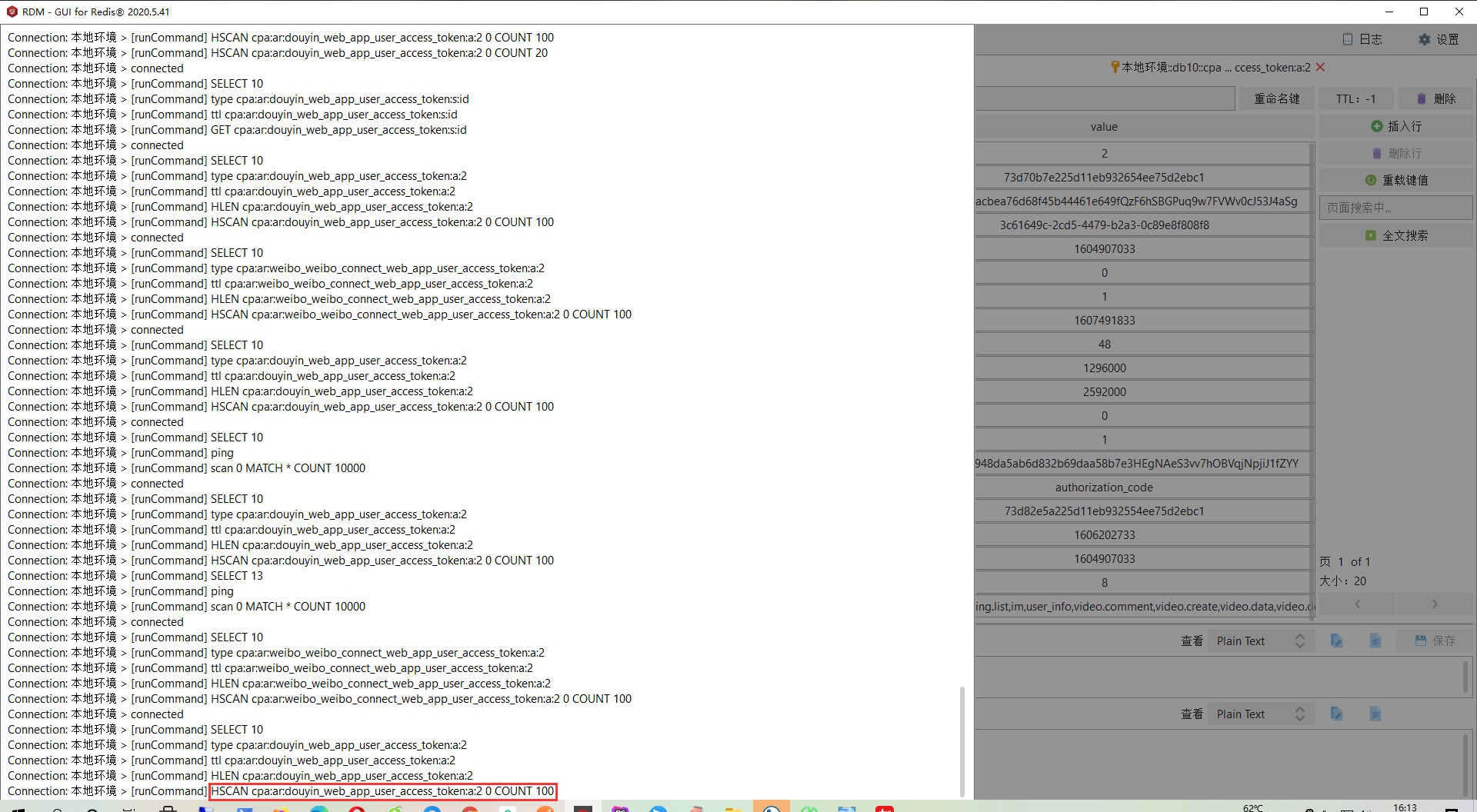

7、查看 GUI for Redis 的日志，以确认真正执行的命令。如图2
图2
hscan cpa:ar:douyin_web_app_user_access_token:a:2 0 count 100

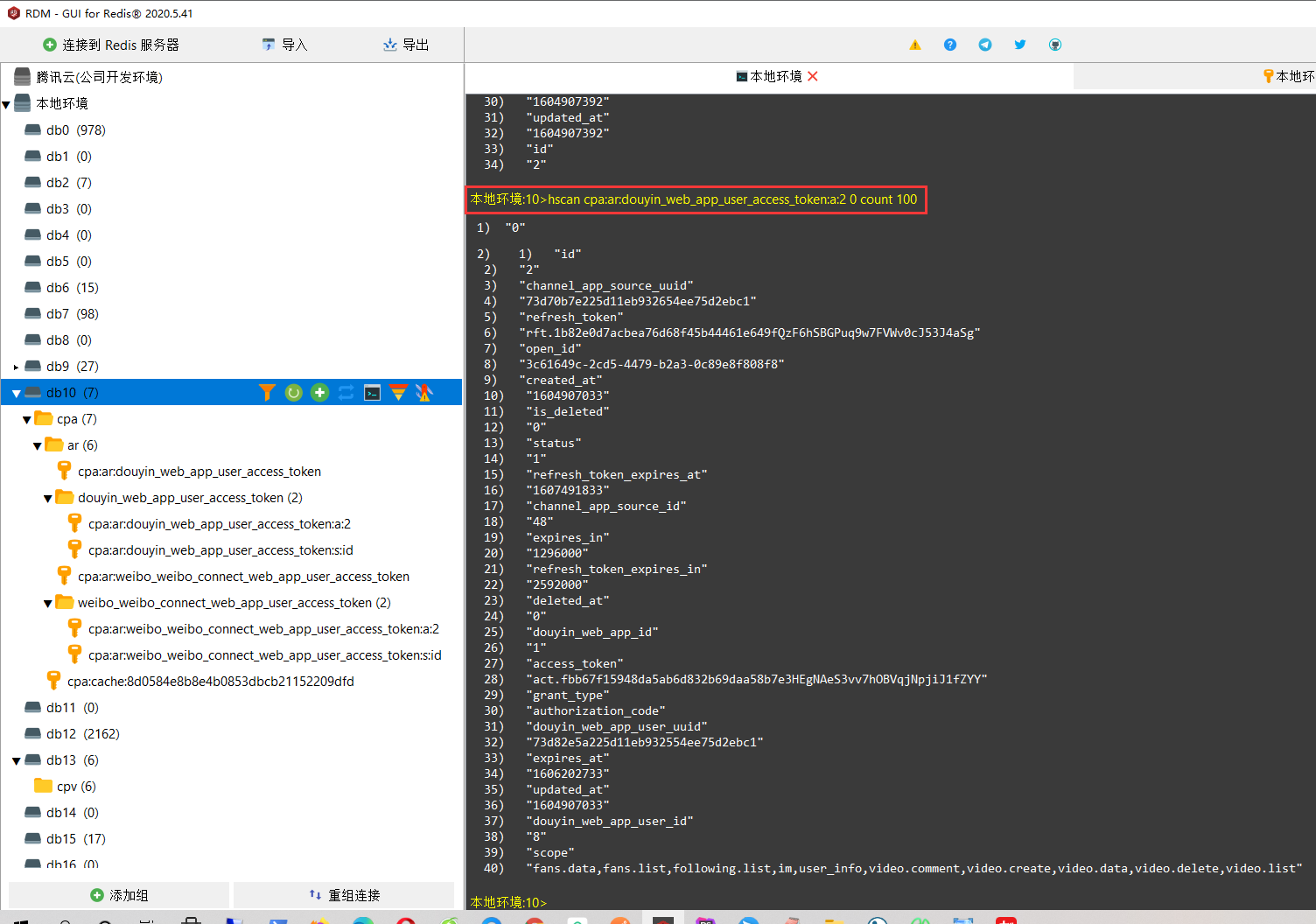

8、打开控制台，执行与上面同样的命令。其响应与 GUI 一致。如图3
图3
本地环境:10>hscan cpa:ar:douyin_web_app_user_access_token:a:2 0 count 100 1) "0" 2) 1) "id" 2) "2" 3) "channel_app_source_uuid" 4) "73d70b7e225d11eb932654ee75d2ebc1" 5) "refresh_token" 6) "rft.1b82e0d7acbea76d68f45b44461e649fQzF6hSBGPuq9w7FVWv0cJ53J4aSg" 7) "open_id" 8) "3c61649c-2cd5-4479-b2a3-0c89e8f808f8" 9) "created_at" 10) "1604907033" 11) "is_deleted" 12) "0" 13) "status" 14) "1" 15) "refresh_token_expires_at" 16) "1607491833" 17) "channel_app_source_id" 18) "48" 19) "expires_in" 20) "1296000" 21) "refresh_token_expires_in" 22) "2592000" 23) "deleted_at" 24) "0" 25) "douyin_web_app_id" 26) "1" 27) "access_token" 28) "act.fbb67f15948da5ab6d832b69daa58b7e3HEgNAeS3vv7hOBVqjNpjiJ1fZYY" 29) "grant_type" 30) "authorization_code" 31) "douyin_web_app_user_uuid" 32) "73d82e5a225d11eb932554ee75d2ebc1" 33) "expires_at" 34) "1606202733" 35) "updated_at" 36) "1604907033" 37) "douyin_web_app_user_id" 38) "8" 39) "scope" 40) "fans.data,fans.list,following.list,im,user_info,video.comment,video.create,video.data,video.delete,video.list" 本地环境:10>

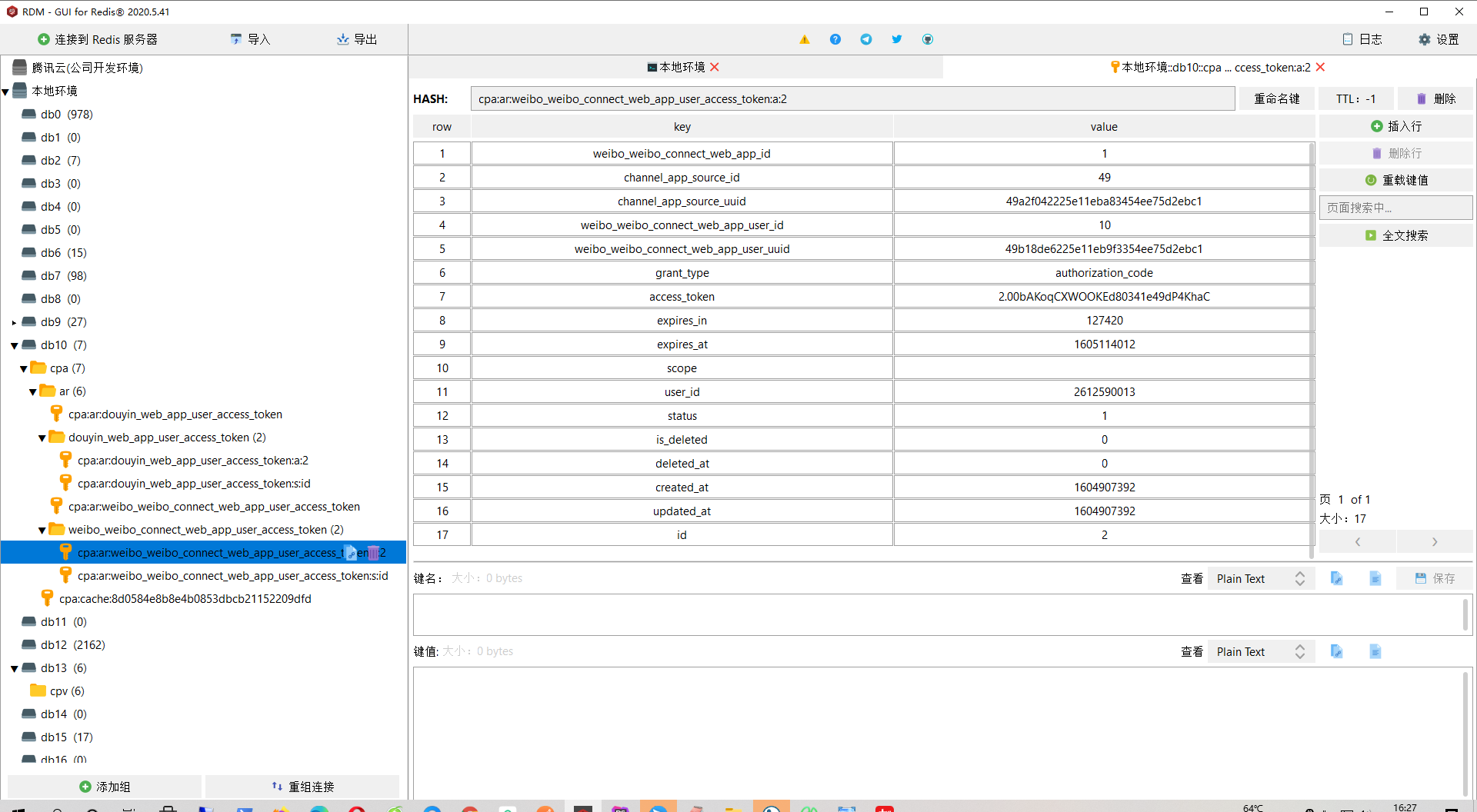

9、在 Yii 2.0 中，Redis 的活动记录(Active Record)，基于 row 查看结构，与模型字段顺序一致(在另一个类似结构的模型中)。如图4
图4

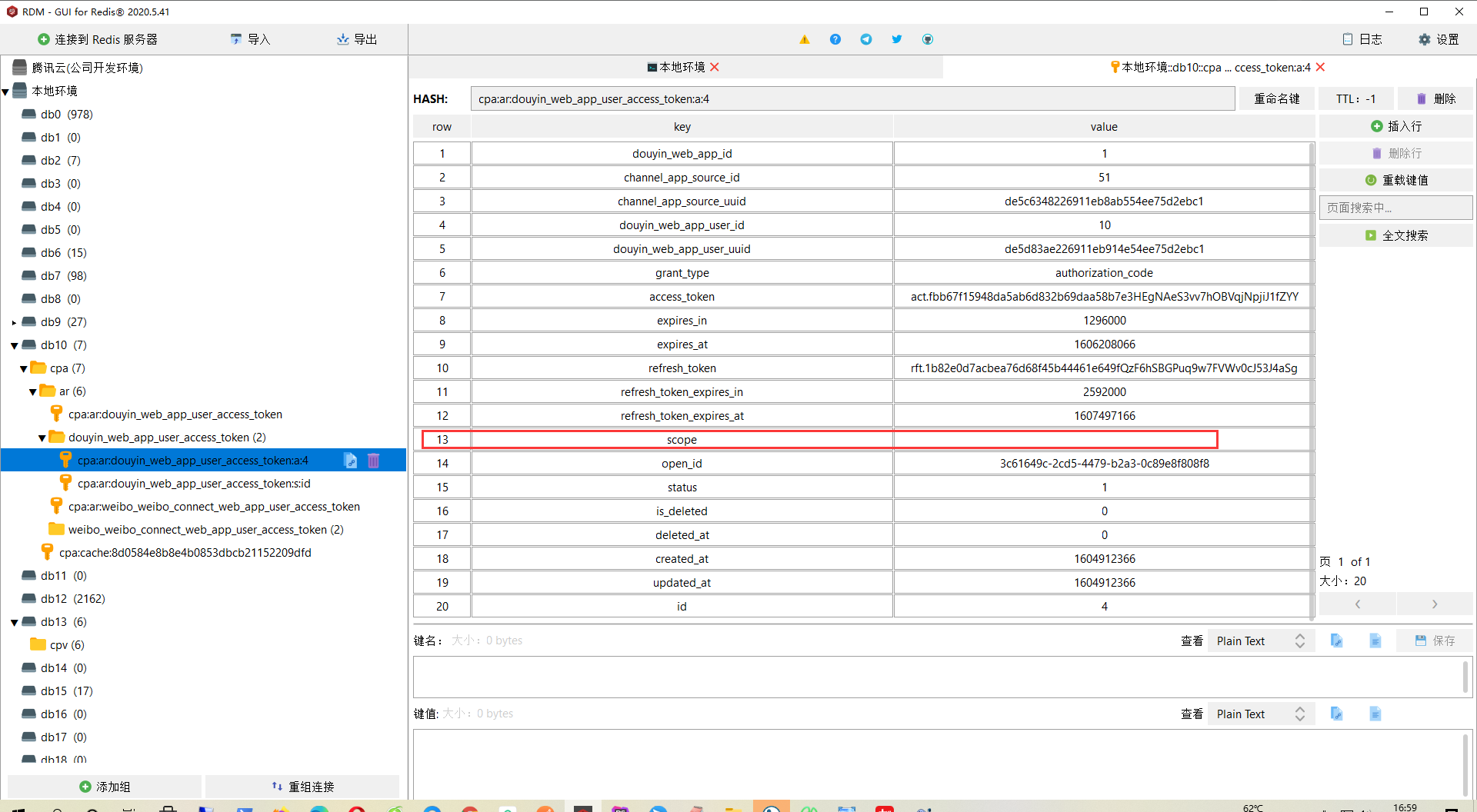

10、# 配置域字段最大个数限制，hash-max-zipmap-entries 512。# 配置字段值最大字节限制，hash-max-zipmap-value 64。当满足以上两个条件时，哈希表 key 会被压缩，否则将按照正常的哈希结构来存储。由于字段：scope 的值：fans.data,fans.list,following.list,im,user_info,video.comment,video.create,video.data,video.delete,video.list 已经超出最大字节限制。决定修改字段：scope 的值为空字符串。基于 row 查看结构，与模型字段顺序一致。最终符合预期。如图5
图5
近期评论
