在 Yii 2.0 中,表结构存在多重关联(同一关联字段存在于多张表中)时,基于 ActiveDataFilter 查询过滤的实现

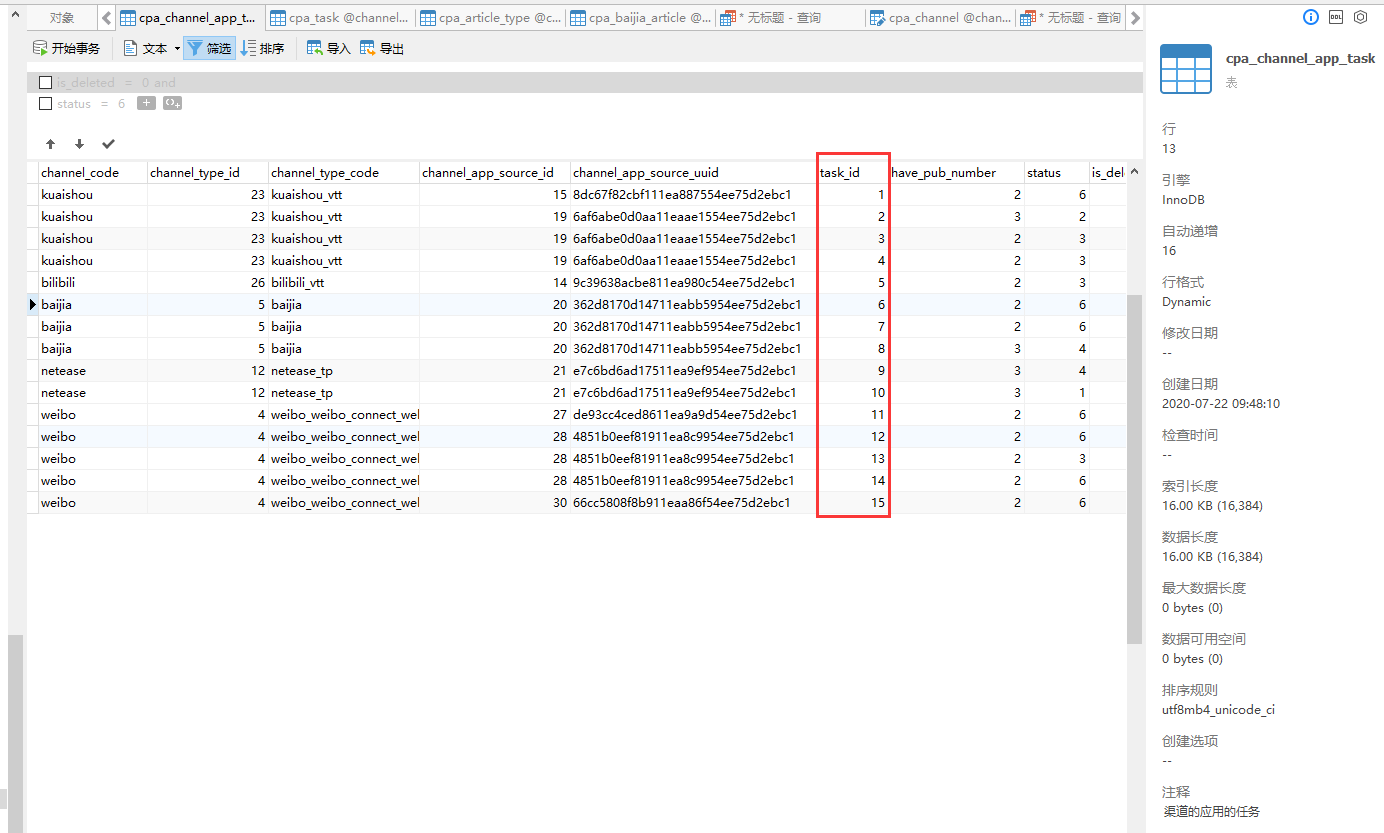

1、主表:cpa_channel_app_task 与 附表:cpa_task 的关联关系:多对一。如图1

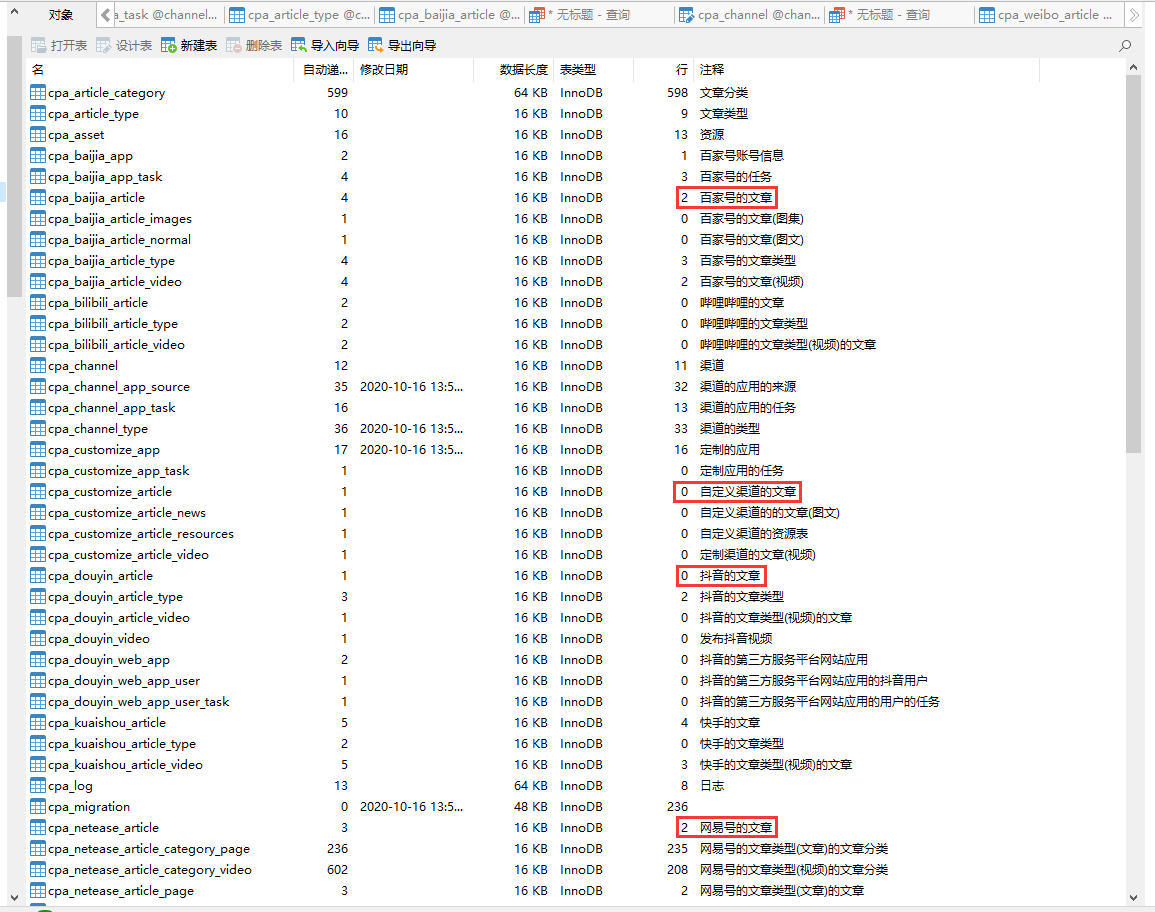

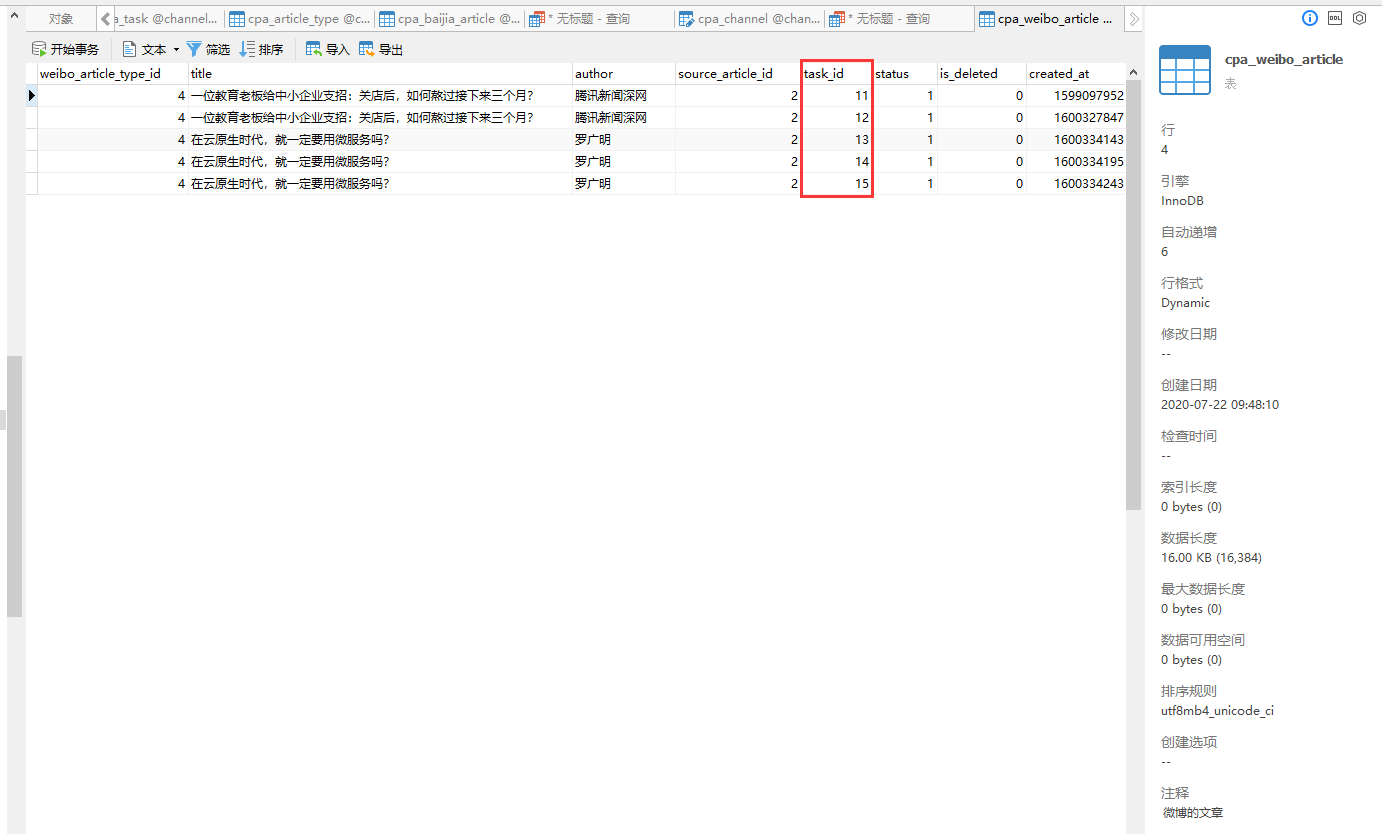

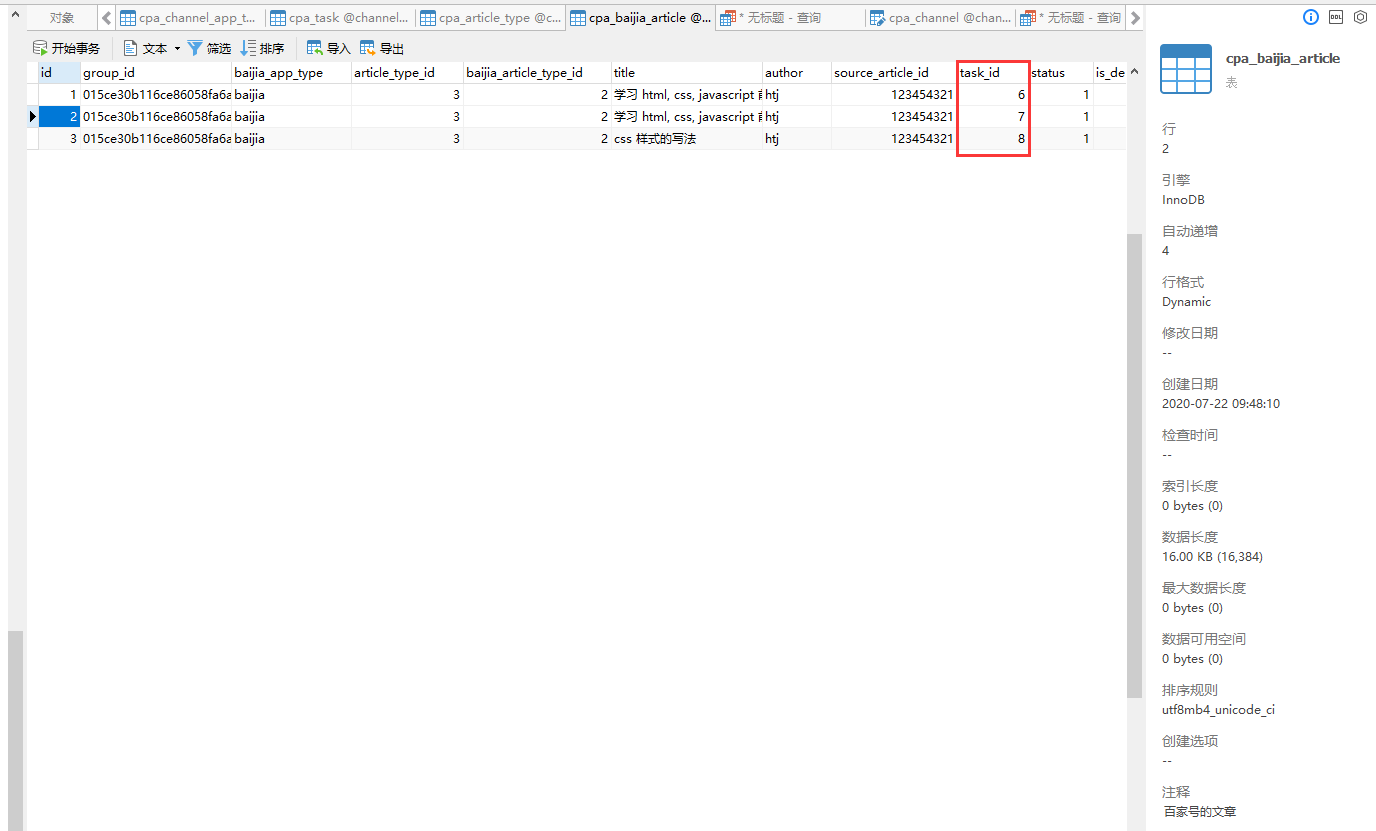

2、表:cpa_task 与 表:cpa_baijia_article|cpa_customize_article|cpa_douyin_article|cpa_netease_article|cpa_qq_article|cpa_weibo_article|cpa_wx_article 的关联关系:一对一。表:cpa_task 中的一条记录仅会存在于 表:cpa_baijia_article|cpa_customize_article|cpa_douyin_article|cpa_netease_article|cpa_qq_article|cpa_weibo_article|cpa_wx_article 的其中一张表中。如图2、图3、图4

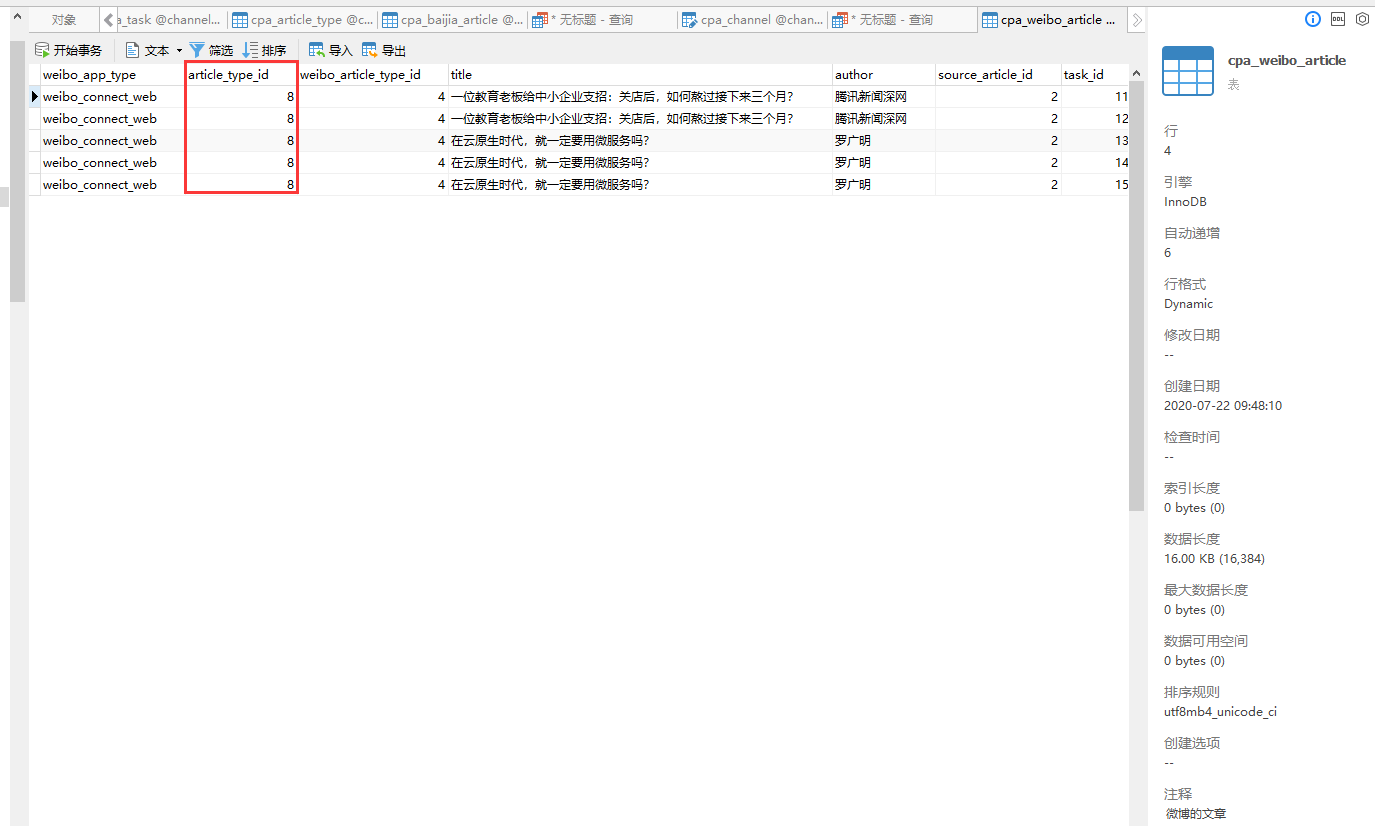

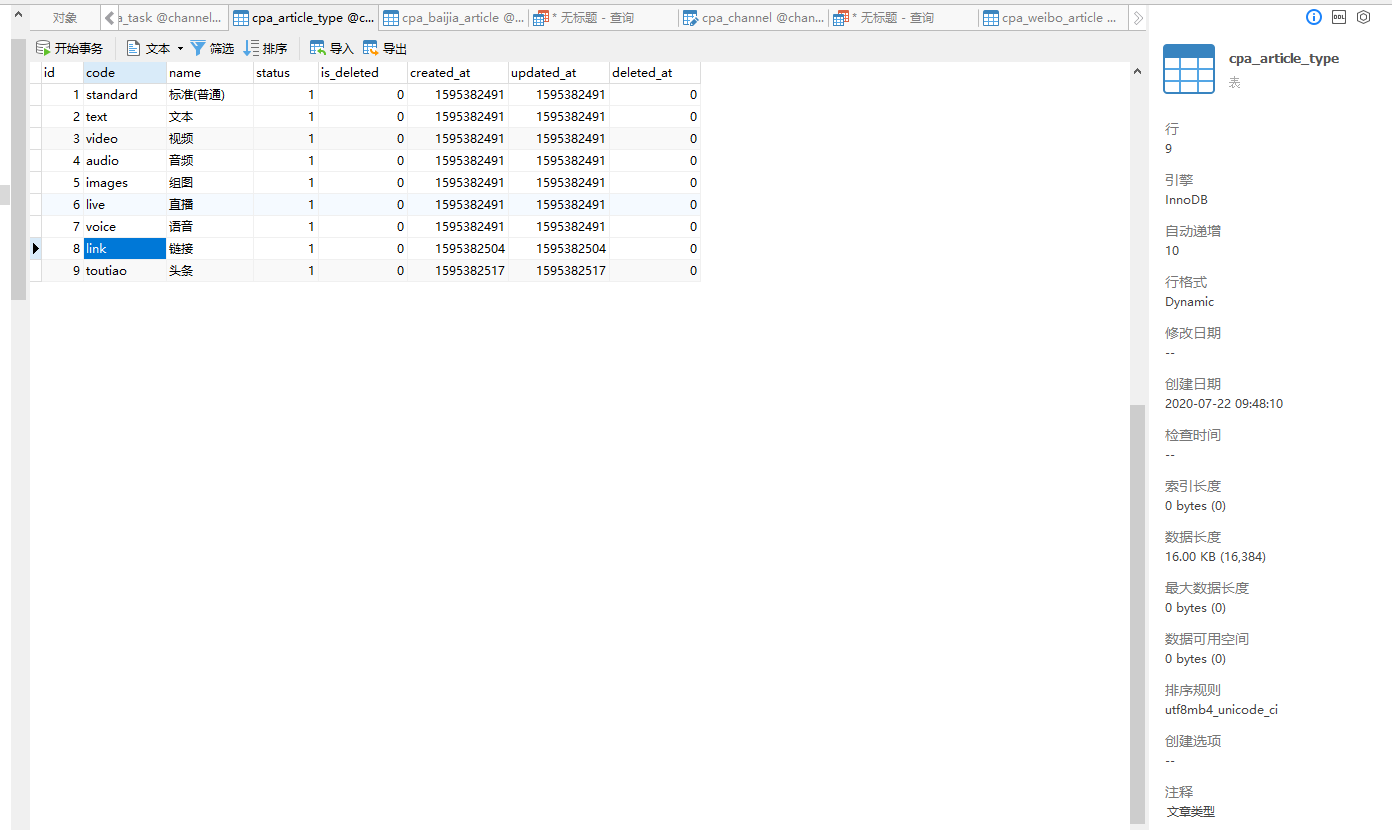

3、表:cpa_baijia_article|cpa_customize_article|cpa_douyin_article|cpa_netease_article|cpa_qq_article|cpa_weibo_article|cpa_wx_article 与 表:cpa_article_type 的关联关系:多对一。如图5、图6、图7

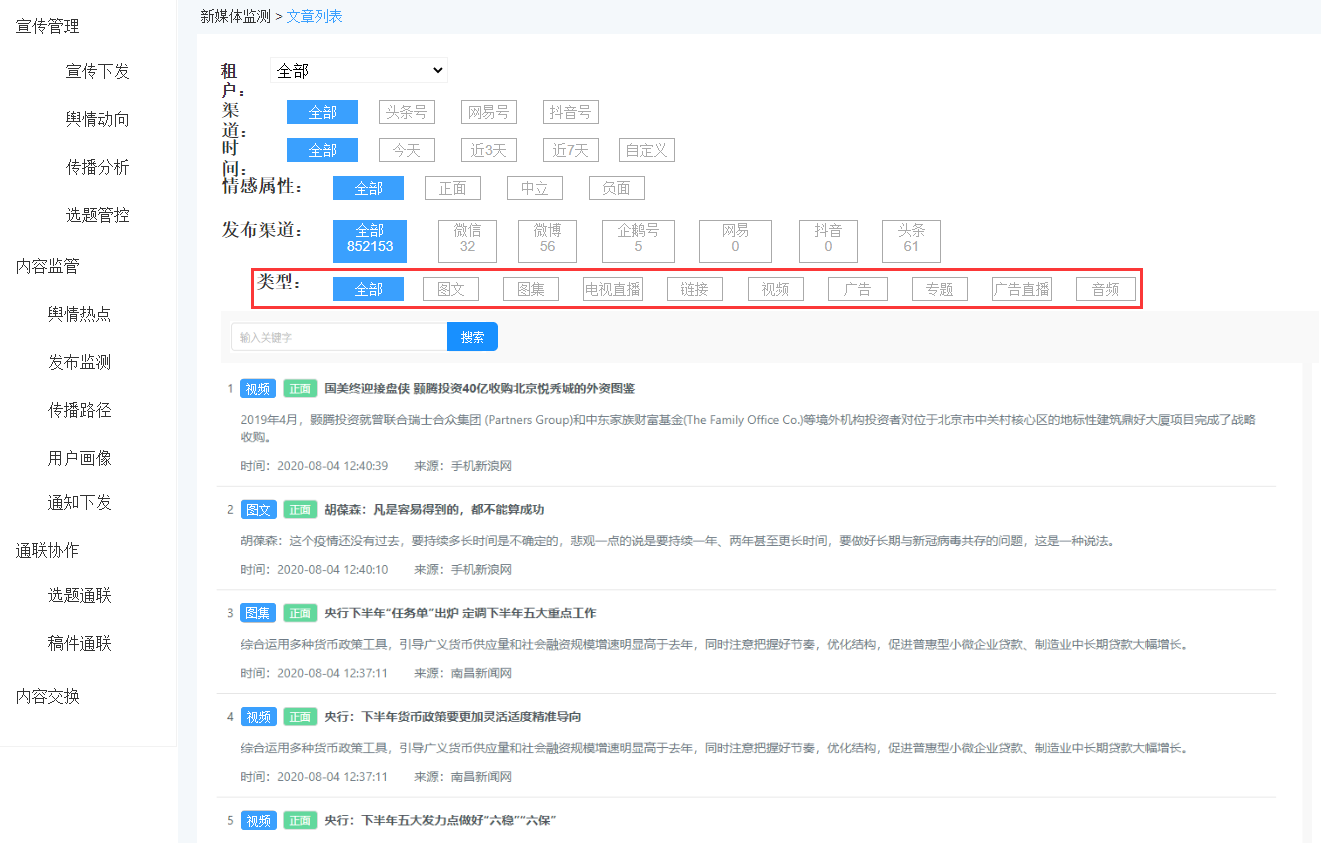

4、现阶段的需求:通过 表:cpa_article_type 的字段:code 查询 主表:cpa_channel_app_task 的数据。如图8
5、编辑搜索模型:/common/logics/ChannelAppTaskSearch.php
<?php namespace common\logics; use Yii; use yii\base\Model; /** * ChannelAppTaskSearch represents the model behind the search form about `common\logics\ChannelAppTask`. * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */ class ChannelAppTaskSearch extends Model { public $group_id; public $task_group_uuid; public $channel_code; public $channel_type_code; public $type; public $source; public $source_uuid; public $source_pub_user_id; public $channel_app_source_uuid; public $baijia_article_type_code; public $customize_article_type_code; public $douyin_article_type_code; public $netease_article_type_code; public $qq_article_type_code; public $weibo_article_type_code; public $wx_article_type_code; public $status; public $article_title; public $article_author; public $article_content; public $source_article_id; public $created_at; /** * @inheritdoc */ public function rules() { return [ [['status', 'source_article_id', 'created_at'], 'integer'], [['group_id', 'channel_code', 'channel_type_code', 'type', 'article_content', 'source', 'baijia_article_type_code', 'customize_article_type_code', 'douyin_article_type_code', 'netease_article_type_code', 'qq_article_type_code', 'weibo_article_type_code', 'wx_article_type_code'], 'string', 'max' => 32], [['task_group_uuid', 'source_uuid', 'source_pub_user_id', 'channel_app_source_uuid', 'article_author'], 'string', 'max' => 64], [['article_title'], 'string', 'max' => 255], [['channel_code'], 'in', 'range' => Channel::find()->select('code')->where(['is_deleted' => Channel::IS_DELETED_NO])->asArray()->column()], [['channel_type_code'], 'in', 'range' => ChannelType::find()->select('code')->where(['is_deleted' => ChannelType::IS_DELETED_NO])->asArray()->column()], [['type'], 'in', 'range' => [Task::TYPE_PREVIEW, Task::TYPE_PUB, Task::TYPE_REVOKE]], [['status'], 'in', 'range' => [ChannelAppTask::STATUS_DISABLED, ChannelAppTask::STATUS_WAIT_PUBLISH, ChannelAppTask::STATUS_PUBLISH, ChannelAppTask::STATUS_PUBLISH_ERROR, ChannelAppTask::STATUS_PLATFORM_REVIEW, ChannelAppTask::STATUS_PLATFORM_PUBLISH, ChannelAppTask::STATUS_PLATFORM_PUBLISHED, ChannelAppTask::STATUS_PLATFORM_UNPUBLISHED, ChannelAppTask::STATUS_PLATFORM_OFFLINE, ChannelAppTask::STATUS_PLATFORM_DELETED]], [['baijia_article_type_code', 'customize_article_type_code', 'douyin_article_type_code', 'netease_article_type_code', 'qq_article_type_code', 'weibo_article_type_code', 'wx_article_type_code'], 'in', 'range' => ArticleType::find()->select('code')->where(['is_deleted' => ArticleType::IS_DELETED_NO])->asArray()->column()], ]; } /** * {@inheritdoc} */ public function attributeLabels() { return [ 'group_id' => Yii::t('model/channel-app-task-search', 'Group ID'), 'task_group_uuid' => Yii::t('model/channel-app-task-search', 'Task Group Uuid'), 'channel_code' => Yii::t('model/channel-app-task-search', 'Channel Code'), 'channel_type_code' => Yii::t('model/channel-app-task-search', 'Channel Type Code'), 'type' => Yii::t('model/channel-app-task-search', 'Type'), 'source' => Yii::t('model/channel-app-task-search', 'Source'), 'source_uuid' => Yii::t('model/channel-app-task-search', 'Source Uuid'), 'source_pub_user_id' => Yii::t('model/channel-app-task-search', 'Source Pub User ID'), 'channel_app_source_uuid' => Yii::t('model/channel-app-task-search', 'Channel App Source Uuid'), 'status' => Yii::t('model/channel-app-task-search', 'Status'), 'baijia_article_type_code' => Yii::t('model/channel-app-task-search', 'Baijia Article Type Code'), 'customize_article_type_code' => Yii::t('model/channel-app-task-search', 'Customize Article Type Code'), 'douyin_article_type_code' => Yii::t('model/channel-app-task-search', 'Douyin Article Type Code'), 'netease_article_type_code' => Yii::t('model/channel-app-task-search', 'Netease Article Type Code'), 'qq_article_type_code' => Yii::t('model/channel-app-task-search', 'Qq Article Type Code'), 'weibo_article_type_code' => Yii::t('model/channel-app-task-search', 'Weibo Article Type Code'), 'wx_article_type_code' => Yii::t('model/channel-app-task-search', 'Wx Article Type Code'), 'article_title' => Yii::t('model/channel-app-task-search', 'Article Title'), 'article_author' => Yii::t('model/channel-app-task-search', 'Article Author'), 'article_content' => Yii::t('model/channel-app-task-search', 'Article Content'), 'source_article_id' => Yii::t('model/channel-app-task-search', 'Source Article ID'), 'created_at' => Yii::t('model/channel-app-task-search', 'Created At'), ]; } }
6、编辑方法文件:/api/rests/channel_app_task/IndexAction.php,配置 attributeMap,分别设置表:cpa_baijia_article|cpa_customize_article|cpa_douyin_article|cpa_netease_article|cpa_qq_article|cpa_weibo_article|cpa_wx_article 的关联表:cpa_article_type 的别名:baijia_article_type|customize_article_type|douyin_article_type|netease_article_type|qq_article_type|weibo_article_type|wx_article_type。
<?php /** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */ namespace api\rests\channel_app_task; use Yii; use api\models\PubLog; use api\models\Task; use api\models\ChannelAppTask; use api\services\CmcApiGroupService; use yii\base\InvalidConfigException; use yii\data\DataFilter; use yii\data\ActiveDataProvider; use yii\helpers\ArrayHelper; use yii\web\UnprocessableEntityHttpException; use yii\web\HttpException; use yii\web\ServerErrorHttpException; /** * 获取渠道的应用的任务列表:/channel-app-tasks(channel-app-task/index) * * For more details and usage information on IndexAction, see the [guide channel_app_task on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */ class IndexAction extends \yii\rest\IndexAction { public $dataFilter = [ 'class' => 'yii\data\ActiveDataFilter', 'searchModel' => 'api\models\ChannelAppTaskSearch', 'attributeMap' => [ 'group_id' => '{{%task}}.[[group_id]]', 'task_group_uuid' => '{{%channel_app_task}}.[[task_group_uuid]]', 'channel_code' => '{{%channel_app_task}}.[[channel_code]]', 'channel_type_code' => '{{%channel_app_task}}.[[channel_type_code]]', 'type' => '{{%task}}.[[type]]', 'source' => '{{%task}}.[[source]]', 'source_uuid' => '{{%task}}.[[source_uuid]]', 'source_pub_user_id' => '{{%task}}.[[source_pub_user_id]]', 'channel_app_source_uuid' => '{{%channel_app_task}}.[[channel_app_source_uuid]]', 'status' => '{{%channel_app_task}}.[[status]]', 'article_type_code' => '{{%article_type}}.[[code]]', 'baijia_article_type_code' => 'baijia_article_type.[[code]]', 'customize_article_type_code' => 'customize_article_type.[[code]]', 'douyin_article_type_code' => 'douyin_article_type.[[code]]', 'netease_article_type_code' => 'netease_article_type.[[code]]', 'qq_article_type_code' => 'qq_article_type.[[code]]', 'weibo_article_type_code' => 'weibo_article_type.[[code]]', 'wx_article_type_code' => 'wx_article_type.[[code]]', 'created_at' => '{{%channel_app_task}}.[[created_at]]', ], ]; /** * Prepares the data provider that should return the requested collection of the models. * @return mixed|object|ActiveDataProvider|DataFilter|null * @throws HttpException * @throws InvalidConfigException if the configuration is invalid. * @throws ServerErrorHttpException * @throws UnprocessableEntityHttpException */ protected function prepareDataProvider() { $requestParams = Yii::$app->getRequest()->getQueryParams(); $filter = null; if ($this->dataFilter !== null) { $this->dataFilter = Yii::createObject($this->dataFilter); if ($this->dataFilter->load($requestParams)) { $filter = $this->dataFilter->build(); if ($filter === false) { $firstError = ''; foreach ($this->dataFilter->getFirstErrors() as $message) { $firstError = $message; break; } throw new UnprocessableEntityHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '226013'), ['first_error' => $firstError])), 226013); } } } if ($this->prepareDataProvider !== null) { return call_user_func($this->prepareDataProvider, $this, $filter); } // 获取租户ID列表(二维数组,场景:筛选数据时,添加默认条件:租户ID仅限于当前租户ID|其所管辖的下级租户ID) $groupListTwo = CmcApiGroupService::getGroupListTwo(Yii::$app->params['groupId'], 'group_sub_tree', '1'); $groupIds = ArrayHelper::getColumn($groupListTwo, 'group_id'); /* @var $modelClass ChannelAppTask */ $modelClass = $this->modelClass; $query = $modelClass::find() ->select([ $modelClass::tableName() . '.*', Task::tableName() . '.group_id', Task::tableName() . '.type', Task::tableName() . '.source', Task::tableName() . '.source_uuid', Task::tableName() . '.source_pub_user_id', Task::tableName() . '.source_callback_url', 'pub_log_code' => PubLog::tableName() . '.code', 'pub_log_message' => PubLog::tableName() . '.message', ]) ->joinWith(['task.baijiaArticle.articleType baijia_article_type'], true) ->joinWith(['task.customizeArticle.articleType customize_article_type'], true) ->joinWith(['task.douyinArticle.articleType douyin_article_type'], true) ->joinWith(['task.neteaseArticle.articleType netease_article_type'], true) ->joinWith(['task.qqArticle.articleType qq_article_type'], true) ->joinWith(['task.weiboArticle.articleType weibo_article_type'], true) ->joinWith(['task.wxArticle.articleType wx_article_type'], true) ->joinWith(['pubLog'], false) ->where([ $modelClass::tableName() . '.is_deleted' => ChannelAppTask::IS_DELETED_NO, Task::tableName() . '.is_deleted' => Task::IS_DELETED_NO, PubLog::tableName() . '.is_deleted' => PubLog::IS_DELETED_NO, $modelClass::tableName() . '.status' => ChannelAppTask::STATUS_PLATFORM_PUBLISHED, ]) ->andWhere(['in', Task::tableName() . '.group_id', $groupIds]) ->asArray(); if (!empty($filter)) { $query->andFilterWhere($filter); } return Yii::createObject([ 'class' => ActiveDataProvider::className(), 'query' => $query, 'pagination' => [ 'params' => $requestParams, ], 'sort' => [ 'params' => $requestParams, ], ]); } }
7、编辑序列化文件:/api/rests/channel_app_task/Serializer.php。基于渠道代码重置数据。
<?php /** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */ namespace api\rests\channel_app_task; use Yii; use api\models\Channel; use api\services\CmcApiGroupService; use yii\data\DataProviderInterface; use yii\helpers\ArrayHelper; /** * Serializer converts resource objects and collections into array representation. * * Serializer is mainly used by REST controllers to convert different objects into array representation * so that they can be further turned into different formats, such as JSON, XML, by response formatters. * * The default implementation handles resources as [[Model]] objects and collections as objects * implementing [[DataProviderInterface]]. You may override [[serialize()]] to handle more types. * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */ class Serializer extends \yii\rest\Serializer { /** * Serializes a data provider. * @param DataProviderInterface $dataProvider * @return array the array representation of the data provider. */ protected function serializeDataProvider($dataProvider) { if ($this->preserveKeys) { $models = $dataProvider->getModels(); } else { $models = array_values($dataProvider->getModels()); } $models = $this->serializeModels($models); if (($pagination = $dataProvider->getPagination()) !== false) { $this->addPaginationHeaders($pagination); } if ($this->request->getIsHead()) { return null; } elseif ($this->collectionEnvelope === null) { return $models; } $result = [ $this->collectionEnvelope => $models, ]; /* 查询当前分页的租户列表 */ $cmcApiGroupServiceGroups = []; if (!empty($result['items'])) { $groupIds = ArrayHelper::getColumn($result['items'], 'group_id'); $groupIdsUnique = array_unique($groupIds); // HTTP 请求,获取租户列表(二维数组) $cmcApiGroupServiceGroupList = CmcApiGroupService::getGroupList($groupIdsUnique); $cmcApiGroupServiceGroups = $cmcApiGroupServiceGroupList['data']; } foreach ($result['items'] as $i => $item) { /* 基于渠道代码重置数据 */ if (in_array($item['channel_code'], [Channel::CODE_BAIJIA, Channel::CODE_CUSTOMIZE, Channel::CODE_DOUYIN, Channel::CODE_NETEASE, Channel::CODE_QQ, Channel::CODE_WEIBO, Channel::CODE_WX])) { $result['items'][$i]['article_type_id'] = (int) ArrayHelper::getValue($item, ['task', $item['channel_code'] . 'Article', 'articleType', 'id']); $result['items'][$i]['article_type_code'] = ArrayHelper::getValue($item, ['task', $item['channel_code'] . 'Article', 'articleType', 'code']); $result['items'][$i]['article_type_name'] = ArrayHelper::getValue($item, ['task', $item['channel_code'] . 'Article', 'articleType', 'name']); } else { $result['items'][$i]['article_type_id'] = 0; $result['items'][$i]['article_type_code'] = ''; $result['items'][$i]['article_type_name'] = ''; } $result['items'][$i]['id'] = (int) $item['id']; $result['items'][$i]['task_group_id'] = (int) $item['task_group_id']; $result['items'][$i]['channel_id'] = (int) $item['channel_id']; $result['items'][$i]['channel_type_id'] = (int) $item['channel_type_id']; $result['items'][$i]['channel_app_source_id'] = (int) $item['channel_app_source_id']; $result['items'][$i]['task_id'] = (int) $item['task_id']; $result['items'][$i]['status'] = (int) $item['status']; $result['items'][$i]['is_deleted'] = (int) $item['is_deleted']; $result['items'][$i]['created_at'] = (int) $item['created_at']; $result['items'][$i]['updated_at'] = (int) $item['updated_at']; $result['items'][$i]['deleted_at'] = (int) $item['deleted_at']; // $result['items'][$i]['source_article_id'] = (int) $item['source_article_id']; $result['items'][$i]['have_pub_number'] = (int) $item['have_pub_number']; $result['items'][$i]['pub_log_code'] = isset($item['pub_log_code']) ? (int) $item['pub_log_code'] : 0; $result['items'][$i]['pub_log_message'] = isset($item['pub_log_message']) ? $item['pub_log_message'] : ''; $result['items'][$i]['group_name'] = $cmcApiGroupServiceGroups[$item['group_id']]['group_name'] ?? ''; /* 销毁属性 */ unset( $result['items'][$i]['task'] ); } if ($pagination !== false) { return ['code' => 10000, 'message' => Yii::t('success', '126006'), 'data' => array_merge($result, $this->serializePagination($pagination))]; } return ['code' => 10000, 'message' => Yii::t('success', '126006'), 'data' => $result]; } }

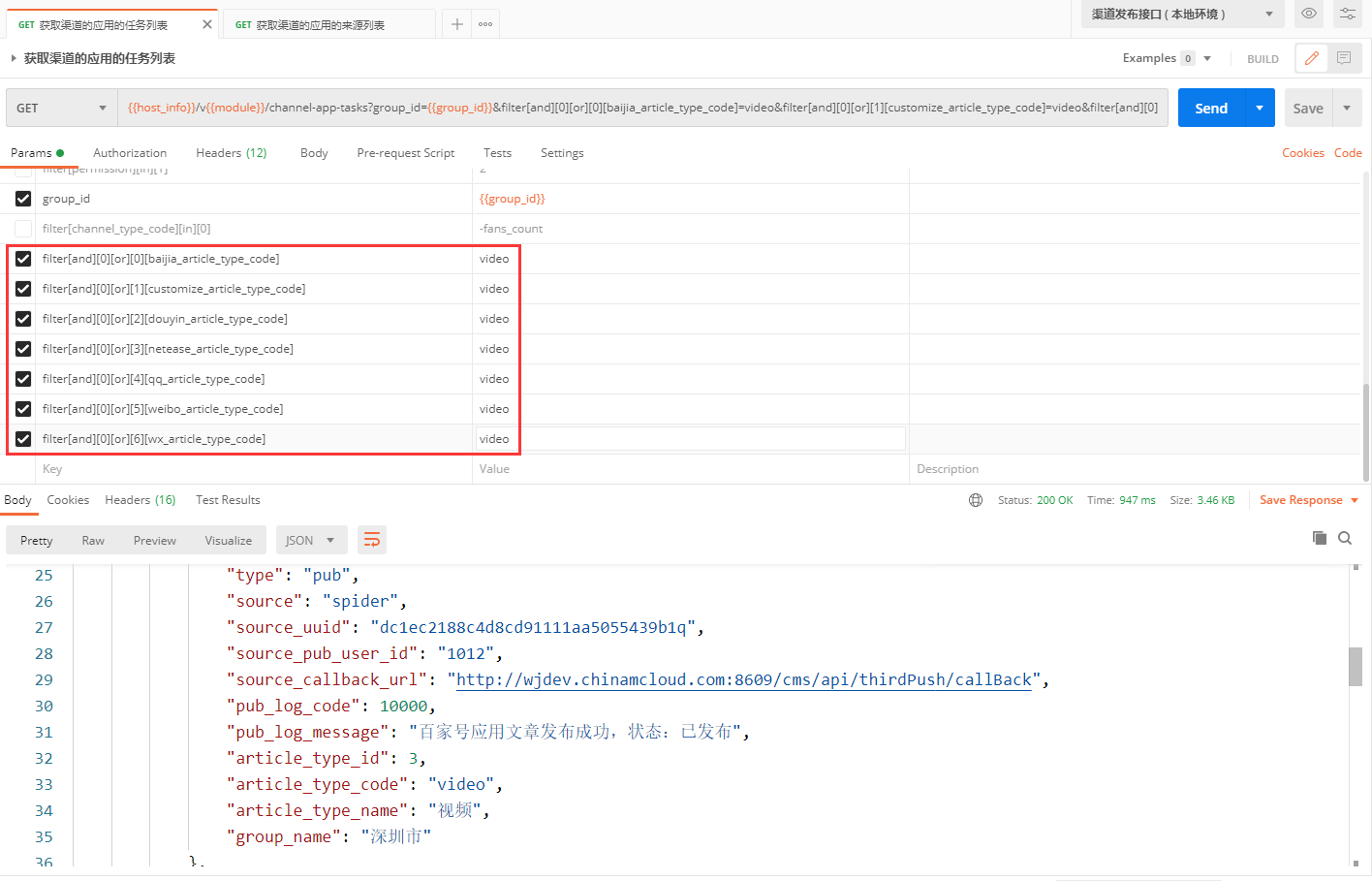

8、GET http://api.channel-pub-api.localhost/v1/channel-app-tasks?group_id=c10e87f39873512a16727e17f57456a5&filter[and][0][or][0][baijia_article_type_code]=video&filter[and][0][or][1][customize_article_type_code]=video&filter[and][0][or][2][douyin_article_type_code]=video&filter[and][0][or][3][netease_article_type_code]=video&filter[and][0][or][4][qq_article_type_code]=video&filter[and][0][or][5][weibo_article_type_code]=video&filter[and][0][or][6][wx_article_type_code]=video 。响应数据。如图9
{ "code": 10000, "message": "获取渠道的应用的来源列表成功", "data": { "items": [ { "id": 6, "uuid": "76b69c80d14811eab76454ee75d2ebc1", "task_group_id": 0, "task_group_uuid": "", "channel_id": 4, "channel_code": "baijia", "channel_type_id": 5, "channel_type_code": "baijia", "channel_app_source_id": 20, "channel_app_source_uuid": "362d8170d14711eabb5954ee75d2ebc1", "task_id": 6, "have_pub_number": 2, "status": 6, "is_deleted": 0, "created_at": 1595991973, "updated_at": 1595991973, "deleted_at": 0, "group_id": "015ce30b116ce86058fa6ab4fea4ac63", "type": "pub", "source": "spider", "source_uuid": "dc1ec2188c4d8cd91111aa5055439b1q", "source_pub_user_id": "1012", "source_callback_url": "http://wjdev.chinamcloud.com:8609/cms/api/thirdPush/callBack", "pub_log_code": 10000, "pub_log_message": "百家号应用文章发布成功,状态:已发布", "article_type_id": 3, "article_type_code": "video", "article_type_name": "视频", "group_name": "深圳市" }, { "id": 7, "uuid": "89094034d15911ea912f54ee75d2ebc1", "task_group_id": 0, "task_group_uuid": "", "channel_id": 4, "channel_code": "baijia", "channel_type_id": 5, "channel_type_code": "baijia", "channel_app_source_id": 20, "channel_app_source_uuid": "362d8170d14711eabb5954ee75d2ebc1", "task_id": 7, "have_pub_number": 2, "status": 6, "is_deleted": 0, "created_at": 1595999304, "updated_at": 1595999304, "deleted_at": 0, "group_id": "015ce30b116ce86058fa6ab4fea4ac63", "type": "pub", "source": "spider", "source_uuid": "dc1ec2188c4d8cd91111aa5055439b1q", "source_pub_user_id": "1012", "source_callback_url": "http://wjdev.chinamcloud.com:8609/cms/api/thirdPush/callBack", "pub_log_code": 10000, "pub_log_message": "百家号应用文章发布成功,状态:已发布", "article_type_id": 3, "article_type_code": "video", "article_type_name": "视频", "group_name": "深圳市" } ], "_links": { "self": { "href": "http://api.channel-pub-api.localhost/v1/channel-app-tasks?group_id=c10e87f39873512a16727e17f57456a5&filter%5Band%5D%5B0%5D%5Bor%5D%5B0%5D%5Bbaijia_article_type_code%5D=video&filter%5Band%5D%5B0%5D%5Bor%5D%5B1%5D%5Bcustomize_article_type_code%5D=video&filter%5Band%5D%5B0%5D%5Bor%5D%5B2%5D%5Bdouyin_article_type_code%5D=video&filter%5Band%5D%5B0%5D%5Bor%5D%5B3%5D%5Bnetease_article_type_code%5D=video&filter%5Band%5D%5B0%5D%5Bor%5D%5B4%5D%5Bqq_article_type_code%5D=video&filter%5Band%5D%5B0%5D%5Bor%5D%5B5%5D%5Bweibo_article_type_code%5D=video&filter%5Band%5D%5B0%5D%5Bor%5D%5B6%5D%5Bwx_article_type_code%5D=video&page=1" } }, "_meta": { "totalCount": 2, "pageCount": 1, "currentPage": 1, "perPage": 20 } } }

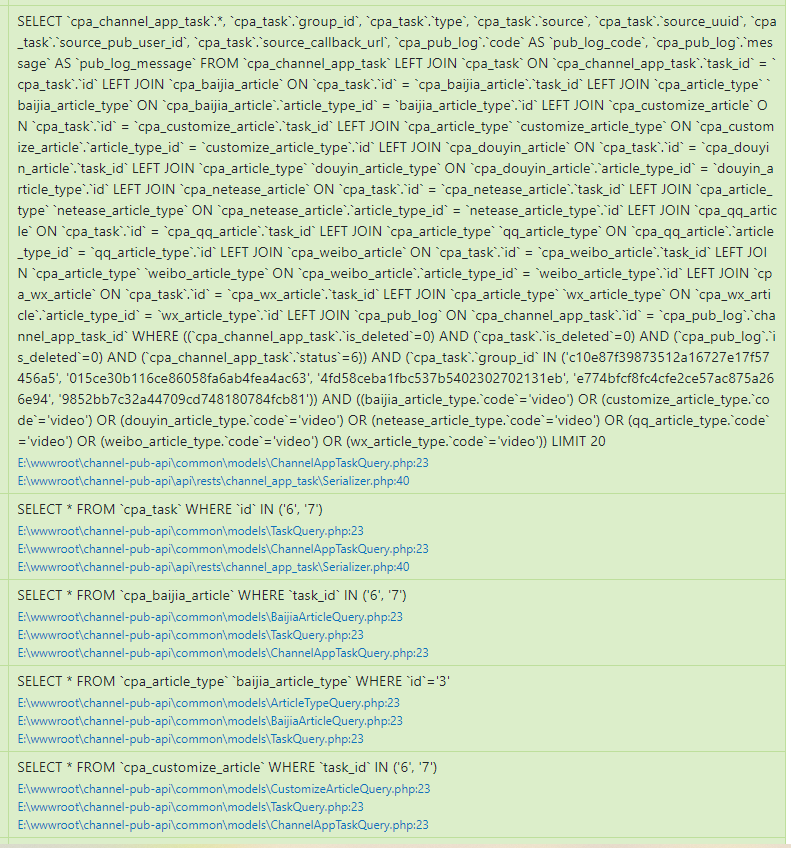

9、生成 SQL 语句,符合预期。如图10
SELECT `cpa_channel_app_task`.*, `cpa_task`.`group_id`, `cpa_task`.`type`, `cpa_task`.`source`, `cpa_task`.`source_uuid`, `cpa_task`.`source_pub_user_id`, `cpa_task`.`source_callback_url`, `cpa_pub_log`.`code` AS `pub_log_code`, `cpa_pub_log`.`message` AS `pub_log_message` FROM `cpa_channel_app_task` LEFT JOIN `cpa_task` ON `cpa_channel_app_task`.`task_id` = `cpa_task`.`id` LEFT JOIN `cpa_baijia_article` ON `cpa_task`.`id` = `cpa_baijia_article`.`task_id` LEFT JOIN `cpa_article_type` `baijia_article_type` ON `cpa_baijia_article`.`article_type_id` = `baijia_article_type`.`id` LEFT JOIN `cpa_customize_article` ON `cpa_task`.`id` = `cpa_customize_article`.`task_id` LEFT JOIN `cpa_article_type` `customize_article_type` ON `cpa_customize_article`.`article_type_id` = `customize_article_type`.`id` LEFT JOIN `cpa_douyin_article` ON `cpa_task`.`id` = `cpa_douyin_article`.`task_id` LEFT JOIN `cpa_article_type` `douyin_article_type` ON `cpa_douyin_article`.`article_type_id` = `douyin_article_type`.`id` LEFT JOIN `cpa_netease_article` ON `cpa_task`.`id` = `cpa_netease_article`.`task_id` LEFT JOIN `cpa_article_type` `netease_article_type` ON `cpa_netease_article`.`article_type_id` = `netease_article_type`.`id` LEFT JOIN `cpa_qq_article` ON `cpa_task`.`id` = `cpa_qq_article`.`task_id` LEFT JOIN `cpa_article_type` `qq_article_type` ON `cpa_qq_article`.`article_type_id` = `qq_article_type`.`id` LEFT JOIN `cpa_weibo_article` ON `cpa_task`.`id` = `cpa_weibo_article`.`task_id` LEFT JOIN `cpa_article_type` `weibo_article_type` ON `cpa_weibo_article`.`article_type_id` = `weibo_article_type`.`id` LEFT JOIN `cpa_wx_article` ON `cpa_task`.`id` = `cpa_wx_article`.`task_id` LEFT JOIN `cpa_article_type` `wx_article_type` ON `cpa_wx_article`.`article_type_id` = `wx_article_type`.`id` LEFT JOIN `cpa_pub_log` ON `cpa_channel_app_task`.`id` = `cpa_pub_log`.`channel_app_task_id` WHERE ((`cpa_channel_app_task`.`is_deleted`=0) AND (`cpa_task`.`is_deleted`=0) AND (`cpa_pub_log`.`is_deleted`=0) AND (`cpa_channel_app_task`.`status`=6)) AND (`cpa_task`.`group_id` IN ('c10e87f39873512a16727e17f57456a5', '015ce30b116ce86058fa6ab4fea4ac63', '4fd58ceba1fbc537b5402302702131eb', 'e774bfcf8fc4cfe2ce57ac875a266e94', '9852bb7c32a44709cd748180784fcb81')) AND ((baijia_article_type.`code`='video') OR (customize_article_type.`code`='video') OR (douyin_article_type.`code`='video') OR (netease_article_type.`code`='video') OR (qq_article_type.`code`='video') OR (weibo_article_type.`code`='video') OR (wx_article_type.`code`='video')) LIMIT 20 SELECT * FROM `cpa_task` WHERE `id` IN ('6', '7') SELECT * FROM `cpa_baijia_article` WHERE `task_id` IN ('6', '7') SELECT * FROM `cpa_article_type` `baijia_article_type` WHERE `id`='3' SELECT * FROM `cpa_customize_article` WHERE `task_id` IN ('6', '7') SELECT * FROM `cpa_douyin_article` WHERE `task_id` IN ('6', '7') SELECT * FROM `cpa_netease_article` WHERE `task_id` IN ('6', '7') SELECT * FROM `cpa_qq_article` WHERE `task_id` IN ('6', '7') SELECT * FROM `cpa_weibo_article` WHERE `task_id` IN ('6', '7') SELECT * FROM `cpa_wx_article` WHERE `task_id` IN ('6', '7')
