基于 yiisoft/yii2-app-advanced，在 GitHub 上新建仓库 yii2-app-advanced，新建远程过程调用应用(实现基于 Hprose 2.0 for PHP 的 RPC 服务端)，新建 rpc 目录、配置和环境、测试、Vagrant等的支持 (八) (1)

1、在 api 目录中实现 页面 的相应 RESTful 风格的 Web Service 服务的 API，然后再调整为 RPC 客户端

2、页面 的相应 API 全部实现后，在 Postman 中执行 POST 请求，响应正常，如图1

{
	"title":"title-20180731-1",
	"body":"body-20180731-1"
}

{
    "code": 10000,
    "message": "创建页面成功",
    "data": {
        "title": "title-20180731-1",
        "body": "body-20180731-1",
        "slug": "title-20180731-1",
        "created_at": 1533015414,
        "updated_at": 1533015414,
        "id": 1
    }
}

3、在 Postman 中执行 PUT /pages/1 请求，响应正常

{
	"slug":"slug-20180731-1",
	"title":"title-20180731-1",
	"body":"body-20180731-1",
	"status":2
}

{
    "code": 10000,
    "message": "更新页面成功",
    "data": {
        "id": 1,
        "slug": "slug-20180731-1",
        "title": "title-20180731-1",
        "body": "body-20180731-1",
        "view": 0,
        "status": 2,
        "created_at": 1533015414,
        "updated_at": 1533015770
    }
}

4、在 Postman 中执行 GET /pages 请求，响应正常

{
    "code": 10000,
    "message": "获取页面列表成功",
    "data": {
        "items": [
            {
                "id": 1,
                "slug": "slug-20180731-1",
                "title": "title-20180731-1",
                "body": "body-20180731-1",
                "view": 0,
                "status": 2,
                "created_at": 1533015414,
                "updated_at": 1533015770
            }
        ],
        "_links": {
            "self": {
                "href": "http://api.github-shuijingwan-yii2-app-advanced.localhost/v1/pages?page=1"
            }
        },
        "_meta": {
            "totalCount": 1,
            "pageCount": 1,
            "currentPage": 1,
            "perPage": 20
        }
    }
}

5、在 Postman 中执行 GET /pages/1 请求，响应正常

{
    "code": 10000,
    "message": "获取用户详情成功",
    "data": {
        "id": 1,
        "slug": "slug-20180731-1",
        "title": "title-20180731-1",
        "body": "body-20180731-1",
        "view": 0,
        "status": 2,
        "created_at": 1533015414,
        "updated_at": 1533015770
    }
}

6、在 Postman 中执行 DELETE /pages/1 请求，响应正常

{
    "code": 10000,
    "message": "删除页面成功"
}

7、在 Postman 中执行 GET /pages 请求，响应正常

filter[title][like]:title
filter[slug][like]:2018
filter[status]:2

{
    "code": 10000,
    "message": "获取页面列表成功",
    "data": {
        "items": [
            {
                "id": 1,
                "slug": "slug-20180731-1",
                "title": "title-20180731-1",
                "body": "body-20180731-1",
                "view": 0,
                "status": 2,
                "created_at": 1533015414,
                "updated_at": 1533019394
            }
        ],
        "_links": {
            "self": {
                "href": "http://api.github-shuijingwan-yii2-app-advanced.localhost/v1/pages?filter%5Btitle%5D%5Blike%5D=title&filter%5Bslug%5D%5Blike%5D=2018&filter%5Bstatus%5D=2&page=1"
            }
        },
        "_meta": {
            "totalCount": 1,
            "pageCount": 1,
            "currentPage": 1,
            "perPage": 20
        }
    }
}

8、使用 composer 命令行安装 Hprose

composer require "hprose/hprose-yii:^2.0"

./composer.json has been updated
Loading composer repositories with package information
Updating dependencies (including require-dev)
Package operations: 2 installs, 0 updates, 0 removals
  - Installing hprose/hprose (v2.0.35): Downloading (100%)
  - Installing hprose/hprose-yii (v2.0.0): Downloading (100%)
hprose/hprose suggests installing ext-hprose (Faster serialize and unserialize hprose extension.)
hprose/hprose-yii suggests installing ext-hprose (Faster serialize and unserialize hprose extension.)
Writing lock file
Generating autoload files

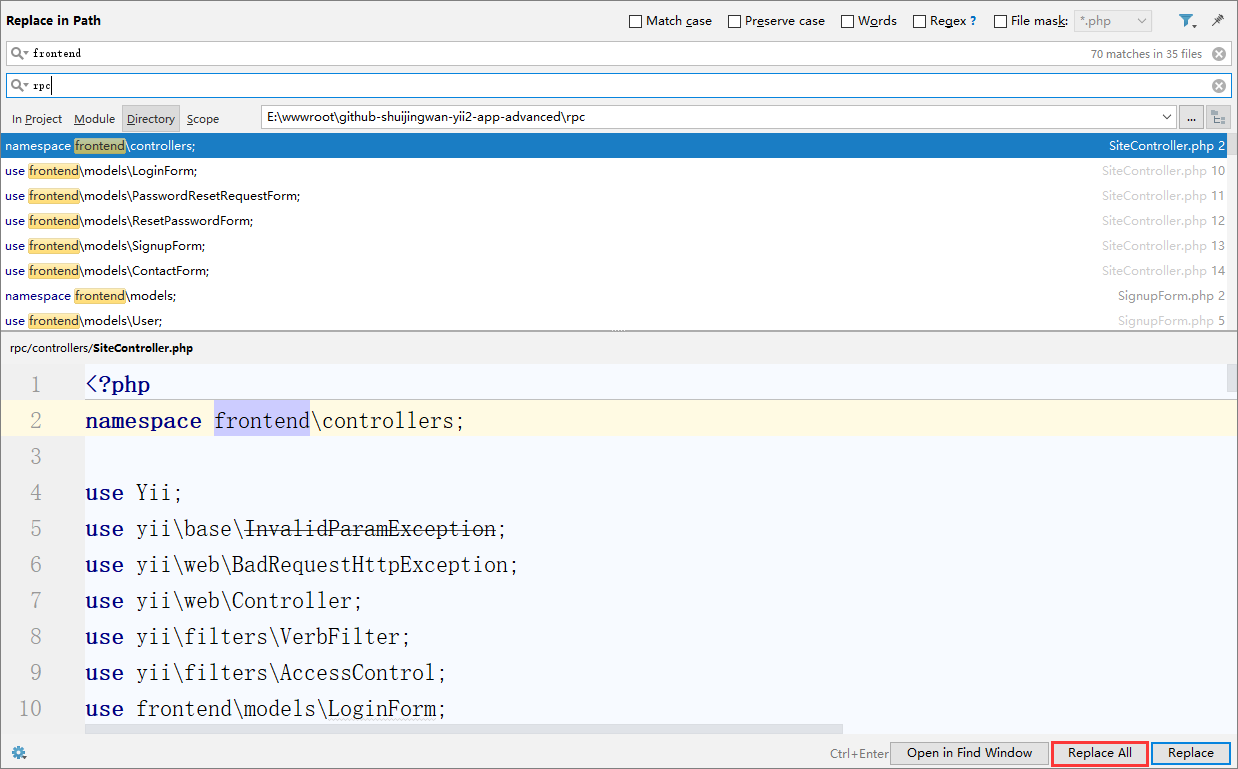

9、添加 RPC 应用程序(rpc)，复制 frontend 至 rpc, environments/dev/frontend 至 environments/dev/rpc 以及 environments/prod/frontend 至 environments/prod/rpc

10、删除目录 \rpc\runtime\debug 下的所有文件，删除目录 \rpc\tests\_output 下除.gitignore之外的所有文件，删除 \rpc\runtime\logs\app.log，在目录 /rpc 中调整命名空间和路径以 rpc 开头(替换 frontend 为 rpc)，如图2

11、在 common\config\bootstrap.php 中添加 Yii::setAlias(‘rpc’, dirname(dirname(__DIR__)) . ‘/rpc’)

12、编辑environments/index.php，搜索此文件有6处frontend，则相应复制6份，替换为rpc

13、\vagrant\nginx\app.conf，新增虚拟主机 rpc

14、编辑 \vagrant\nginx\log\.gitignore，配置 rpc 的日志文件为忽略

15、编辑 \Vagrantfile，新增 rpc 相关的配置

16、基于 Nginx 配置 Web 服务器，配置虚拟主机：www、backend、api、rpc，编辑 C:\nginx-1.10.1\conf\vhosts\github-shuijingwan-yii2-app-advanced.conf

## FRONTEND ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name www.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/frontend/web;
    index       index.php;

    access_log  logs/www.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/www.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## BACKEND ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name backend.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/backend/web;
    index       index.php;

    access_log  logs/backend.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/backend.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## API ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name api.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/api/web;
    index       index.php;

    access_log  logs/api.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/api.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## RPC ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name rpc.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/rpc/web;
    index       index.php;

    access_log  logs/rpc.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/rpc.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## MISC ##

### WWW Redirect ###
server {
    listen       80;
    server_name  github-shuijingwan-yii2-app-advanced.localhost;
    return       301 http://www.github-shuijingwan-yii2-app-advanced.localhost$request_uri;
}

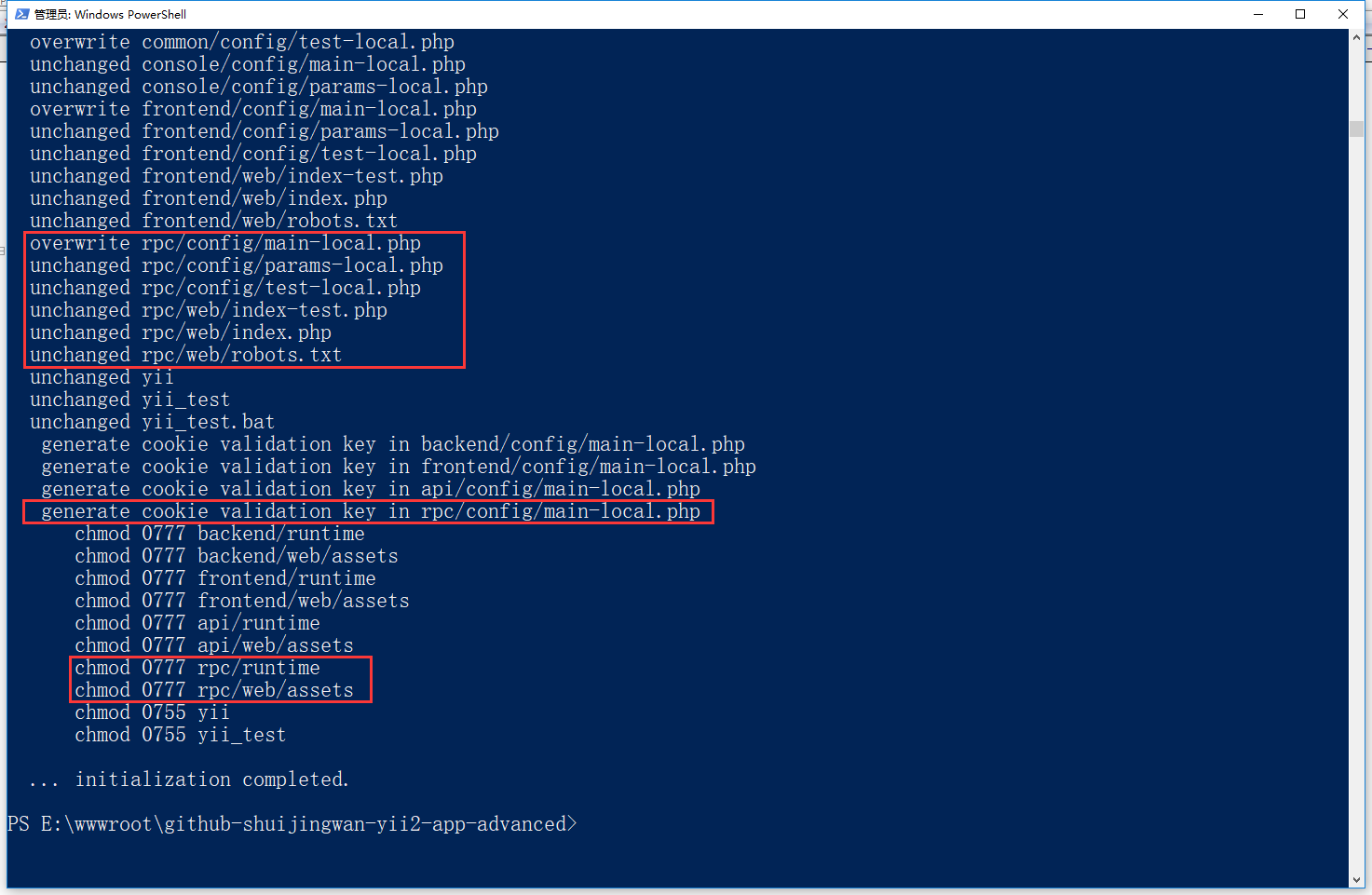

17、打开 Windows PowerShell，执行 init 命令并选择 dev 作为环境，api应用所需环境配置文件自动生成，如图3

.\init
0
yes
All

18、打开：http://rpc.github-shuijingwan-yii2-app-advanced.localhost/ ，符合预期

19、编辑 codeception.yml 配置包含所有应用程序的测试

20、由于控制台应用程序使用不同的请求组件，因此编辑 \common\config\test.php，注释 request 组件(在 Web 应用程序中需取消注释)

    'components' => [
        'user' => [
            'class' => 'yii\web\User',
            'identityClass' => 'common\models\User',
        ],
        /*
        'request' => [
            'cookieValidationKey' => 'test',
        ],
        */
    ],

21、执行测试的迁移命令，如图4

./yii_test migrate --migrationPath=@yii/log/migrations/
./yii_test migrate

22、构建测试套件，然后运行所有的样例测试
注：执行迁移命令(./yii_test migrate)后，需取消注释 request 组件，否则报错：

 Test  ..\common\tests\unit\models\LoginFormTest.php:testLoginCorrect

  [yii\base\InvalidConfigException] yii\web\Request::cookieValidationKey must be configured with a secret key.

vendor/bin/codecept build
vendor/bin/codecept run

23、编辑 README.md，在目录结构中新增 rpc

<p align="center">
    <a href="https://github.com/yiisoft" target="_blank">
        <img src="https://avatars0.githubusercontent.com/u/993323" height="100px">
    </a>
    <h1 align="center">Yii 2 Advanced Project Template</h1>
    <br>
</p>

Yii 2 Advanced Project Template is a skeleton [Yii 2](http://www.yiiframework.com/) application best for
developing complex Web applications with multiple tiers.

The template includes four tiers: api, front end, back end, and console, each of which
is a separate Yii application.

The template is designed to work in a team development environment. It supports
deploying the application in different environments.

Documentation is at [docs/guide-zh-CN/README.md](docs/guide-zh-CN/README.md).

[![Latest Stable Version](https://img.shields.io/packagist/v/yiisoft/yii2-app-advanced.svg)](https://packagist.org/packages/yiisoft/yii2-app-advanced)
[![Total Downloads](https://img.shields.io/packagist/dt/yiisoft/yii2-app-advanced.svg)](https://packagist.org/packages/yiisoft/yii2-app-advanced)
[![Build Status](https://travis-ci.org/yiisoft/yii2-app-advanced.svg?branch=master)](https://travis-ci.org/yiisoft/yii2-app-advanced)

## TABLE OF CONTENTS
- [Basic info](docs/guide-zh-CN/README.md)
- [Installation](docs/guide-zh-CN/start-installation.md)
    - [Manual installation](docs/guide-zh-CN/start-installation.md)
    - [Vagrant installation](docs/guide-zh-CN/start-installation.md#使用vagrant安装)
- [Testing](docs/guide-zh-CN/start-testing.md)

DIRECTORY STRUCTURE
-------------------

```
common
    config/              contains shared configurations
    fixtures/            contains fixtures for common classes
    logics/              contains logic classes used in both backend and frontend and api and console
    mail/                contains view files for e-mails
    messages/            contains message files for I18N
    models/              contains model classes used in both backend and frontend and api and console
    tests/               contains various tests for common classes
    widgets/             contains common widgets
console
    config/              contains console configurations
    controllers/         contains console controllers (commands)
    migrations/          contains database migrations
    models/              contains console-specific model classes
    runtime/             contains files generated during runtime
backend
    assets/              contains application assets such as JavaScript and CSS
    config/              contains backend configurations
    controllers/         contains Web controller classes
    models/              contains backend-specific model classes
    runtime/             contains files generated during runtime
    tests/               contains various tests for backend application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
frontend
    assets/              contains application assets such as JavaScript and CSS
    config/              contains frontend configurations
    controllers/         contains Web controller classes
    models/              contains frontend-specific model classes
    runtime/             contains files generated during runtime
    tests/               contains various tests for frontend application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
    widgets/             contains frontend widgets
api
    behaviors/           contains behaviors for api application
    config/              contains api configurations
    controllers/         contains Web controller classes
    fixtures/            contains fixtures for api application
    models/              contains api-specific model classes
    modules/             contains modules for api application
    rests/               contains rests for api application
    runtime/             contains files generated during runtime
    tests/               contains various tests for api application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
rpc
    assets/              contains application assets such as JavaScript and CSS
    config/              contains rpc configurations
    controllers/         contains Web controller classes
    models/              contains rpc-specific model classes
    runtime/             contains files generated during runtime
    tests/               contains various tests for rpc application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
    widgets/             contains rpc widgets
vendor/                  contains dependent 3rd-party packages
environments/            contains environment-based overrides
.gitignore               contains a list of directories ignored by git version system. If you need something never get to your source code repository, add it there.
composer.json            Composer config described in Configuring Composer.
init                     initialization script described in Configuration and environments.
init.bat                 same for Windows.
LICENSE.md               license info. Put your project license there. Especially when opensourcing.
README.md                basic info about installing template. Consider replacing it with information about your project and its installation.
requirements.php         Yii requirements checker.
yii                      console application bootstrap.
yii.bat                  same for Windows.
```

24、测试使用Vagrant安装，是否支持 rpc，参考网址：https://github.com/yiisoft/yii2-app-advanced/blob/master/docs/guide-zh-CN/start-installation.md ，使用Vagrant安装(Windows 用户手册)

25、编辑如下代码到 hosts 文件

# github-shuijingwan-yii2-app-advanced Vagrant
192.168.83.137 y2aa-frontend.test y2aa-backend.test y2aa-api.test y2aa-rpc.test

26、打开Windows PowerShell，切换路径至项目根目录，并且执行如下命令(需要翻墙，可能需要执行多次)，期间有报错，参考第20步骤处理，报错：The name of your virtual machine couldn’t be set because VirtualBox
is reporting another VM with that name already exists. ，打开 VirtualBox，删除虚拟机 ubuntu-16.04-amd64_1533104831432_66987，删除目录 F:\VirtualBox VMs\ubuntu-16.04-amd64_1533105278434_57210

vagrant plugin install vagrant-hostmanager
vagrant up

27、等待完成后，在浏览器中访问如下URL即可，符合预期

frontend: http://y2aa-frontend.test
backend: http://y2aa-backend.test
api: http://y2aa-api.test
rpc: http://y2aa-rpc.test
