基于 yiisoft/yii2-app-advanced，在 GitHub 上新建仓库 yii2-app-advanced，新建接口应用(实现 RESTful 风格的 Web Service 服务的 API)，新建api目录、配置和环境、测试、Vagrant等的支持 (一)

由永夜 · 2018/04/03

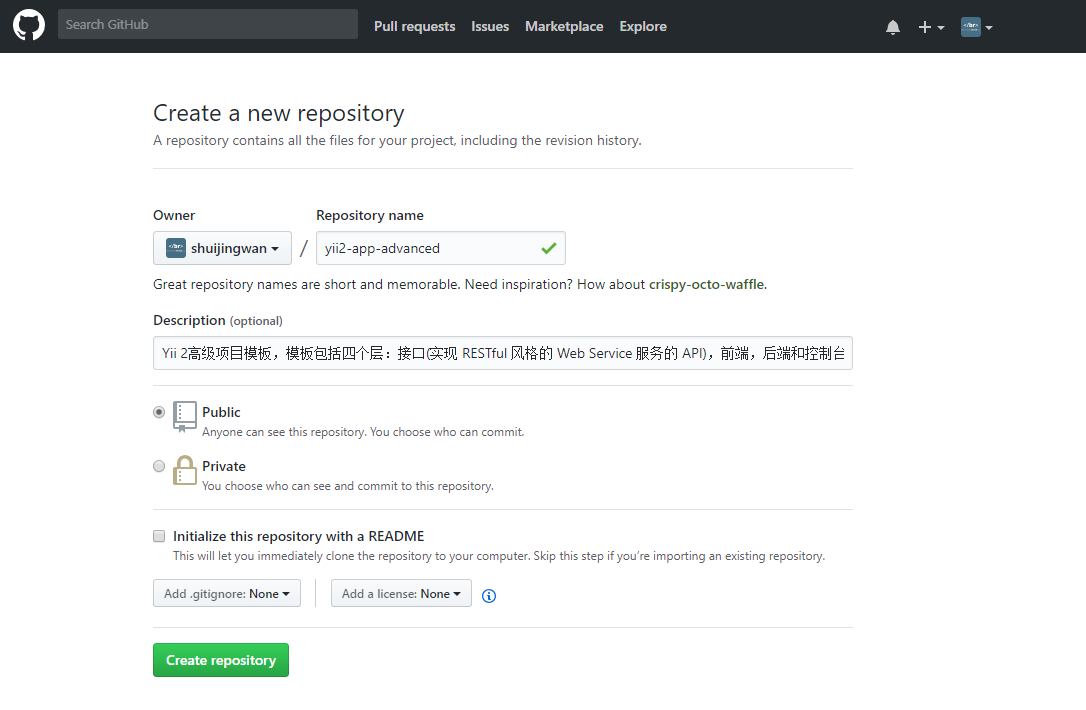

1、创建一个新的仓库，shuijingwan/yii2-app-advanced，如图1
Yii 2高级项目模板，模板包括四个层：接口(实现 RESTful 风格的 Web Service 服务的 API)，前端，后端和控制台，每个都是单独的Yii应用程序。

图1

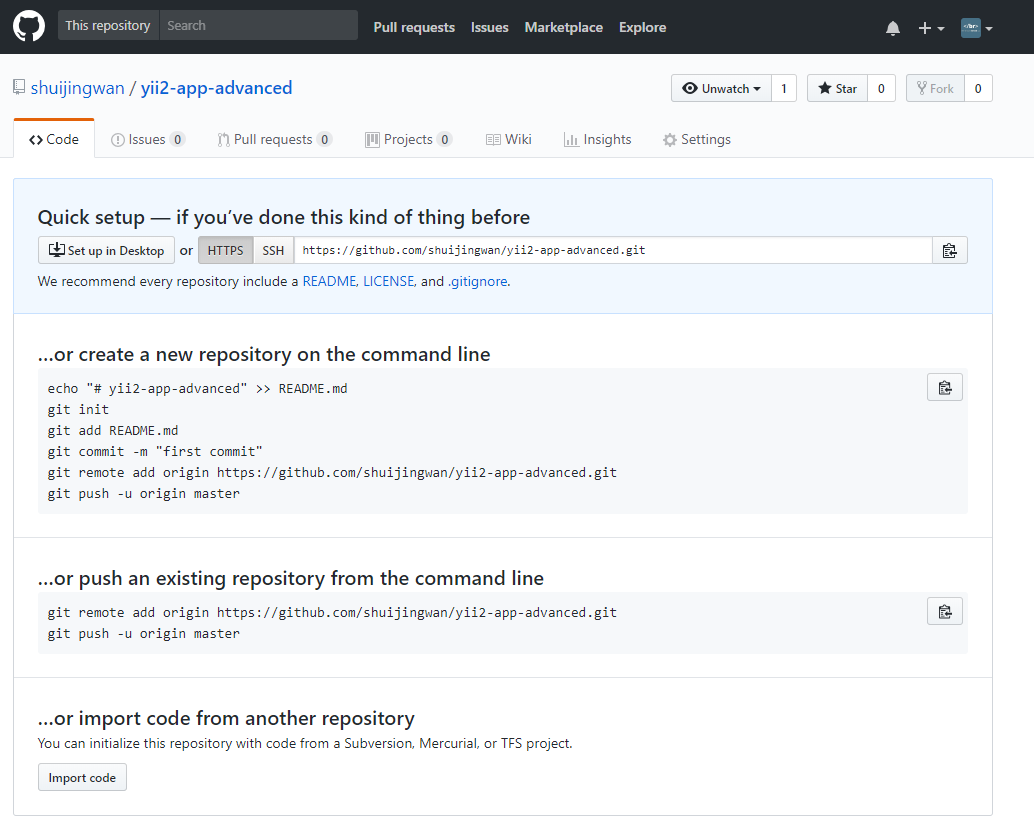

2、创建仓库成功，如图2

图2

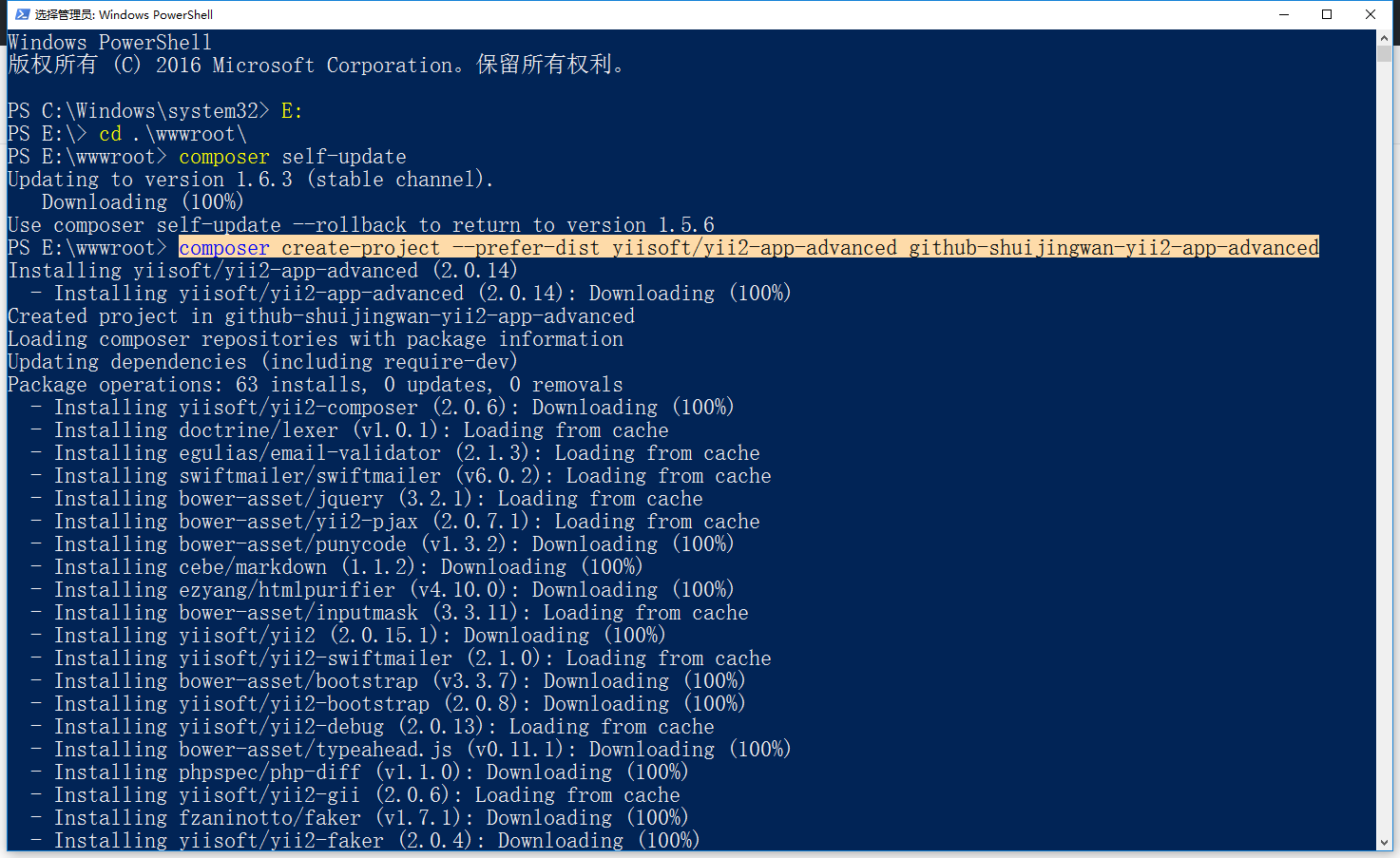

3、使用以下命令安装应用程序：yiisoft/yii2-app-advanced，如图3

图3

composer self-update
composer global require "fxp/composer-asset-plugin"
composer create-project --prefer-dist yiisoft/yii2-app-advanced github-shuijingwan-yii2-app-advanced

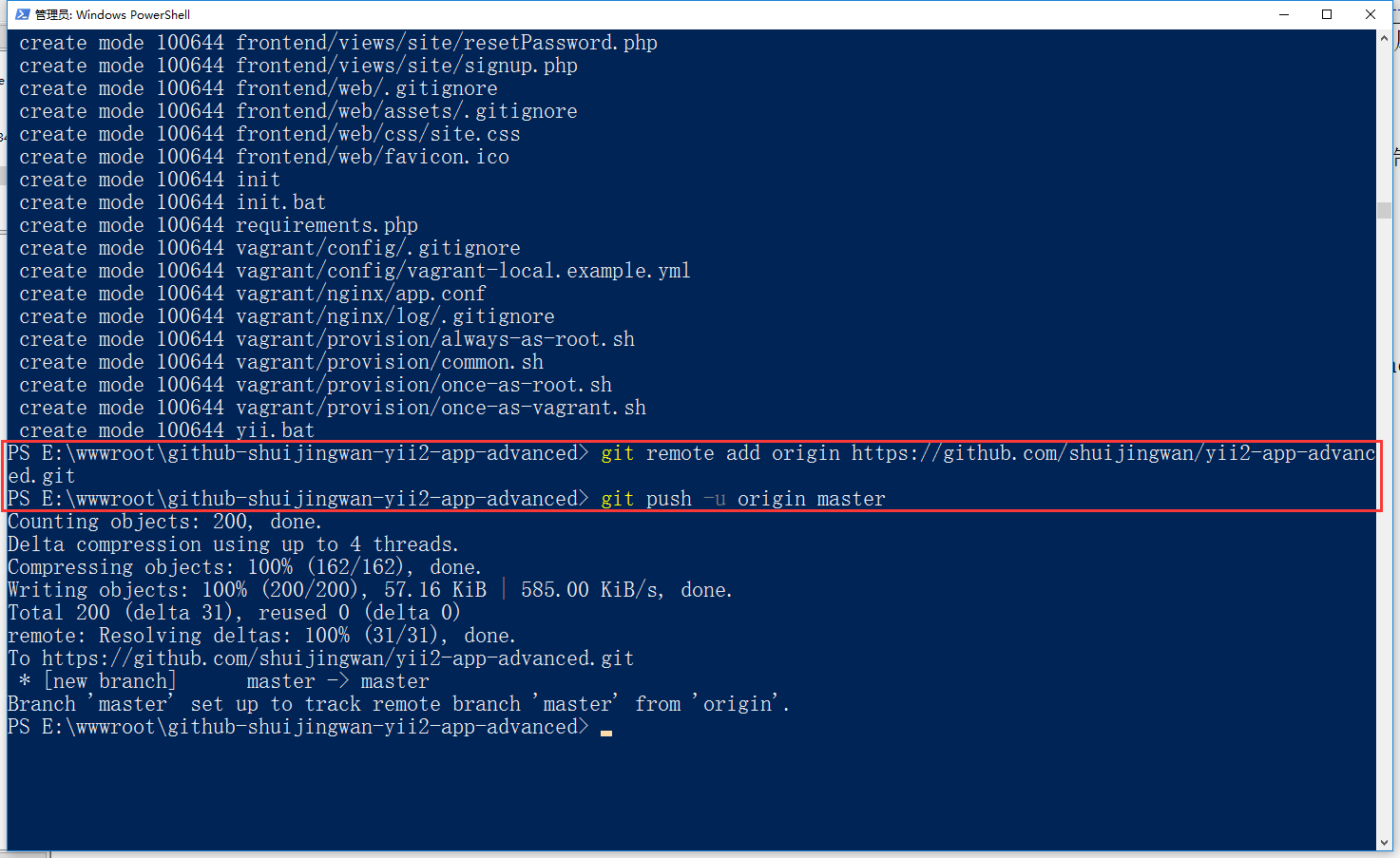

4、在命令行上创建一个新的仓库，推送现有的仓库至shuijingwan/yii2-app-advanced，基于第2步骤，如图4

图4

git init
git add .
git commit -m "安装 yiisoft/yii2-app-advanced 后，全部提交。"
git remote add origin https://github.com/shuijingwan/yii2-app-advanced.git
git push -u origin master

5、打开：https://github.com/shuijingwan/yii2-app-advanced ，仓库已经推送成功，如图5

图5

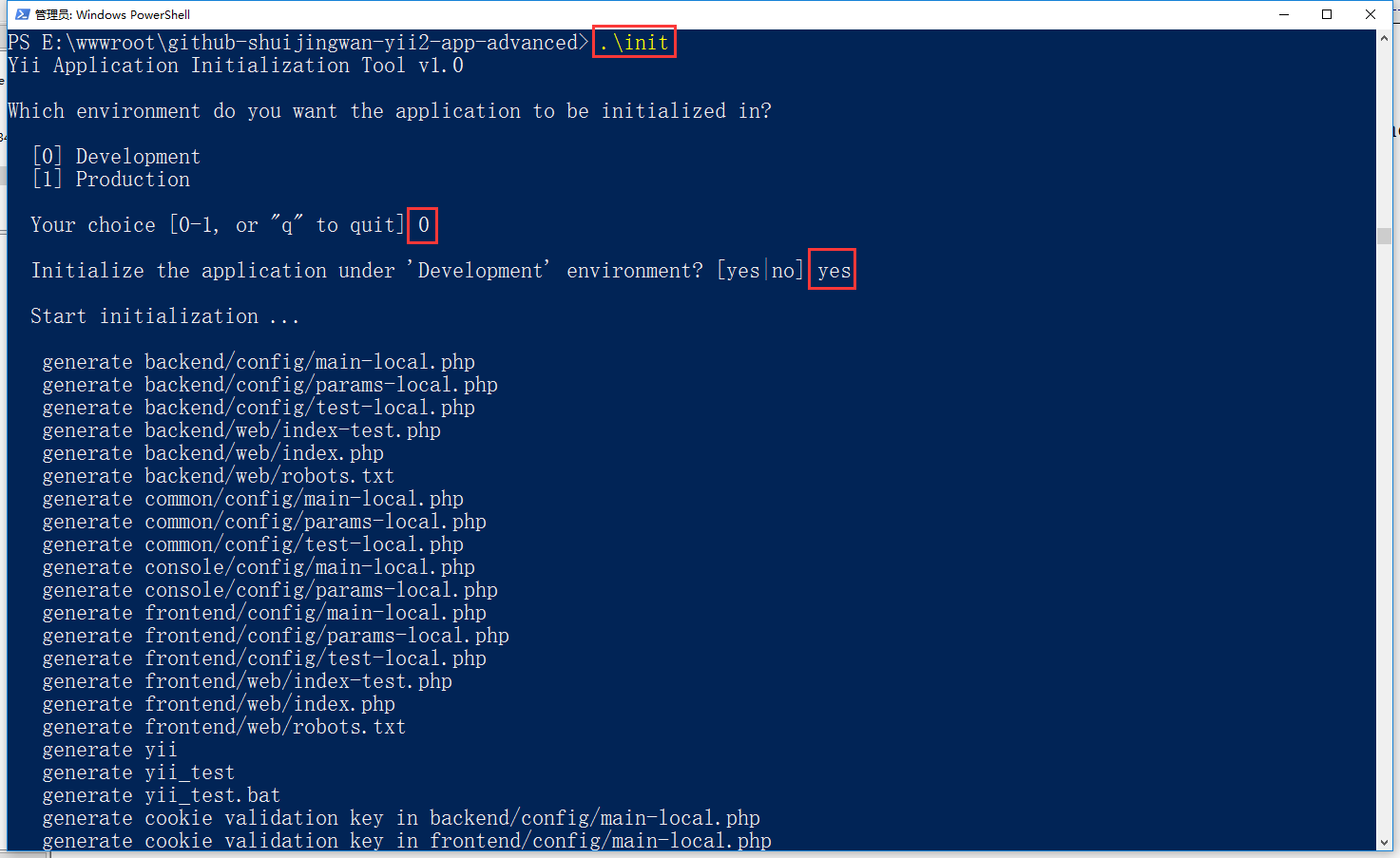

6、打开 Windows PowerShell，执行 init 命令并选择 dev 作为环境，如图6

图6

.\init
0
yes

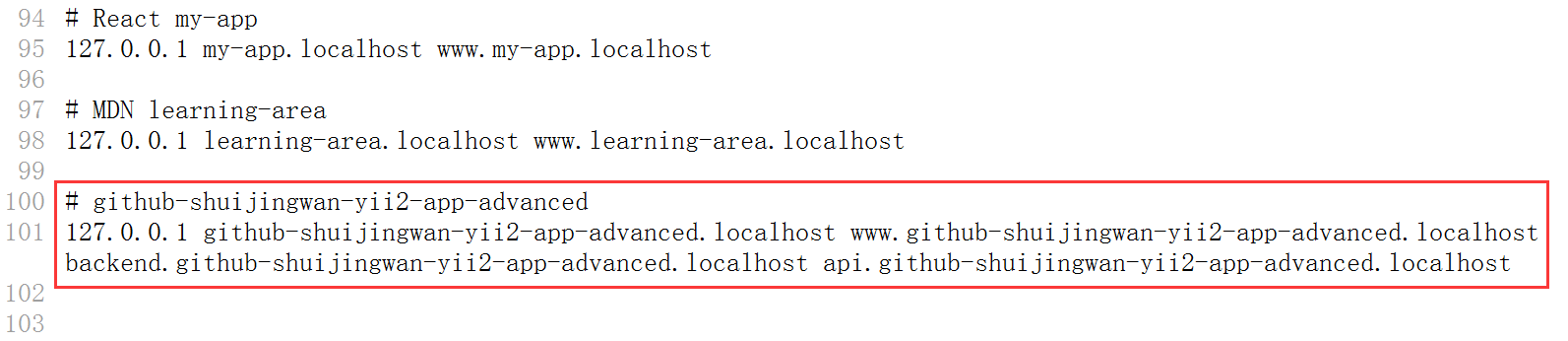

7、更改主机文件以将域指向您的服务器，配置 C:\Windows\System32\drivers\etc\hosts 文件，如图7

$更改主机文件以将域指向您的服务器，配置 C:\Windows\System32\drivers\etc\hosts 文件$

图7

# github-shuijingwan-yii2-app-advanced
127.0.0.1 github-shuijingwan-yii2-app-advanced.localhost www.github-shuijingwan-yii2-app-advanced.localhost backend.github-shuijingwan-yii2-app-advanced.localhost api.github-shuijingwan-yii2-app-advanced.localhost

8、基于 Nginx 配置 Web 服务器，配置虚拟主机：www、backend，api 暂缓配置，编辑 C:\nginx-1.10.1\conf\vhosts\github-shuijingwan-yii2-app-advanced.conf

## FRONTEND ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name www.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/frontend/web;
    index       index.php;

    access_log  logs/www.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/www.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## BACKEND ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name backend.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/backend/web;
    index       index.php;

    access_log  logs/backend.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/backend.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## MISC ##

### WWW Redirect ###
server {
    listen       80;
    server_name  github-shuijingwan-yii2-app-advanced.localhost;
    return       301 http://www.github-shuijingwan-yii2-app-advanced.localhost$request_uri;
}

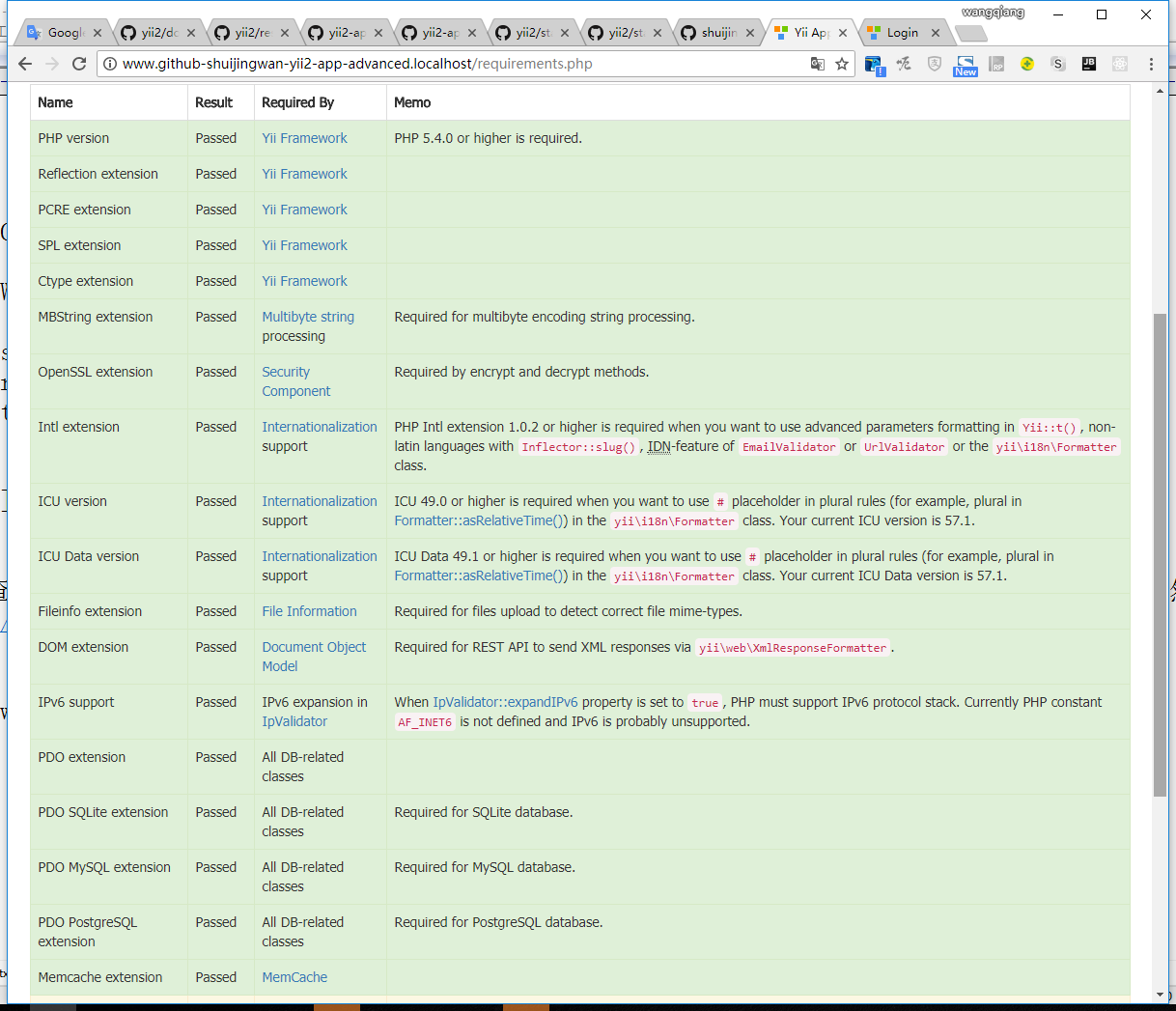

9、检查当前 PHP 环境是否满足 Yii 最基本需求，复制 /requirements.php 到 /frontend/web/requirements.php，然后通过浏览器访问 URL http://www.github-shuijingwan-yii2-app-advanced.localhost/requirements.php ，如图8

检查当前 PHP 环境是否满足 Yii 最基本需求，复制 /requirements.php 到 /frontend/web/requirements.php，然后通过浏览器访问 URL http://www.github-shuijingwan-yii2-app-advanced.localhost/requirements.php

图8

$frameworkPath = dirname(__FILE__) . '/../../vendor/yiisoft/yii2';

10、创建一个新的数据库(g-s-yii2-app-advanced)，并相应地调整 /common/config/main-local.php 中的 components[‘db’] 配置，字符集为utf8mb4。

CREATE USER 'g-s-yii2-app-advanced'@'%' IDENTIFIED WITH mysql_native_password AS '***';GRANT USAGE ON *.* TO 'g-s-yii2-app-advanced'@'%' REQUIRE NONE WITH MAX_QUERIES_PER_HOUR 0 MAX_CONNECTIONS_PER_HOUR 0 MAX_UPDATES_PER_HOUR 0 MAX_USER_CONNECTIONS 0;CREATE DATABASE IF NOT EXISTS `g-s-yii2-app-advanced`;GRANT ALL PRIVILEGES ON `g-s-yii2-app-advanced`.* TO 'g-s-yii2-app-advanced'@'%';

        'db' => [
            'class' => 'yii\db\Connection',
            'dsn' => 'mysql:host=localhost;dbname=g-s-yii2-app-advanced',
            'username' => 'g-s-yii2-app-advanced',
            'password' => 'IADO0x7uK4UpaRRM',
            'charset' => 'utf8mb4',
        ],

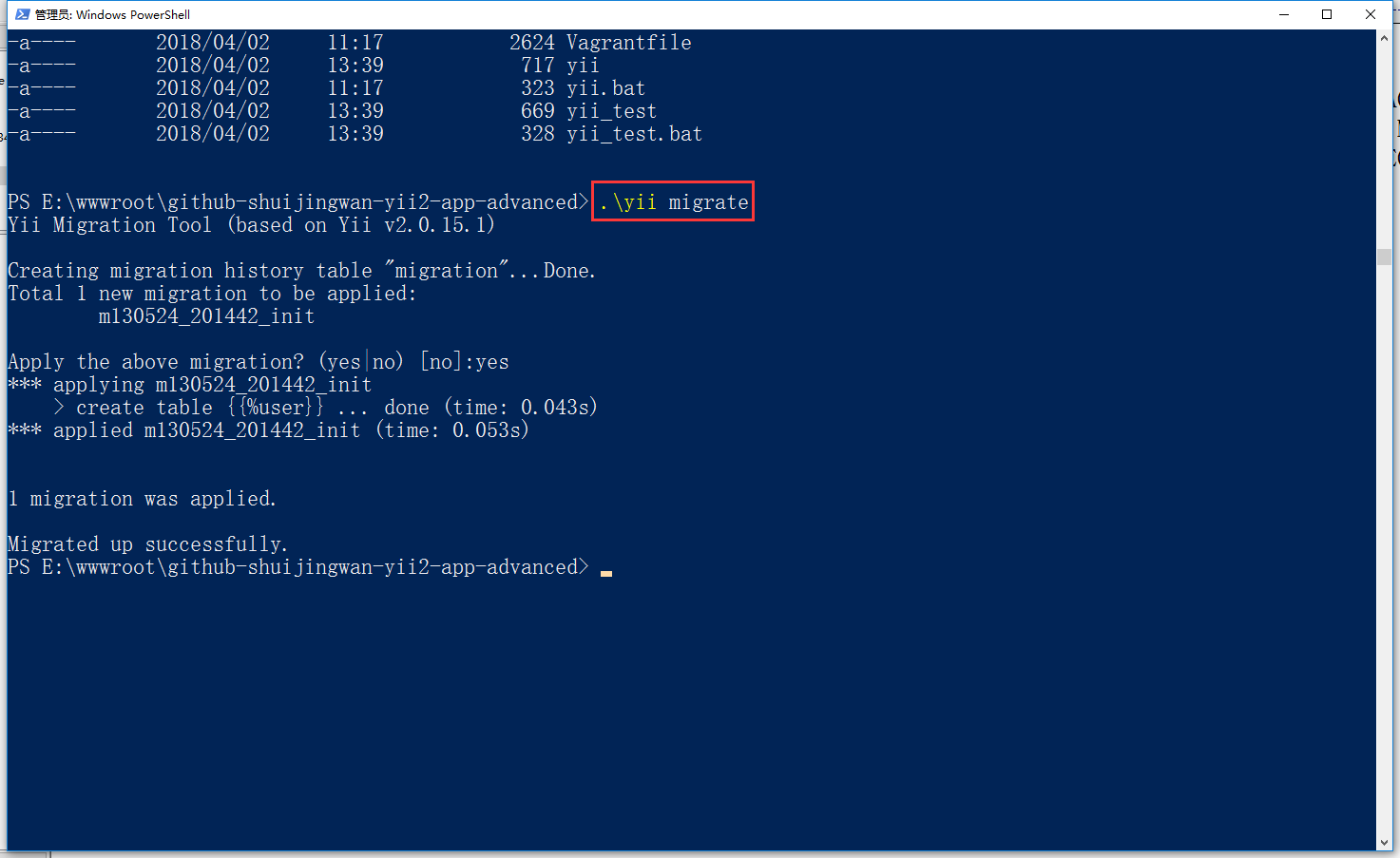

11、执行迁移命令，如图9

图9

.\yii migrate
yes

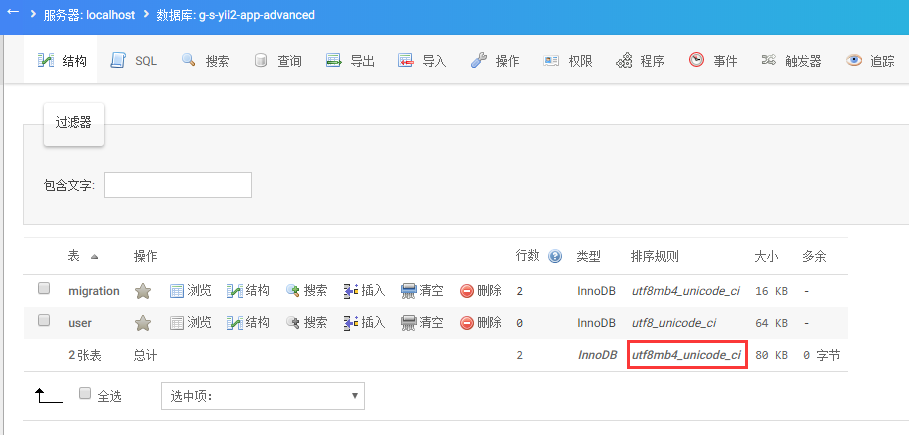

12、查看数据库，排序规则为：utf8mb4_unicode_ci，如图10

图10

13、创建测试数据库(g-s-yii2-app-advanced-test)，并相应地调整 /common/config/test-local.php 中的 components[‘db’] 配置，字符集为utf8mb4。

CREATE USER 'g-s-yii2-app-advanced-test'@'%' IDENTIFIED WITH mysql_native_password AS '***';GRANT USAGE ON *.* TO 'g-s-yii2-app-advanced-test'@'%' REQUIRE NONE WITH MAX_QUERIES_PER_HOUR 0 MAX_CONNECTIONS_PER_HOUR 0 MAX_UPDATES_PER_HOUR 0 MAX_USER_CONNECTIONS 0;CREATE DATABASE IF NOT EXISTS `g-s-yii2-app-advanced-test`;GRANT ALL PRIVILEGES ON `g-s-yii2-app-advanced-test`.* TO 'g-s-yii2-app-advanced-test'@'%';

            'db' => [
                'dsn' => 'mysql:host=localhost;dbname=g-s-yii2-app-advanced-test',
                'username' => 'g-s-yii2-app-advanced-test',
                'password' => '9dIXzEvrGN9akpcO',
                'charset' => 'utf8mb4',
            ]

14、执行迁移命令，报错：Exception ‘yii\base\UnknownPropertyException’ with message ‘Setting unknown property: yii\console\Request::cookieValidat
ionKey’ in E:\wwwroot\github-shuijingwan-yii2-app-advanced\vendor\yiisoft\yii2\base\Component.php:209，如图11

$执行迁移命令，报错：Exception 'yii\base\UnknownPropertyException' with message 'Setting unknown property: yii\console\Request::cookieValidat ionKey' in E:\wwwroot\github-shuijingwan-yii2-app-advanced\vendor\yiisoft\yii2\base\Component.php:209$

图11

./yii_test migrate

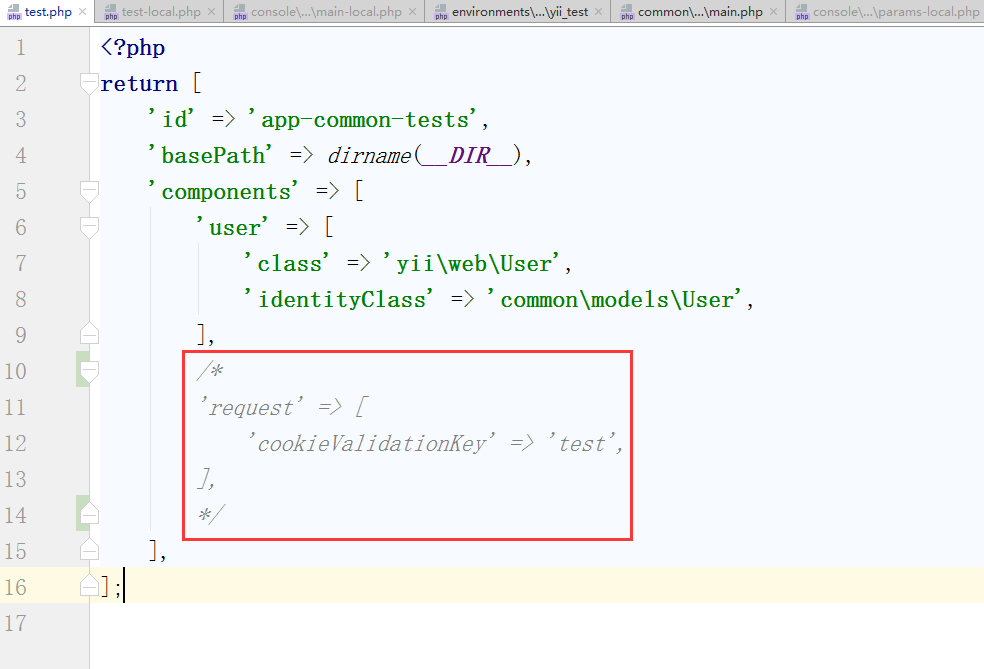

15、由于控制台应用程序使用不同的请求组件，因此编辑 \common\config\test.php，注释 request 组件(在 Web 应用程序中需取消注释)，如图12

$由于控制台应用程序使用不同的请求组件，因此编辑 \common\config\test.php，注释 request 组件(在 Web 应用程序中需取消注释)$

图12

    'components' => [
        'user' => [
            'class' => 'yii\web\User',
            'identityClass' => 'common\models\User',
        ],
        /*
        'request' => [
            'cookieValidationKey' => 'test',
        ],
        */
    ],

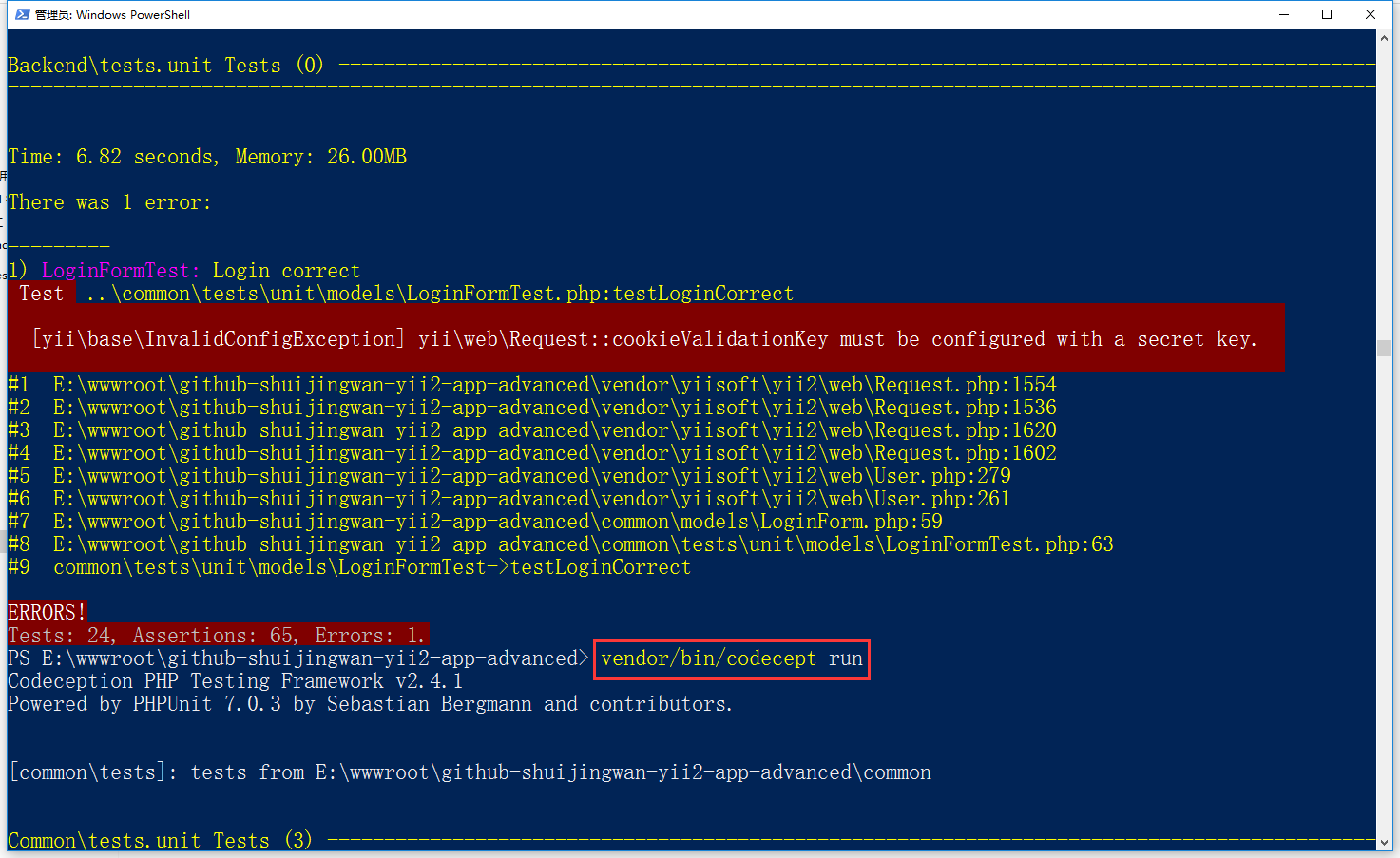

16、执行迁移命令、构建测试套件，然后运行所有的样例测试，如图13
注：执行迁移命令(./yii_test migrate)后，需取消注释 request 组件，否则报错：

图13

 Test  ..\common\tests\unit\models\LoginFormTest.php:testLoginCorrect

  [yii\base\InvalidConfigException] yii\web\Request::cookieValidationKey must be configured with a secret key.

./yii_test migrate
vendor/bin/codecept build
vendor/bin/codecept run

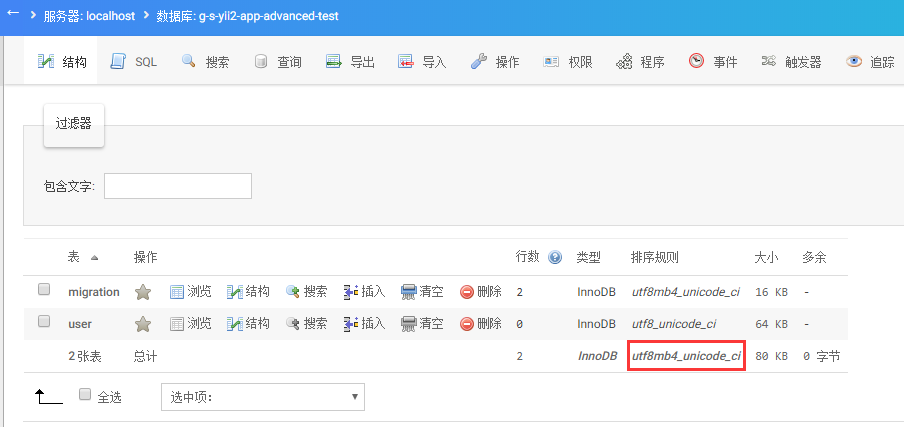

17、查看测试数据库，排序规则为：utf8mb4_unicode_ci，如图14

图14

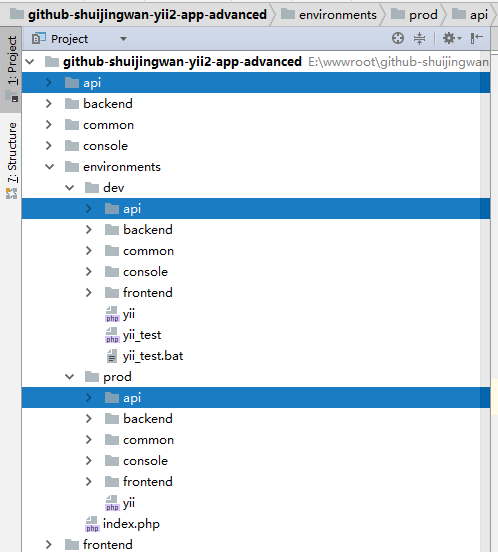

18、添加接口应用程序(api)，复制 frontend 至 api, environments/dev/frontend 至 environments/dev/api 以及 environments/prod/frontend 至 environments/prod/api，如图15

图15

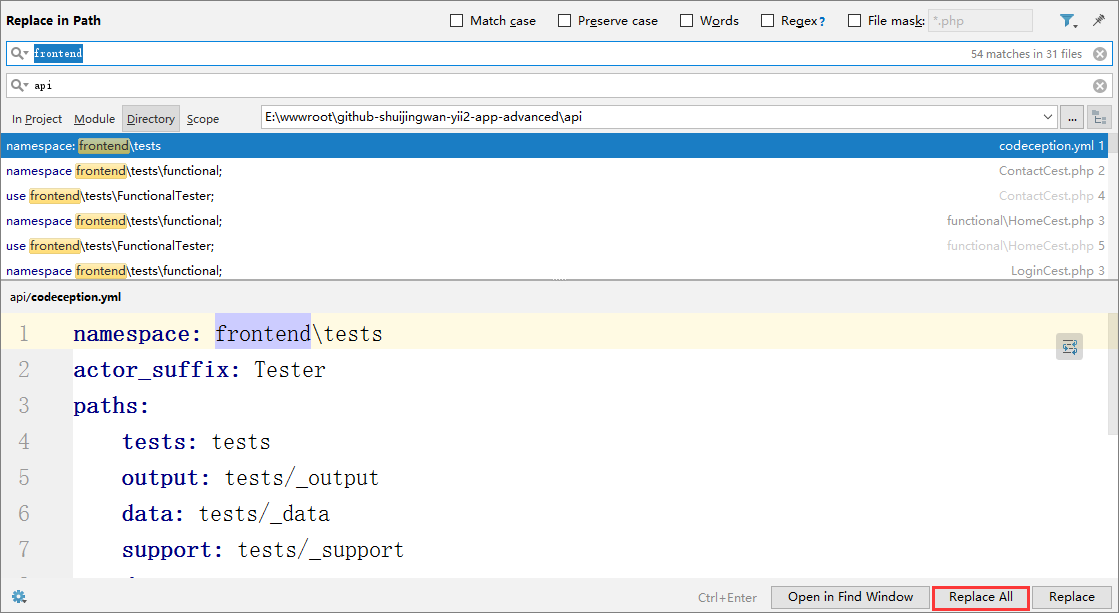

19、删除目录 \api\runtime\debug 下的所有文件，在目录 /api 中调整命名空间和路径以 api 开头(替换 frontend 为 api)，如图16

$删除目录 \api\runtime\debug 下的所有文件，在目录 /api 中调整命名空间和路径以 api 开头(替换 frontend 为 api)$

图16

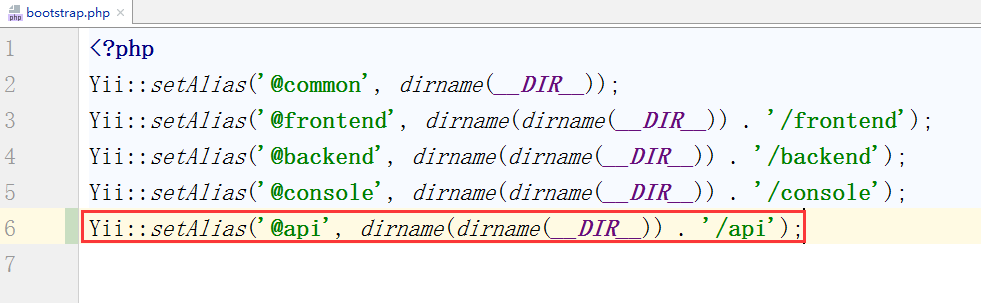

20、在 common\config\bootstrap.php 中添加 Yii::setAlias(‘api’, dirname(dirname(__DIR__)) . ‘/api’);，如图17

$在 common\config\bootstrap.php 中添加 Yii::setAlias('api', dirname(dirname(__DIR__)) . '/api');$

图17

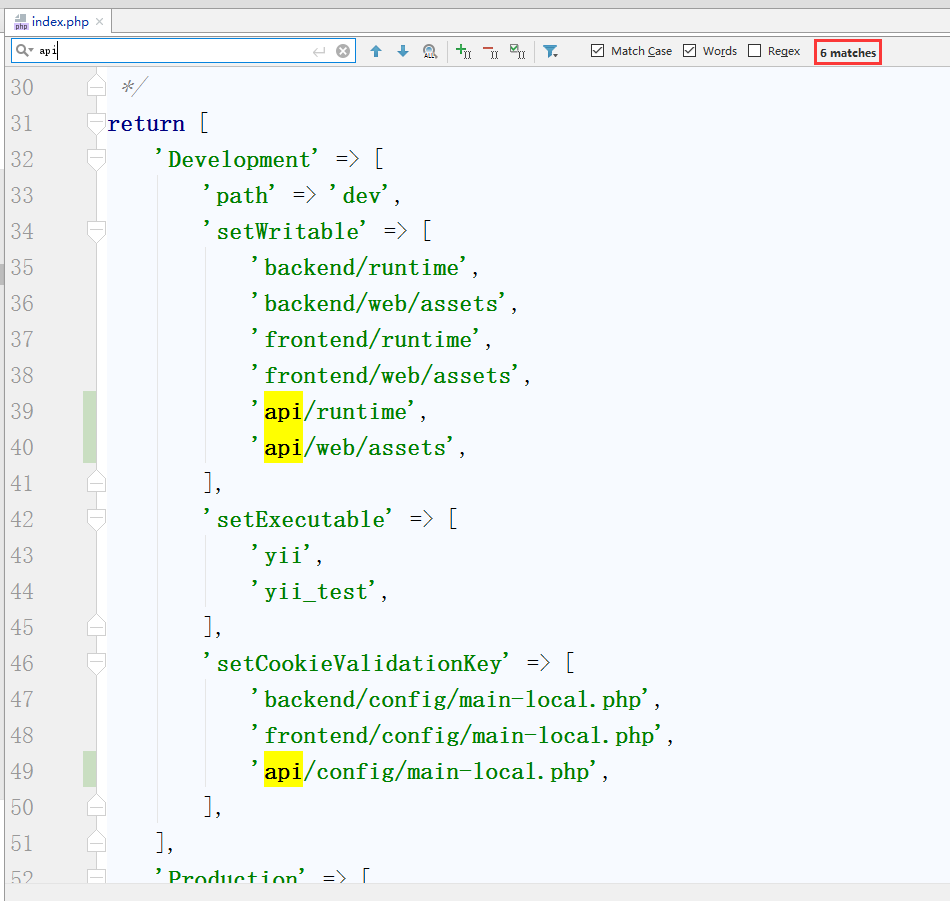

21、编辑environments/index.php，搜索此文件有6处frontend，则相应复制6份，替换为api，如图18

图18

22、\vagrant\nginx\app.conf，新增虚拟主机 api

\vagrant\nginx\app.conf

server {
   charset utf-8;
   client_max_body_size 128M;
   sendfile off;

   listen 80; ## listen for ipv4
   #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

   server_name y2aa-frontend.test;
   root        /app/frontend/web/;
   index       index.php;

   access_log  /app/vagrant/nginx/log/frontend-access.log;
   error_log   /app/vagrant/nginx/log/frontend-error.log;

   location / {
       # Redirect everything that isn't a real file to index.php
       try_files $uri $uri/ /index.php$is_args$args;
   }

   # uncomment to avoid processing of calls to non-existing static files by Yii
   #location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
   #    try_files $uri =404;
   #}
   #error_page 404 /404.html;

   location ~ \.php$ {
       include fastcgi_params;
       fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
       #fastcgi_pass   127.0.0.1:9000;
       fastcgi_pass unix:/var/run/php/php7.0-fpm.sock;
       try_files $uri =404;
   }

   location ~ /\.(ht|svn|git) {
       deny all;
   }
}

server {
   charset utf-8;
   client_max_body_size 128M;
   sendfile off;

   listen 80; ## listen for ipv4
   #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

   server_name y2aa-backend.test;
   root        /app/backend/web/;
   index       index.php;

   access_log  /app/vagrant/nginx/log/backend-access.log;
   error_log   /app/vagrant/nginx/log/backend-error.log;

   location / {
       # Redirect everything that isn't a real file to index.php
       try_files $uri $uri/ /index.php$is_args$args;
   }

   # uncomment to avoid processing of calls to non-existing static files by Yii
   #location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
   #    try_files $uri =404;
   #}
   #error_page 404 /404.html;

   location ~ \.php$ {
       include fastcgi_params;
       fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
       #fastcgi_pass   127.0.0.1:9000;
       fastcgi_pass unix:/var/run/php/php7.0-fpm.sock;
       try_files $uri =404;
   }

   location ~ /\.(ht|svn|git) {
       deny all;
   }
}

server {
   charset utf-8;
   client_max_body_size 128M;
   sendfile off;

   listen 80; ## listen for ipv4
   #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

   server_name y2aa-api.test;
   root        /app/api/web/;
   index       index.php;

   access_log  /app/vagrant/nginx/log/api-access.log;
   error_log   /app/vagrant/nginx/log/api-error.log;

   location / {
       # Redirect everything that isn't a real file to index.php
       try_files $uri $uri/ /index.php$is_args$args;
   }

   # uncomment to avoid processing of calls to non-existing static files by Yii
   #location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
   #    try_files $uri =404;
   #}
   #error_page 404 /404.html;

   location ~ \.php$ {
       include fastcgi_params;
       fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
       #fastcgi_pass   127.0.0.1:9000;
       fastcgi_pass unix:/var/run/php/php7.0-fpm.sock;
       try_files $uri =404;
   }

   location ~ /\.(ht|svn|git) {
       deny all;
   }
}

23、编辑 \vagrant\nginx\log\.gitignore，配置api的日志文件为忽略

# nginx logs
backend-access.log
backend-error.log
frontend-access.log
frontend-error.log
api-access.log
api-error.log

24、编辑 \Vagrantfile，新增 api 相关的配置

require 'yaml'
require 'fileutils'

required_plugins = %w( vagrant-hostmanager vagrant-vbguest )
required_plugins.each do |plugin|
    exec "vagrant plugin install #{plugin}" unless Vagrant.has_plugin? plugin
end

domains = {
  frontend: 'y2aa-frontend.test',
  backend:  'y2aa-backend.test',
  api:      'y2aa-api.test',
}

config = {
  local: './vagrant/config/vagrant-local.yml',
  example: './vagrant/config/vagrant-local.example.yml'
}

# copy config from example if local config not exists
FileUtils.cp config[:example], config[:local] unless File.exist?(config[:local])
# read config
options = YAML.load_file config[:local]

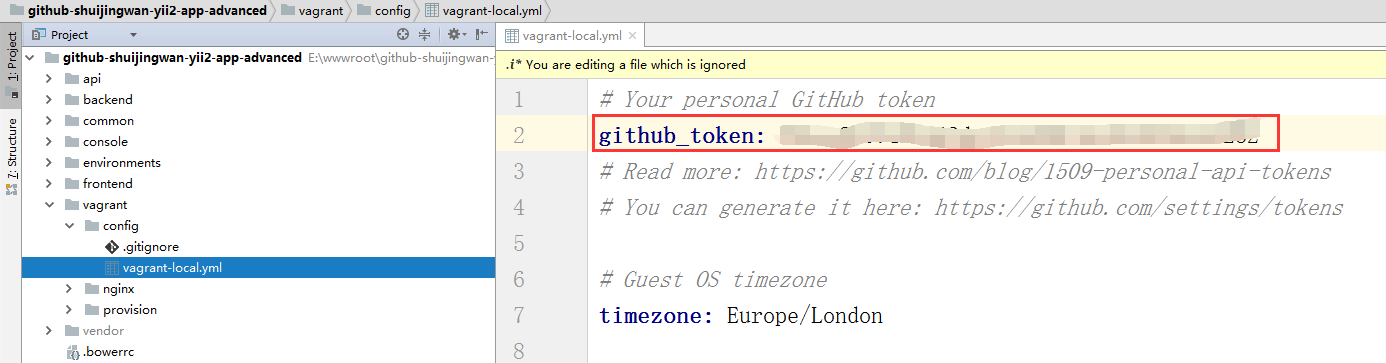

# check github token
if options['github_token'].nil? || options['github_token'].to_s.length != 40
  puts "You must place REAL GitHub token into configuration:\n/yii2-app-advanced/vagrant/config/vagrant-local.yml"
  exit
end

# vagrant configurate
Vagrant.configure(2) do |config|
  # select the box
  config.vm.box = 'bento/ubuntu-16.04'

  # should we ask about box updates?
  config.vm.box_check_update = options['box_check_update']

  config.vm.provider 'virtualbox' do |vb|
    # machine cpus count
    vb.cpus = options['cpus']
    # machine memory size
    vb.memory = options['memory']
    # machine name (for VirtualBox UI)
    vb.name = options['machine_name']
  end

  # machine name (for vagrant console)
  config.vm.define options['machine_name']

  # machine name (for guest machine console)
  config.vm.hostname = options['machine_name']

  # network settings
  config.vm.network 'private_network', ip: options['ip']

  # sync: folder 'yii2-app-advanced' (host machine) -> folder '/app' (guest machine)
  config.vm.synced_folder './', '/app', owner: 'vagrant', group: 'vagrant'

  # disable folder '/vagrant' (guest machine)
  config.vm.synced_folder '.', '/vagrant', disabled: true

  # hosts settings (host machine)
  config.vm.provision :hostmanager
  config.hostmanager.enabled            = true
  config.hostmanager.manage_host        = true
  config.hostmanager.ignore_private_ip  = false
  config.hostmanager.include_offline    = true
  config.hostmanager.aliases            = domains.values

  # provisioners
  config.vm.provision 'shell', path: './vagrant/provision/once-as-root.sh', args: [options['timezone']]
  config.vm.provision 'shell', path: './vagrant/provision/once-as-vagrant.sh', args: [options['github_token']], privileged: false
  config.vm.provision 'shell', path: './vagrant/provision/always-as-root.sh', run: 'always'

  # post-install message (vagrant console)
  config.vm.post_up_message = "Frontend URL: http://#{domains[:frontend]}\nBackend URL: http://#{domains[:backend]}\nApi URL: http://#{domains[:api]}"
end

25、基于 Nginx 配置 Web 服务器，配置虚拟主机：www、backend、api，编辑 C:\nginx-1.10.1\conf\vhosts\github-shuijingwan-yii2-app-advanced.conf

## FRONTEND ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name www.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/frontend/web;
    index       index.php;

    access_log  logs/www.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/www.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## BACKEND ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name backend.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/backend/web;
    index       index.php;

    access_log  logs/backend.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/backend.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## API ##
server {
    charset utf-8;
    client_max_body_size 128M;

    listen 80; ## listen for ipv4
    #listen [::]:80 default_server ipv6only=on; ## listen for ipv6

    server_name api.github-shuijingwan-yii2-app-advanced.localhost;
    root        E:/wwwroot/github-shuijingwan-yii2-app-advanced/api/web;
    index       index.php;

    access_log  logs/api.github-shuijingwan-yii2-app-advanced.localhost.access.log;
    error_log   logs/api.github-shuijingwan-yii2-app-advanced.localhost.error.log;

	location / {
		# Redirect everything that isn't a real file to index.php
		try_files $uri $uri/ /index.php$is_args$args;
	}

	# uncomment to avoid processing of calls to non-existing static files by Yii
	#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
	#    try_files $uri =404;
	#}
	#error_page 404 /404.html;

	# deny accessing php files for the /assets directory
	location ~ ^/assets/.*\.php$ {
		deny all;
	}

	location ~ \.php$ {
		include fastcgi_params;
		fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
		fastcgi_pass 127.0.0.1:9000;
		#fastcgi_pass unix:/var/run/php5-fpm.sock;
		try_files $uri =404;
	}

	location ~* /\. {
		deny all;
	}
}

## MISC ##

### WWW Redirect ###
server {
    listen       80;
    server_name  github-shuijingwan-yii2-app-advanced.localhost;
    return       301 http://www.github-shuijingwan-yii2-app-advanced.localhost$request_uri;
}

26、打开 Windows PowerShell，执行 init 命令并选择 dev 作为环境，api应用所需环境配置文件自动生成，如图19

图19

.\init
0
yes
Yes
Yes
Yes
Yes
Yes

27、打开：http://api.github-shuijingwan-yii2-app-advanced.localhost/ ，符合预期，如图20

图20

28、编辑 codeception.yml 配置包含所有应用程序的测试，如图21

图21

# global codeception file to run tests from all apps
include:
    - common
    - frontend
    - backend
    - api
paths:
    log: console/runtime/logs
settings:
    colors: true

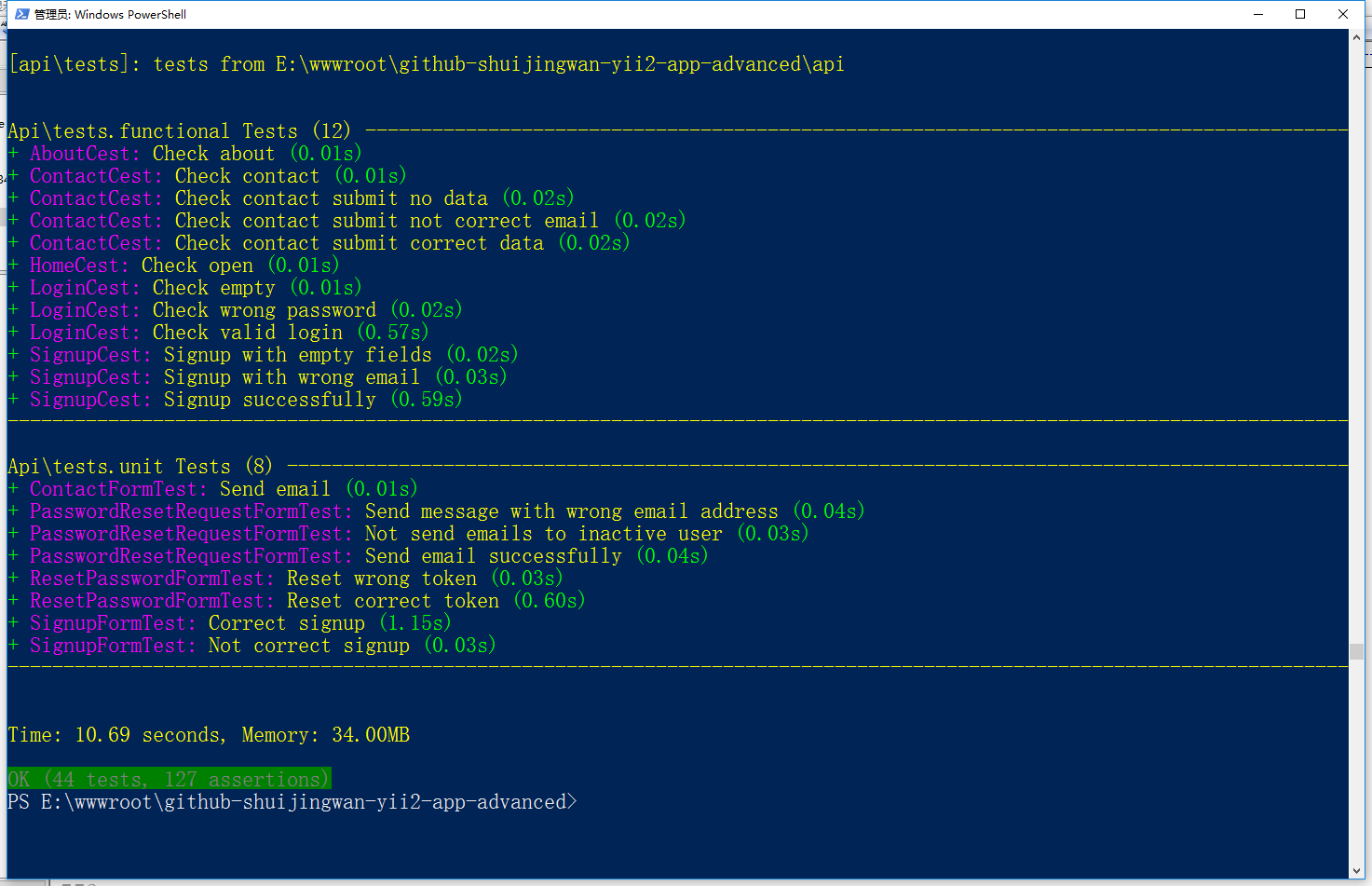

29、运行所有的样例测试，包含 api，如图22

图22

vendor/bin/codecept run

30、编辑 README.md，在目录结构中新增 api

<p align="center">
    <a href="https://github.com/yiisoft" target="_blank">
        <img src="https://avatars0.githubusercontent.com/u/993323" height="100px">
    </a>
    <h1 align="center">Yii 2 Advanced Project Template</h1>
    <br>
</p>

Yii 2 Advanced Project Template is a skeleton [Yii 2](http://www.yiiframework.com/) application best for
developing complex Web applications with multiple tiers.

The template includes three tiers: front end, back end, and console, each of which
is a separate Yii application.

The template is designed to work in a team development environment. It supports
deploying the application in different environments.

Documentation is at [docs/guide/README.md](docs/guide/README.md).

[![Latest Stable Version](https://img.shields.io/packagist/v/yiisoft/yii2-app-advanced.svg)](https://packagist.org/packages/yiisoft/yii2-app-advanced)
[![Total Downloads](https://img.shields.io/packagist/dt/yiisoft/yii2-app-advanced.svg)](https://packagist.org/packages/yiisoft/yii2-app-advanced)
[![Build Status](https://travis-ci.org/yiisoft/yii2-app-advanced.svg?branch=master)](https://travis-ci.org/yiisoft/yii2-app-advanced)

DIRECTORY STRUCTURE
-------------------

```
common
    config/              contains shared configurations
    mail/                contains view files for e-mails
    models/              contains model classes used in both api and backend and frontend
    tests/               contains tests for common classes
console
    config/              contains console configurations
    controllers/         contains console controllers (commands)
    migrations/          contains database migrations
    models/              contains console-specific model classes
    runtime/             contains files generated during runtime
backend
    assets/              contains application assets such as JavaScript and CSS
    config/              contains backend configurations
    controllers/         contains Web controller classes
    models/              contains backend-specific model classes
    runtime/             contains files generated during runtime
    tests/               contains tests for backend application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
frontend
    assets/              contains application assets such as JavaScript and CSS
    config/              contains frontend configurations
    controllers/         contains Web controller classes
    models/              contains frontend-specific model classes
    runtime/             contains files generated during runtime
    tests/               contains tests for frontend application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
    widgets/             contains frontend widgets
api
    assets/              contains application assets such as JavaScript and CSS
    config/              contains api configurations
    controllers/         contains Web controller classes
    models/              contains api-specific model classes
    runtime/             contains files generated during runtime
    tests/               contains tests for api application
    views/               contains view files for the Web application
    web/                 contains the entry script and Web resources
    widgets/             contains api widgets
vendor/                  contains dependent 3rd-party packages
environments/            contains environment-based overrides
```

31、测试使用Vagrant安装，是否支持 api，参考网址：https://github.com/yiisoft/yii2-app-advanced/blob/master/docs/guide-zh-CN/start-installation.md ，使用Vagrant安装(Windows 用户手册)

32、进入 /vagrant/config 文件夹，重命名 vagrant-local.example.yml 为 vagrant-local.yml(建议复制)，将GitHub个人API令牌放置到 vagrant-local.yml，如图23

图23

33、添加如下代码到 hosts 文件

# github-shuijingwan-yii2-app-advanced Vagrant
192.168.83.137 y2aa-frontend.test y2aa-backend.test y2aa-api.test

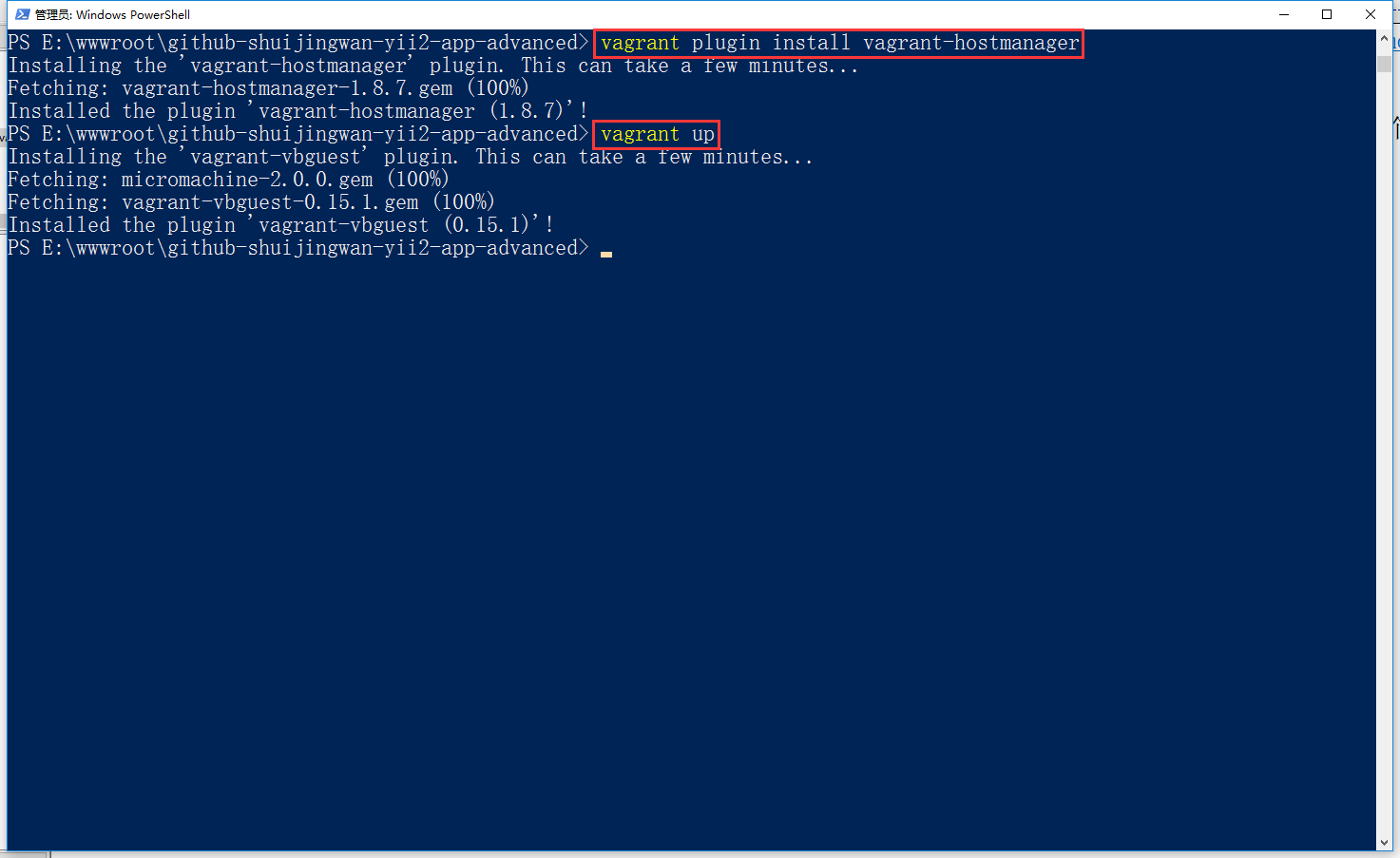

34、打开Windows PowerShell，切换路径至项目根目录，并且执行如下命令(需要翻墙，可能需要执行多次)，期间有报错，参考第15步骤处理，如图24、图25

图24

图25

vagrant plugin install vagrant-hostmanager
vagrant up

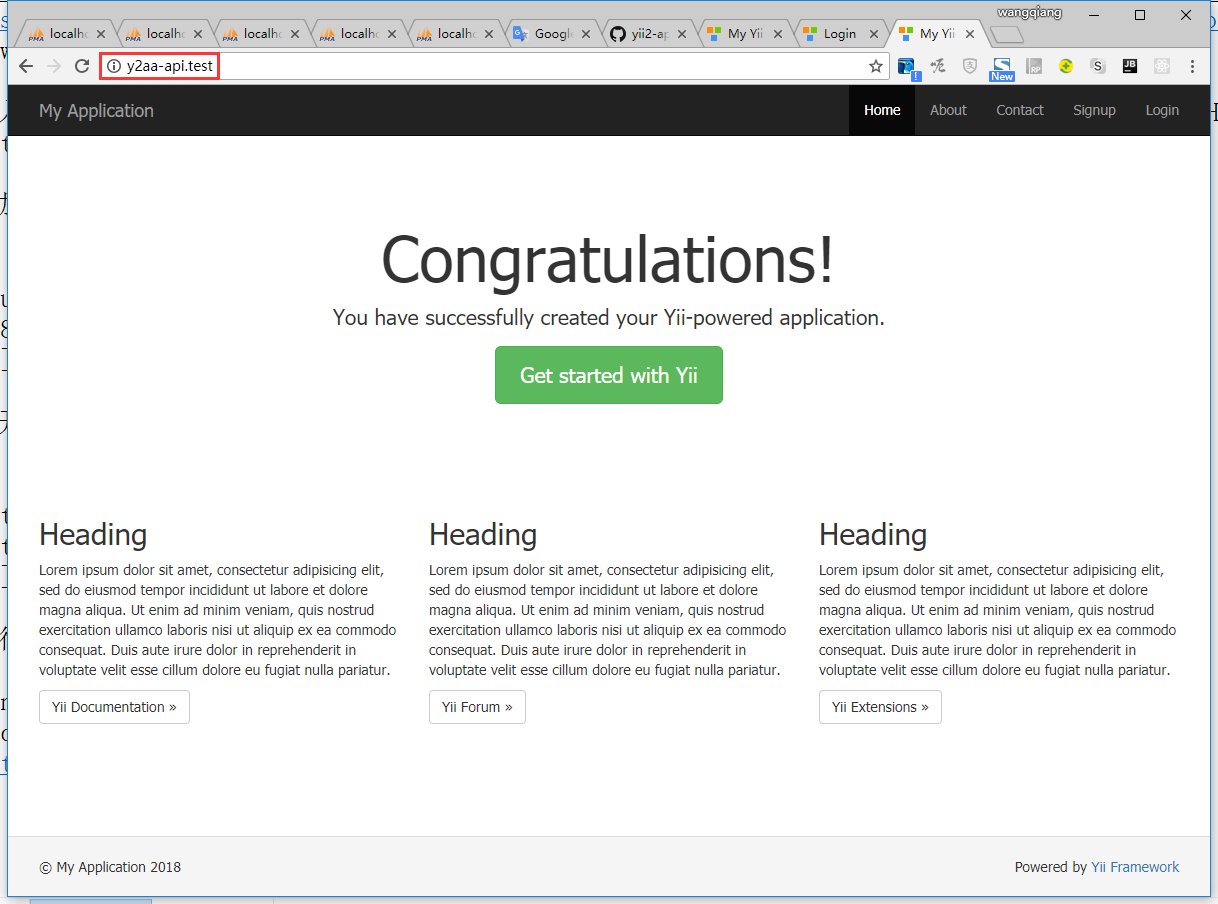

35、等待完成后，在浏览器中访问如下URL即可，符合预期，如图26
frontend: http://y2aa-frontend.test
backend: http://y2aa-backend.test
api: http://y2aa-api.test

图26

36、还原第32步骤所做的修改，且编辑 \vagrant\config\.gitignore

# local configuration
vagrant-local.yml

标签： api codeception composer Git GitHub hosts Nginx Nginx 1.10 README.md RESTful RESTful API utf8mb4 utf8mb4_unicode_ci Vagrant Vagrantfile Web Service Windows PowerShell Yii 2 yii2-codeception yiisoft/yii2-app-advanced

在 Github、Gitlab、本地Git仓库上的分布式工作流程 – 永夜

2018/04/17

[…] 基于 yiisoft/yii2-app-advanced，在 GitHub 上新建仓库 yii2-app-advanced，新建接口应用… […]

发表回复取消回复

要发表评论，您必须先登录。

此站点使用Akismet来减少垃圾评论。了解我们如何处理您的评论数据。

基于 yiisoft/yii2-app-advanced，在 GitHub 上新建仓库 yii2-app-advanced，新建接口应用(实现 RESTful 风格的 Web Service 服务的 API)，新建api目录、配置和环境、测试、Vagrant等的支持 (一)

您可能还喜欢...

1 条回复

发表回复取消回复

近期文章

近期评论

分类

其他操作

日历

2018 年 4 月
一	二	三	四	五	六	日
						1
2	3	4	5	6	7	8
9	10	11	12	13	14	15
16	17	18	19	20	21	22
23	24	25	26	27	28	29
30

基于 yiisoft/yii2-app-advanced，在 GitHub 上新建仓库 yii2-app-advanced，新建接口应用(实现 RESTful 风格的 Web Service 服务的 API)，新建api目录、配置和环境、测试、Vagrant等的支持 (一)

您可能还喜欢...

在 Windows 10 下的 OpenResty ，报错：module ‘lib.redis’ not found: no field package.preload[‘lib.redis’]

在 运行：npm run shopify version 时，提示：Running this command will add the dependency to the workspace root rather than the workspace itself

执行：vagrant up 时报错：The name of your virtual machine couldn’t be set because VirtualBox is reporting another VM with that name already exists.

1 条回复

发表回复 取消回复

近期文章

近期评论

分类

其他操作

标签

日历

在运行：npm run shopify version 时，提示：Running this command will add the dependency to the workspace root rather than the workspace itself

发表回复取消回复
