在 Yii 2 Starter Kit 中数据库迁移的多租户实现
1、前文：http://www.shuijingwanwq.com/2018/01/18/2328/

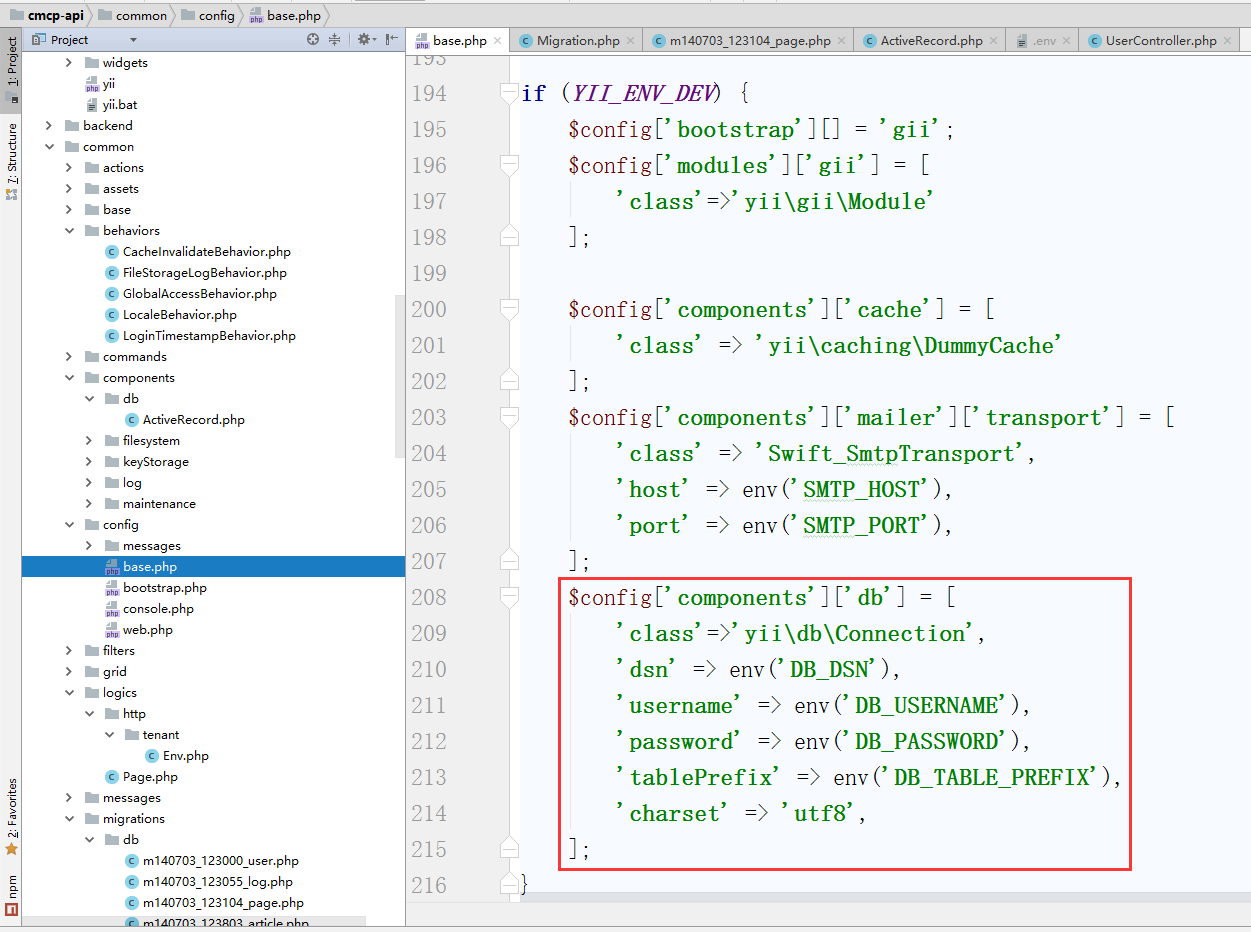

2、参考第11步骤，db 组件移至开发环境，以方便于 Gii 的使用，\common\config\base.php，如图1
图1

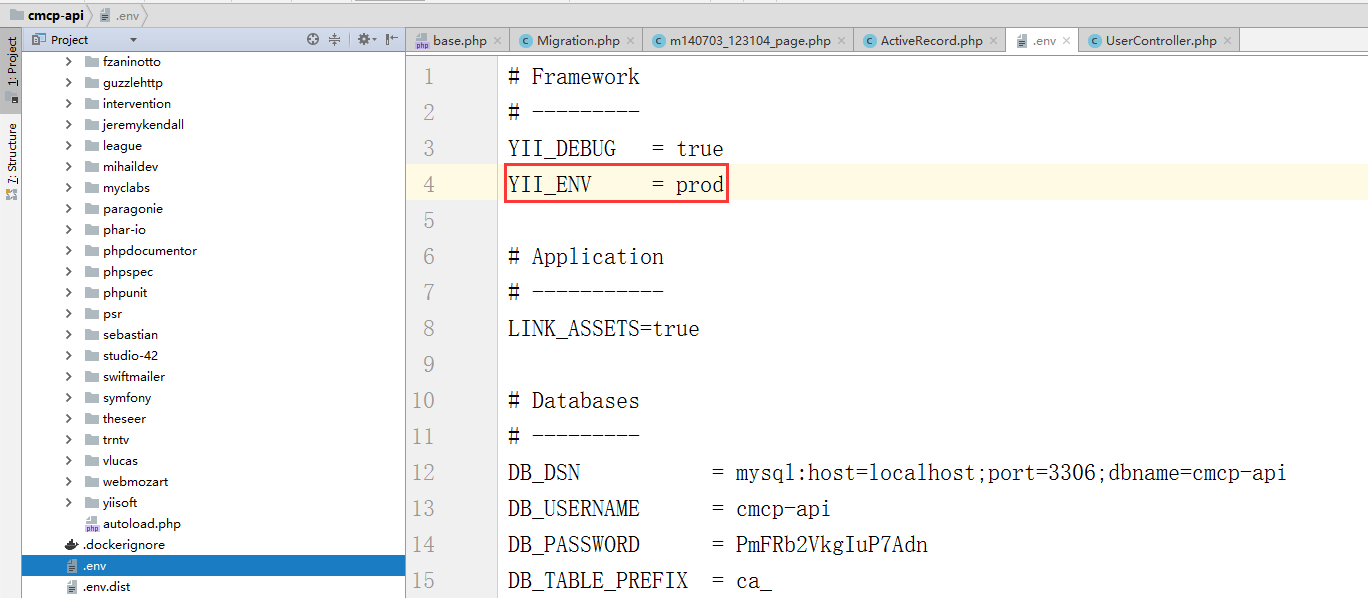

3、配置为生产环境，以便于测试数据库迁移的多租户实现，不依赖于 db 组件，如图2
图2

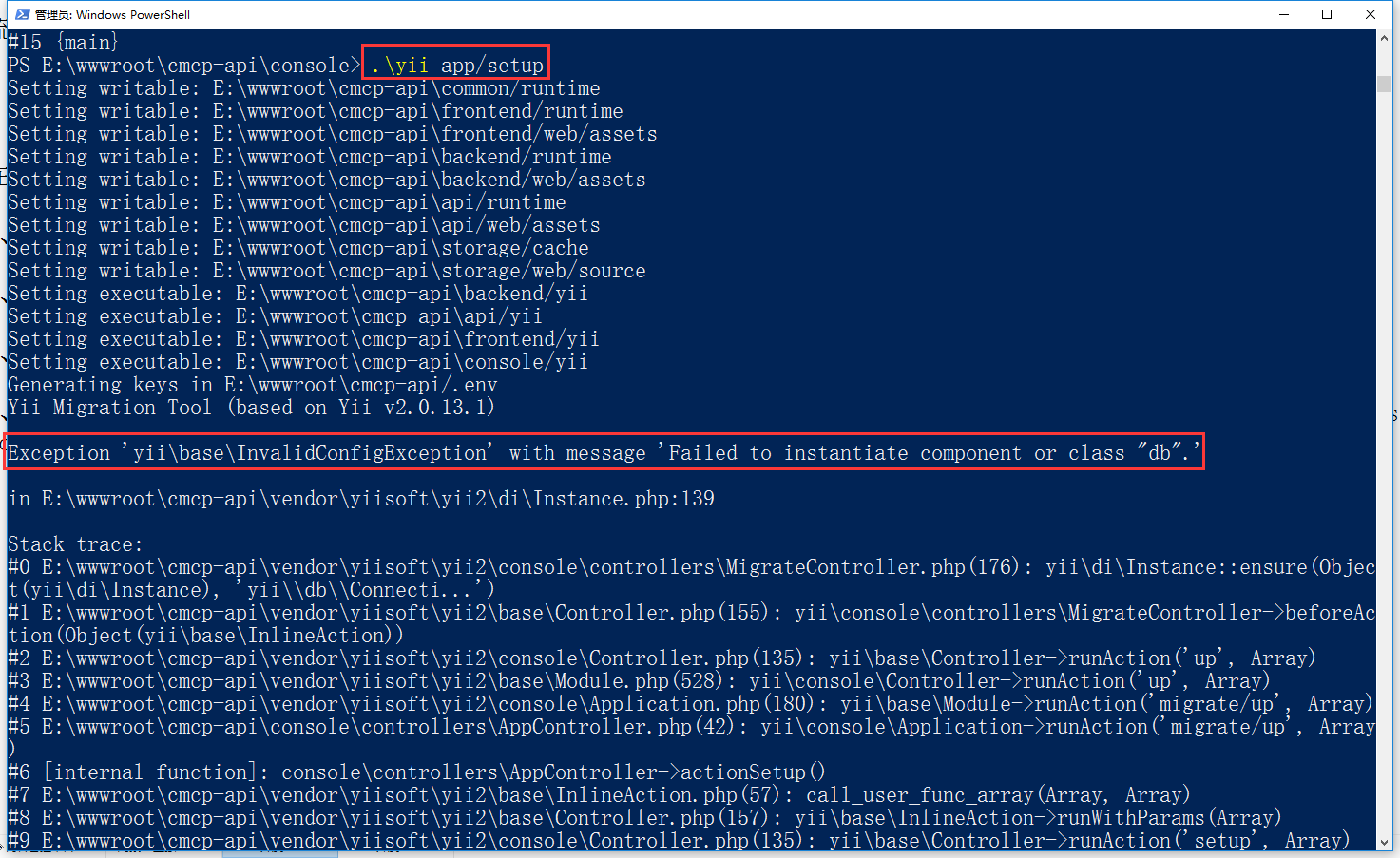

4、运行命令：.\yii app/setup，报错：Exception ‘yii\base\InvalidConfigException’ with message ‘Failed to instantiate component or class “db”.’，如图3
图3
5、基于 Trait 实现，将 getTenantDb() 方法放入 Trait 中，新建 \common\traits\TenantDb.php，通过 [[yii\di\ServiceLocator::setComponents()]] 方法注册数据库连接组件、RBAC组件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 | <?php/** * Created by PhpStorm. * User: WangQiang * Date: 2018/01/26 * Time: 16:25 */namespace common\traits;use Yii;use common\logics\http\tenant\Env;use yii\web\ServerErrorHttpException;/** * 获取租户模块环境配置信息，存储至Redis，注册数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */trait TenantDb{ /** * 数据库连接组件ID(基于多租户) * * @return string */ public static function getTenantDb() { $env = new Env(); $tenantEnv = $env->getTenantEnv(); if ($tenantEnv === false) { if ($env->hasErrors()) { foreach ($env->getFirstErrors() as $message) { $firstErrors = $message; } throw new ServerErrorHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '20006'), ['firstErrors' => $firstErrors])), 20006); } elseif (!$env->hasErrors()) { throw new ServerErrorHttpException('Multi-tenant HTTP requests fail for unknown reasons.'); } } $tenantDb = $tenantEnv['data']['tenantid'] . 'Db'; // 检查数据库连接组件、RBAC组件是否被注册 if (!(Yii::$app->has($tenantDb) && Yii::$app->has('authManager'))) { // 注册数据库连接组件、RBAC组件 Yii::$app->setComponents([ $tenantDb => [ 'class' => 'yii\db\Connection', 'dsn' => 'mysql:host=' . $tenantEnv['data']['db_info']['host'] . ';port=3306;dbname=' . $tenantEnv['data']['db_info']['database'] . '', 'username' => $tenantEnv['data']['db_info']['login'], 'password' => $tenantEnv['data']['db_info']['password'], 'tablePrefix' => $tenantEnv['data']['db_info']['prefix'], 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD, 'schemaCache' => 'redisCache', ], 'authManager' => [ 'class' => 'yii\rbac\DbManager', 'db' => $tenantDb, 'itemTable' => '{{%rbac_auth_item}}', 'itemChildTable' => '{{%rbac_auth_item_child}}', 'assignmentTable' => '{{%rbac_auth_assignment}}', 'ruleTable' => '{{%rbac_auth_rule}}' ], ]); } return $tenantDb; }} |
6、编辑 \common\components\db\ActiveRecord.php，导入 common\traits\TenantDb
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/16 * Time: 10:31 */namespace common\components\db;use Yii;use common\traits\TenantDb;/** * 导入 TenantDb，注册数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class ActiveRecord extends \yii\db\ActiveRecord{ use TenantDb; /** * Returns the database connection used by this AR class. * By default, the "db" application component is used as the database connection. * You may override this method if you want to use a different database connection. * @return Connection the database connection used by this AR class. */ public static function getDb() { $tenantDb = self::getTenantDb(); return Yii::$app->$tenantDb; }} |
7、基于 Trait 实现，导入 common\traits\TenantDb，将 init() 方法放入 Trait 中，新建 \common\traits\TenantMigration.php，将 $tenantDb 设置为数据库连接组件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 | <?php/** * Created by PhpStorm. * User: WangQiang * Date: 2018/01/26 * Time: 16:25 */namespace common\traits;use Yii;use common\traits\TenantDb;/** * 导入 TenantDb，将 $tenantDb 设置为数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */trait TenantMigration{ use TenantDb; /** * Initializes the migration. * This method will set [[db]] to be the 'db' application component, if it is `null`. */ public function init() { $tenantDb = self::getTenantDb(); $this->db = $tenantDb; parent::init(); }} |
8、新建 \common\components\db\Migration.php，导入 common\traits\TenantMigration
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/26 * Time: 13:48 */namespace common\components\db;use common\traits\TenantMigration;/** * 导入 TenantMigration，将 $tenantDb 设置为数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Migration extends \yii\db\Migration{ use TenantMigration;} |

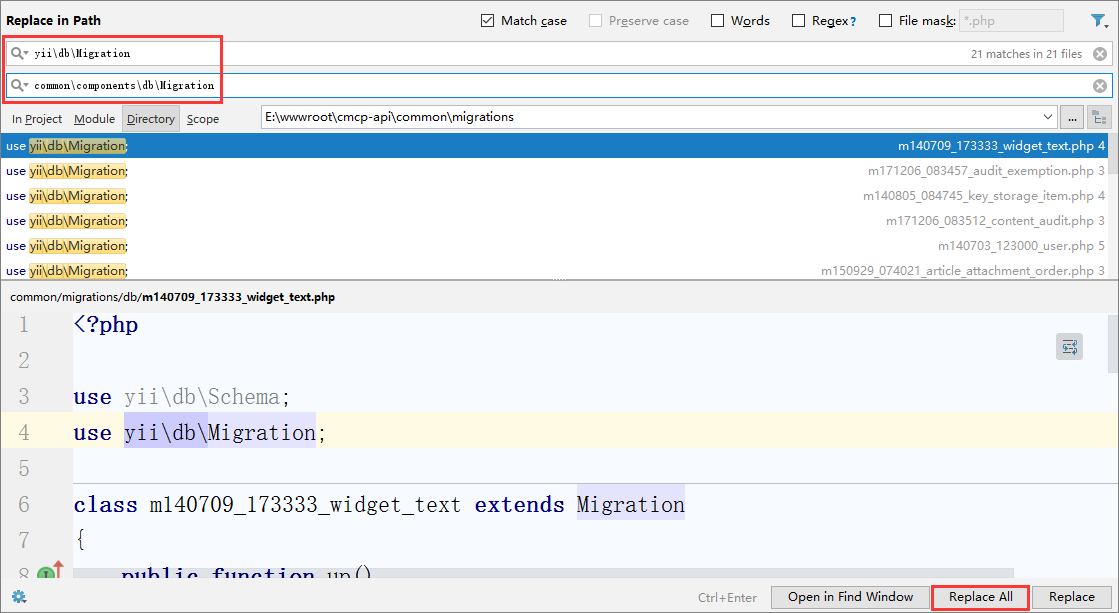

9、在目录 \common\migrations 中查找：yii\db\Migration，批量替换为：common\components\db\Migration，如图4
图4
10、编辑 \common\migrations\db\m140703_123055_log.php，导入 common\traits\TenantMigration
1 2 3 4 5 6 7 8 9 | <?phprequire(Yii::getAlias('@yii/log/migrations/m141106_185632_log_init.php'));use common\traits\TenantMigration;class m140703_123055_log extends m141106_185632_log_init{ use TenantMigration;} |
11、编辑 \common\migrations\db\m140703_123813_rbac.php，导入 common\traits\TenantMigration
1 2 3 4 5 6 7 8 9 | <?phprequire(Yii::getAlias('@yii/rbac/migrations/m140506_102106_rbac_init.php'));use common\traits\TenantMigration;class m140703_123813_rbac extends m140506_102106_rbac_init{ use TenantMigration;} |
12、新建数据库迁移类，\console\controllers\MigrateController.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/26 * Time: 17:35 */namespace console\controllers;use common\traits\TenantMigration;/** * 导入 TenantMigration，将 $tenantDb 设置为数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class MigrateController extends \yii\console\controllers\MigrateController{ use TenantMigration;} |
13、调整数据库迁移配置，编辑 \console\config\console.php，如图5
1 2 3 4 5 | 'migrate' => [ 'class' => 'console\controllers\MigrateController', 'migrationPath' => '@common/migrations/db', 'migrationTable' => '{{%system_db_migration}}'], |

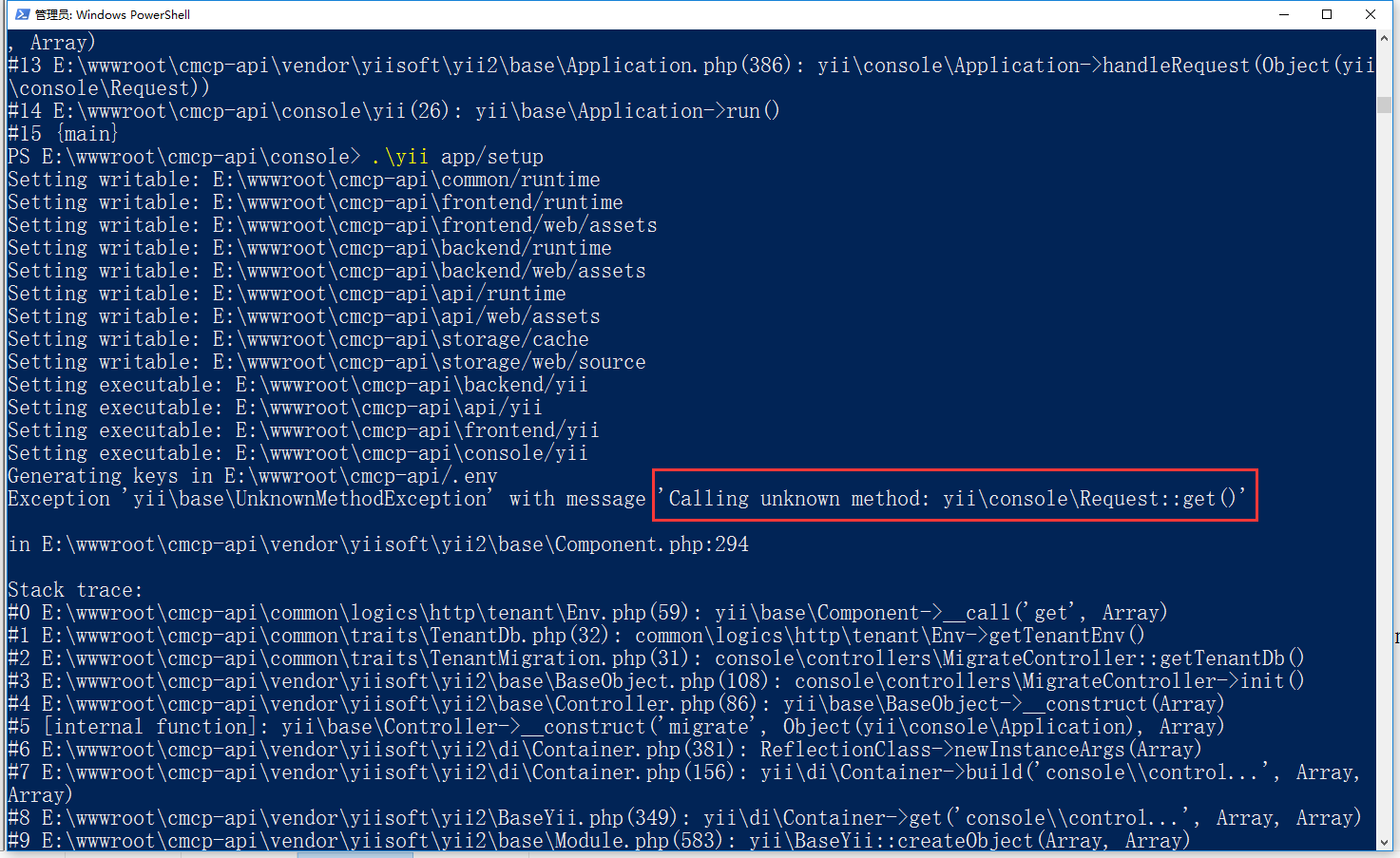

14、运行命令：.\yii app/setup，报错：Exception ‘yii\base\UnknownMethodException’ with message ‘Calling unknown method: yii\console\Request::get()’，如图6
图6
15、获取请求参数时，判断当前请求是否通过命令行进行，编辑 \common\logics\http\tenant\Env.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/17 * Time: 15:20 */namespace common\logics\http\tenant;use Yii;use yii\base\Model;use yii\web\BadRequestHttpException;use yii\web\ServerErrorHttpException;/** * 多租户的模块环境配置 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Env extends Model{ public $app_name; public $secret; public $tenant_id; public function attributeLabels() { return [ 'app_name' => \Yii::t('model/http/tenant/env', 'App Name'), 'secret' => \Yii::t('model/http/tenant/env', 'Secret'), 'tenant_id' => \Yii::t('model/http/tenant/env', 'Tenant ID'), ]; } /** * 返回租户模块环境配置信息 * * @return array|false * * 格式如下： * * 租户模块环境配置信息 * [ * 'message' => '', //说明 * 'data' => [], //数据 * ] * * 失败(将错误保存在 [[yii\base\Model::errors]] 属性中) * false * * @throws ServerErrorHttpException 如果响应状态码不等于20x */ public function getTenantEnv() { /* 获取请求参数 */ $request = Yii::$app->request; // 判断当前请求是否通过命令行进行 if ($request->isConsoleRequest) { $get = $request->getParams(); /* 判断请求参数中租户ID是否存在 */ if (empty($get[1])) { // throw new BadRequestHttpException(Yii::t('error', '20007'), 20007); $get[1] = env('TENANT_DEFAULT_ID'); } $this->tenant_id = $get[1]; } else { $get = $request->get(); /* 判断请求参数中租户ID是否存在 */ if (empty($get['tenantid'])) { // throw new BadRequestHttpException(Yii::t('error', '20007'), 20007); $get['tenantid'] = env('TENANT_DEFAULT_ID'); } $this->tenant_id = $get['tenantid']; } // 设置多租户数据的缓存键 $redisCache = Yii::$app->redisCache; $tenantKey = 'tenant:' . $this->tenant_id; // 从缓存中取回多租户数据 $tenantData = $redisCache[$tenantKey]; if ($tenantData === false) { $this->app_name = env('TENANT_APP_NAME'); $this->secret = env('TENANT_SECRET'); $response = Yii::$app->tenantHttp->createRequest() ->setMethod('get') ->setUrl('getTenantEnv') ->setData([ 'appname' => $this->app_name, 'secret' => $this->secret, 'tenantid' => $this->tenant_id, ]) ->send(); // 检查响应状态码是否等于20x if ($response->isOk) { // 检查业务逻辑是否成功 if ($response->data['returnCode'] === 0) { $tenantData = ['message' => $response->data['returnDesc'], 'data' => $response->data['returnData']]; // 将多租户数据存放到缓存供下次使用 $redisCache[$tenantKey] = $tenantData; return $tenantData; } else { $this->addError('tenant_id', $response->data['returnDesc']); return false; } } else { throw new ServerErrorHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '20005'), ['statusCode' => $response->getStatusCode()])), 20005); } } else { return $tenantData; } }} |

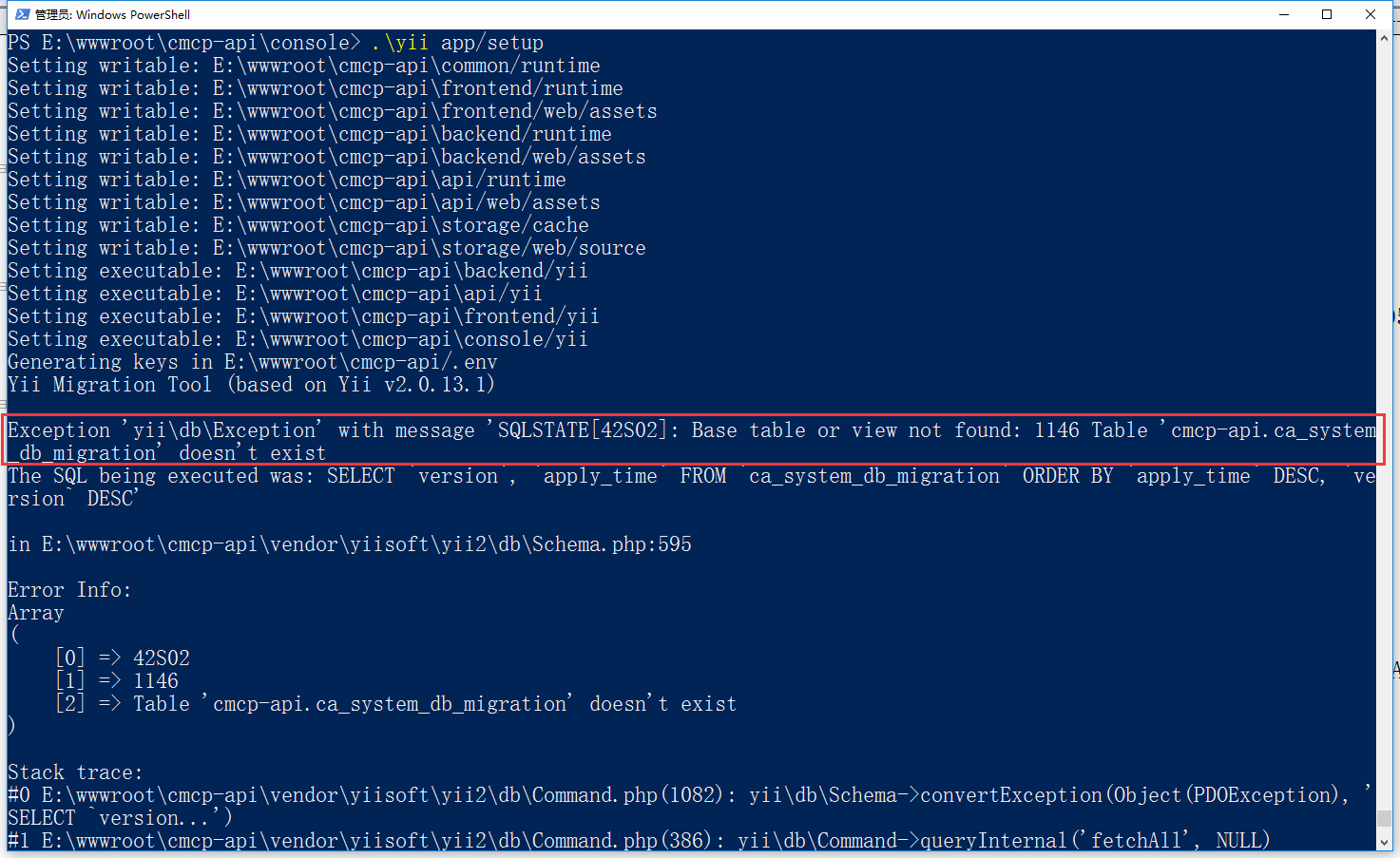

16、删除数据库中所有表，运行命令：.\yii app/setup，报错：Exception ‘yii\db\Exception’ with message ‘SQLSTATE[42S02]: Base table or view not found: 1146 Table ‘cmcp-api.ca_system
_db_migration’ doesn’t exist’，如图7
![删除数据库中所有表，运行命令：.\yii app/setup，报错：Exception 'yii\db\Exception' with message 'SQLSTATE[42S02]: Base table or view not found: 1146 Table 'cmcp-api.ca_system _db_migration' doesn't exist'](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/7-3.png)
图7

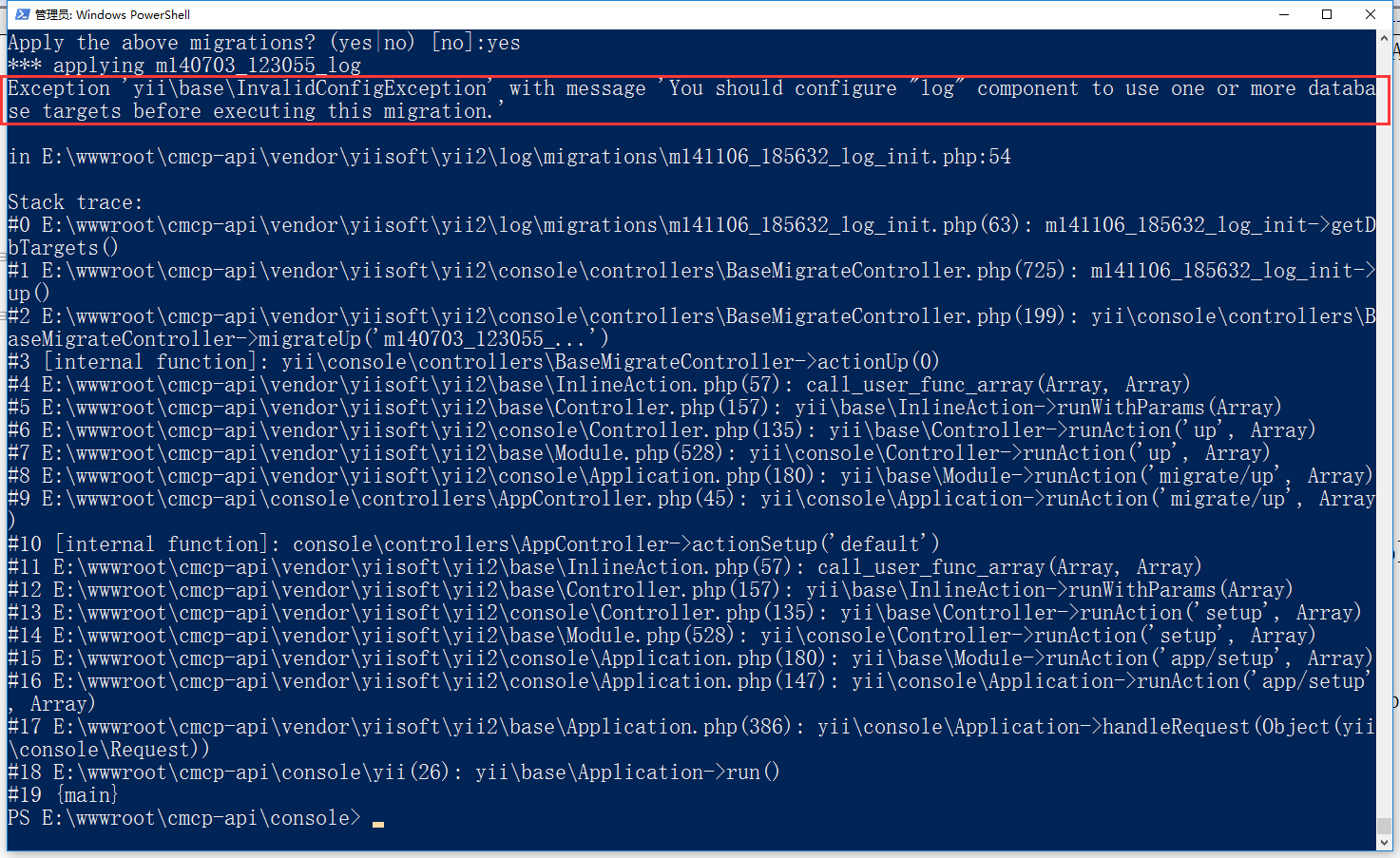

se targets before executing this migration.’，如图8
图8
18、删除 E:\wwwroot\cmcp-api\common\migrations\db\m140703_123055_log.php，因为日志组件已经配置为基于文件存储了的。

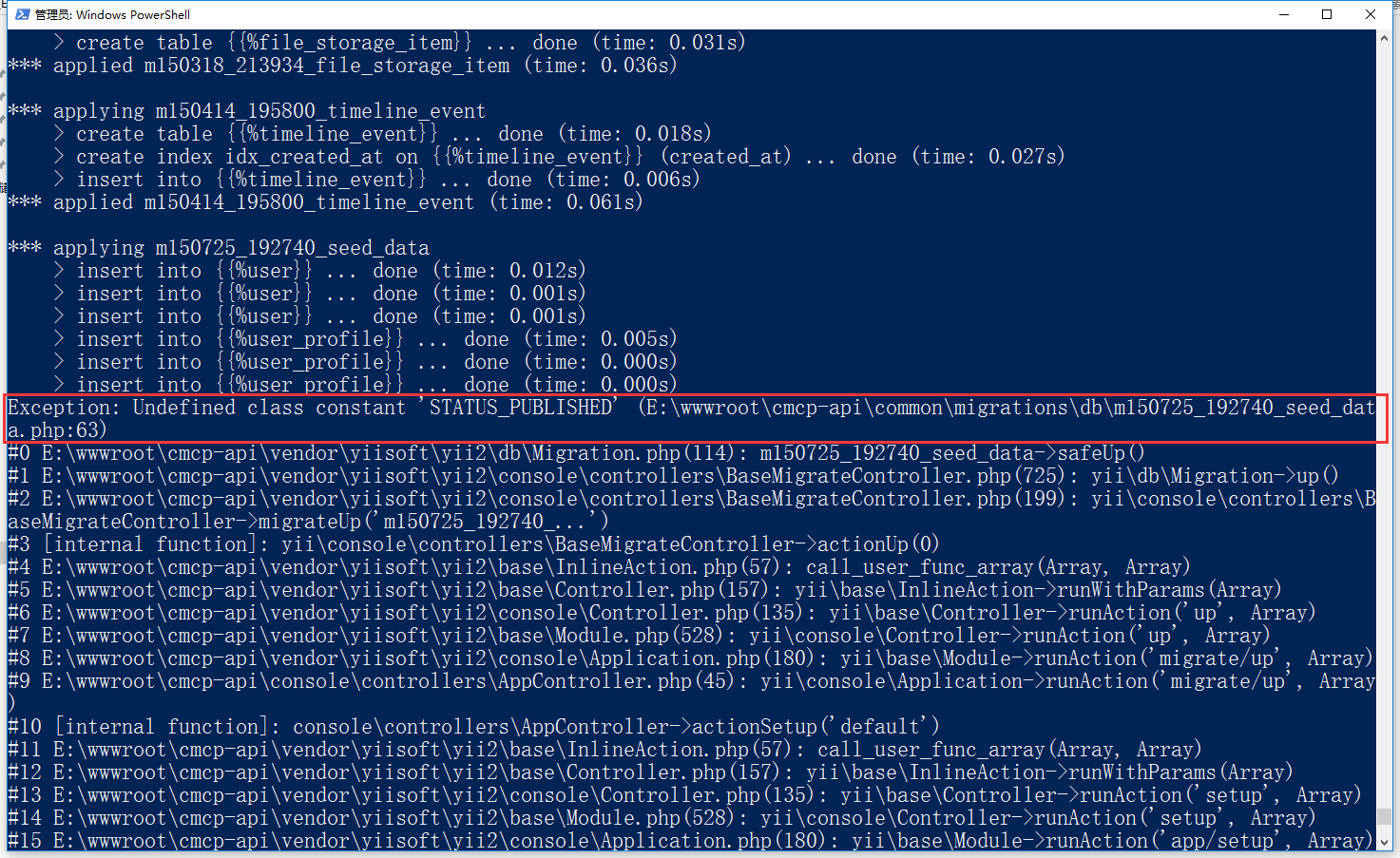

19、删除数据库中所有表，运行命令：.\yii app/setup，报错：Exception: Undefined class constant ‘STATUS_PUBLISHED’ (E:\wwwroot\cmcp-api\common\migrations\db\m150725_192740_seed_dat
a.php:63)，如图9
图9

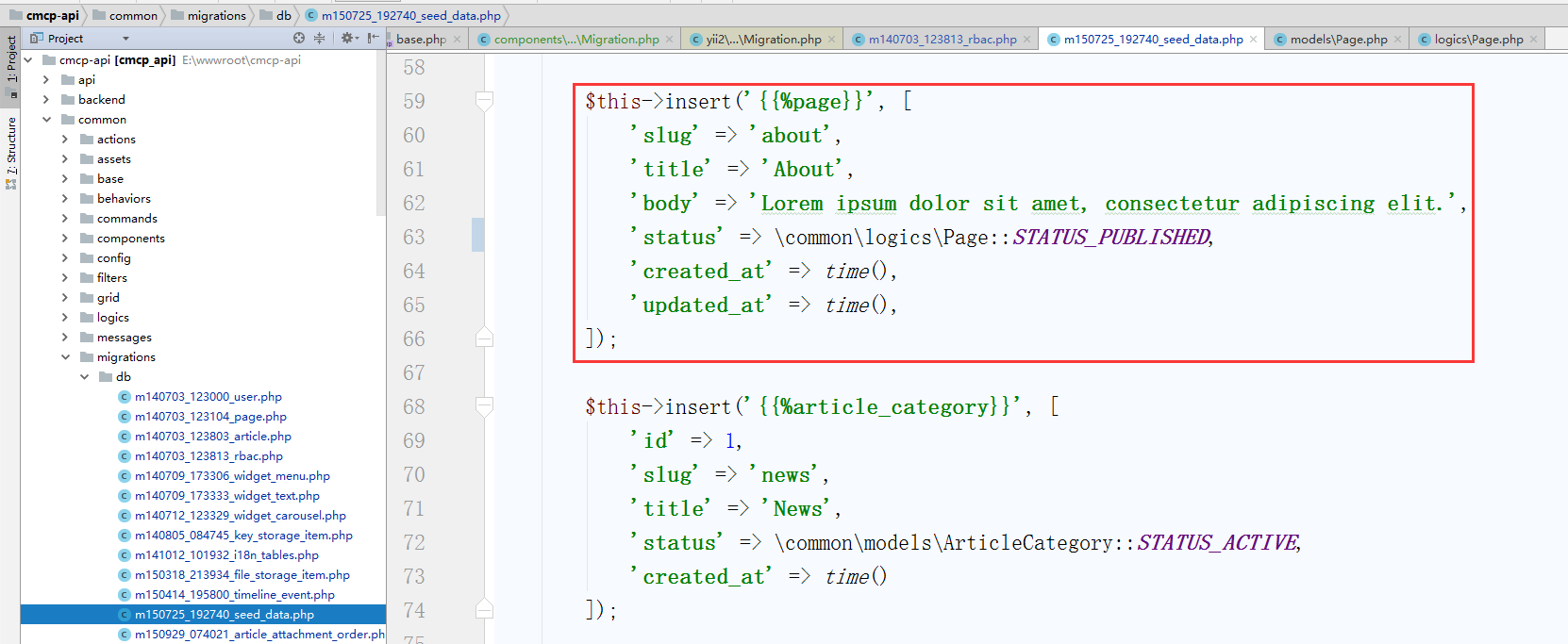

20、编辑 \common\migrations\db\m150725_192740_seed_data.php，\common\models\Page 替换为 \common\logics\Page，如图10
1 2 3 4 5 6 7 8 | $this->insert('{{%page}}', [ 'slug' => 'about', 'title' => 'About', 'body' => 'Lorem ipsum dolor sit amet, consectetur adipiscing elit.', 'status' => \common\logics\Page::STATUS_PUBLISHED, 'created_at' => time(), 'updated_at' => time(),]); |
图10

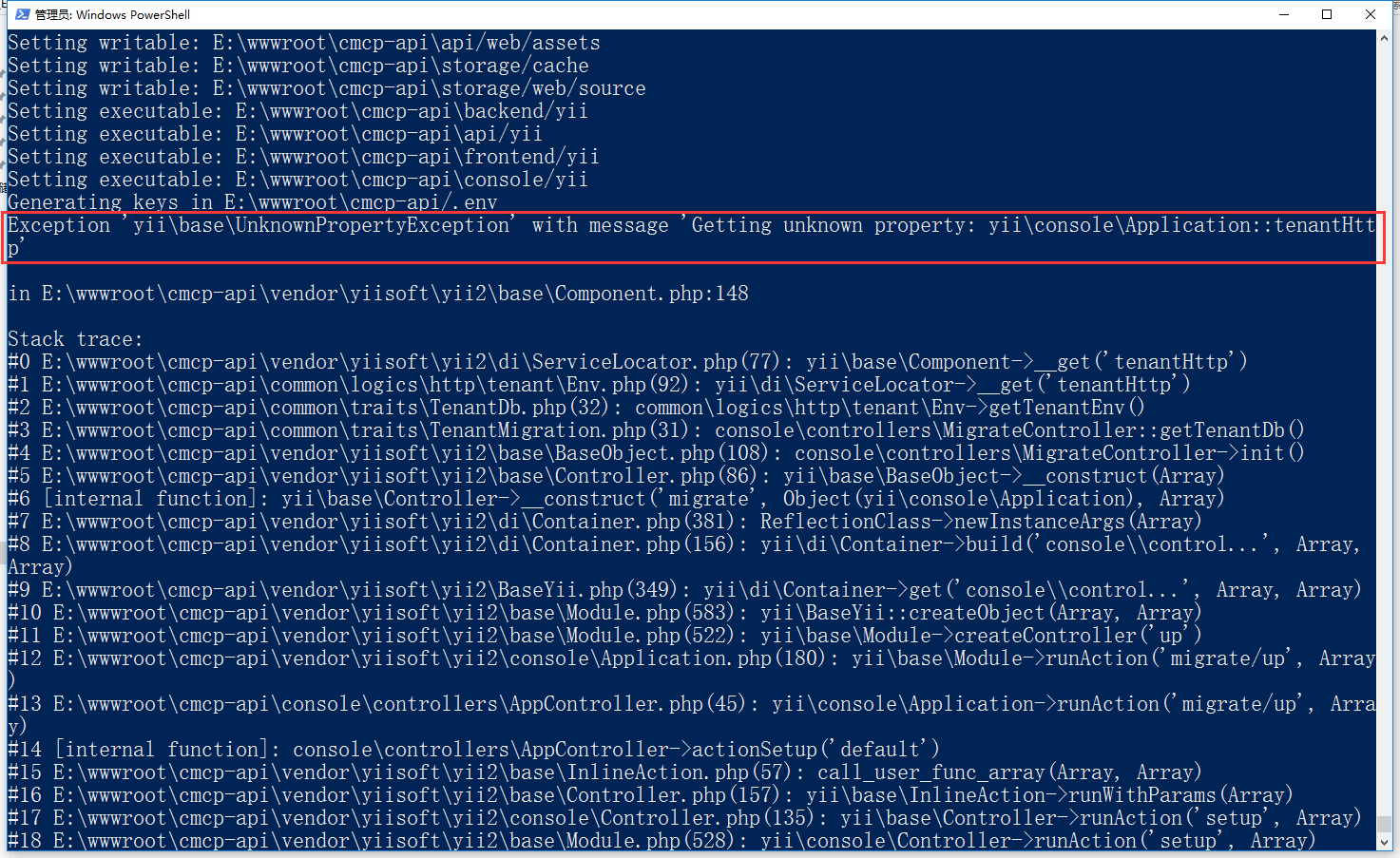

21、删除数据库中所有表，运行命令：.\yii app/setup，报错：Exception ‘yii\base\UnknownPropertyException’ with message ‘Getting unknown property: yii\console\Application::tenantHtt
p’，如图11
图11
22、通过应用组件配置客户端，编辑 \common\config\web.php，将 tenantHttp 组件移至 \common\config\base.php，如图12
1 2 3 4 5 | 'tenantHttp' => [ 'class' => 'yii\httpclient\Client', 'baseUrl' => Yii::getAlias('@tenantUrl'), 'transport' => 'yii\httpclient\CurlTransport'], |
图12

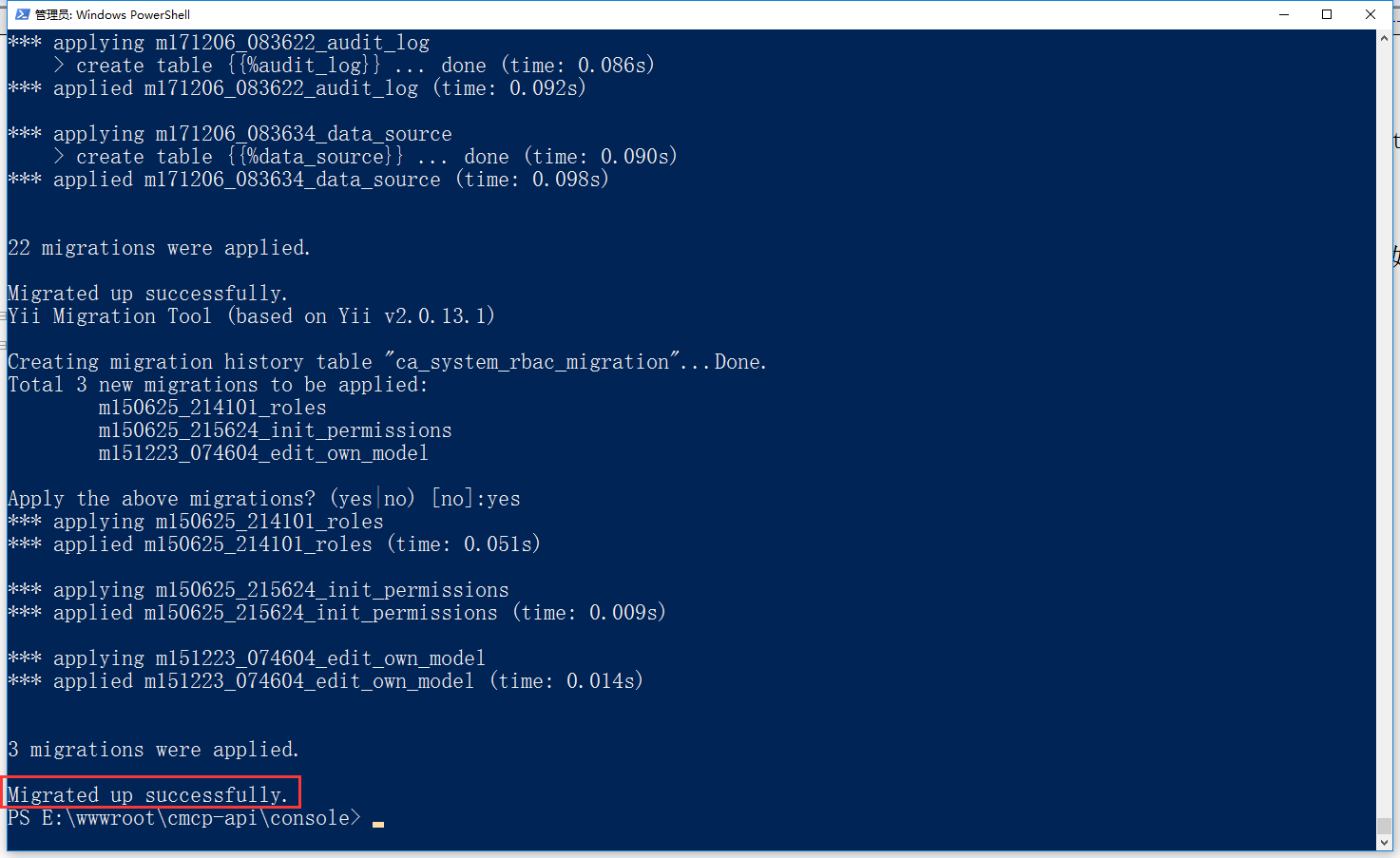

23、删除数据库中所有表，运行命令：.\yii app/setup default，Migrated up successfully.如图13
图13
24、删除数据库中所有表，运行命令：.\yii migrate default，Migrated up successfully.

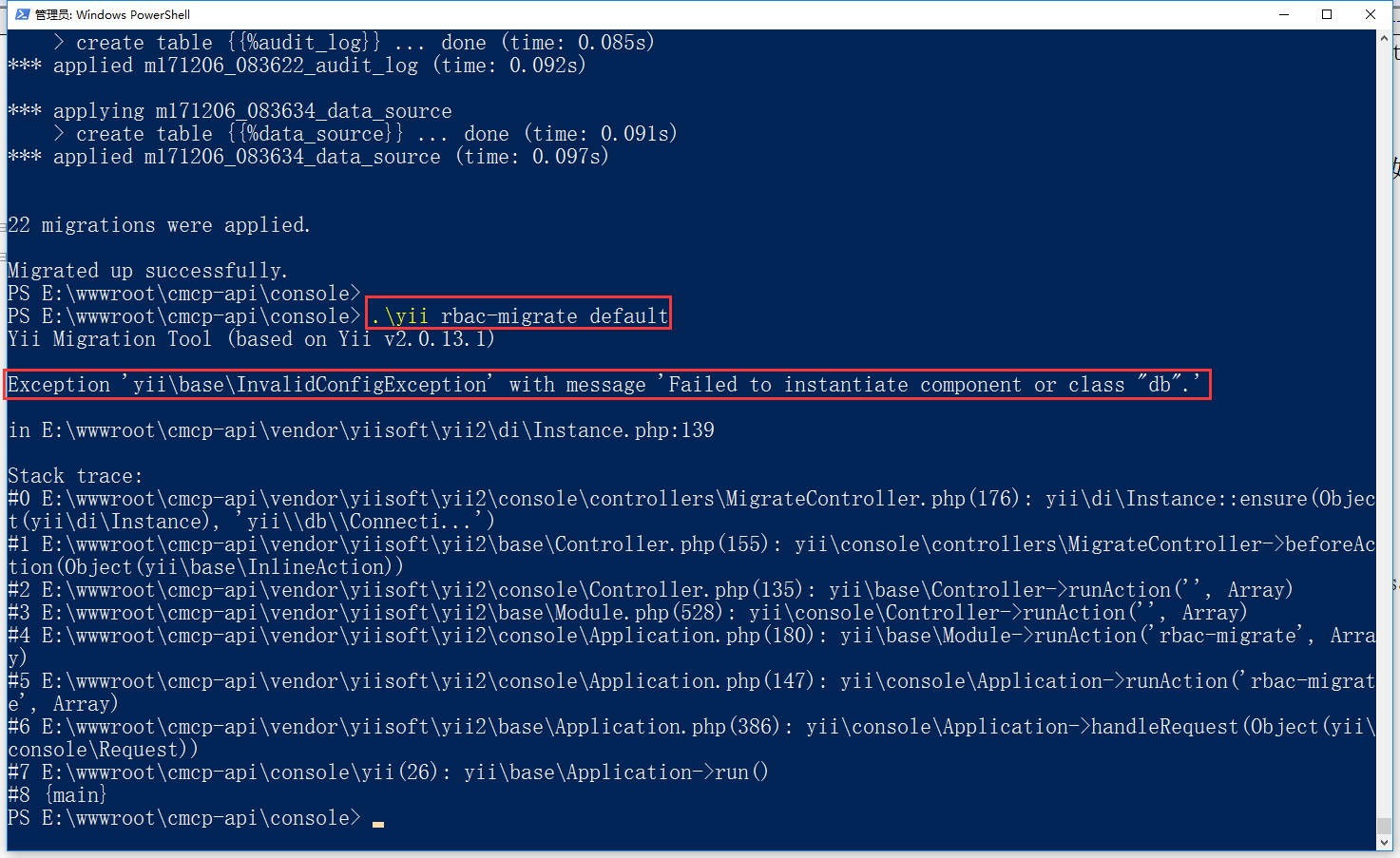

25、继续运行命令：.\yii rbac-migrate default，报错：Exception ‘yii\base\InvalidConfigException’ with message ‘Failed to instantiate component or class “db”.’，如图14
图14
26、编辑 RBAC 数据库迁移类，\console\controllers\RbacMigrateController.php，
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 | <?phpnamespace console\controllers;use yii\console\controllers\MigrateController;use common\traits\TenantMigration;/** * @author Eugene Terentev <eugene@terentev.net> */class RbacMigrateController extends MigrateController{ use TenantMigration; /** * Creates a new migration instance. * @param string $class the migration class name * @return \common\rbac\Migration the migration instance */ protected function createMigration($class) { $file = $this->migrationPath . DIRECTORY_SEPARATOR . $class . '.php'; require_once($file); return new $class(); }} |

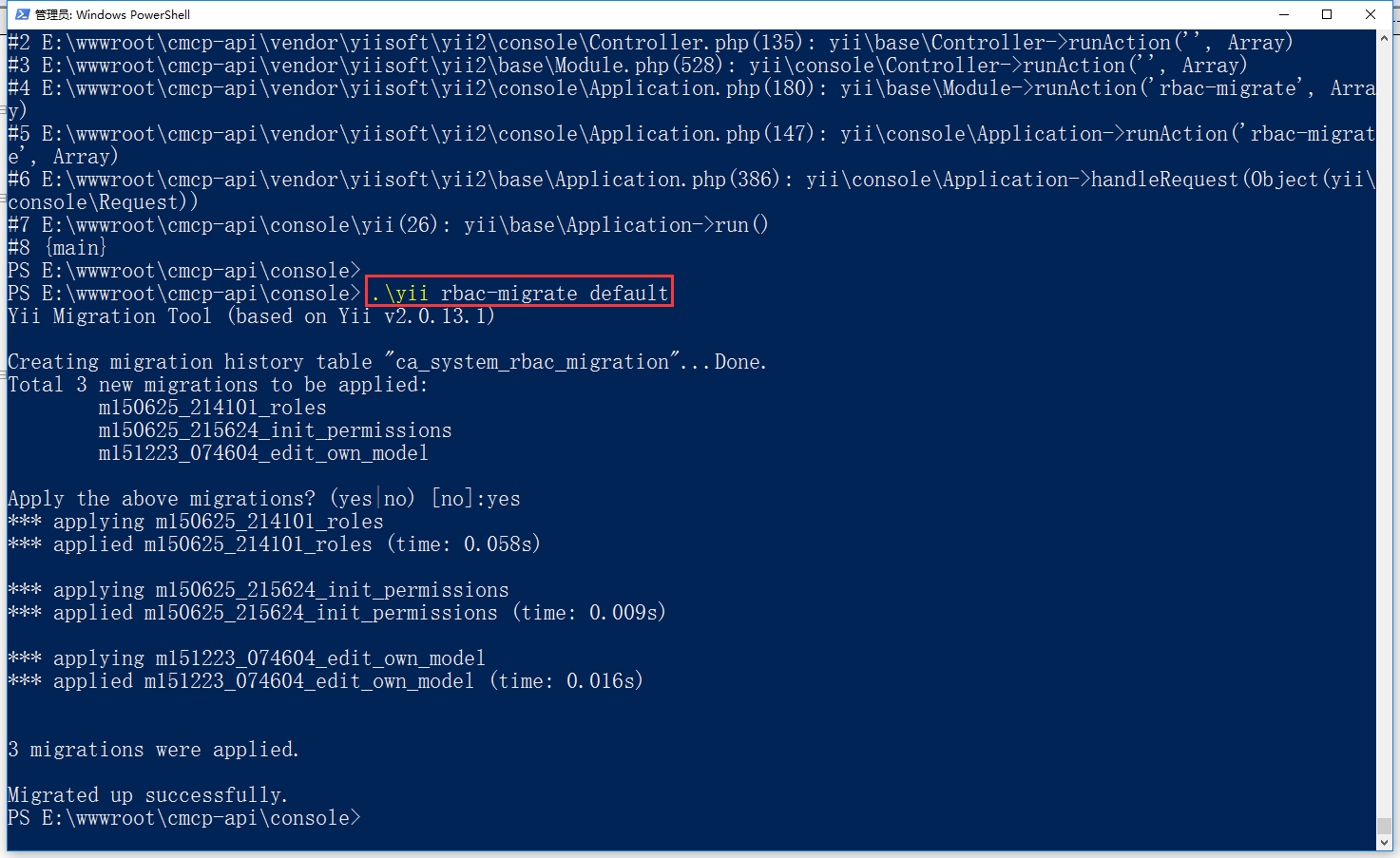

27、继续运行命令：.\yii rbac-migrate default，Migrated up successfully.如图15
图15

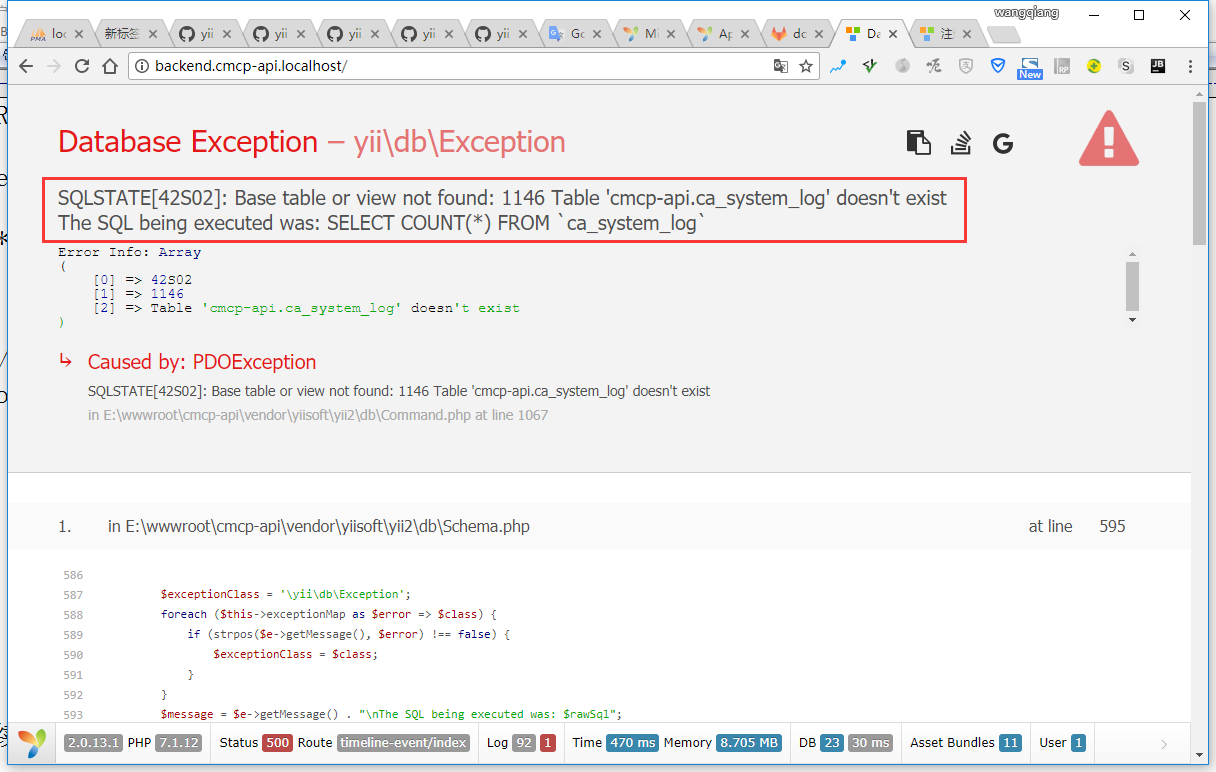

28、打开网址：http://backend.cmcp-api.localhost/ ，报错：SQLSTATE[42S02]: Base table or view not found: 1146 Table ‘cmcp-api.ca_system_log’ doesn’t exist
The SQL being executed was: SELECT COUNT(*) FROM `ca_system_log`，如图16
![打开网址：http://backend.cmcp-api.localhost/ ，报错：SQLSTATE[42S02]: Base table or view not found: 1146 Table 'cmcp-api.ca_system_log' doesn't exist The SQL being executed was: SELECT COUNT(*) FROM `ca_system_log`](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/16-2.png)
图16

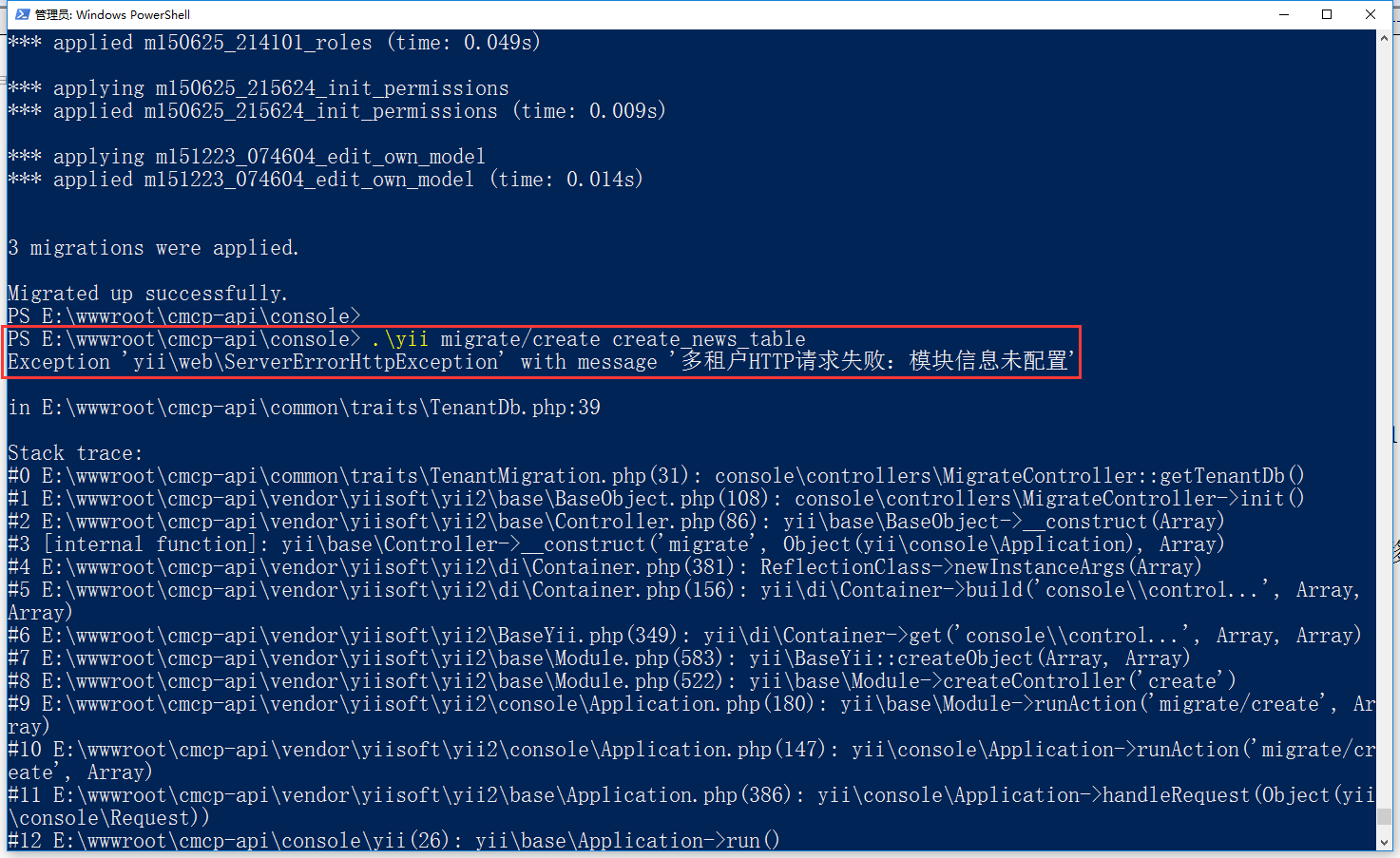

30、运行命令：.\yii migrate/create create_news_table，报错：Exception ‘yii\web\ServerErrorHttpException’ with message ‘多租户HTTP请求失败：模块信息未配置’，如图17
图17
31、决定将租户ID从参数形式转换为选项，如–tenantid=default，编辑 \common\logics\http\tenant\Env.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 | // 判断当前请求是否通过命令行进行if ($request->isConsoleRequest) { $get = $request->getParams(); foreach ($get as $value) { $option = explode('=', $value); if ($option[0] == '--tenantid') { $optionValue = $option[1]; break; } } /* 判断请求参数中租户ID是否存在 */ if (empty($optionValue)) { // throw new BadRequestHttpException(Yii::t('error', '20007'), 20007); $optionValue = env('TENANT_DEFAULT_ID'); } $this->tenant_id = $optionValue;} else { $get = $request->get(); /* 判断请求参数中租户ID是否存在 */ if (empty($get['tenantid'])) { // throw new BadRequestHttpException(Yii::t('error', '20007'), 20007); $get['tenantid'] = env('TENANT_DEFAULT_ID'); } $this->tenant_id = $get['tenantid'];} |
32、通过覆盖在 [[yii\console\Controller::options()]] 中的方法， 以指定可用于控制台命令（controller/actionID）选项。编辑 \console\controllers\AppController.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 | <?phpnamespace console\controllers;use Yii;use yii\console\Controller;use yii\helpers\Console;/** * @author Eugene Terentev <eugene@terentev.net> */class AppController extends Controller{ public $writablePaths = [ '@common/runtime', '@frontend/runtime', '@frontend/web/assets', '@backend/runtime', '@backend/web/assets', '@api/runtime', '@api/web/assets', '@storage/cache', '@storage/web/source' ]; public $executablePaths = [ '@backend/yii', '@api/yii', '@frontend/yii', '@console/yii', ]; public $generateKeysPaths = [ '@base/.env' ]; public $tenantid; public function options($actionID) { return ['color', 'interactive', 'help', 'tenantid']; } public function actionSetup() { $this->runAction('set-writable', ['interactive' => $this->interactive]); $this->runAction('set-executable', ['interactive' => $this->interactive]); $this->runAction('set-keys', ['interactive' => $this->interactive]); \Yii::$app->runAction('migrate/up', ['interactive' => $this->interactive]); \Yii::$app->runAction('rbac-migrate/up', ['interactive' => $this->interactive]); } public function actionSetWritable() { $this->setWritable($this->writablePaths); } public function actionSetExecutable() { $this->setExecutable($this->executablePaths); } public function actionSetKeys() { $this->setKeys($this->generateKeysPaths); } public function setWritable($paths) { foreach ($paths as $writable) { $writable = Yii::getAlias($writable); Console::output("Setting writable: {$writable}"); @chmod($writable, 0777); } } public function setExecutable($paths) { foreach ($paths as $executable) { $executable = Yii::getAlias($executable); Console::output("Setting executable: {$executable}"); @chmod($executable, 0755); } } public function setKeys($paths) { foreach ($paths as $file) { $file = Yii::getAlias($file); Console::output("Generating keys in {$file}"); $content = file_get_contents($file); $content = preg_replace_callback('/<generated_key>/', function () { $length = 32; $bytes = openssl_random_pseudo_bytes(32, $cryptoStrong); return strtr(substr(base64_encode($bytes), 0, $length), '+/', '_-'); }, $content); file_put_contents($file, $content); } }} |
33、通过覆盖在 [[yii\console\Controller::options()]] 中的方法， 以指定可用于控制台命令（controller/actionID）选项。编辑 \console\controllers\MigrateController.php、\console\controllers\RbacMigrateController.php
\console\controllers\MigrateController.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/26 * Time: 17:35 */namespace console\controllers;use common\traits\TenantMigration;/** * 导入 TenantMigration，将 $tenantDb 设置为数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class MigrateController extends \yii\console\controllers\MigrateController{ use TenantMigration; public $tenantid; public function options($actionID) { return ['color', 'interactive', 'help', 'tenantid']; }} |
\console\controllers\RbacMigrateController.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 | <?phpnamespace console\controllers;use yii\console\controllers\MigrateController;use common\traits\TenantMigration;/** * @author Eugene Terentev <eugene@terentev.net> */class RbacMigrateController extends MigrateController{ use TenantMigration; public $tenantid; public function options($actionID) { return ['color', 'interactive', 'help', 'tenantid']; } /** * Creates a new migration instance. * @param string $class the migration class name * @return \common\rbac\Migration the migration instance */ protected function createMigration($class) { $file = $this->migrationPath . DIRECTORY_SEPARATOR . $class . '.php'; require_once($file); return new $class(); }} |
34、删除数据库中所有表，调整第24、25、26步骤的命令，.\yii app/setup –tenantid=default、.\yii migrate –tenantid=default、.\yii rbac-migrate –tenantid=default，成功运行

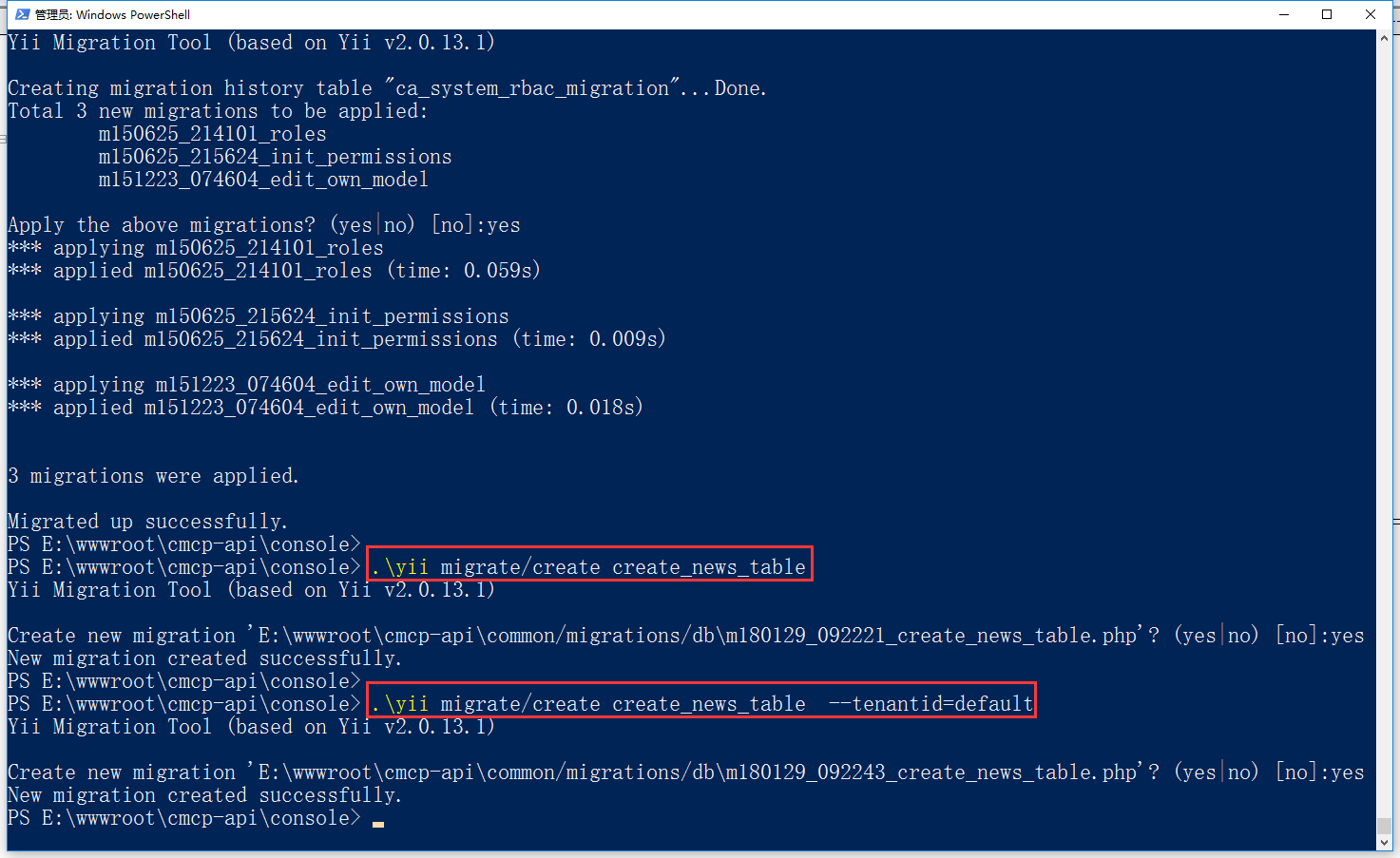

35、运行命令：.\yii migrate/create create_news_table、.\yii migrate/create create_news_table –tenantid=default，成功运行，如图18
图18

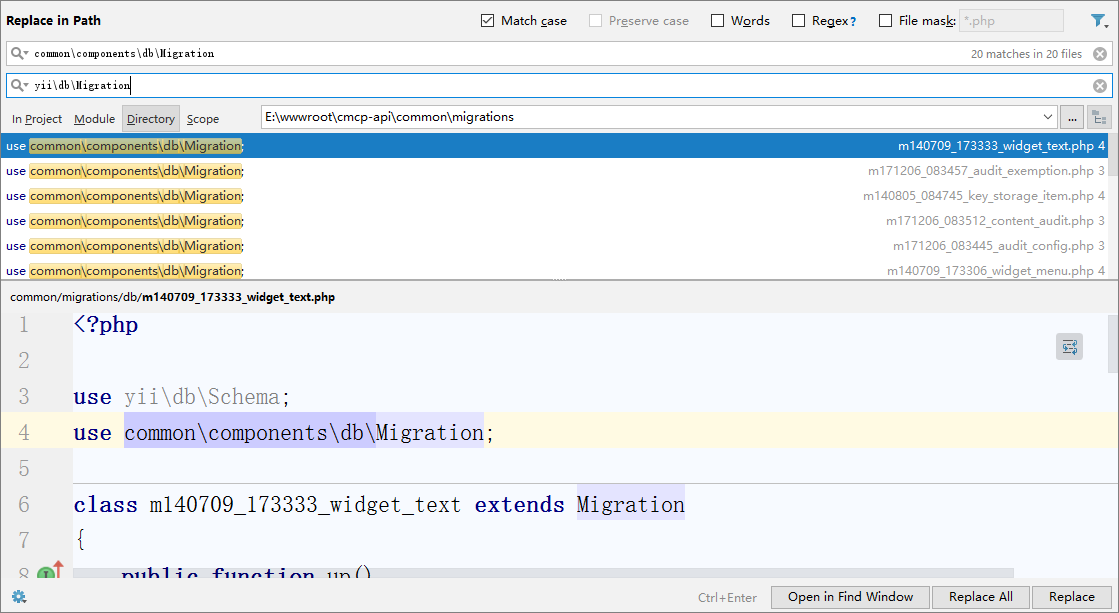

36、由于已经在控制器中定义了数据库 application component 的 ID，将第8(删除 \common\components\db\Migration.php)、9、11步骤还原，在目录 \common\migrations 中查找：common\components\db\Migration，批量替换为：yii\db\Migration，如图19
图19
