在 Yii 2 Starter Kit 中实现数据库连接时的动态配置，配置属性来源于多租户系统

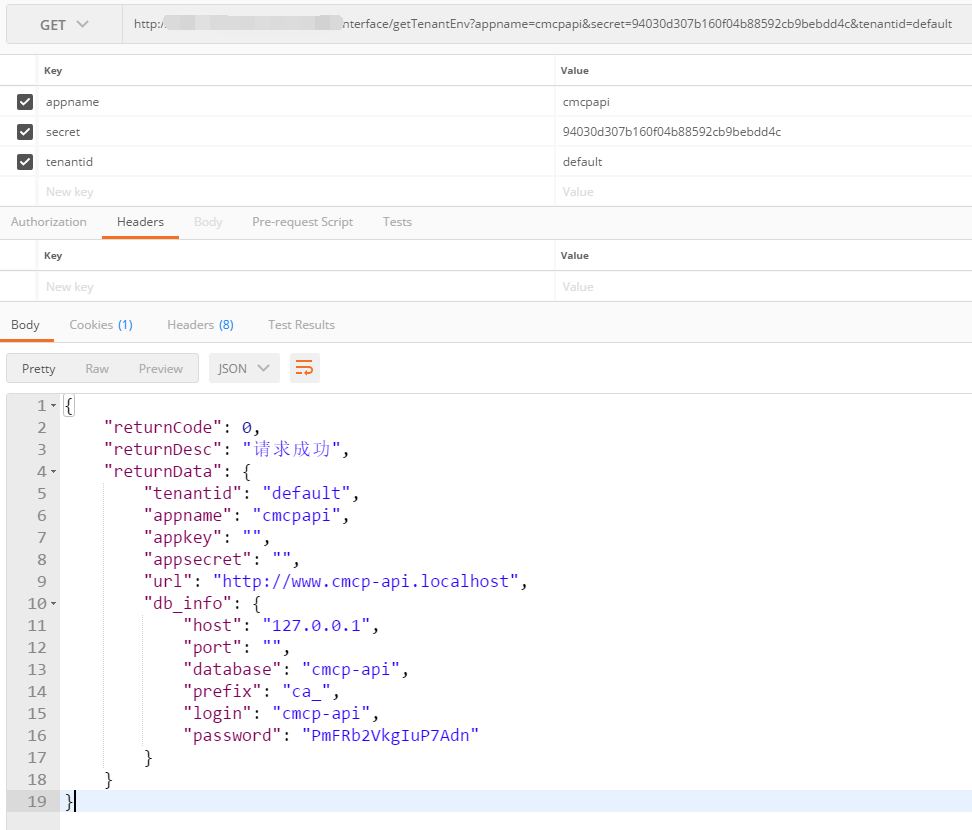

1、多租户系统中包含多个租户，每个租户均有其自有的数据库配置信息，现有的需求是通过调用多租户系统的接口，基于响应的主机名、用户名和密码来连接数据库，而不是以应用组件的方式来配置，如图1
图1
2、现在是以应用组件的方式来配置，\common\config\base.php，如图2
图2

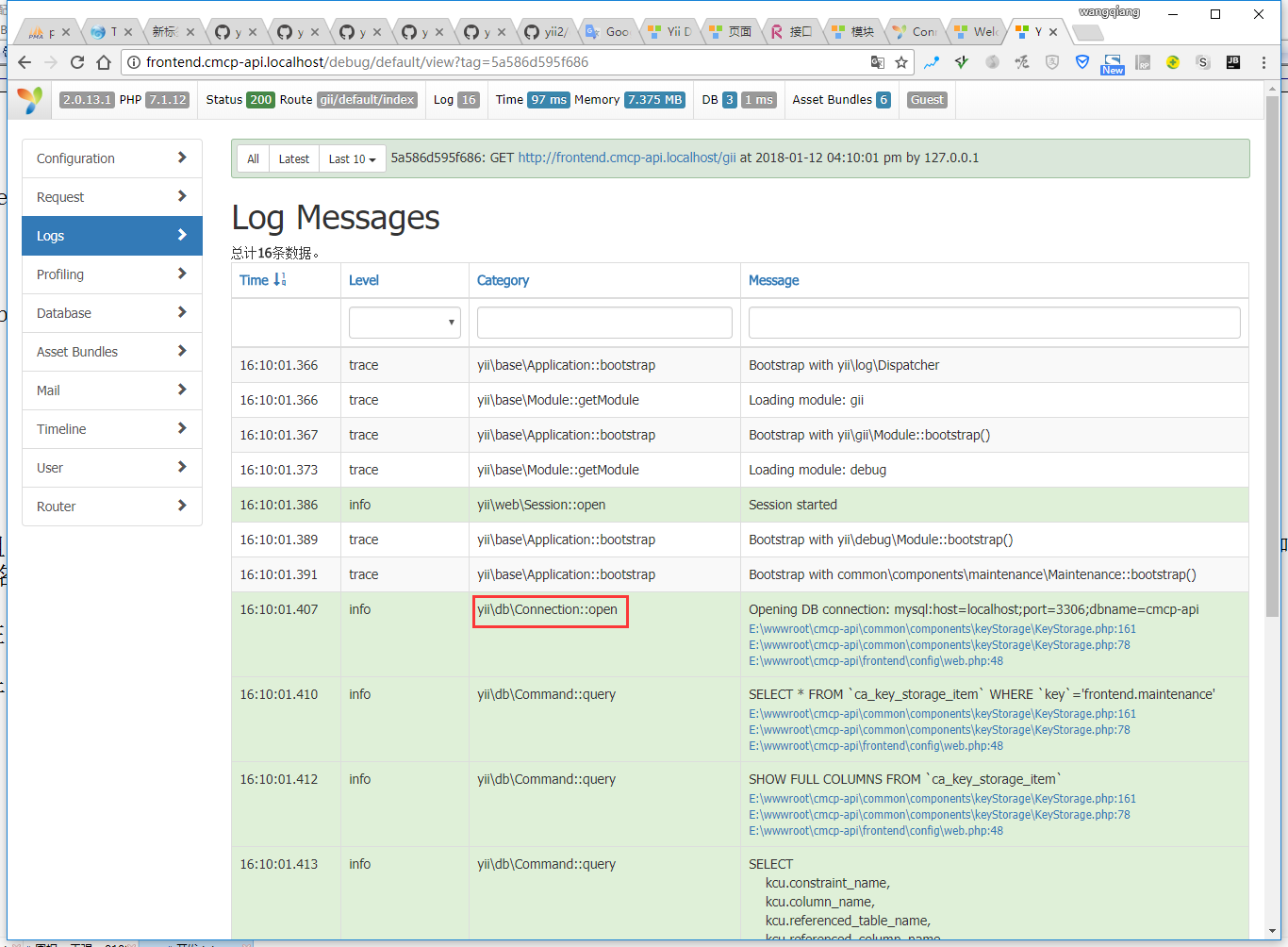

3、打开 Dubug，然后查看 Log Messages，db 组件的属性需要在 yii\db\Connection::open 之前完成初始化定义(调用多租户系统的接口)，如图3
图3
4、编辑 \common\config\base.php，配置 db 组件的类：common\components\db\Connection，将所有 env 变量注释掉
1 2 3 4 5 6 7 8 9 | 'db'=>[ 'class'=>'common\components\db\Connection', // 'dsn' => env('DB_DSN'), // 'username' => env('DB_USERNAME'), // 'password' => env('DB_PASSWORD'), // 'tablePrefix' => env('DB_TABLE_PREFIX'), 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD,], |
5、新建 \common\components\db\Connection.php，继承至 \yii\db\Connection
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/15 * Time: 16:18 */namespace common\components\db;use Yii;use yii\helpers\ArrayHelper;/** * 获取租户模块环境配置信息，存储至Redis，注册db组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Connection extends \yii\db\Connection{ public function __construct($config = []) { // ... 配置生效前的初始化过程 $tenantConfig = [ 'dsn' => 'mysql:host=127.0.0.1;port=3306;dbname=cmcp-api', 'username' => env('DB_USERNAME'), 'password' => env('DB_PASSWORD'), 'tablePrefix' => env('DB_TABLE_PREFIX'), ]; if (!empty($config)) { $config = ArrayHelper::merge($config, $tenantConfig); } parent::__construct($config); }} |

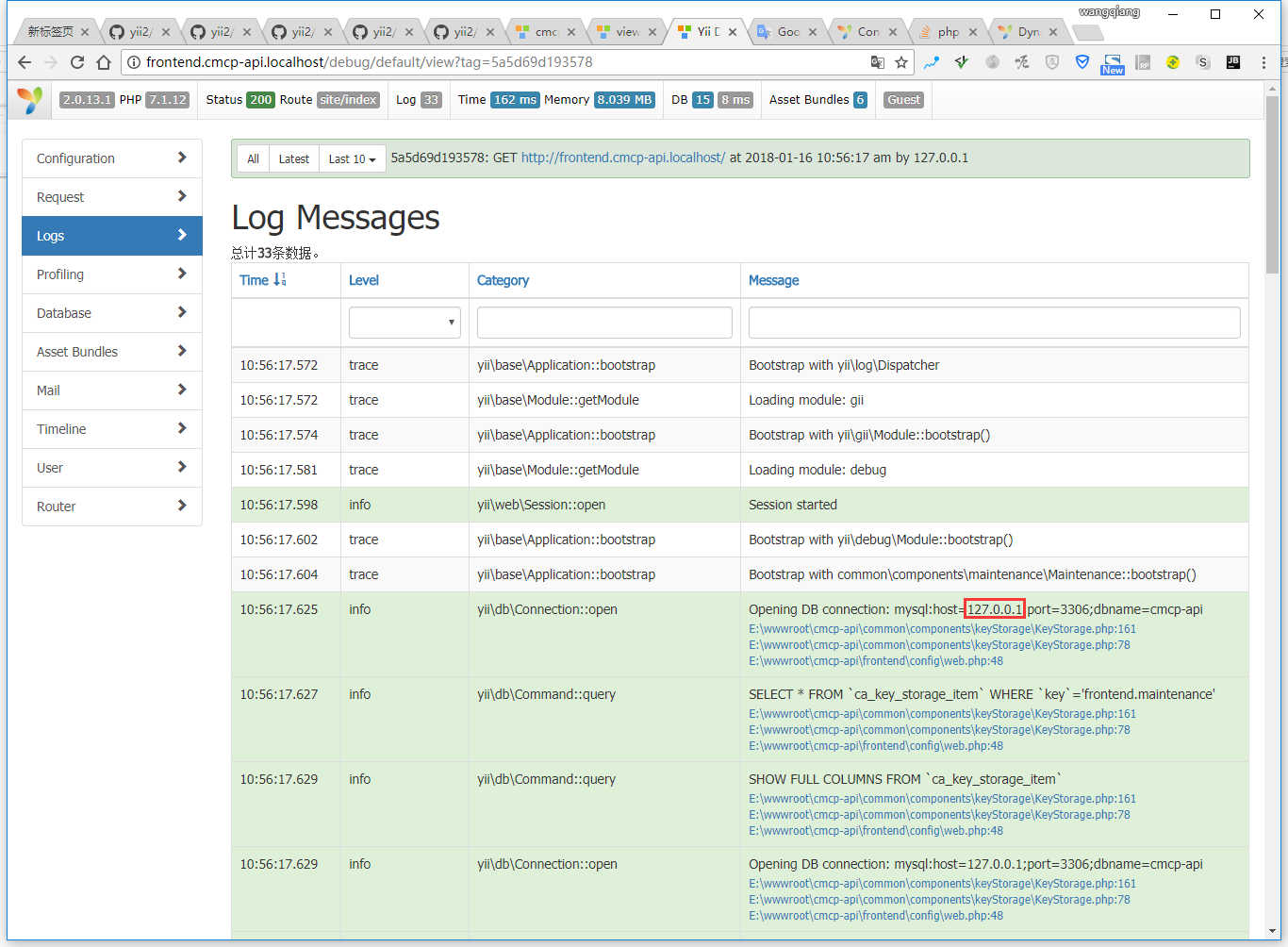

6、重复第3步骤，db 组件的属性已经在 yii\db\Connection::open 之前完成初始化定义(host=localhost 变化为 host=127.0.0.1)，如图4
图4

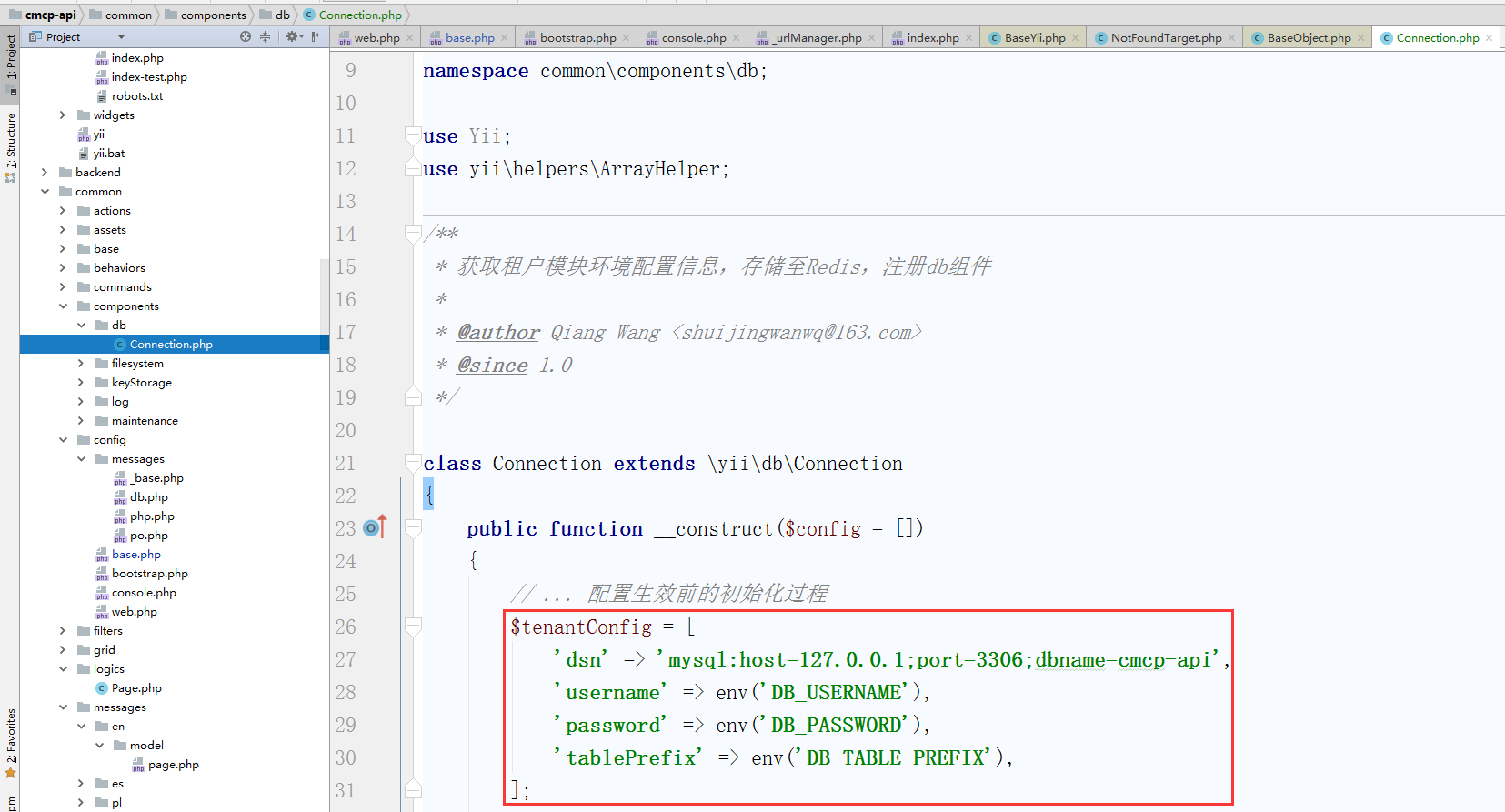

7、现在需要调用多租户系统的接口，以其响应重新赋值 $tenantConfig(建议：此方案仅适用于存在一个租户的情况，如果存在多个租户，建议每个租户对应不同的连接组件，连接组件的命名基于租户ID，而不是对应 db 连接组件)，如图5
图5

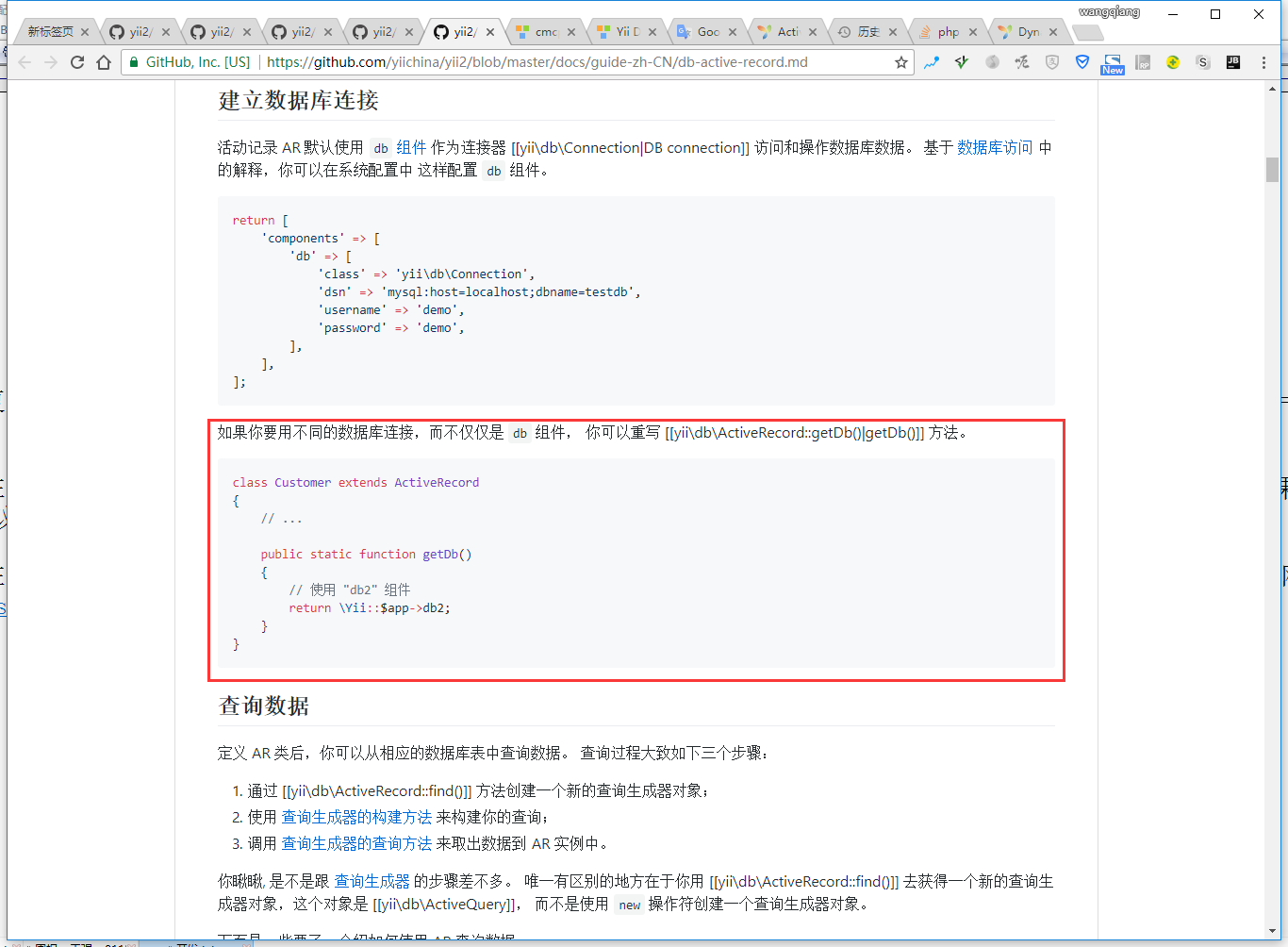

8、现在还原所有修改，准备实现同时使用多个数据库(每个租户对应不同的连接组件，连接组件的命名基于租户ID)，参考网址：https://github.com/yiichina/yii2/blob/master/docs/guide-zh-CN/db-active-record.md ，如图6
图6
9、新建 \common\components\db\ActiveRecord.php，继承至 \yii\db\ActiveRecord，重写 [[yii\db\ActiveRecord::getDb()|getDb()]] 方法
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/16 * Time: 10:31 */namespace common\components\db;use Yii;/** * 获取租户模块环境配置信息，存储至Redis，注册数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class ActiveRecord extends \yii\db\ActiveRecord{ /** * Returns the database connection used by this AR class. * By default, the "db" application component is used as the database connection. * You may override this method if you want to use a different database connection. * @return Connection the database connection used by this AR class. */ public static function getDb() { $tenantDb = new \yii\db\Connection([ 'dsn' => 'mysql:host=127.0.0.1;port=3306;dbname=cmcp-api', 'username' => env('DB_USERNAME'), 'password' => env('DB_PASSWORD'), 'tablePrefix' => env('DB_TABLE_PREFIX'), 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD, ]); return $tenantDb; // return Yii::$app->getDb(); }} |
10、编辑 \common\models\KeyStorageItem.php，继承至 common\components\db\ActiveRecord
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 | <?phpnamespace common\models;use Yii;use yii\behaviors\TimestampBehavior;use common\components\db\ActiveRecord;/** * This is the model class for table "key_storage_item". * * @property integer $key * @property integer $value */class KeyStorageItem extends ActiveRecord{} |
11、编辑 \common\config\base.php，注释掉 db 组件，后期建议将 db 组件移至开发环境，以方便于 Gii 的使用
1 2 3 4 5 6 7 8 9 10 11 | /*'db'=>[ 'class'=>'yii\db\Connection', 'dsn' => env('DB_DSN'), 'username' => env('DB_USERNAME'), 'password' => env('DB_PASSWORD'), 'tablePrefix' => env('DB_TABLE_PREFIX'), 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD,],*/ |

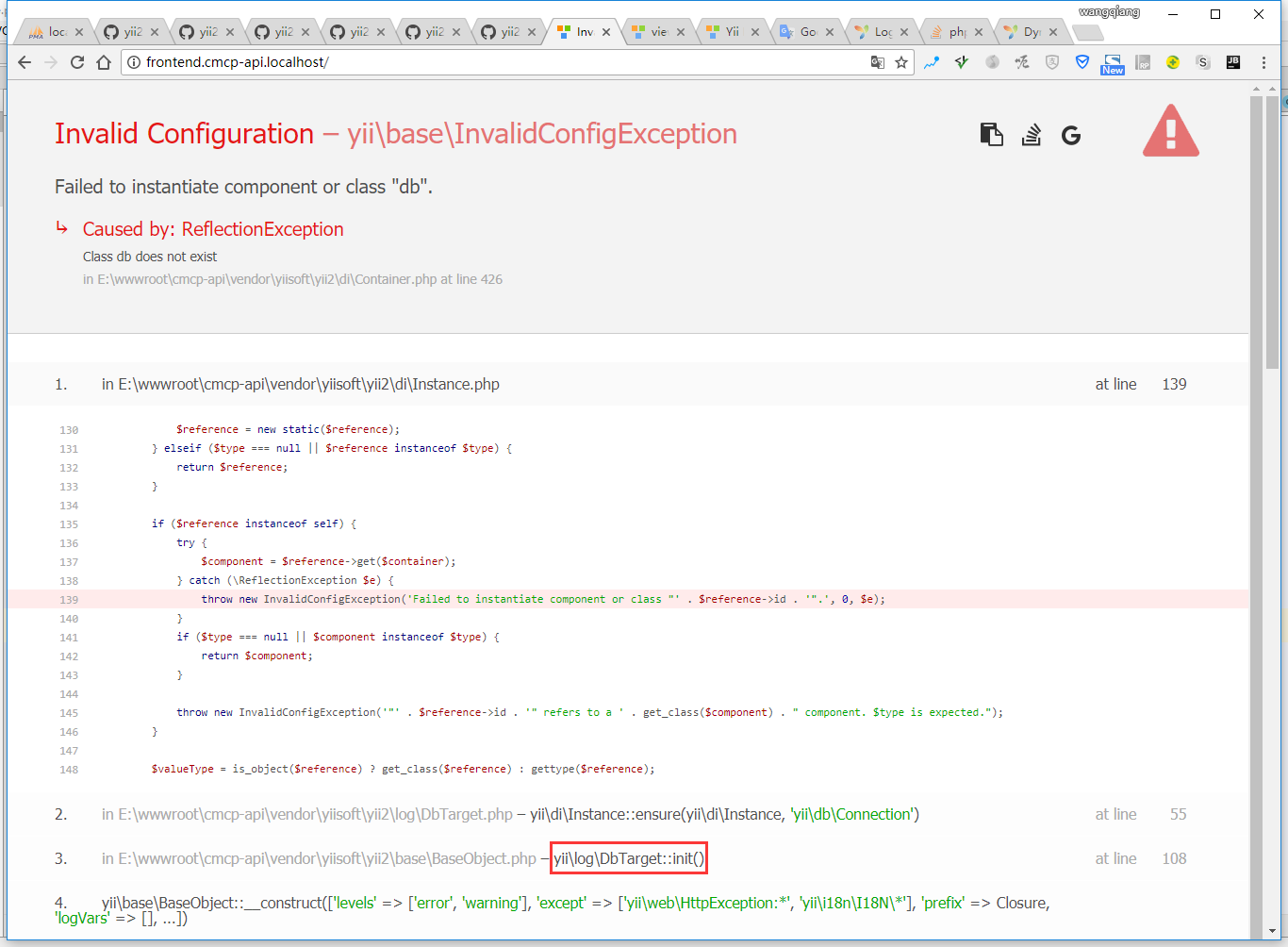

12、打开：http://frontend.cmcp-api.localhost/ ，报错：Failed to instantiate component or class “db”.，原因在于日志目标为数据库表，如图7
图7
13、查看日志组件配置，\common\config\base.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 | 'log' => [ 'traceLevel' => YII_DEBUG ? 3 : 0, 'targets' => [ 'db'=>[ 'class' => 'yii\log\DbTarget', 'levels' => ['error', 'warning'], 'except'=>['yii\web\HttpException:*', 'yii\i18n\I18N\*'], 'prefix'=>function () { $url = !Yii::$app->request->isConsoleRequest ? Yii::$app->request->getUrl() : null; return sprintf('[%s][%s]', Yii::$app->id, $url); }, 'logVars'=>[], 'logTable'=>'{{%system_log}}' ] ],], |
14、日志组件必须在引导期间就被加载，因此如果数据库连接是动态配置的，已经晚于引导阶段了，编辑日志组件配置，\common\config\base.php，保存日志消息到文件中
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | 'log' => [ 'traceLevel' => YII_DEBUG ? 3 : 0, 'targets' => [ 'file'=>[ 'class' => 'yii\log\FileTarget', 'levels' => ['error', 'warning'], 'except' => ['yii\web\HttpException:*', 'yii\i18n\I18N\*'], 'prefix' => function () { $url = !Yii::$app->request->isConsoleRequest ? Yii::$app->request->getUrl() : null; return sprintf('[%s][%s]', Yii::$app->id, $url); }, 'logVars'=>[], ] ],], |

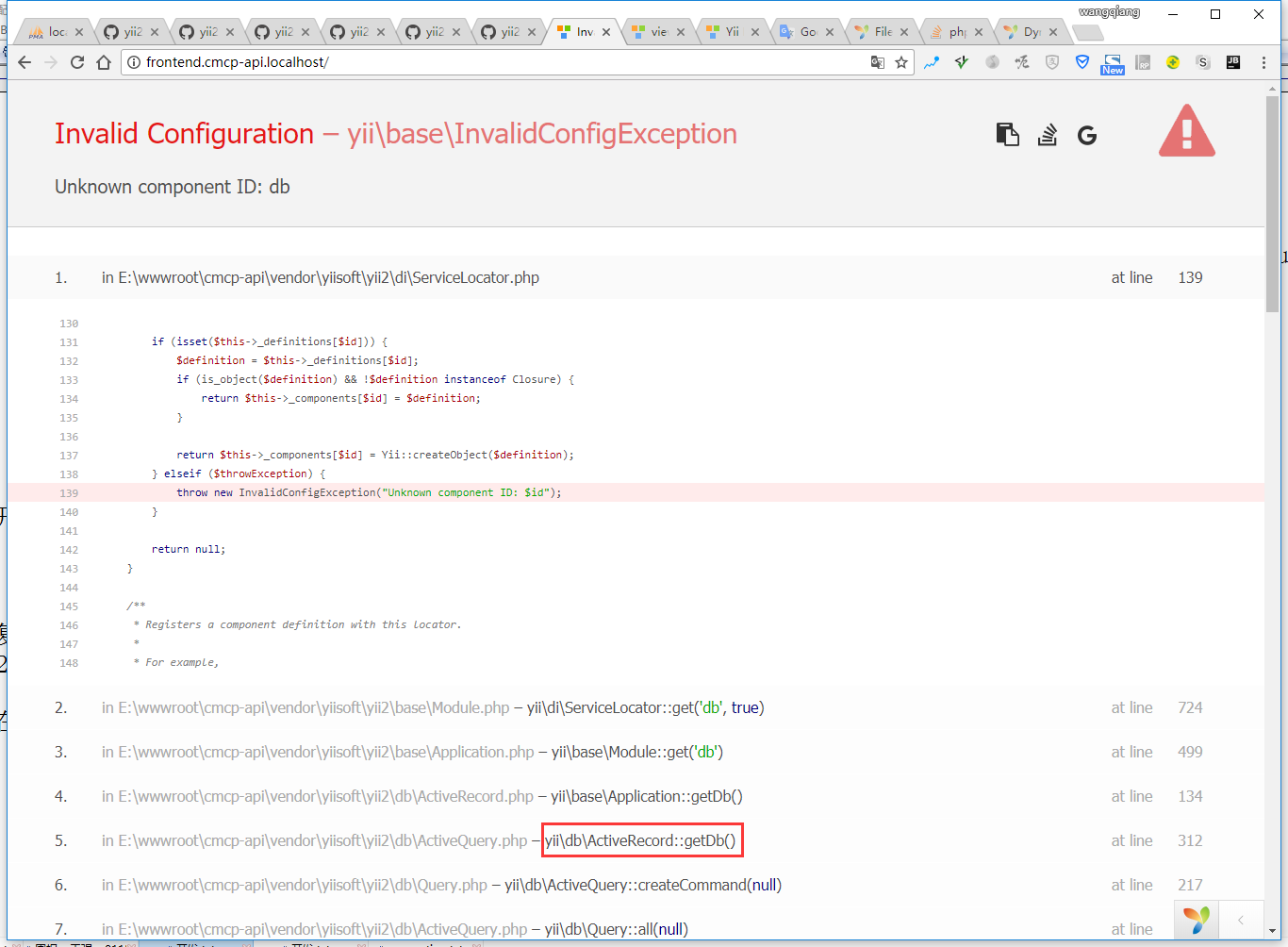

15、打开：http://frontend.cmcp-api.localhost/ ，报错：Unknown component ID: db，如图8
图8

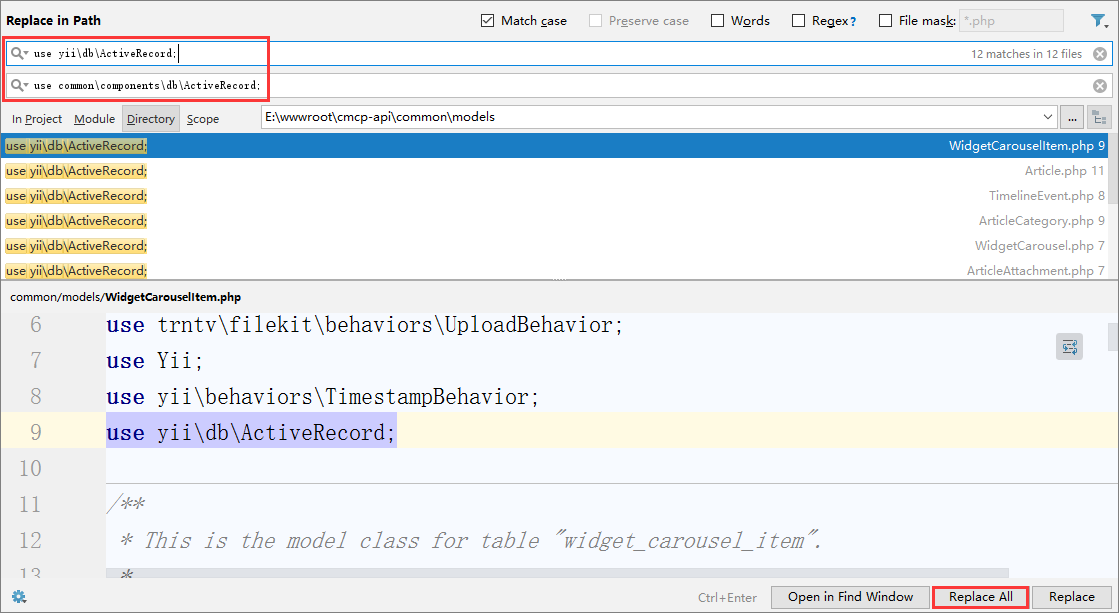

16、将 \common\models 下的所有模型文件，use yii\db\ActiveRecord; 替换为 use common\components\db\ActiveRecord;，如图9
1 2 | use yii\db\ActiveRecord; 替换为 use common\components\db\ActiveRecord;\yii\db\ActiveRecord 替换为 \common\components\db\ActiveRecord |
图9

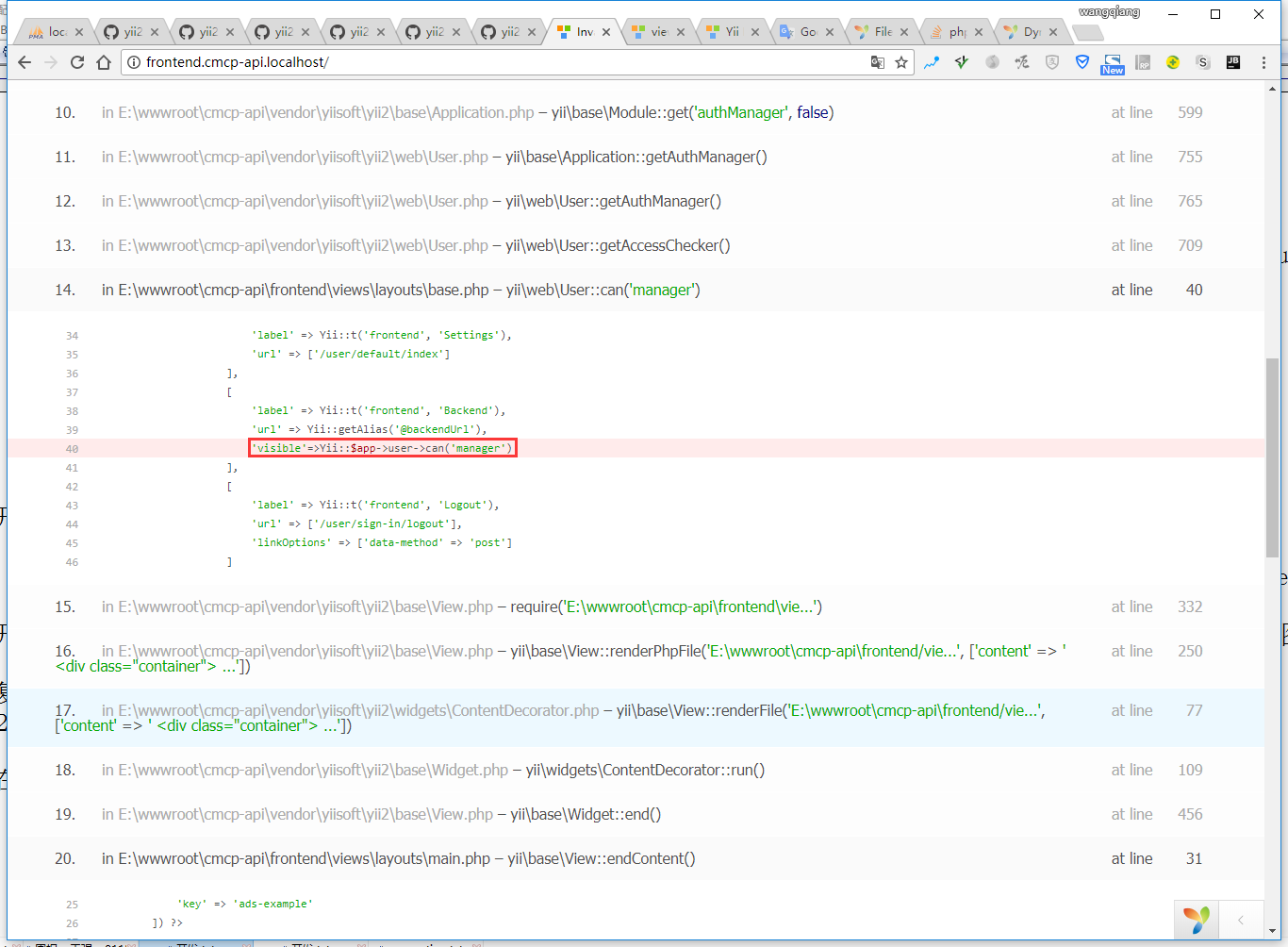

17、打开：http://frontend.cmcp-api.localhost/ ，报错：Failed to instantiate component or class “db”.，原因在于 RBAC 组件使用数据库表存放数据，如图10
图10
18、编辑 \common\config\base.php，注释掉 RBAC 组件，因为其 db 属性默认值为 db，需要动态调整为租户ID所对应的数据库连接组件
1 2 3 4 5 6 7 8 9 | /*'authManager' => [ 'class' => 'yii\rbac\DbManager', 'itemTable' => '{{%rbac_auth_item}}', 'itemChildTable' => '{{%rbac_auth_item_child}}', 'assignmentTable' => '{{%rbac_auth_assignment}}', 'ruleTable' => '{{%rbac_auth_rule}}'],*/ |
19、编辑 \common\components\db\ActiveRecord.php，通过 [[yii\di\ServiceLocator::setComponents()]] 方法注册数据库连接组件、RBAC组件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/16 * Time: 10:31 */namespace common\components\db;use Yii;/** * 获取租户模块环境配置信息，存储至Redis，注册数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class ActiveRecord extends \yii\db\ActiveRecord{ /** * Returns the database connection used by this AR class. * By default, the "db" application component is used as the database connection. * You may override this method if you want to use a different database connection. * @return Connection the database connection used by this AR class. */ public static function getDb() { $tenantDb = 'defaultDb'; // 注册数据库连接组件、RBAC组件 Yii::$app->setComponents([ $tenantDb => [ 'class' => 'yii\db\Connection', 'dsn' => 'mysql:host=127.0.0.1;port=3306;dbname=cmcp-api', 'username' => env('DB_USERNAME'), 'password' => env('DB_PASSWORD'), 'tablePrefix' => env('DB_TABLE_PREFIX'), 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD, ], 'authManager' => [ 'class' => 'yii\rbac\DbManager', 'db' => $tenantDb, 'itemTable' => '{{%rbac_auth_item}}', 'itemChildTable' => '{{%rbac_auth_item_child}}', 'assignmentTable' => '{{%rbac_auth_assignment}}', 'ruleTable' => '{{%rbac_auth_rule}}' ], ]); return Yii::$app->$tenantDb; }} |
20、重复第3步骤，db 组件的属性已经在 yii\db\Connection::open 之前完成初始化定义(host=localhost 变化为 host=127.0.0.1)，如图11
图11

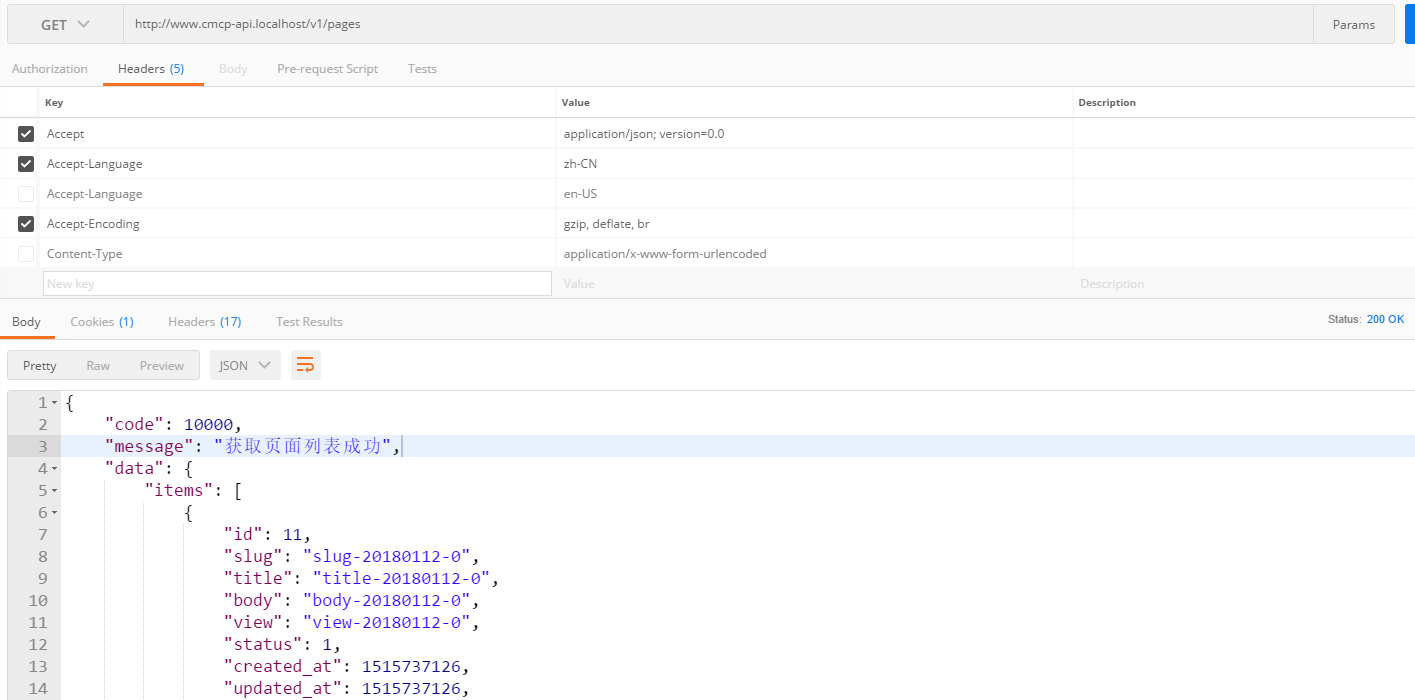

21、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，如图12
图12

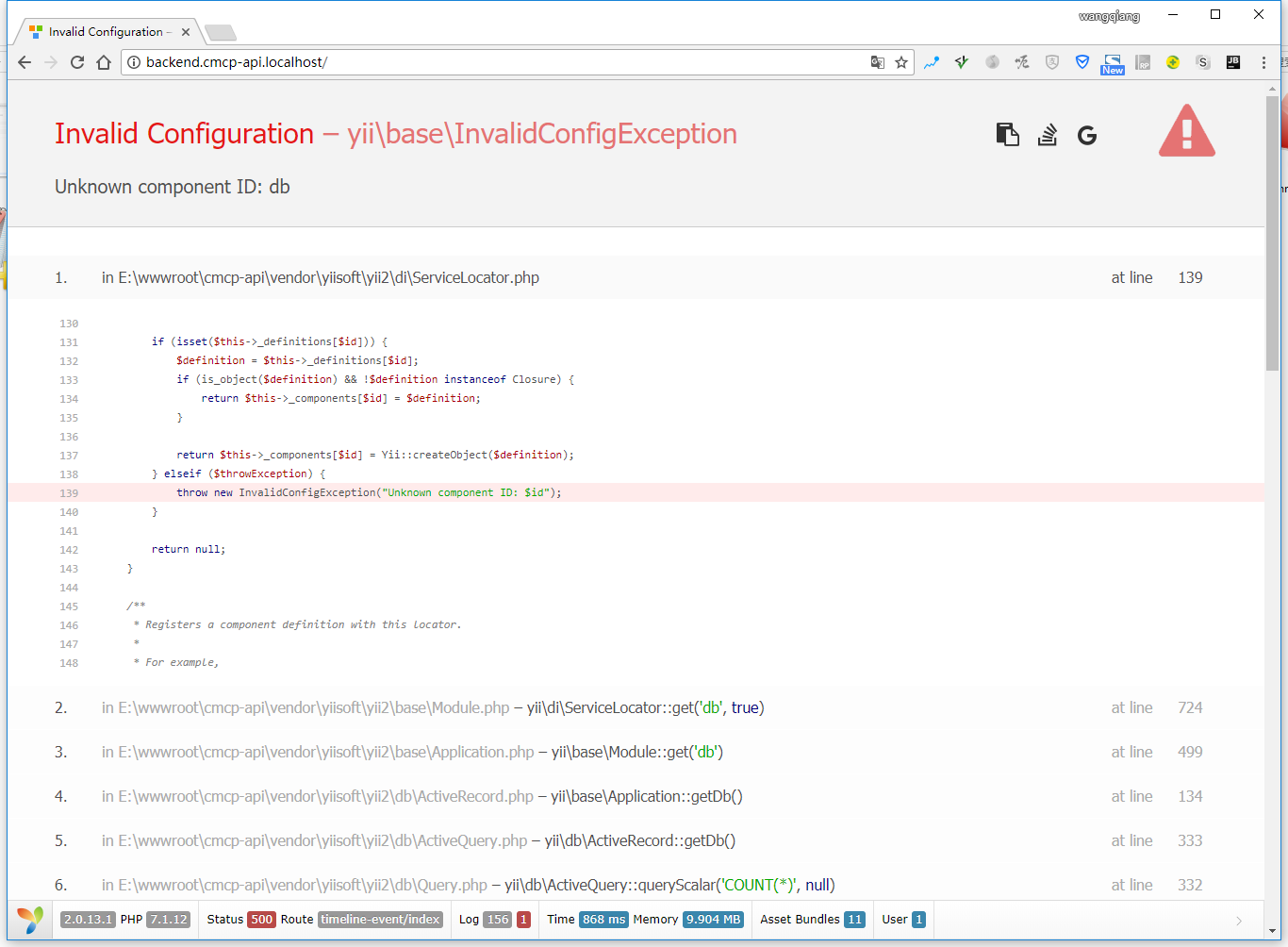

22、打开网址：http://backend.cmcp-api.localhost/ ，报错：Unknown component ID: db，如图13
图13

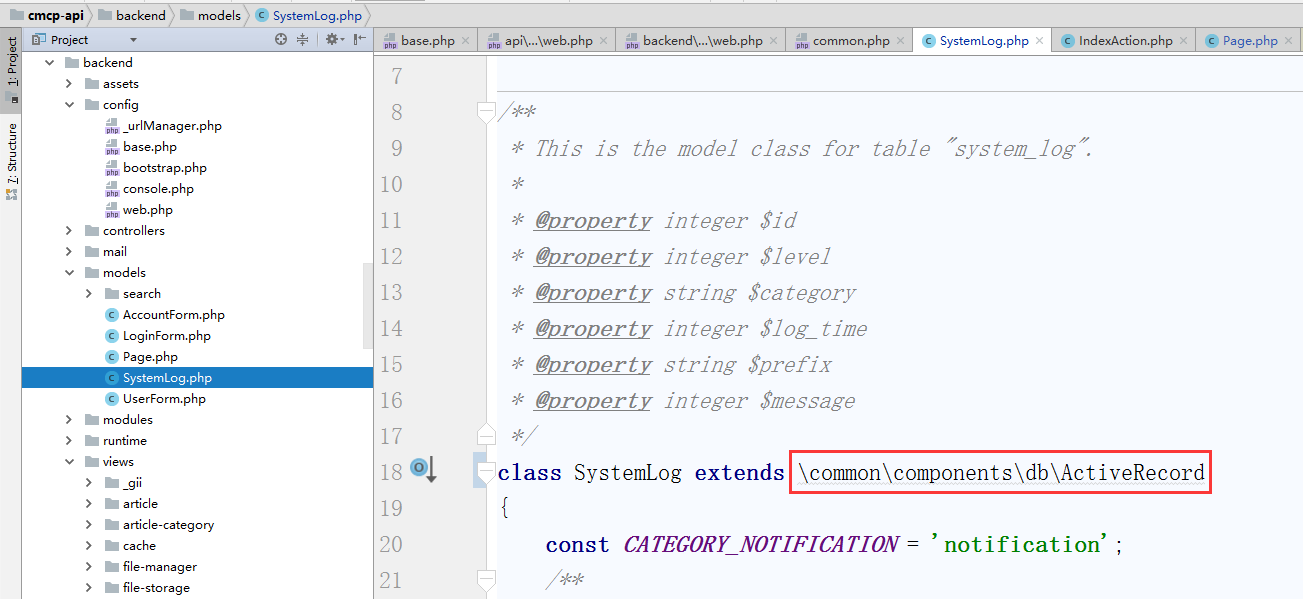

23、编辑 \backend\models\SystemLog.php，继承至 \common\components\db\ActiveRecord，如图14
1 | \yii\db\ActiveRecord 替换为 \common\components\db\ActiveRecord |
图14
24、打开网址：http://backend.cmcp-api.localhost/ ，200响应

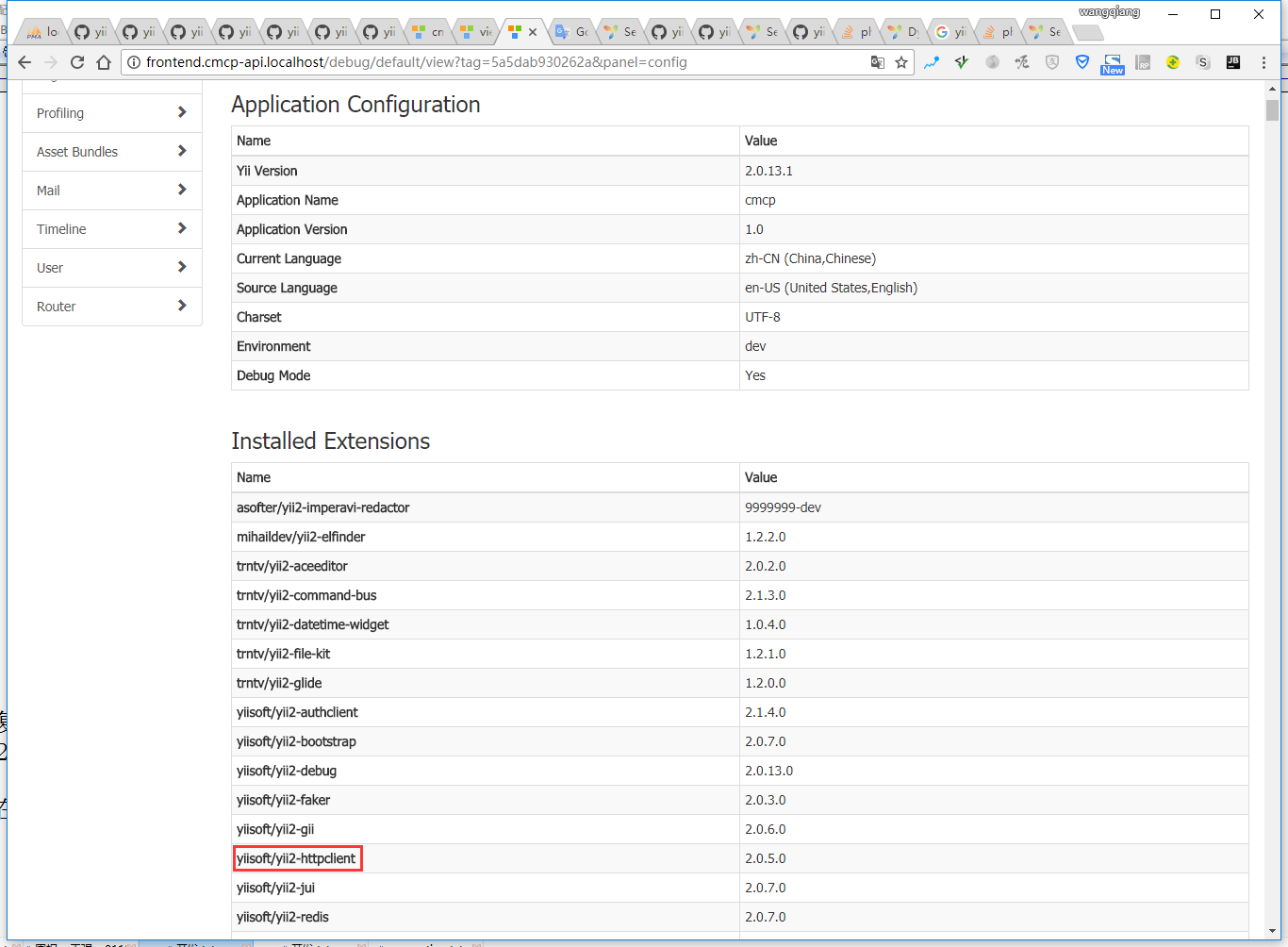

25、现在需要调用多租户系统的接口，以其响应直接初始化使用数据库连接、RBAC，基于已经安装的 Yii 2 的 HTTP 客户端扩展，如图15
图15
26、编辑 \.env.dist、\.env，新增多租户的相关配置
1 2 3 4 5 6 | # 多租户# ----TENANT_HOST_INFO = http://wjdev.chinamcloud.com:8600 # HOME URLTENANT_BASE_URL = /interface # BASE URLTENANT_APP_NAME = cmcpapi # 模块英文名称TENANT_SECRET = 94030d307b160f04b88592cb9bebdd4c # 模块Secret |
27、编辑 \common\config\bootstrap.php，设置别名
1 | Yii::setAlias('@tenantUrl', env('TENANT_HOST_INFO') . env('TENANT_BASE_URL')); |

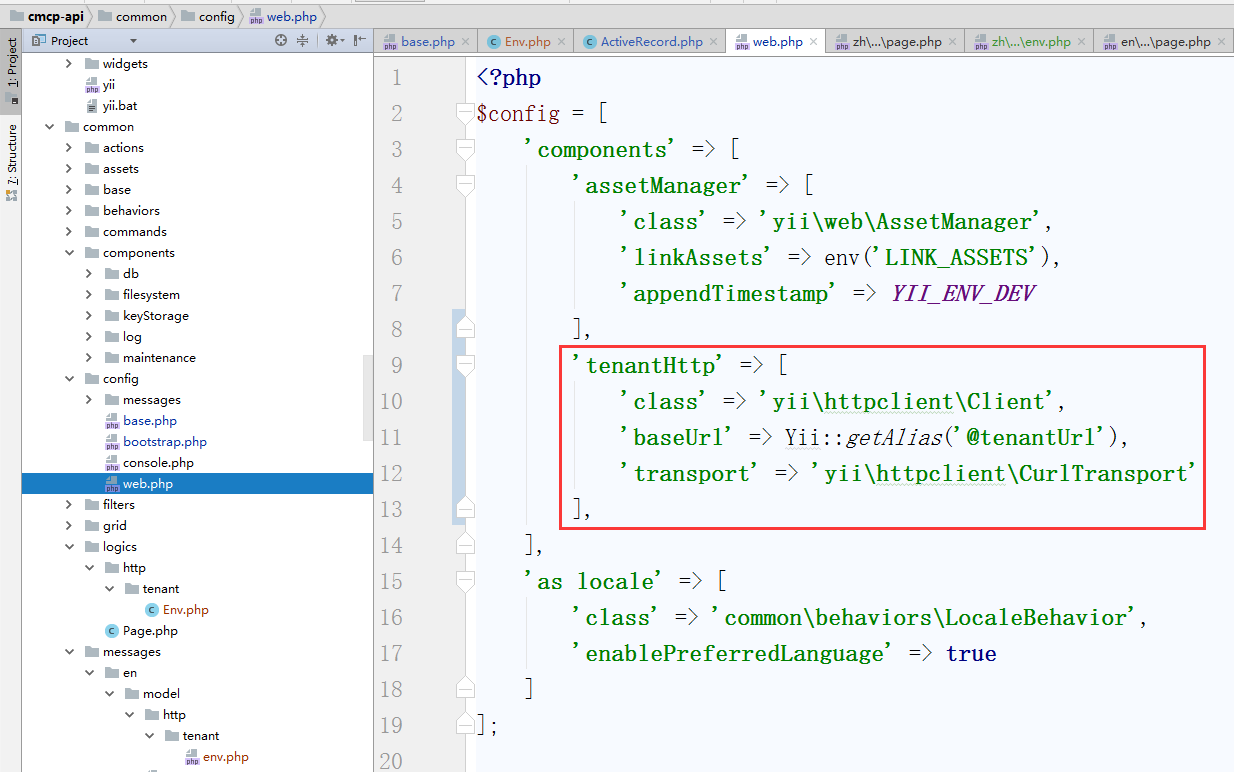

28、通过应用组件配置客户端，编辑 \common\config\web.php，如图16
1 2 3 4 5 | 'tenantHttp' => [ 'class' => 'yii\httpclient\Client', 'baseUrl' => Yii::getAlias('@tenantUrl'), 'transport' => 'yii\httpclient\CurlTransport'], |
图16

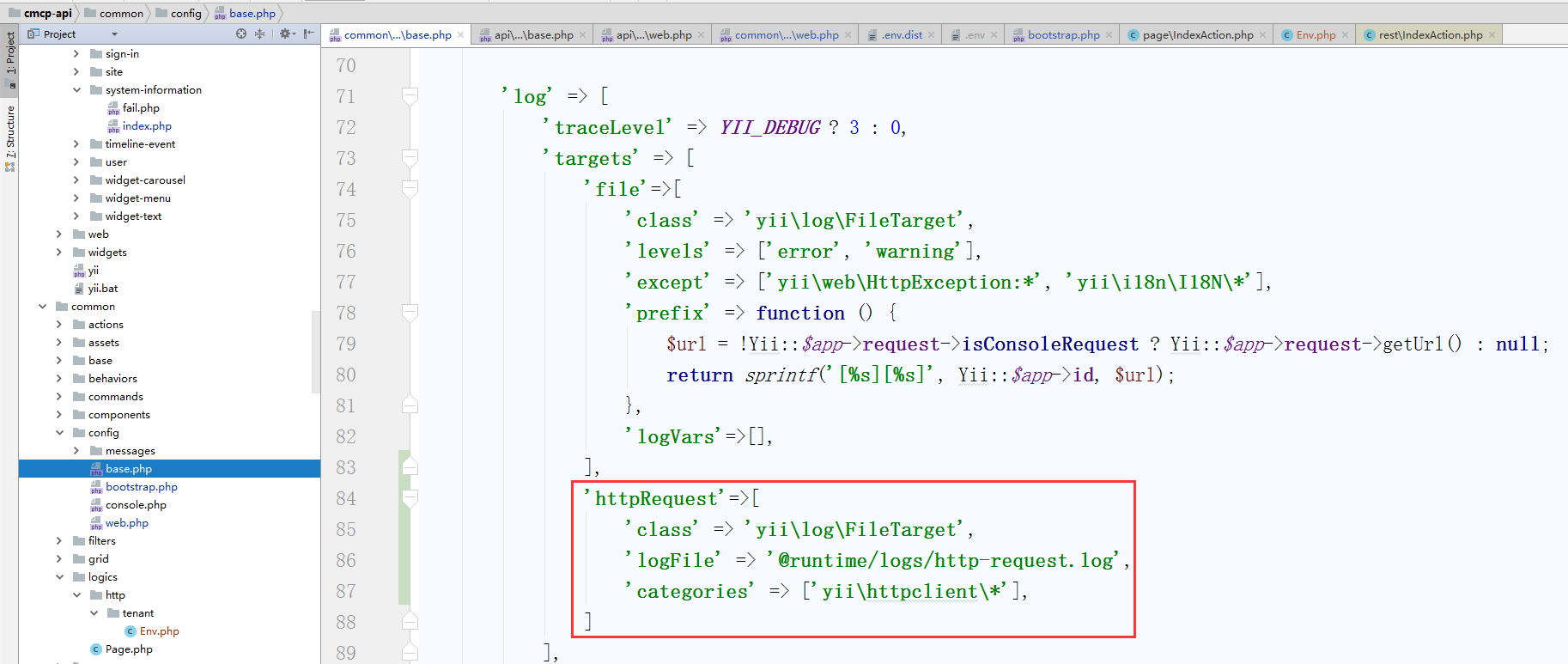

29、通过配置日志记录 HTTP 发送的请求并分析其执行情况，编辑 \common\config\base.php，如图17
1 2 3 4 5 | 'httpRequest'=>[ 'class' => 'yii\log\FileTarget', 'logFile' => '@runtime/logs/http-request.log', 'categories' => ['yii\httpclient\*'],] |
图17

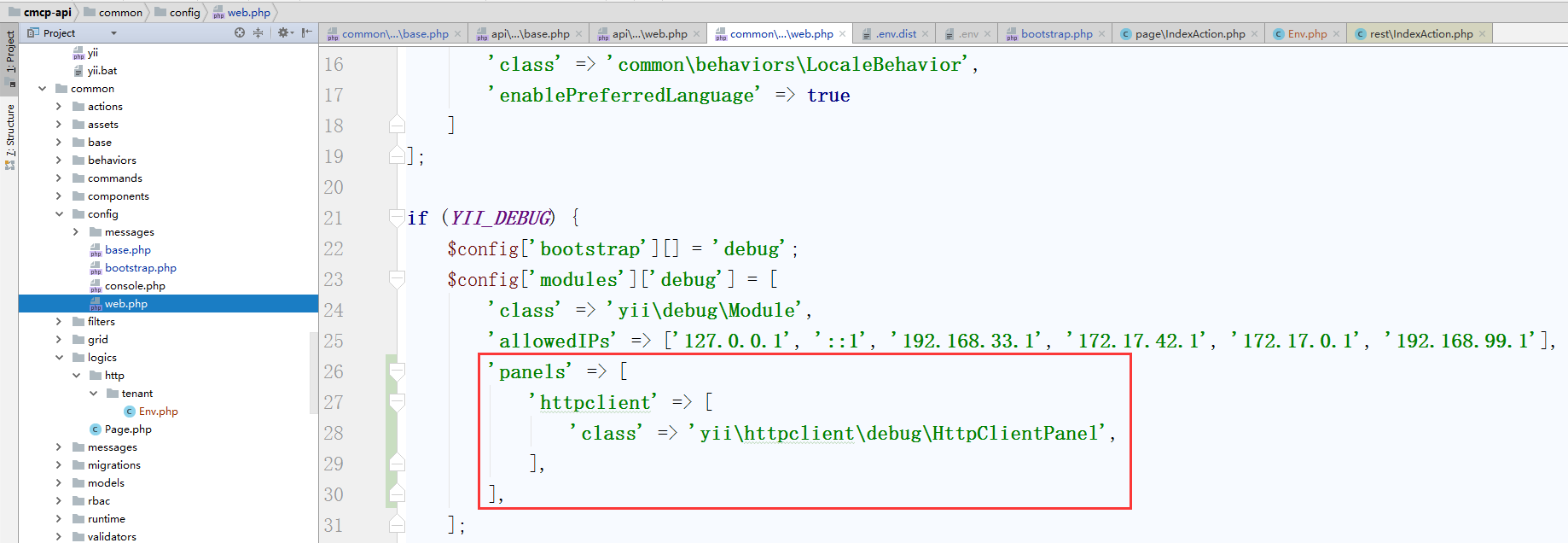

30、yii2 HTTP 客户端扩展提供了一个可以与 yii 调试模块集成的调试面板，并显示已执行的HTTP 请求，启用调试面板，如图18
1 2 3 4 5 6 7 8 9 | $config['modules']['debug'] = [ 'class' => 'yii\debug\Module', 'allowedIPs' => ['127.0.0.1', '::1', '192.168.33.1', '172.17.42.1', '172.17.0.1', '192.168.99.1'], 'panels' => [ 'httpclient' => [ 'class' => 'yii\httpclient\debug\HttpClientPanel', ], ],]; |
图18

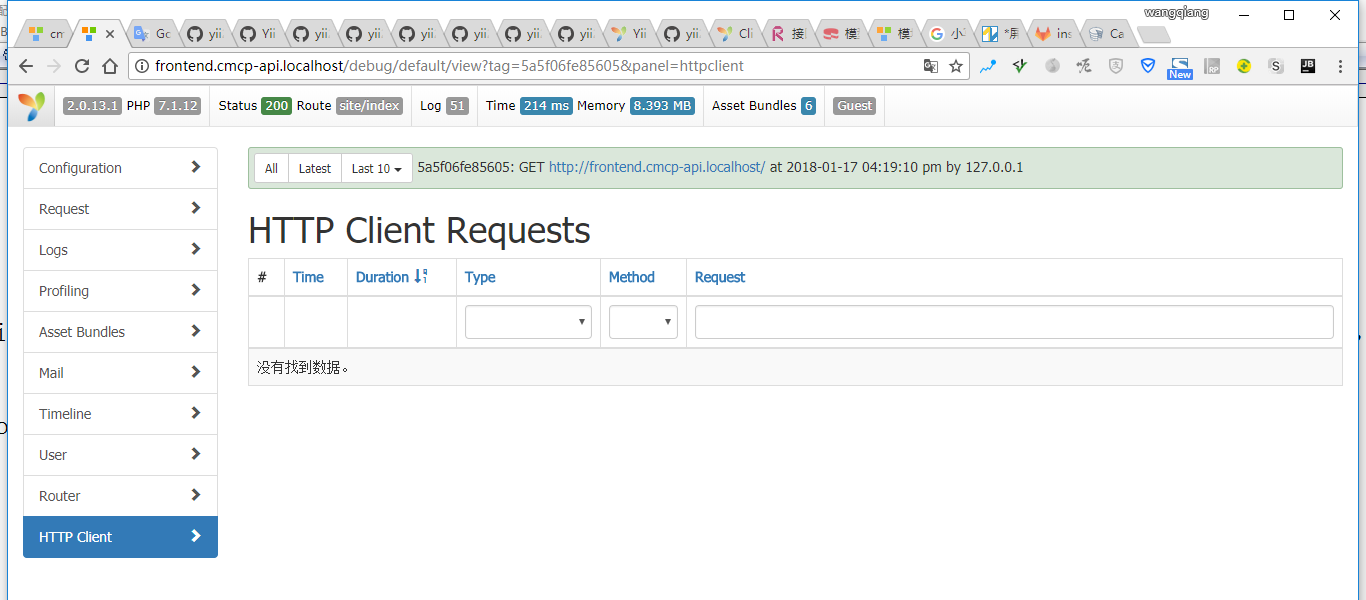

31、刷新页面之后，查看日志面板，新增 HTTP Client，如图19
图19
32、新建 \common\logics\http\tenant\Env.php，http目录表示此目录下的模型数据源自于HTTP请求，tenant目录表示多租户系统相关的模型，Env.php表示环境配置模型
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/17 * Time: 15:20 */namespace common\logics\http\tenant;use Yii;use yii\base\Model;use yii\web\ServerErrorHttpException;/** * 多租户的模块环境配置 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Env extends Model{ public $app_name; public $secret; public $tenant_id; public function attributeLabels() { return [ 'app_name' => \Yii::t('model/http/tenant/env', 'App Name'), 'secret' => \Yii::t('model/http/tenant/env', 'Secret'), 'tenant_id' => \Yii::t('model/http/tenant/env', 'Tenant ID'), ]; } /** * 返回租户模块环境配置信息 * * @return array|false * * 格式如下： * * 租户模块环境配置信息 * [ * 'message' => '', //说明 * 'data' => [], //数据 * ] * * 失败(将错误保存在 [[yii\base\Model::errors]] 属性中) * false * * @throws ServerErrorHttpException 如果响应状态码不等于20x */ public function getTenantEnv() { $this->app_name = env('TENANT_APP_NAME'); $this->secret = env('TENANT_SECRET'); /* 租户ID后续从请求参数中获取 */ $this->tenant_id = 'default'; $response = Yii::$app->tenantHttp->createRequest() ->setMethod('get') ->setUrl('getTenantEnvs') ->setData([ 'appname' => $this->app_name, 'secret' => $this->secret, 'tenantid1' => $this->tenant_id, ]) ->send(); // 检查响应状态码是否等于20x if ($response->isOk) { // 检查业务逻辑是否成功 if ($response->data['returnCode'] === 0) { return ['message' => $response->data['returnDesc'], 'data' => $response->data['returnData']]; } else { $this->addError('tenant_id', $response->data['returnDesc']); return false; } } else { throw new ServerErrorHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '20005'), ['statusCode' => $response->getStatusCode()]))); } }} |

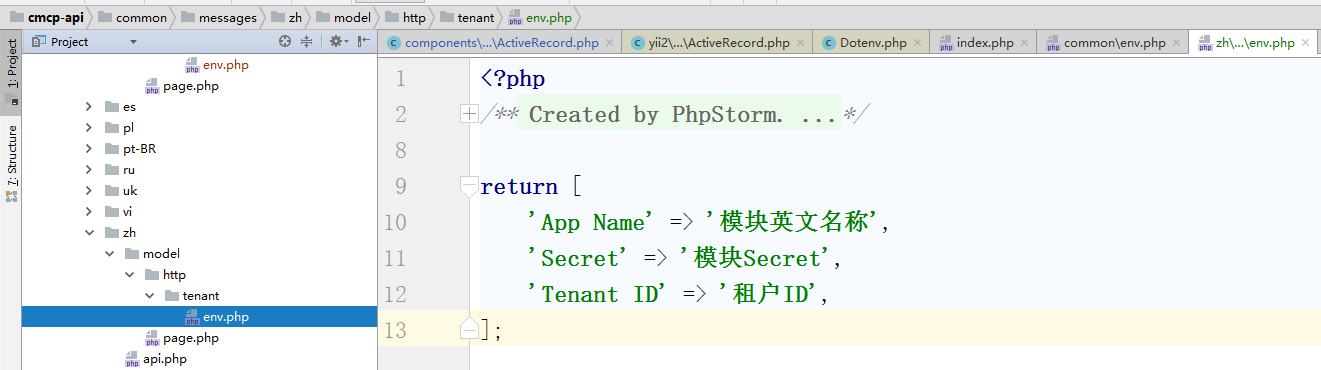

33、新建语言包文件，\common\messages\en\model\http\tenant\env.php、\common\messages\zh\model\http\tenant\env.php，如图20
\common\messages\en\model\http\tenant\env.php
1 2 3 4 5 | return [ 'App Name' => 'English name of the module', 'Secret' => 'Secret module in multi-tenant system', 'Tenant ID' => 'Tenant ID',]; |
\common\messages\zh\model\http\tenant\env.php
1 2 3 4 5 | return [ 'App Name' => '模块英文名称', 'Secret' => '模块Secret', 'Tenant ID' => '租户ID',]; |
图20
34、编辑语言包文件，\api\messages\en\error.php、\api\messages\zh\error.php
\api\messages\en\error.php
1 2 | 20005 => 'Multitenant HTTP request failed with status code: {statusCode}',20006 => 'Multitenant HTTP request failed: {firstErrors}', |
\api\messages\zh\error.php
1 2 | 20005 => '多租户HTTP请求失败，状态码：{statusCode}',20006 => '多租户HTTP请求失败：{firstErrors}', |
35、复制 \api\messages\en\app.php、\api\messages\en\error.php、\api\messages\zh\app.php、\api\messages\zh\error.php 至 \common\messages\en\app.php、\common\messages\en\error.php、\common\messages\zh\app.php、\common\messages\zh\error.php，编辑
\common\messages\zh\error.php
1 2 3 4 5 | return [ 20000 => 'error', 20005 => '多租户HTTP请求失败，状态码：{statusCode}', 20006 => '多租户HTTP请求失败：{firstErrors}',]; |
36、编辑 \common\components\db\ActiveRecord.php，数据库配置信息源自于租户环境配置接口
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/16 * Time: 10:31 */namespace common\components\db;use Yii;use common\logics\http\tenant\Env;use yii\web\ServerErrorHttpException;/** * 获取租户模块环境配置信息，存储至Redis，注册数据库连接组件 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class ActiveRecord extends \yii\db\ActiveRecord{ /** * Returns the database connection used by this AR class. * By default, the "db" application component is used as the database connection. * You may override this method if you want to use a different database connection. * @return Connection the database connection used by this AR class. */ public static function getDb() { $env = new Env(); $tenantEnv = $env->getTenantEnv(); if ($tenantEnv === false) { if ($env->hasErrors()) { foreach ($env->getFirstErrors() as $message) { $firstErrors = $message; } throw new ServerErrorHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '20006'), ['firstErrors' => $firstErrors]))); } elseif (!$env->hasErrors()) { throw new ServerErrorHttpException('Multi-tenant HTTP requests fail for unknown reasons.'); } } $tenantDb = $tenantEnv['data']['tenantid'] . 'Db'; // 注册数据库连接组件、RBAC组件 Yii::$app->setComponents([ $tenantDb => [ 'class' => 'yii\db\Connection', 'dsn' => 'mysql:host=' .$tenantEnv['data']['db_info']['host'] . ';port=3306;dbname=' . $tenantEnv['data']['db_info']['database'] . '', 'username' => $tenantEnv['data']['db_info']['login'], 'password' => $tenantEnv['data']['db_info']['password'], 'tablePrefix' => $tenantEnv['data']['db_info']['prefix'], 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD, ], 'authManager' => [ 'class' => 'yii\rbac\DbManager', 'db' => $tenantDb, 'itemTable' => '{{%rbac_auth_item}}', 'itemChildTable' => '{{%rbac_auth_item_child}}', 'assignmentTable' => '{{%rbac_auth_assignment}}', 'ruleTable' => '{{%rbac_auth_rule}}' ], ]); return Yii::$app->$tenantDb; }} |

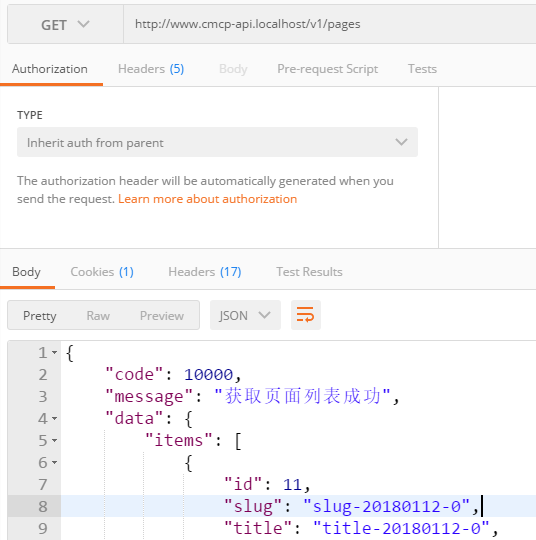

37、在 Postman 中 GET http://www.cmcp-api.localhost/v1/pages ，200响应，如图21
图21

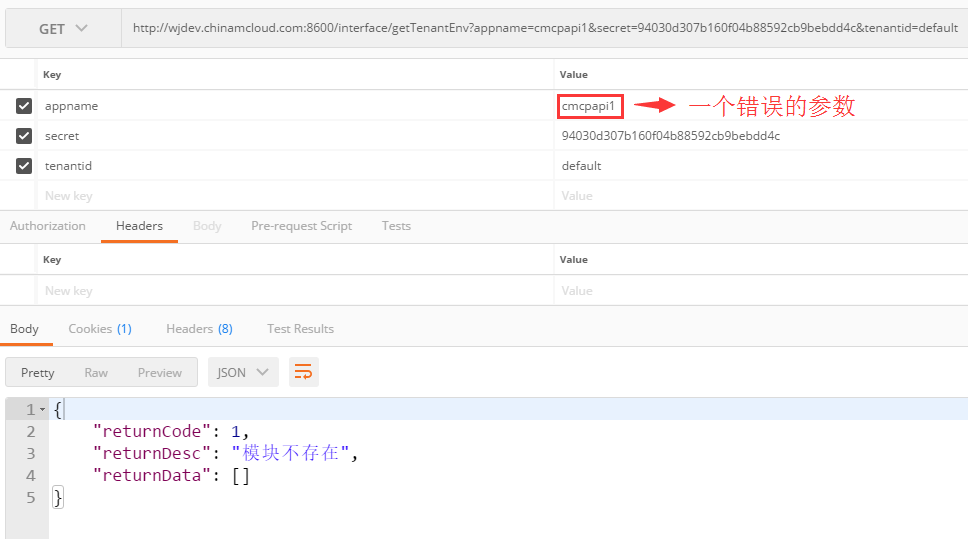

38、在 Postman 中 GET 多租户的环境配置接口，一个参数是错误的，如图22
图22
39、编辑 \.env，TENANT_APP_NAME的值是错误的
1 | TENANT_APP_NAME = cmcpapi1 # 模块英文名称 |

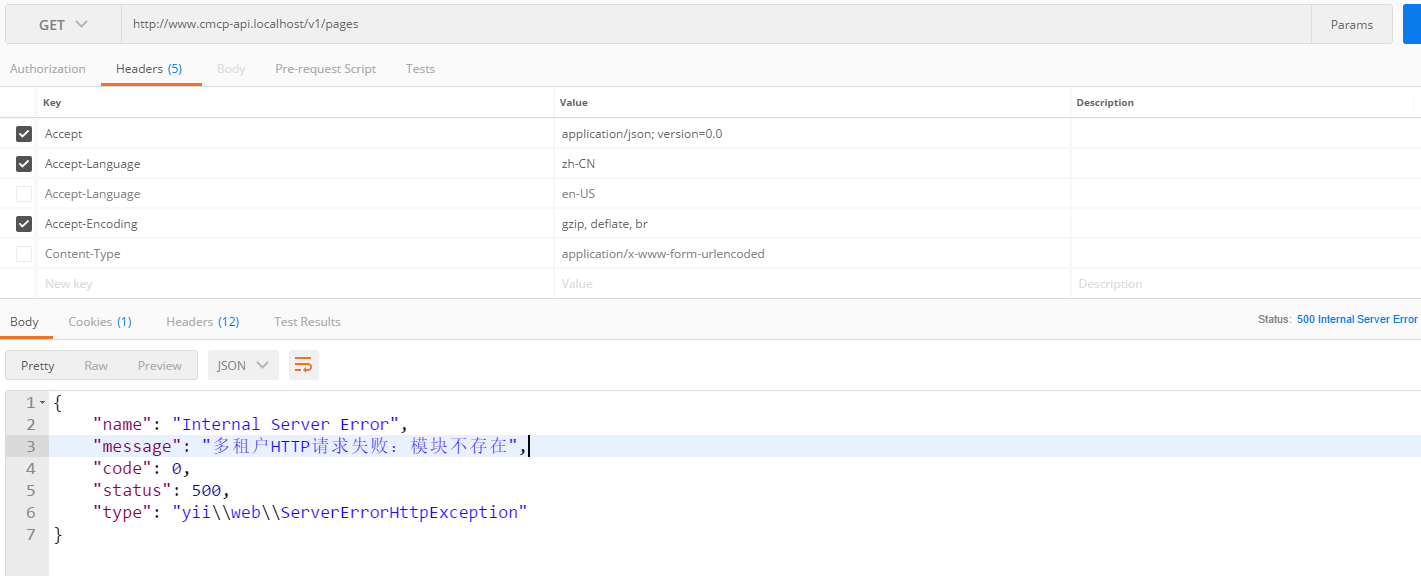

40、在 Postman 中 GET http://www.cmcp-api.localhost/v1/pages ，500响应，如图23
图23

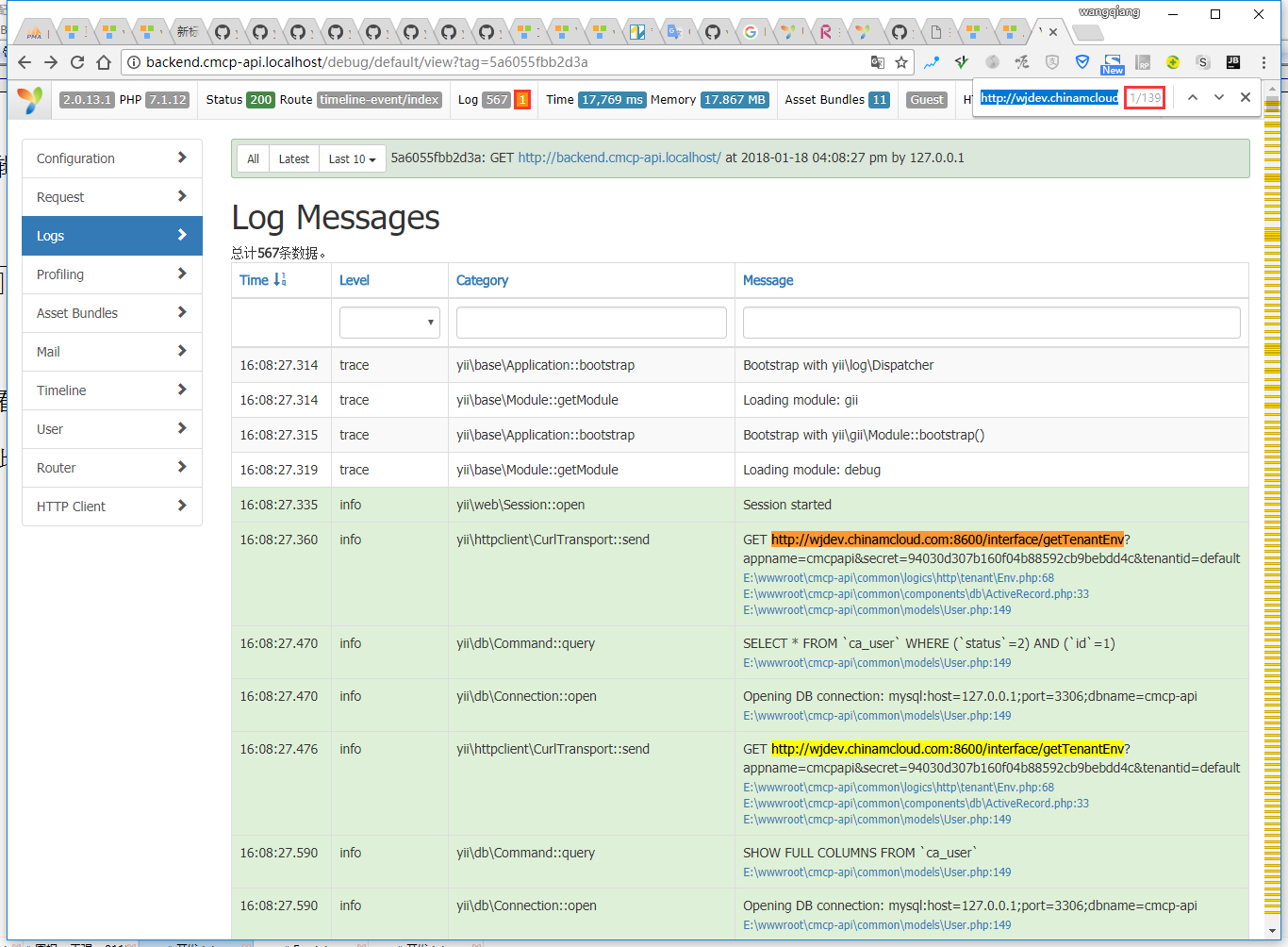

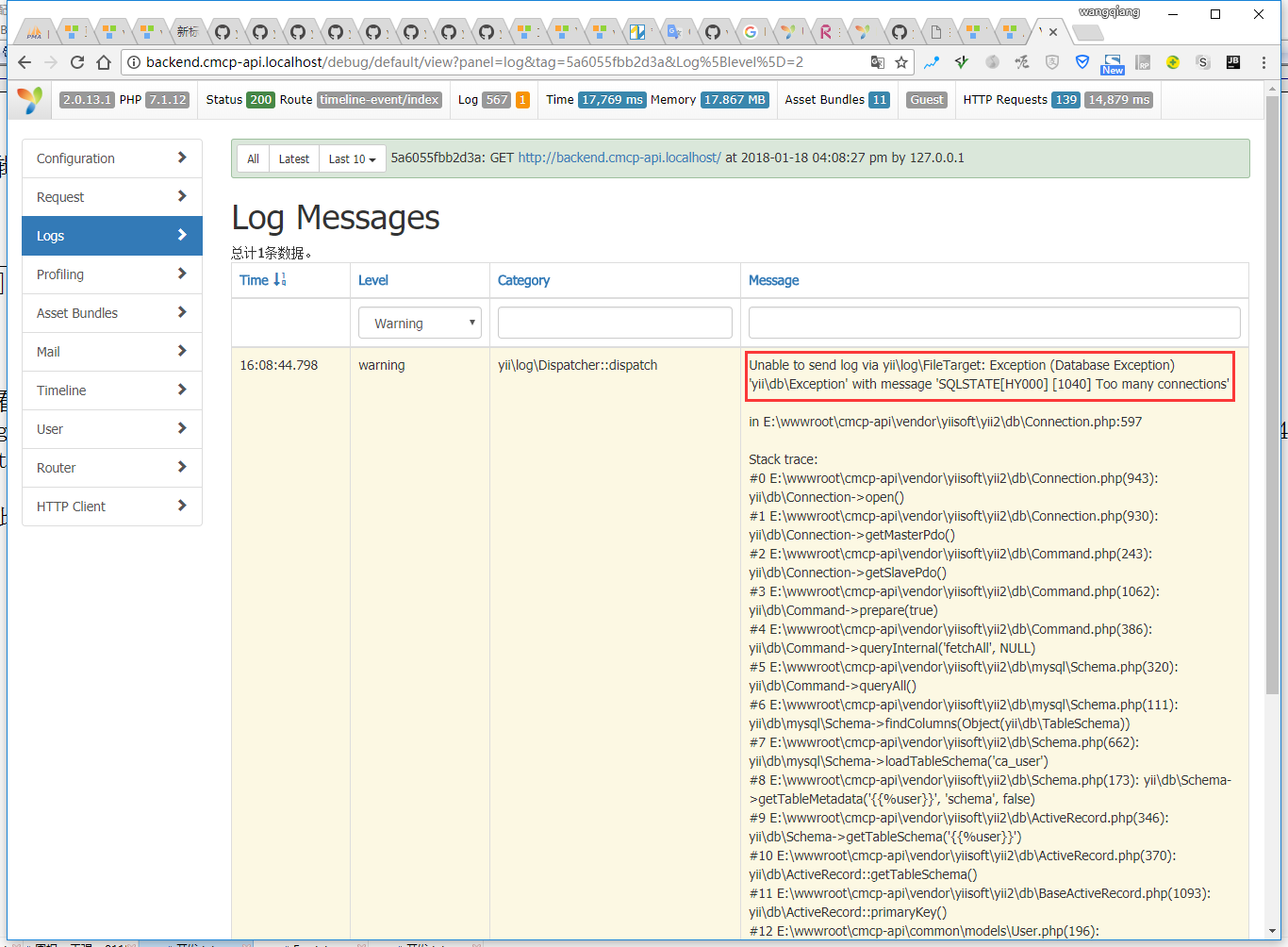

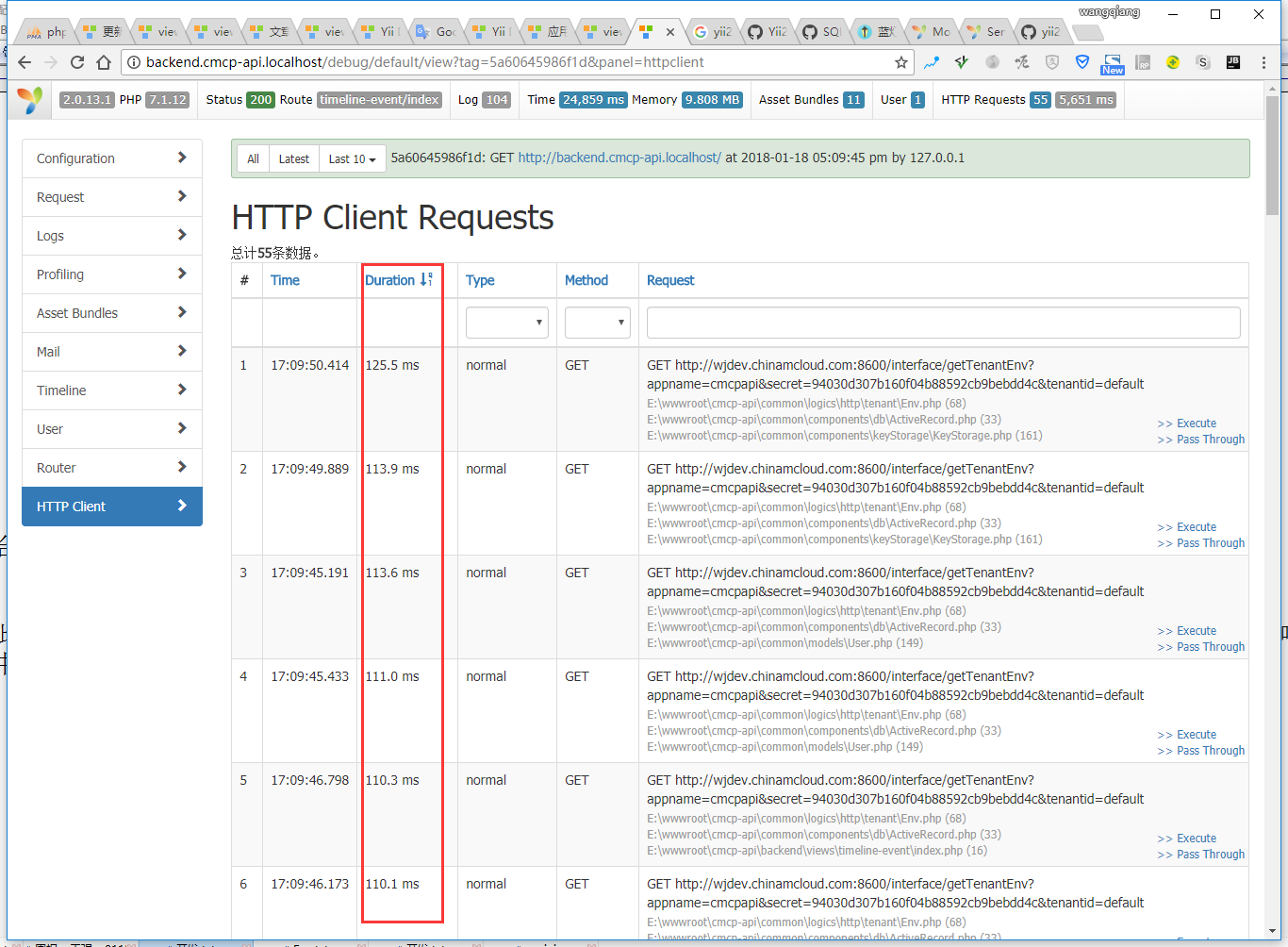

41、查看日志，发现接口应用与后台应用分别请求多租户接口的次数为8、139次，后台报错：Unable to send log via yii\log\FileTarget: Exception (Database Exception) ‘yii\db\Exception’ with message ‘SQLSTATE[HY000] [1040] Too many connections’ ，如图24、25
图24
![后台报错：Unable to send log via yii\log\FileTarget: Exception (Database Exception) 'yii\db\Exception' with message 'SQLSTATE[HY000] [1040] Too many connections'](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/25-1.png)
图25

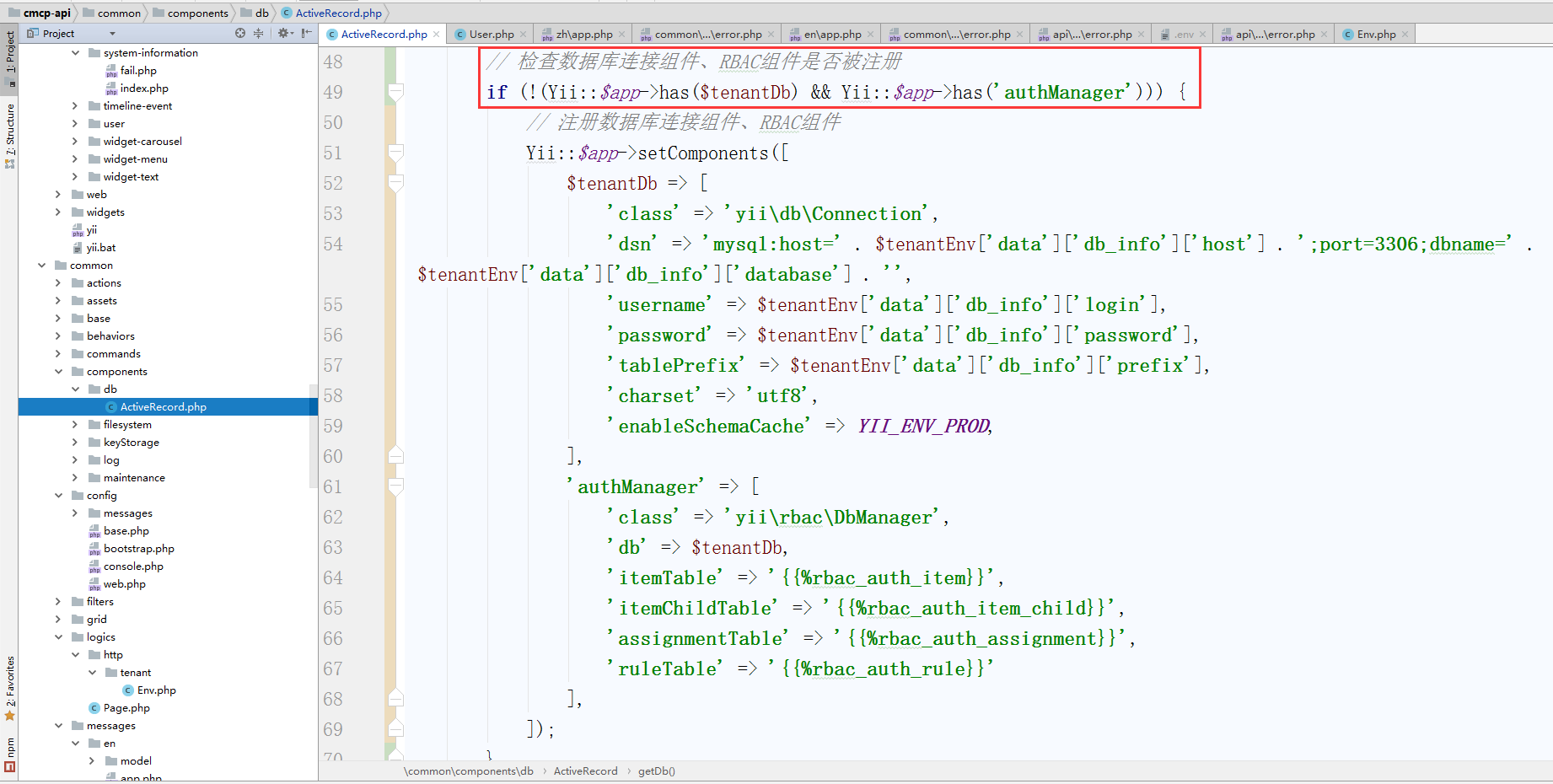

42、检查数据库连接组件、RBAC组件是否被注册，如果已经被注册，则无需覆盖，编辑 \common\components\db\ActiveRecord.php，如图26
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 | // 检查数据库连接组件、RBAC组件是否被注册if (!(Yii::$app->has($tenantDb) && Yii::$app->has('authManager'))) { // 注册数据库连接组件、RBAC组件 Yii::$app->setComponents([ $tenantDb => [ 'class' => 'yii\db\Connection', 'dsn' => 'mysql:host=' . $tenantEnv['data']['db_info']['host'] . ';port=3306;dbname=' . $tenantEnv['data']['db_info']['database'] . '', 'username' => $tenantEnv['data']['db_info']['login'], 'password' => $tenantEnv['data']['db_info']['password'], 'tablePrefix' => $tenantEnv['data']['db_info']['prefix'], 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD, ], 'authManager' => [ 'class' => 'yii\rbac\DbManager', 'db' => $tenantDb, 'itemTable' => '{{%rbac_auth_item}}', 'itemChildTable' => '{{%rbac_auth_item_child}}', 'assignmentTable' => '{{%rbac_auth_assignment}}', 'ruleTable' => '{{%rbac_auth_rule}}' ], ]);} |
图26

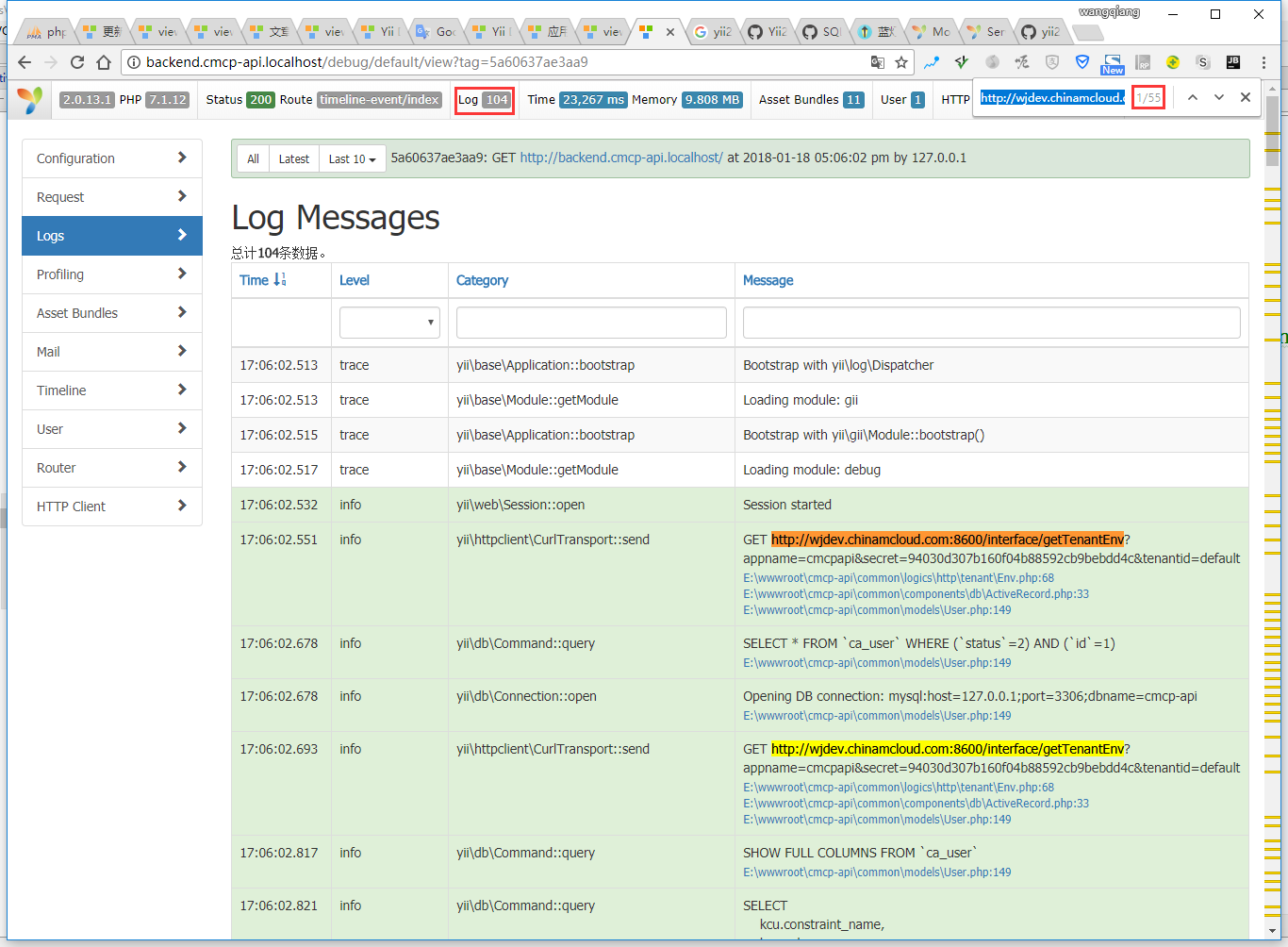

43、后台应用报错：’SQLSTATE[HY000] [1040] Too many connections’ 已经解决，如图27
![后台应用报错：'SQLSTATE[HY000] [1040] Too many connections' 已经解决](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/27-1.png)
图27
图28

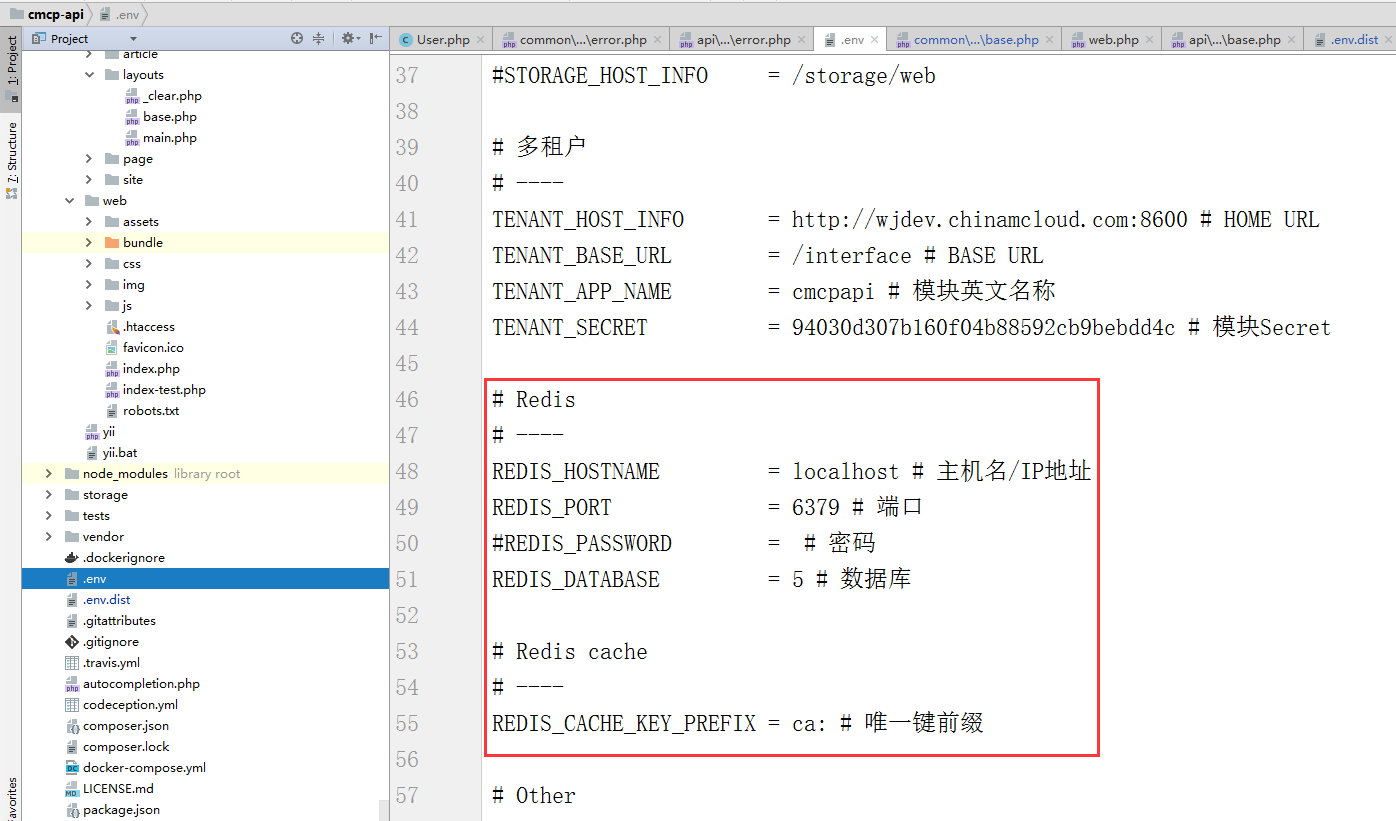

45、开启 Schema 缓存(仅在生产环境中开启)，且缓存至 Redis 中，编辑 \.env.dist、\.env，如图29
1 2 3 4 5 6 7 8 9 10 11 12 | YII_ENV = prod# Redis# ----REDIS_HOSTNAME = localhost # 主机名/IP地址REDIS_PORT = 6379 # 端口#REDIS_PASSWORD = # 密码REDIS_DATABASE = 0 # 数据库# Redis cache# ----REDIS_CACHE_KEY_PREFIX = ca: # 唯一键前缀 |
图29
46、编辑 \common\config\base.php，在应用程序配置中配置 Redis 连接，且配置缓存组件
1 2 3 4 5 6 7 8 9 10 11 12 | 'redisCache' => [ 'class' => 'yii\redis\Cache', 'keyPrefix' => env('REDIS_CACHE_KEY_PREFIX'), // 唯一键前缀],'redis' => [ 'class' => 'yii\redis\Connection', 'hostname' => env('REDIS_HOSTNAME'), 'port' => env('REDIS_PORT'), 'password' => env('REDIS_PASSWORD'), 'database' => env('REDIS_DATABASE'),], |
47、在数据库连接中开启 Schema 缓存，编辑 \common\components\db\ActiveRecord.php
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 | // 检查数据库连接组件、RBAC组件是否被注册if (!(Yii::$app->has($tenantDb) && Yii::$app->has('authManager'))) { // 注册数据库连接组件、RBAC组件 Yii::$app->setComponents([ $tenantDb => [ 'class' => 'yii\db\Connection', 'dsn' => 'mysql:host=' . $tenantEnv['data']['db_info']['host'] . ';port=3306;dbname=' . $tenantEnv['data']['db_info']['database'] . '', 'username' => $tenantEnv['data']['db_info']['login'], 'password' => $tenantEnv['data']['db_info']['password'], 'tablePrefix' => $tenantEnv['data']['db_info']['prefix'], 'charset' => 'utf8', 'enableSchemaCache' => YII_ENV_PROD, 'schemaCache' => 'redisCache', ], 'authManager' => [ 'class' => 'yii\rbac\DbManager', 'db' => $tenantDb, 'itemTable' => '{{%rbac_auth_item}}', 'itemChildTable' => '{{%rbac_auth_item_child}}', 'assignmentTable' => '{{%rbac_auth_assignment}}', 'ruleTable' => '{{%rbac_auth_rule}}' ], ]);} |

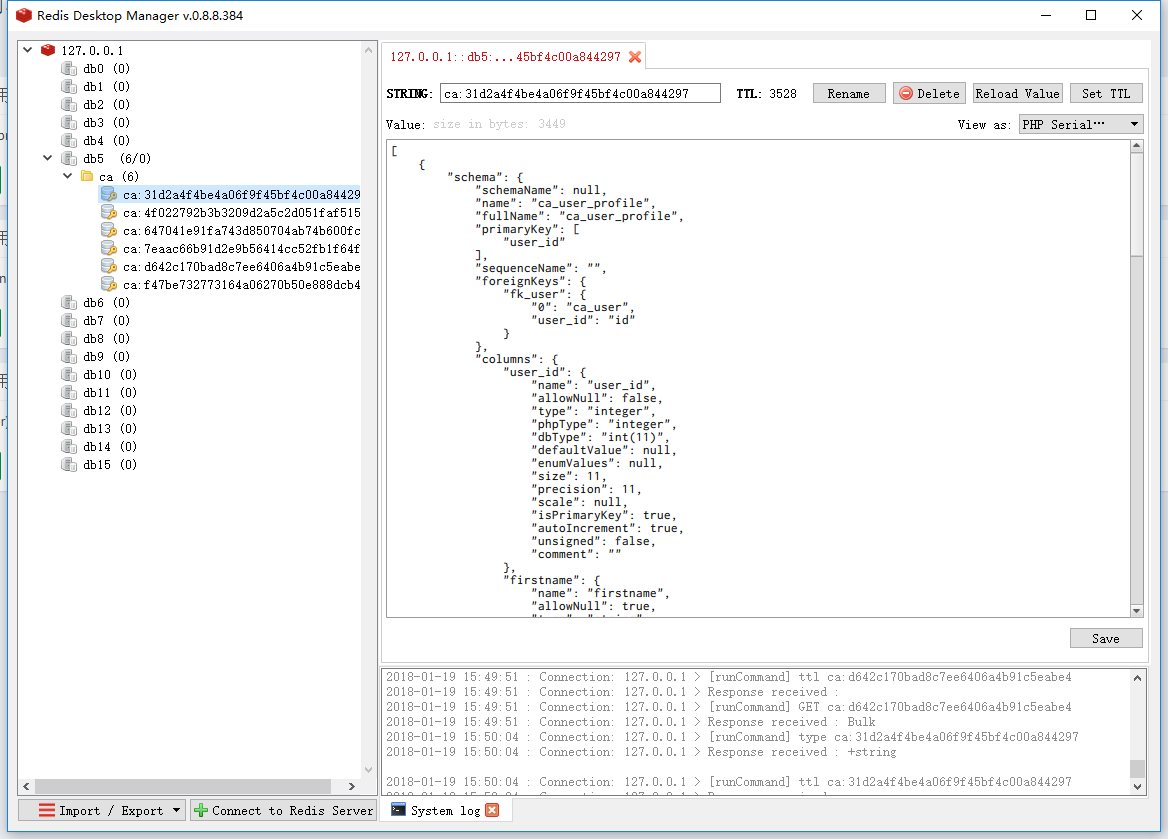

48、运行后台应用后，查看 Redis 中的数据，数据表的结构已经被缓存了，如图30
图30

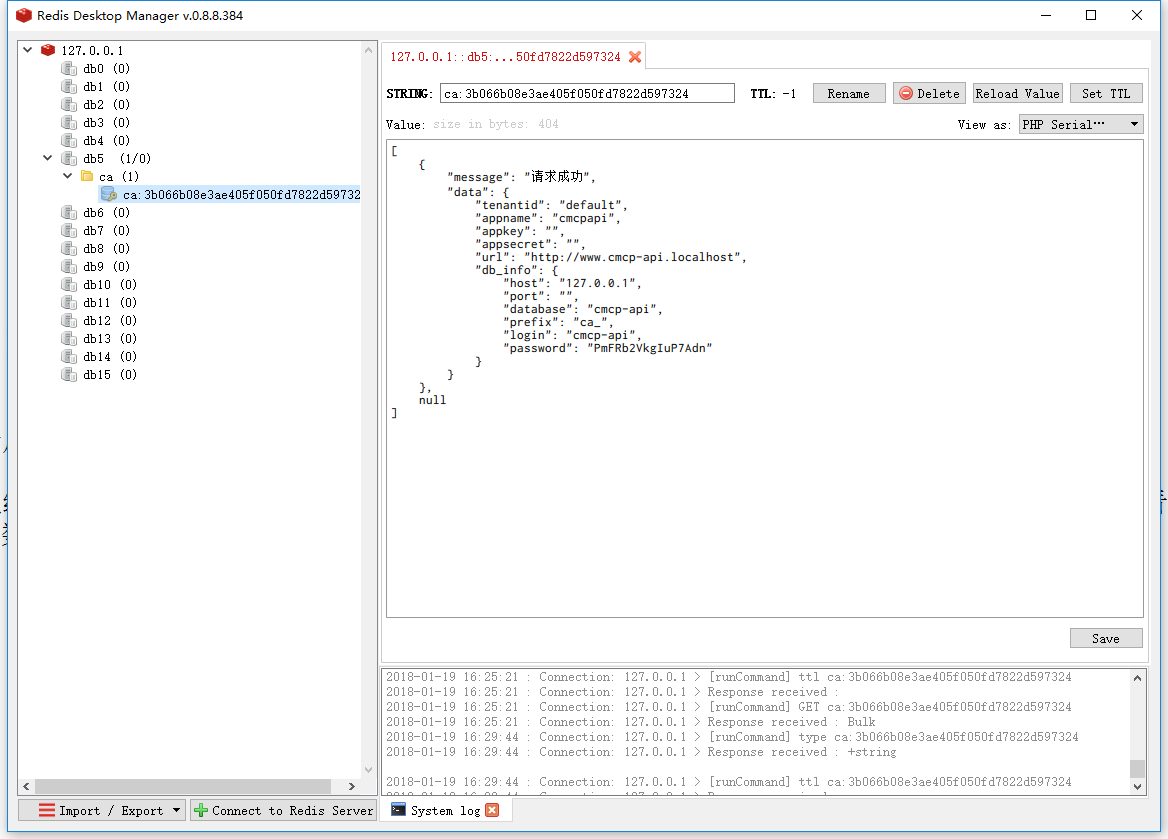

49、实现缓存(多租户系统的响应)，编辑 \common\logics\http\tenant\Env.php，运行后台应用后，查看 Redis 中的数据，多租户系统的响应数据已经被缓存了，如图31
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 | <?php/** * Created by PhpStorm. * User: Administrator * Date: 2018/01/17 * Time: 15:20 */namespace common\logics\http\tenant;use Yii;use yii\base\Model;use yii\web\ServerErrorHttpException;/** * 多租户的模块环境配置 * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Env extends Model{ public $app_name; public $secret; public $tenant_id; public function attributeLabels() { return [ 'app_name' => \Yii::t('model/http/tenant/env', 'App Name'), 'secret' => \Yii::t('model/http/tenant/env', 'Secret'), 'tenant_id' => \Yii::t('model/http/tenant/env', 'Tenant ID'), ]; } /** * 返回租户模块环境配置信息 * * @return array|false * * 格式如下： * * 租户模块环境配置信息 * [ * 'message' => '', //说明 * 'data' => [], //数据 * ] * * 失败(将错误保存在 [[yii\base\Model::errors]] 属性中) * false * * @throws ServerErrorHttpException 如果响应状态码不等于20x */ public function getTenantEnv() { /* 租户ID后续从请求参数中获取 */ $this->tenant_id = 'default'; // 设置多租户数据的缓存键 $redisCache = Yii::$app->redisCache; $tenantKey = 'tenant:' . $this->tenant_id; // 从缓存中取回多租户数据 $tenantData = $redisCache[$tenantKey]; if ($tenantData === false) { $this->app_name = env('TENANT_APP_NAME'); $this->secret = env('TENANT_SECRET'); $response = Yii::$app->tenantHttp->createRequest() ->setMethod('get') ->setUrl('getTenantEnv') ->setData([ 'appname' => $this->app_name, 'secret' => $this->secret, 'tenantid' => $this->tenant_id, ]) ->send(); // 检查响应状态码是否等于20x if ($response->isOk) { // 检查业务逻辑是否成功 if ($response->data['returnCode'] === 0) { $tenantData = ['message' => $response->data['returnDesc'], 'data' => $response->data['returnData']]; // 将多租户数据存放到缓存供下次使用 $redisCache[$tenantKey] = $tenantData; return $tenantData; } else { $this->addError('tenant_id', $response->data['returnDesc']); return false; } } else { throw new ServerErrorHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '20005'), ['statusCode' => $response->getStatusCode()]))); } } else { return $tenantData; } }} |
图31

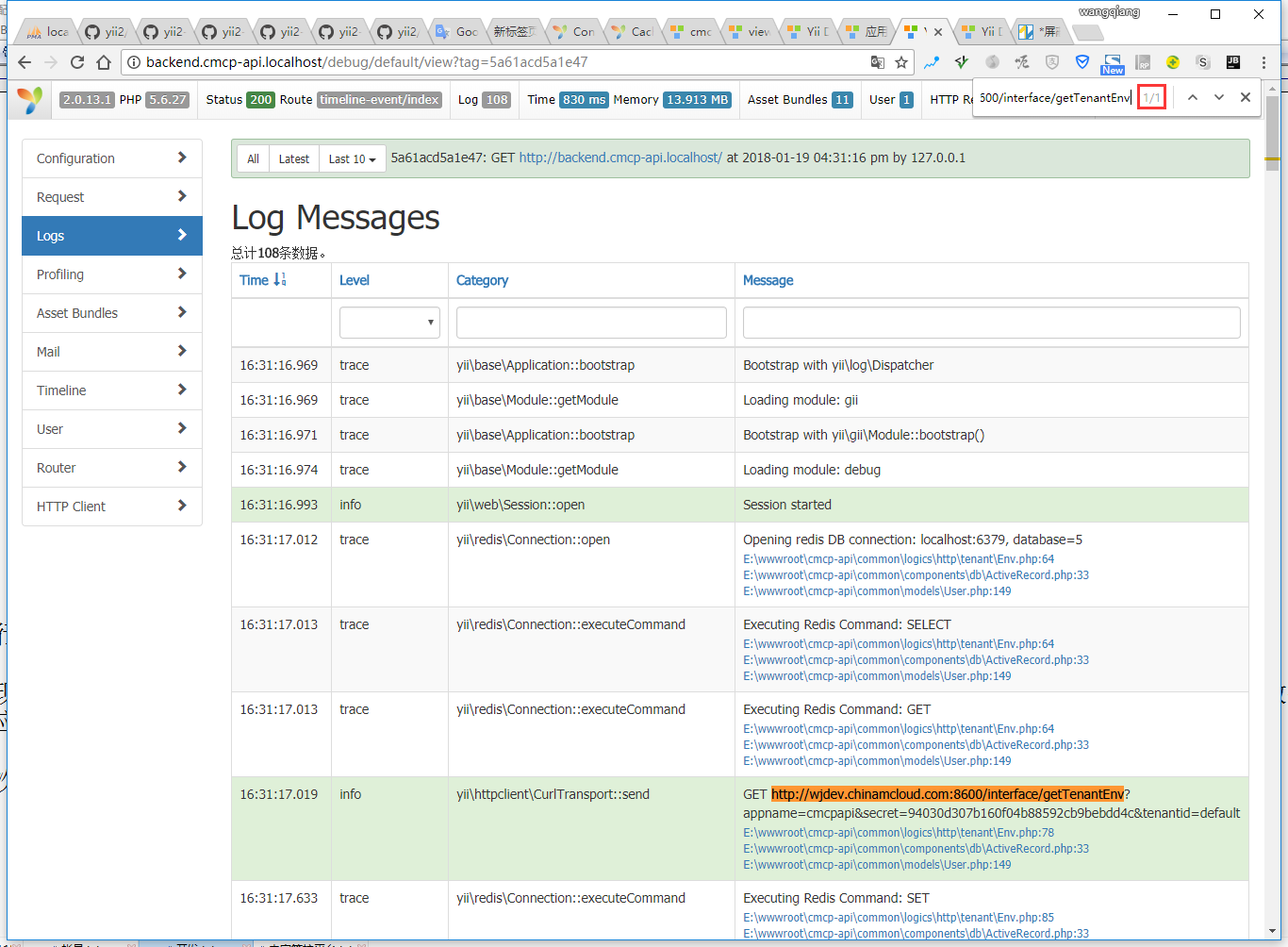

50、清空Redis，一次请求中，对于多租户系统的HTTP请求仅有1次，如图32
图32
51、默认情况下，缓存中的数据会永久存留，除非它被某些缓存策略强制移除（例如：缓存空间已满，最老的数据会被移除），后续准备实现清除对应缓存数据的接口，以便于多租户系统的数据发生变化时，可以调用清除对应缓存数据的接口
