在 Windwos 10、PHP 7.1.12 下 基于 Yii 2 Starter Kit，复制后台应用为接口应用，实现 RESTful Web 服务的流程

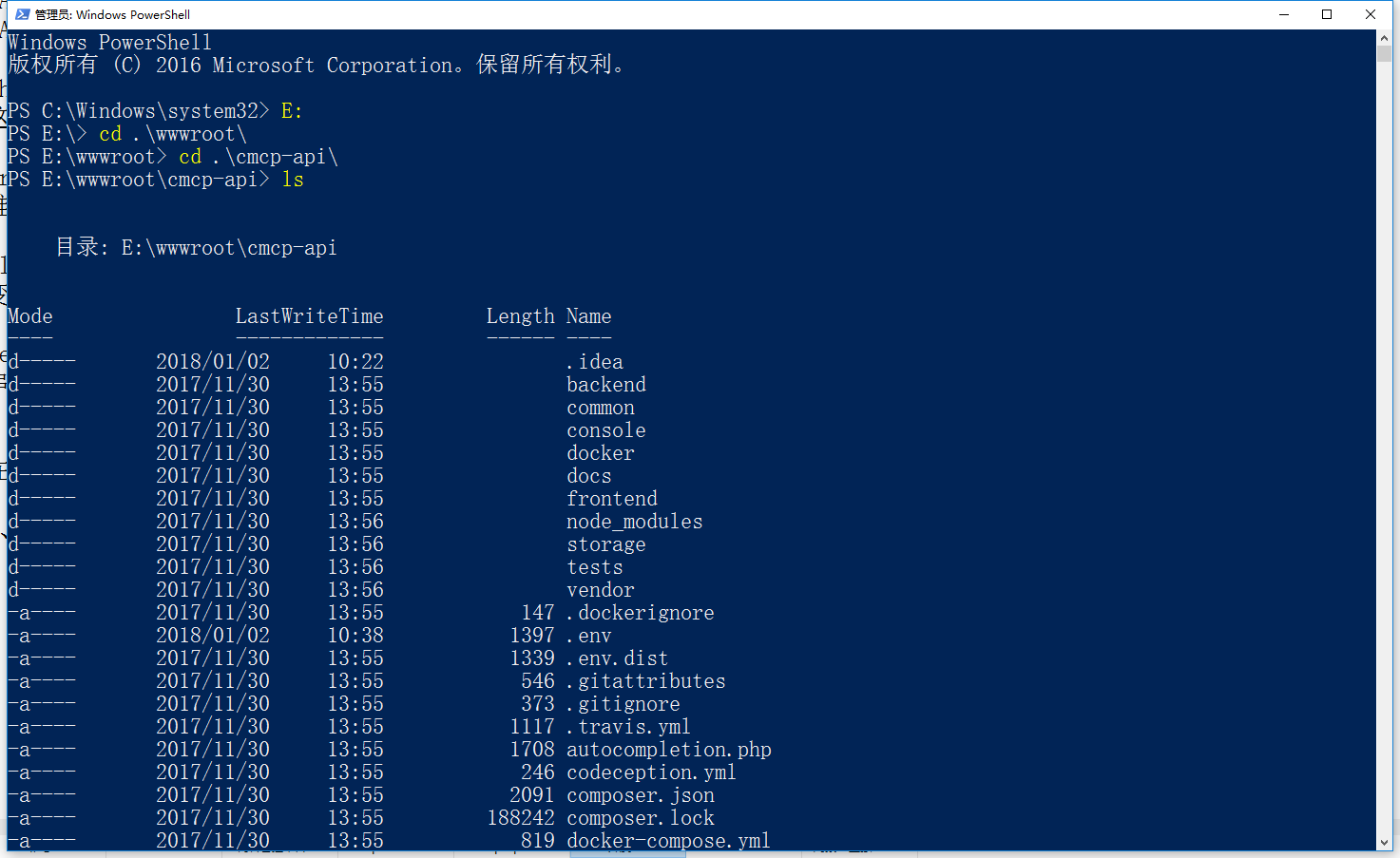

1、在 Windows PowerShll 中，进入 E:\wwwroot\cmcp-api 目录，如图1
图1
2、新建应用api，复制backend目录为api，如图2
图2

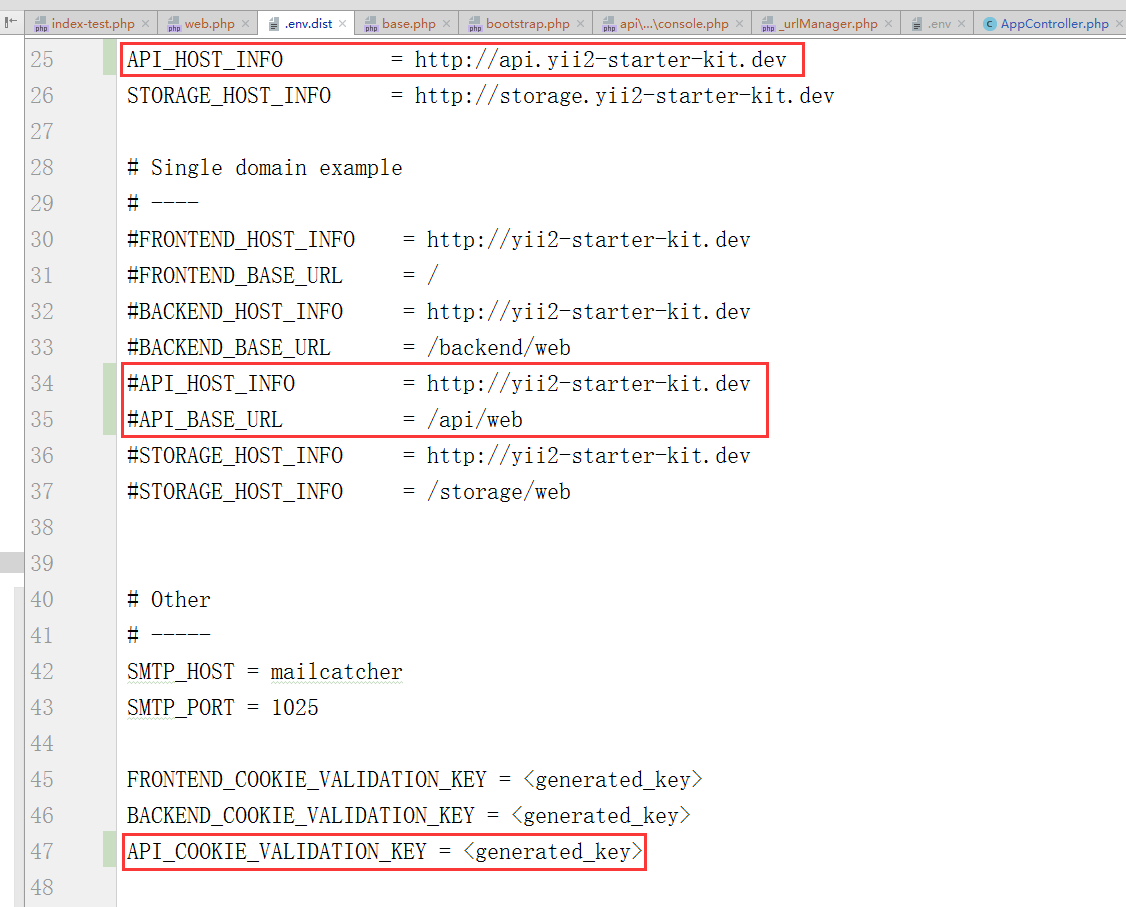

3、编辑 \.env.dist，新增 api 相关的配置，此为提交至Git版本控制的配置文件，如图3
1 2 3 4 | API_HOST_INFO = http://api.yii2-starter-kit.dev#API_HOST_INFO = http://yii2-starter-kit.dev#API_BASE_URL = /api/webAPI_COOKIE_VALIDATION_KEY = <generated_key> |
图3

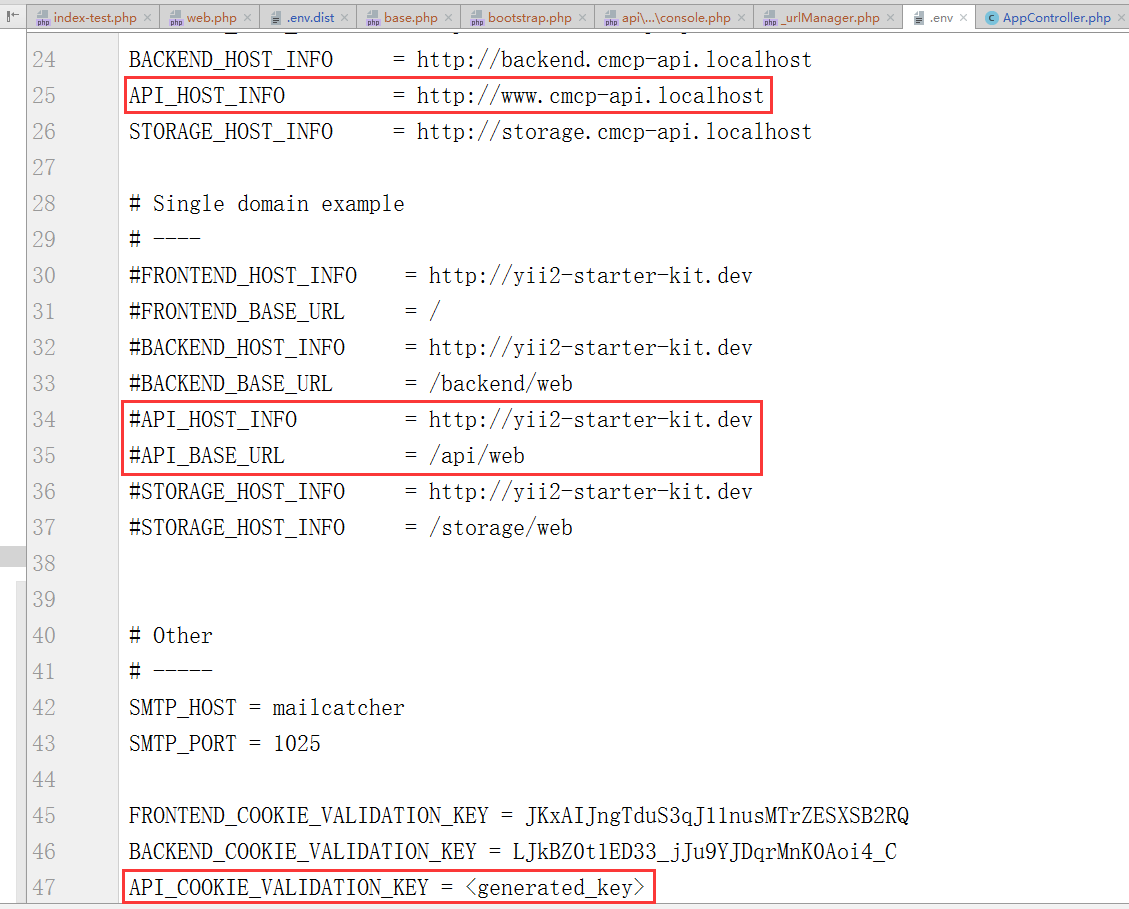

4、编辑 \.env，新增 api 相关的配置，此为实际生效的配置文件，如图4
1 2 3 4 | API_HOST_INFO = http://www.cmcp-api.localhost#API_HOST_INFO = http://yii2-starter-kit.dev#API_BASE_URL = /api/webAPI_COOKIE_VALIDATION_KEY = <generated_key> |
图4

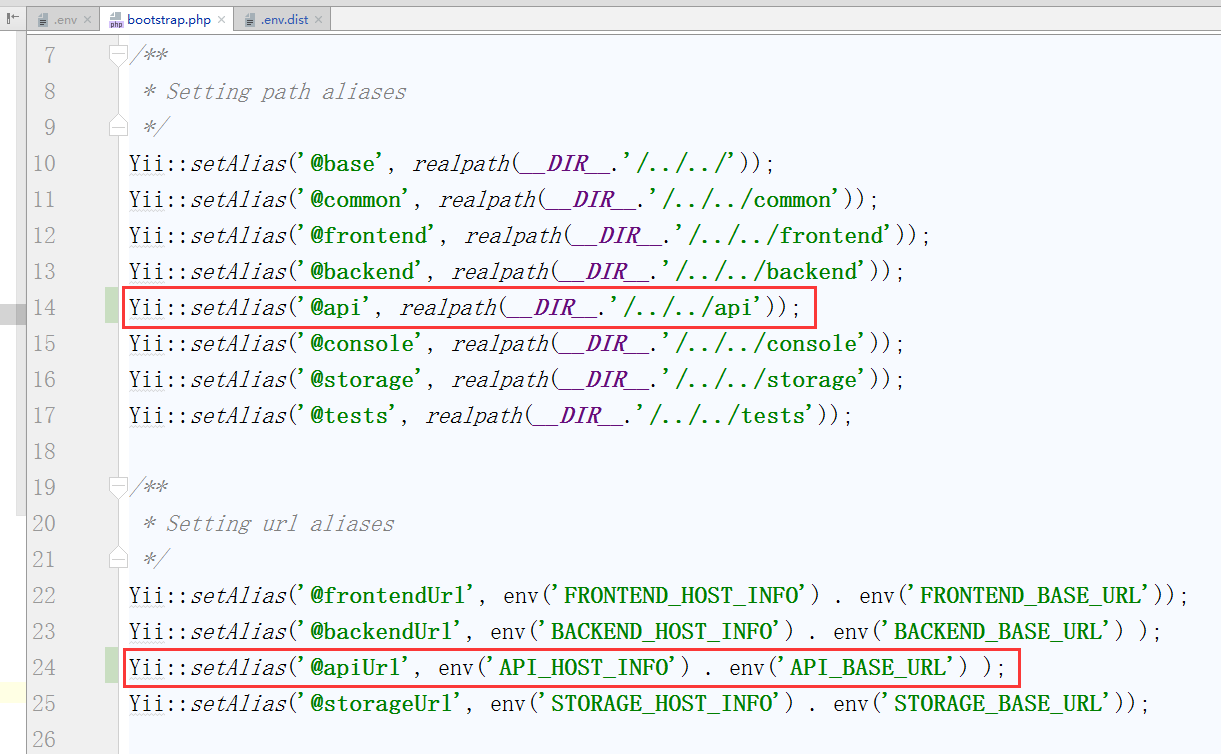

5、编辑 \common\config\bootstrap.php，配置接口应用的别名，如图5
1 2 | Yii::setAlias('@api', realpath(__DIR__.'/../../api'));Yii::setAlias('@apiUrl', env('API_HOST_INFO') . env('API_BASE_URL') ); |
图5

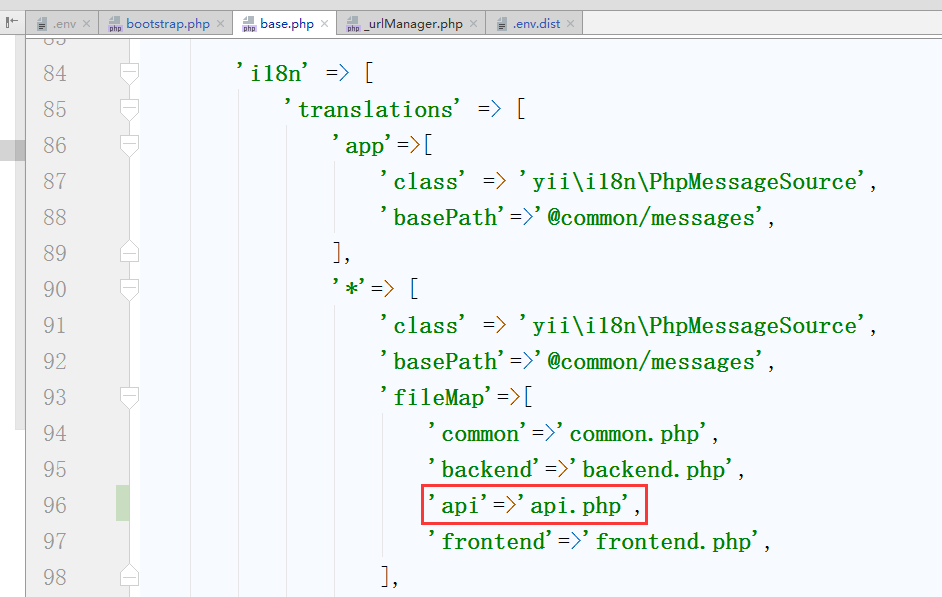

6、编辑 \common\config\base.php，配置接口应用的语言包文件，如图6
1 | 'api'=>'api.php', |
图6

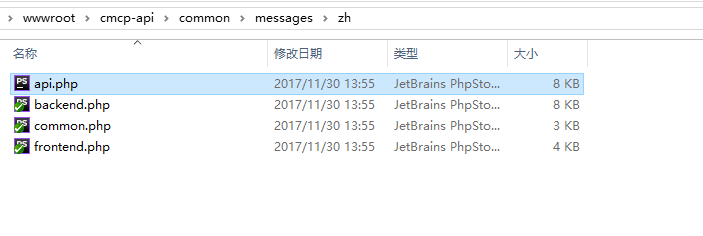

7、新建接口应用的中文语言包文件，复制 \common\messages\zh\backend.php 为 \common\messages\zh\api.php(如果需要支持其他的语言，可以在其他的语言目录下新建)，如图7
图7

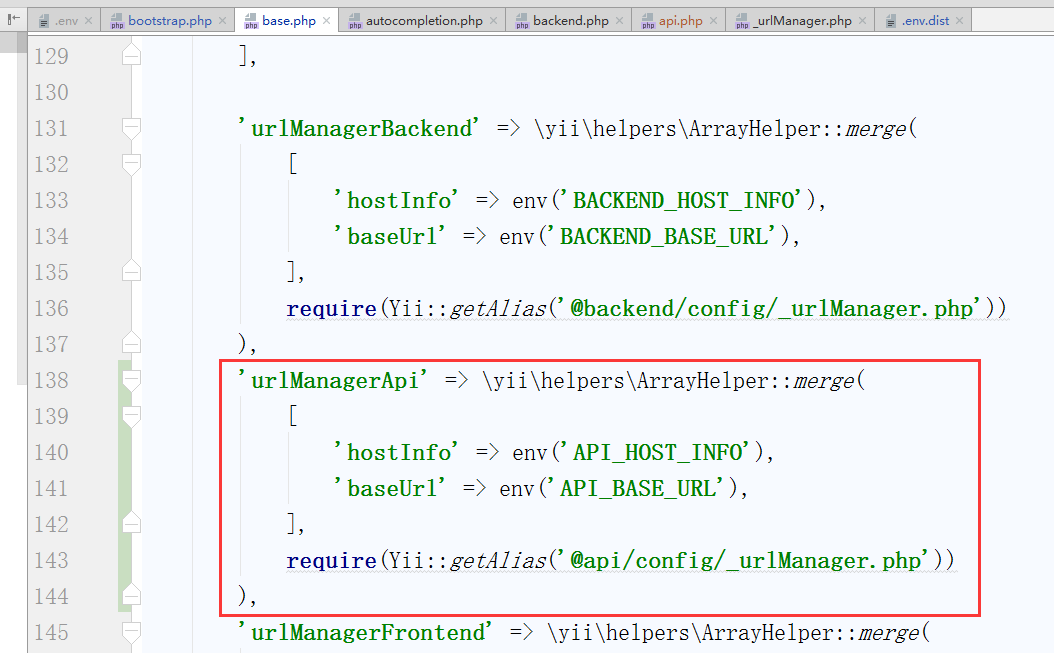

8、编辑 \common\config\base.php，配置接口应用的URL的解析与生成，如图8
1 2 3 4 5 6 7 | 'urlManagerApi' => \yii\helpers\ArrayHelper::merge( [ 'hostInfo' => env('API_HOST_INFO'), 'baseUrl' => env('API_BASE_URL'), ], require(Yii::getAlias('@api/config/_urlManager.php'))), |
图8

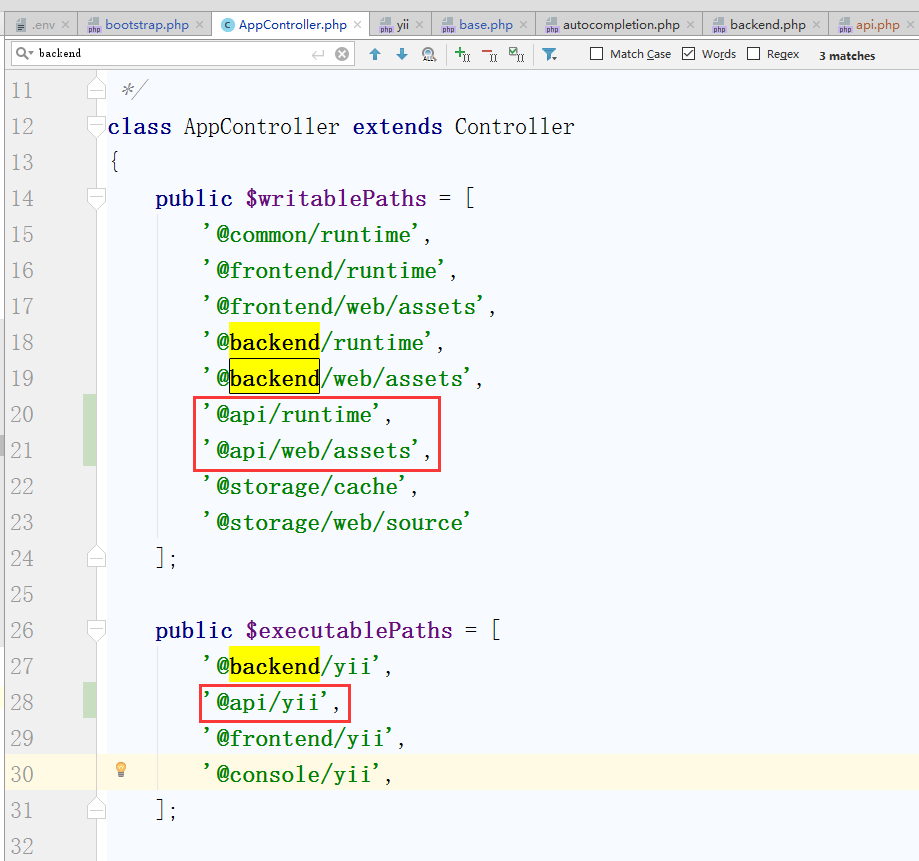

9、编辑 \console\controllers\AppController.php，搜索此文件有6处backend，则相应复制3份为api，如图9
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 | public $writablePaths = [ '@common/runtime', '@frontend/runtime', '@frontend/web/assets', '@backend/runtime', '@backend/web/assets', '@api/runtime', '@api/web/assets', '@storage/cache', '@storage/web/source'];public $executablePaths = [ '@backend/yii', '@api/yii', '@frontend/yii', '@console/yii',]; |
图9

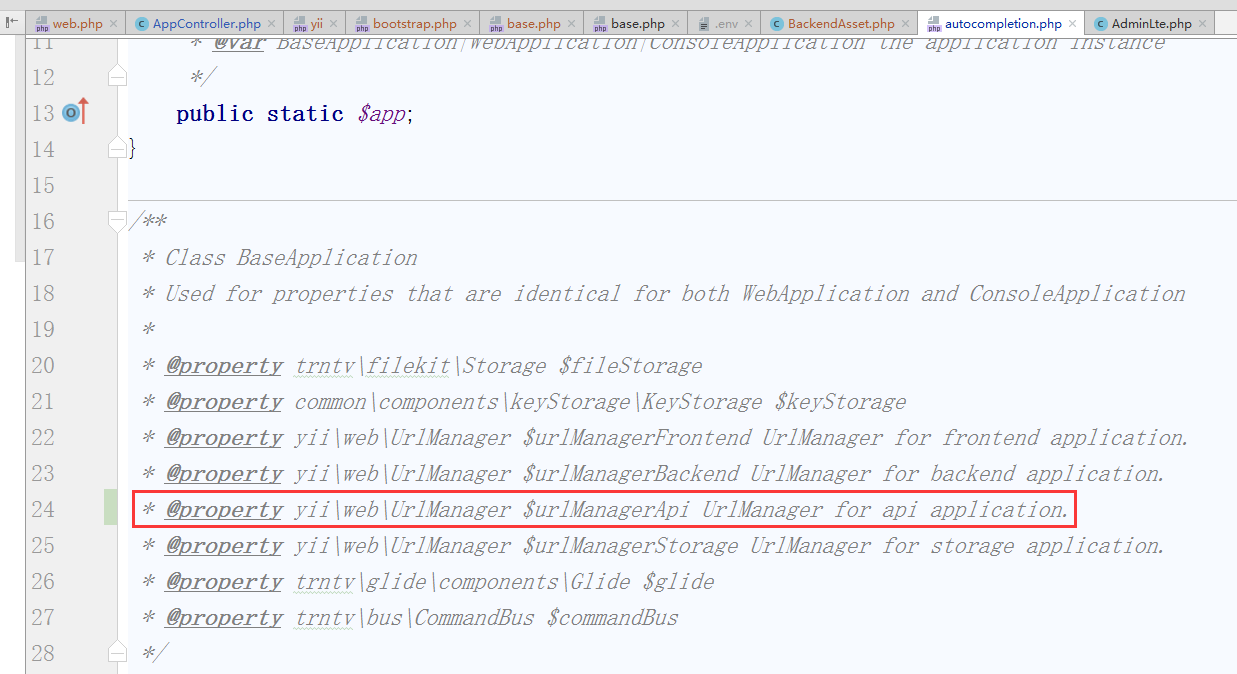

10、编辑 \autocompletion.php，新增接口应用相关的配置，如图10
1 | * @property yii\web\UrlManager $urlManagerApi UrlManager for api application. |
图10

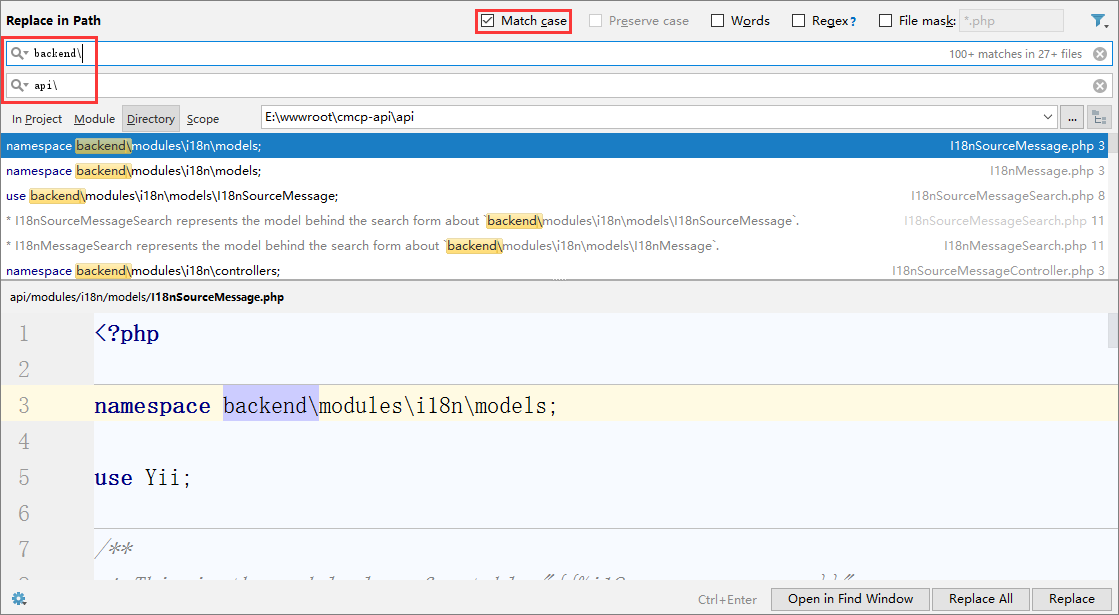

11、在目录api中搜索backend\、backend/、=> ‘backend’、BACKEND，严格匹配大小写，将其分别替换为api\、api/、=> ‘api’、API，如图11
1 2 3 4 | backend\ 替换为： api\backend/ 替换为： api/=> 'backend' 替换为： => 'api'BACKEND 替换为： => API |
图11

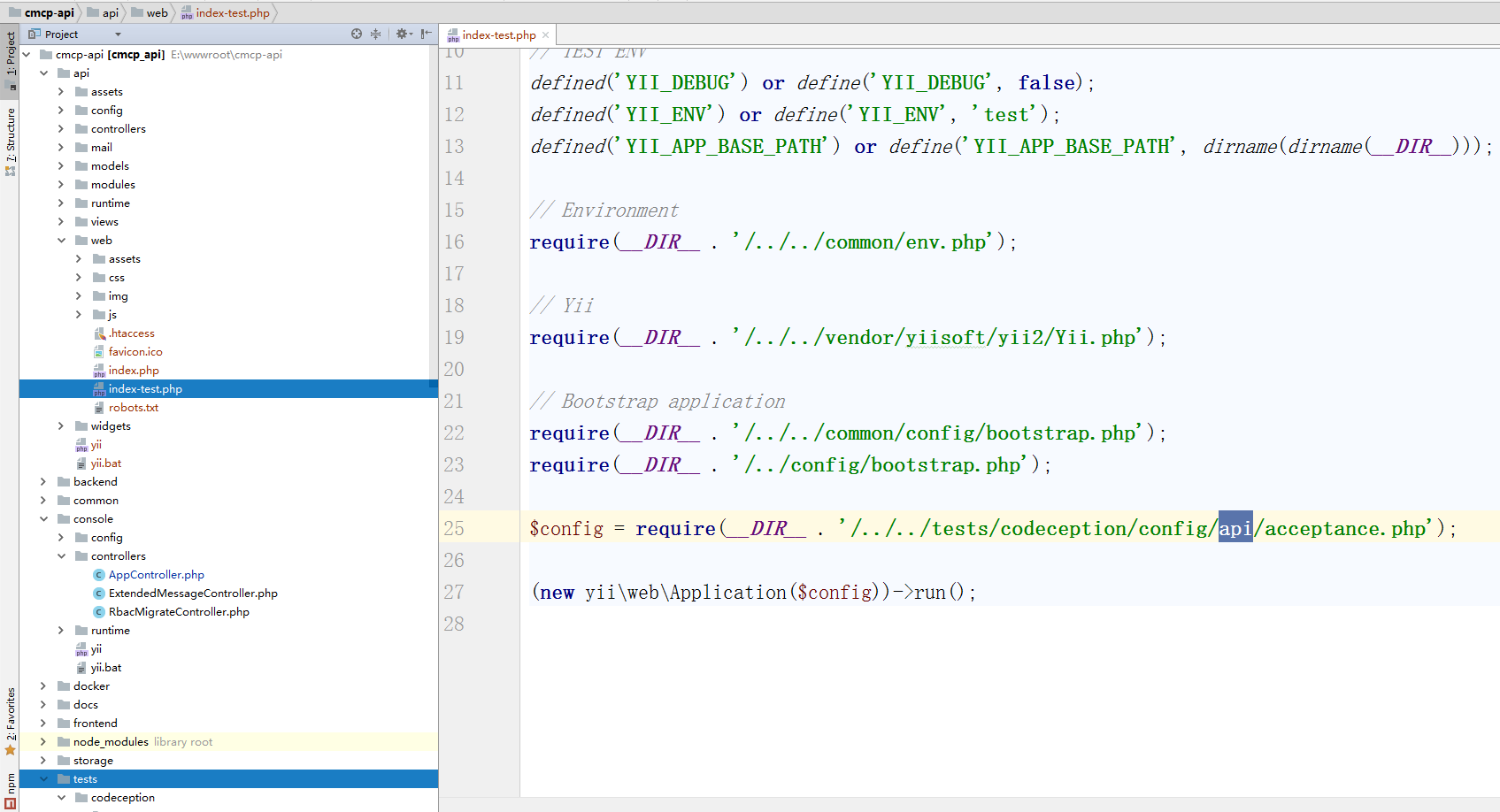

12、在 \tests 目录中，还有相应的与新增接口应用相关的配置，此部分暂缓一下，到需要进行自动化测试的时候，再来进行配置了。查看 \api\web\index-test.php，如图12
图12

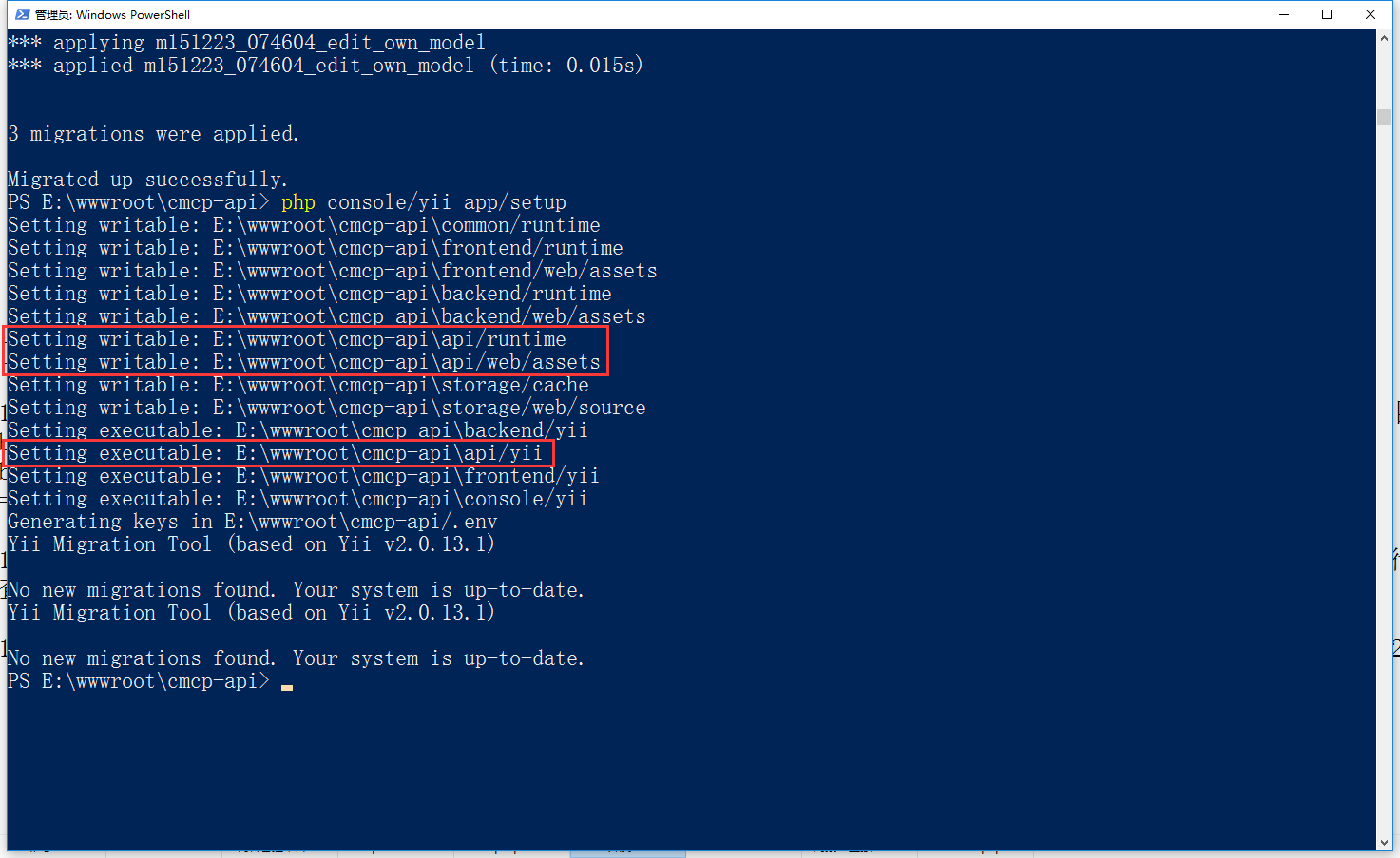

13、在 Windows PowerShll 中，进入 E:\wwwroot\cmcp-api 目录，再次运行命令：php console/yii app/setup，设置可写、可执行权限，如图13
图13
14、在 Nginx 配置文件中新增虚拟主机，重启Nginx，如图14
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 | ## API ##server { listen 80; ## 监听 ipv4 上的 80 端口 # listen [::]:80 default_server ipv6only=on; ## 监听 ipv6 上的 80 端口 root E:/wwwroot/cmcp-api/api/web; index index.php index.html; server_name www.cmcp-api.localhost; charset utf-8; access_log logs/www.cmcp-api.localhost.access.log; error_log logs/www.cmcp-api.localhost.error.log; client_max_body_size 128M; # There is a VirtualBox bug related to sendfile that can lead to # corrupted files, if not turned-off on Vagrant based setup # sendfile off; location / { # 如果找不到真实存在的文件，把请求分发至 index.php try_files $uri $uri/ /index.php?$args; } # location ~* ^.+\.(jpg|jpeg|gif|png|ico|css|pdf|ppt|txt|bmp|rtf|js)$ { # access_log off; # expires max; # } location ~ \.php$ { fastcgi_split_path_info ^(.+\.php)(/.+)$; fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name; fastcgi_pass php-fpm; fastcgi_index index.php; include fastcgi_params; } location ~ /\.(ht|svn|git) { deny all; }} |
图14

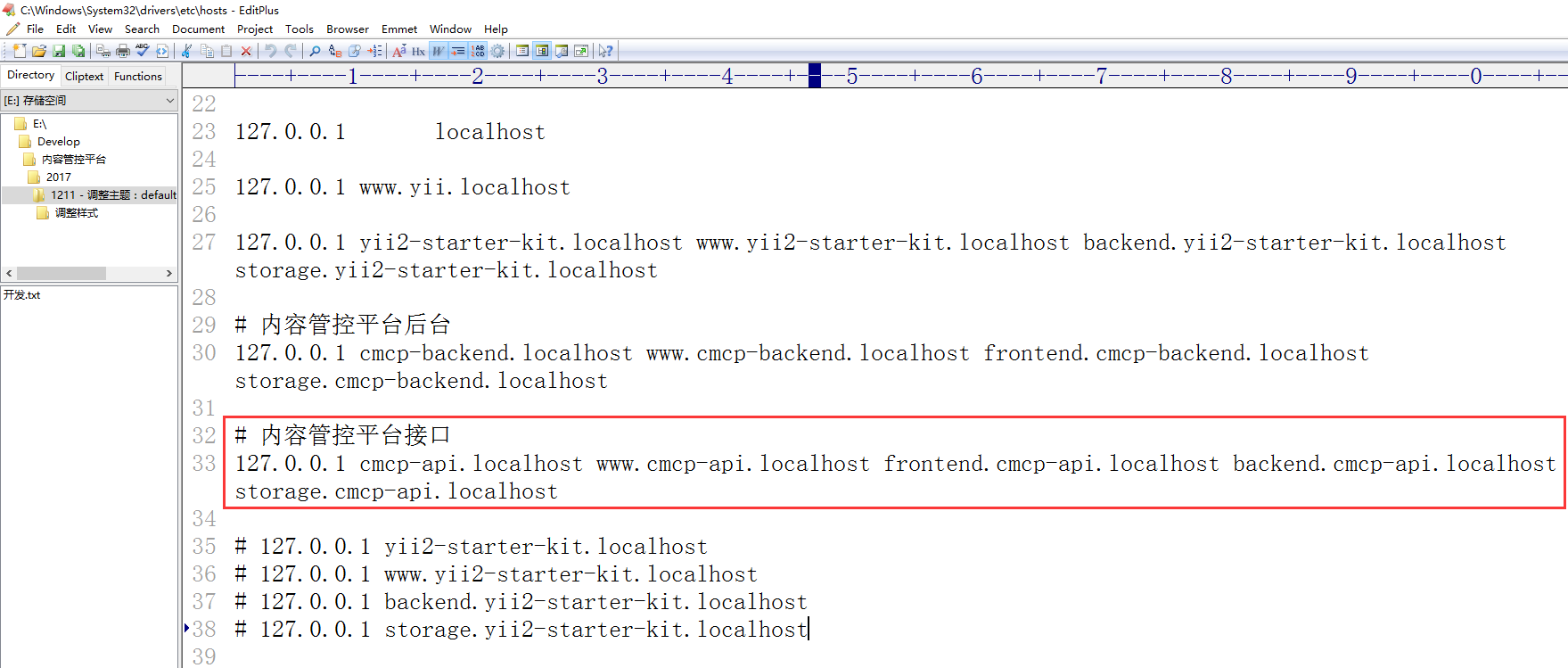

15、在 hosts 文件中新增配置，如图15
1 2 | # 内容管控平台接口127.0.0.1 cmcp-api.localhost www.cmcp-api.localhost frontend.cmcp-api.localhost backend.cmcp-api.localhost storage.cmcp-api.localhost |
图15

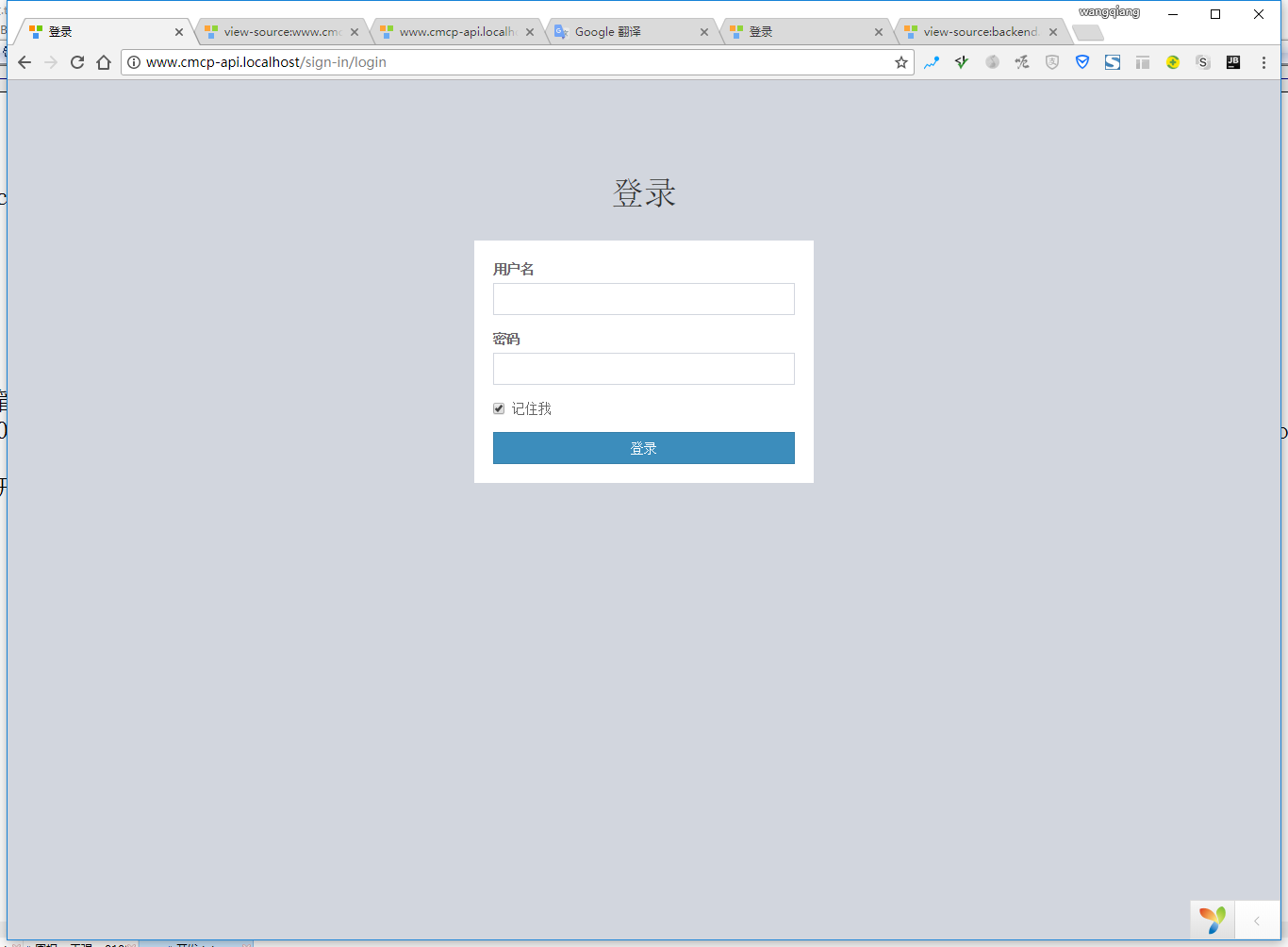

16、打开 http://www.cmcp-api.localhost， 如果出现样式文件加载响应404的情况，可以删除 \api\web\assets 下的所有子目录，如图16
图16

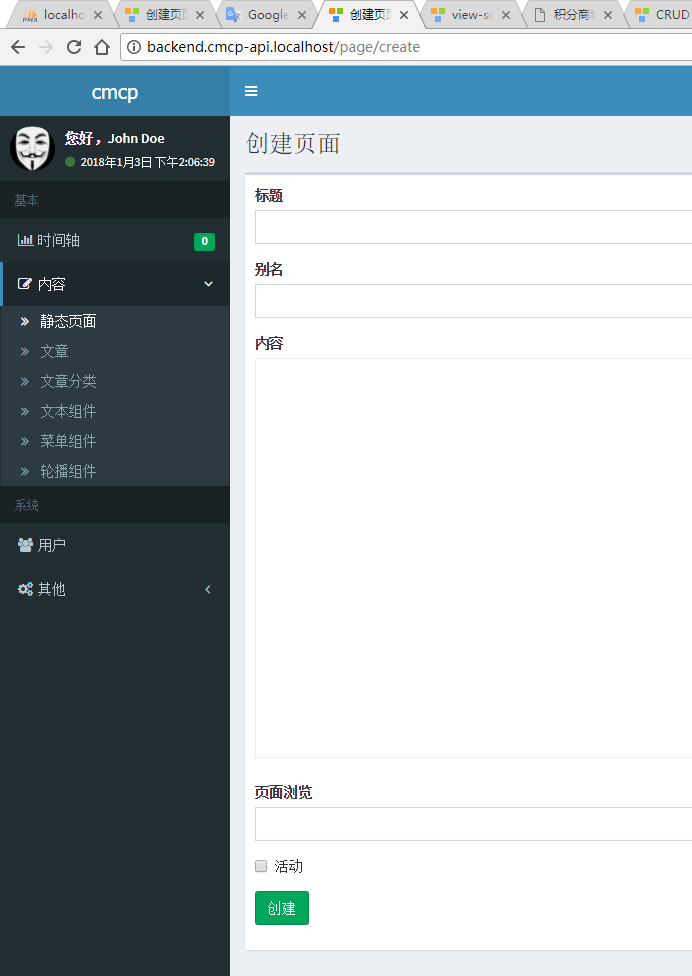

17、准备将创建页面的功能基于接口实现，如图17
图17

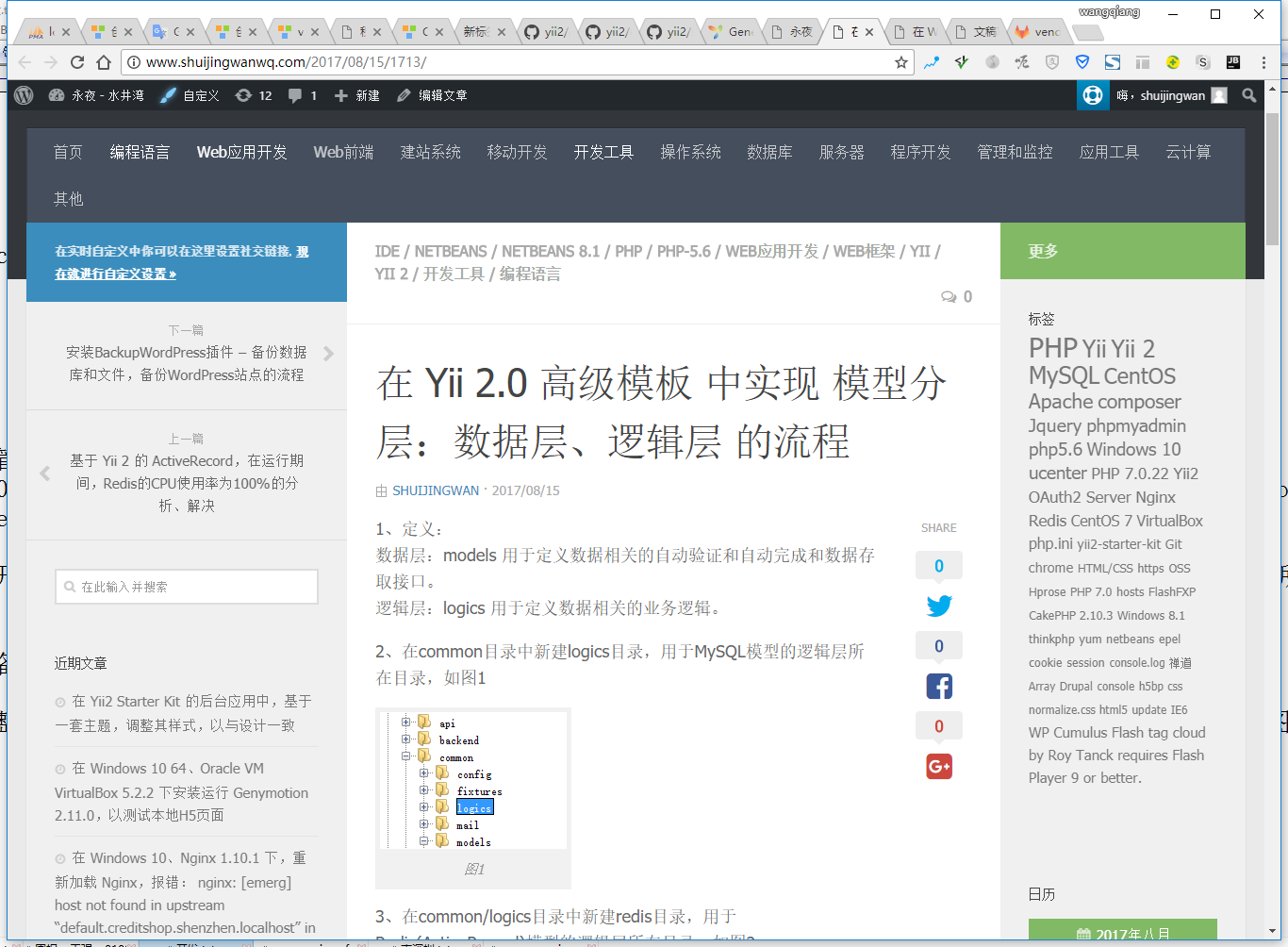

18、调整 Page 模型的相关结构，实现模型分层，参考网址：http://www.shuijingwanwq.com/2017/08/15/1713/ ，如图18
图18
19、打开网址：http://frontend.cmcp-api.localhost/gii ，如图19
图19

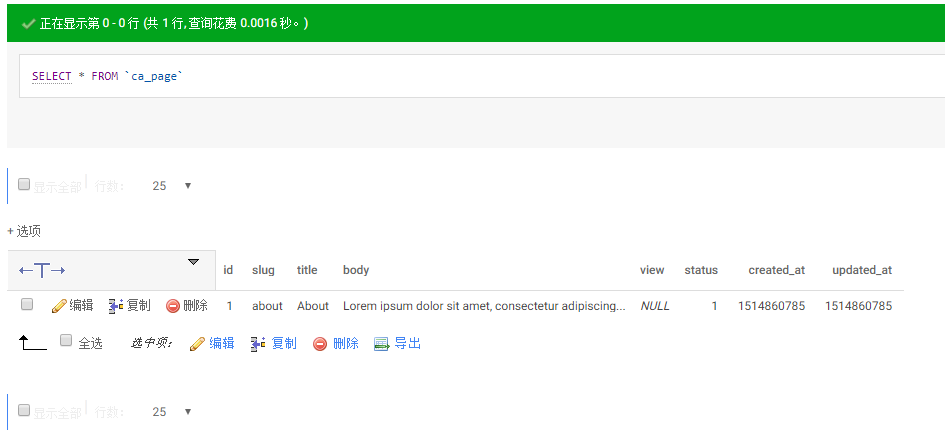

20、基于数据库表 ca_page 建立相应模型，如图20
图20
21、在common目录中新建logics目录，用于MySQL模型的逻辑层所在目录，如图21
图21

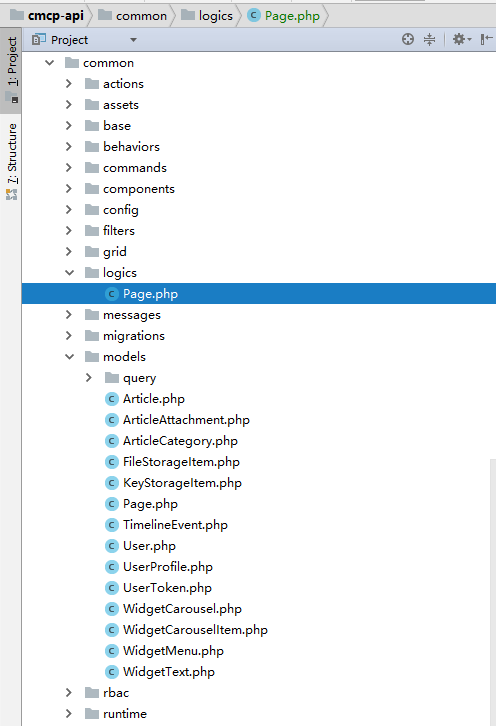

22、复制 \common\models\Page.php 至 \common\logics\Page.php，如图22
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 | <?php namespace common\models; use Yii; use yii\behaviors\SluggableBehavior; use yii\behaviors\TimestampBehavior; use yii\db\ActiveRecord; /** * This is the model class for table "page". * * @property integer $id * @property string $slug * @property string $title * @property string $body * @property string $view * @property integer $status * @property integer $created_at * @property integer $updated_at */ class Page extends ActiveRecord { const STATUS_DRAFT = 0; const STATUS_PUBLISHED = 1; /** * @inheritdoc */ public static function tableName() { return '{{%page}}'; } /** * @inheritdoc */ public function behaviors() { return [ TimestampBehavior::className(), 'slug' => [ 'class' => SluggableBehavior::className(), 'attribute' => 'title', 'ensureUnique' => true, 'immutable' => true ] ]; } /** * @inheritdoc */ public function rules() { return [ [['title', 'body'], 'required'], [['body'], 'string'], [['status'], 'integer'], [['slug'], 'unique'], [['slug'], 'string', 'max' => 2048], [['title'], 'string', 'max' => 512], [['view'], 'string', 'max' => 255] ]; } /** * @inheritdoc */ public function attributeLabels() { return [ 'id' => Yii::t('common', 'ID'), 'slug' => Yii::t('common', 'Slug'), 'title' => Yii::t('common', 'Title'), 'body' => Yii::t('common', 'Body'), 'view' => Yii::t('common', 'Page View'), 'status' => Yii::t('common', 'Active'), 'created_at' => Yii::t('common', 'Created At'), 'updated_at' => Yii::t('common', 'Updated At'), ]; }} |
图22

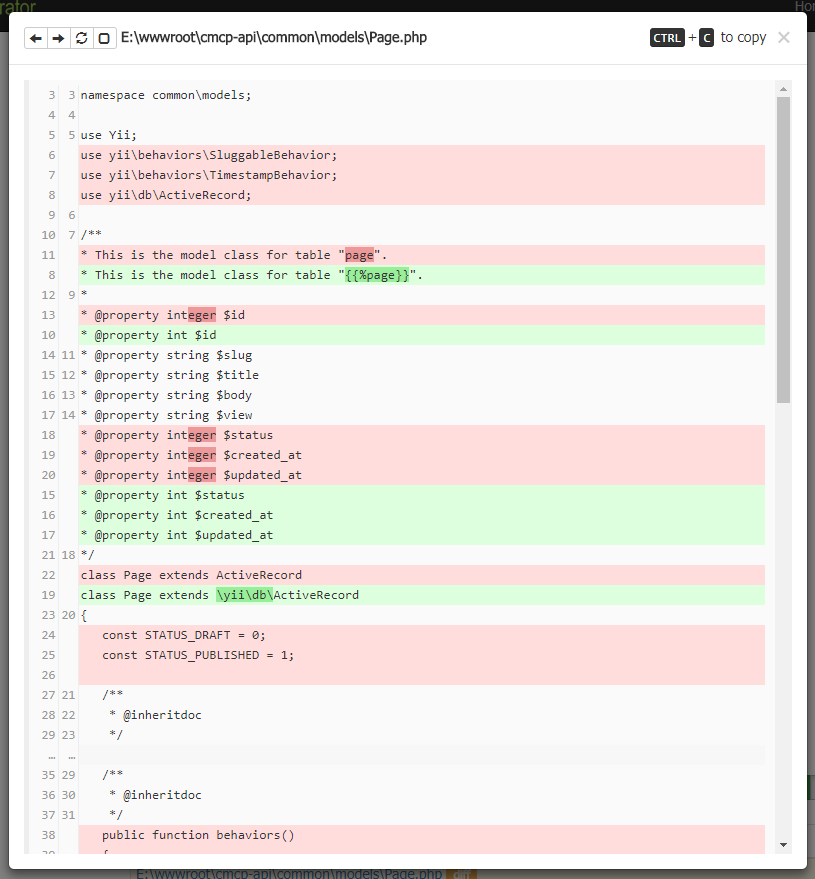

23、基于 diff ，编辑 \common\logics\Page.php，如图23
图23

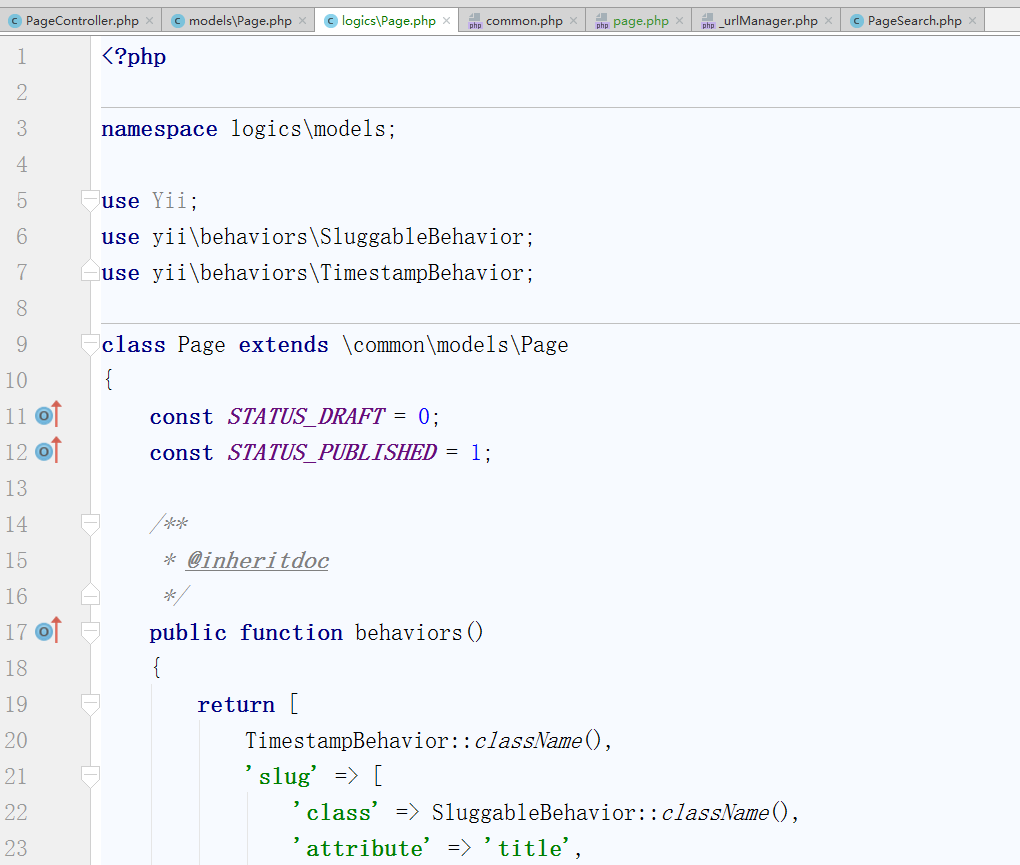

24、在common/logics目录中的MySQL模型文件为业务逻辑相关，继承至 \common\models\Page 数据层，如图24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 | <?php namespace common\logics; use Yii; use yii\behaviors\SluggableBehavior; use yii\behaviors\TimestampBehavior; class Page extends \common\models\Page { const STATUS_DRAFT = 0; const STATUS_PUBLISHED = 1; /** * @inheritdoc */ public function behaviors() { return [ TimestampBehavior::className(), 'slug' => [ 'class' => SluggableBehavior::className(), 'attribute' => 'title', 'ensureUnique' => true, 'immutable' => true ] ]; } /** * @inheritdoc */ public function rules() { return [ [['title', 'body'], 'required'], [['body'], 'string'], [['status'], 'integer'], [['slug'], 'unique'], [['slug'], 'string', 'max' => 2048], [['title'], 'string', 'max' => 512], [['view'], 'string', 'max' => 255], ]; }} |
图24

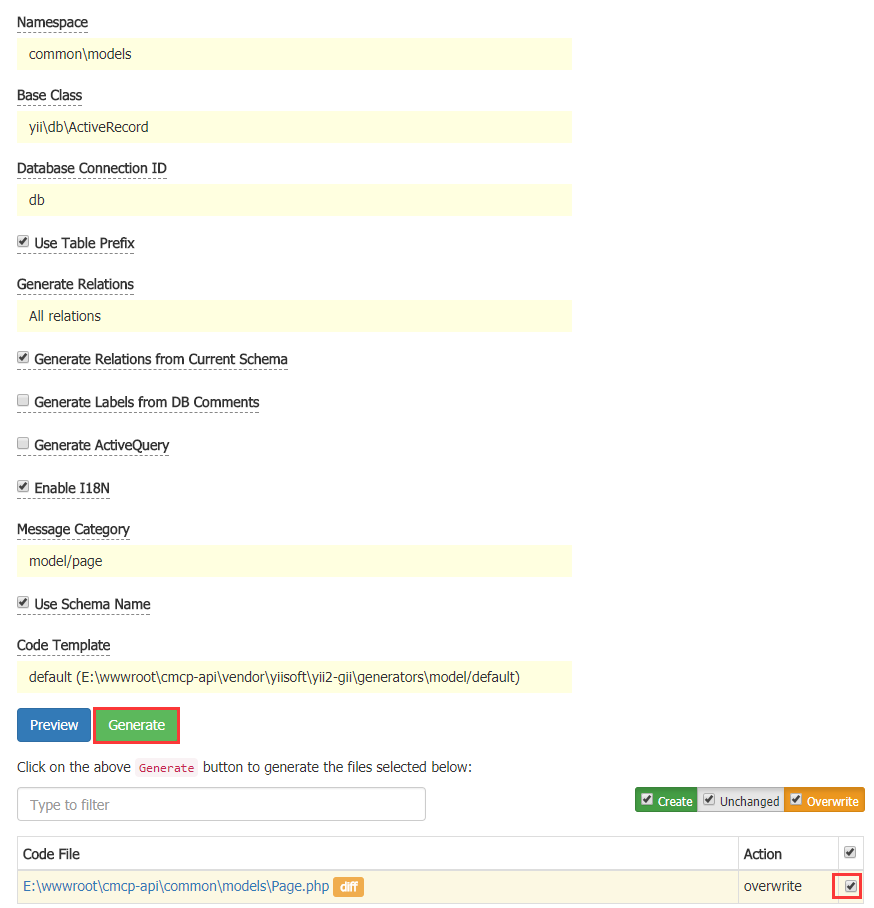

25、点击Model Generator下的Start按钮，生成模型Page，命名空间为common\models，此时需支持国际化，覆盖\common\models\Page.php，如图25
图25

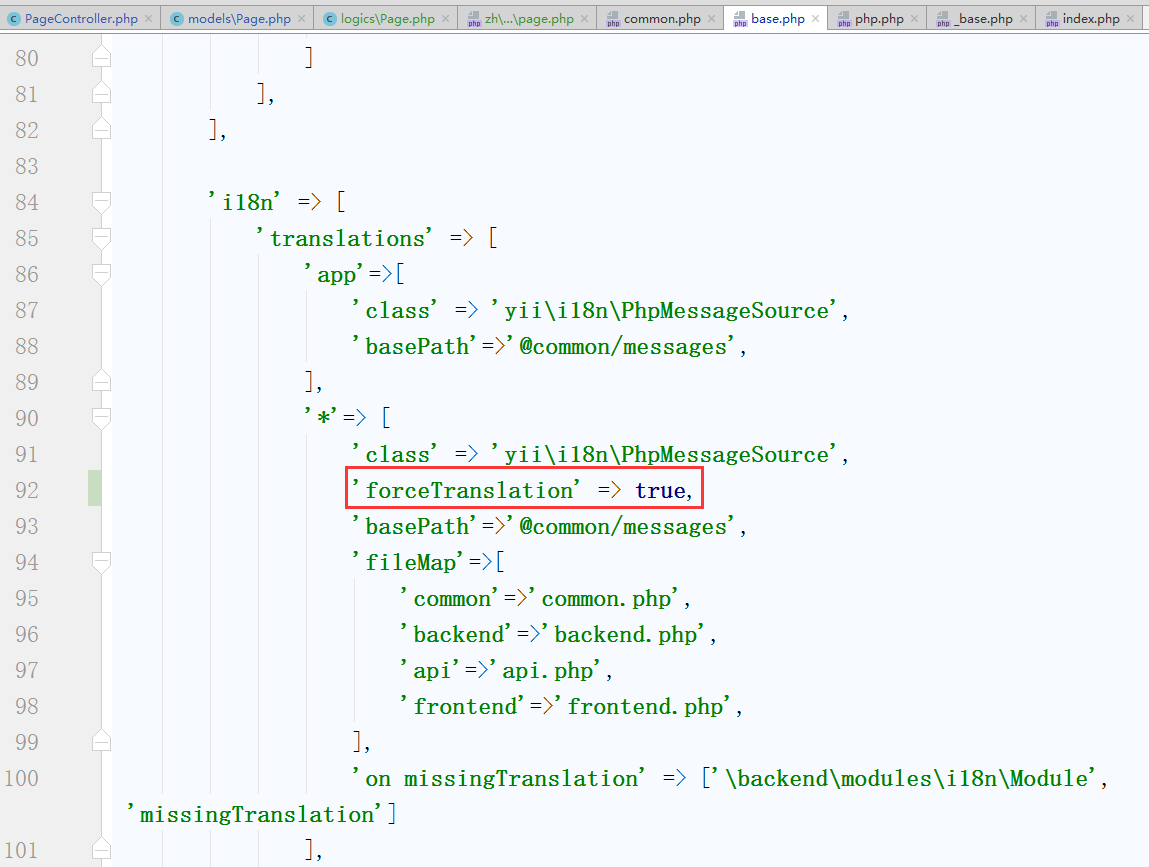

26、编辑 \common\config\base.php，当源语言和目标语言相同时，是否强制进行消息翻译，默认为假，设置为真，如图26
1 2 3 4 5 6 7 8 9 10 11 12 | '*'=> [ 'class' => 'yii\i18n\PhpMessageSource', 'forceTranslation' => true, 'basePath'=>'@common/messages', 'fileMap'=>[ 'common'=>'common.php', 'backend'=>'backend.php', 'api'=>'api.php', 'frontend'=>'frontend.php', ], 'on missingTranslation' => ['\backend\modules\i18n\Module', 'missingTranslation']], |
图26
27、新建 \common\messages\en\model\page.php，支持目标语言为英语美国时的消息翻译，如图27
1 2 3 4 5 6 7 8 9 10 | return [ 'ID' => 'ID', 'Slug' => 'Slug', 'Title' => 'Title', 'Body' => 'Body', 'View' => 'Page View', 'Status' => 'Active', 'Created At' => 'Created At', 'Updated At' => 'Updated At',]; |
图27
28、新建 \common\messages\zh\model\page.php，支持目标语言为简体中文时的消息翻译，如图28
1 2 3 4 5 6 7 8 9 10 | return [ 'ID' => 'ID', 'Slug' => '别名', 'Title' => '标题', 'Body' => '内容', 'View' => '页面浏览', 'Status' => '活动', 'Created At' => '创建时间', 'Updated At' => '更新时间',]; |
图28

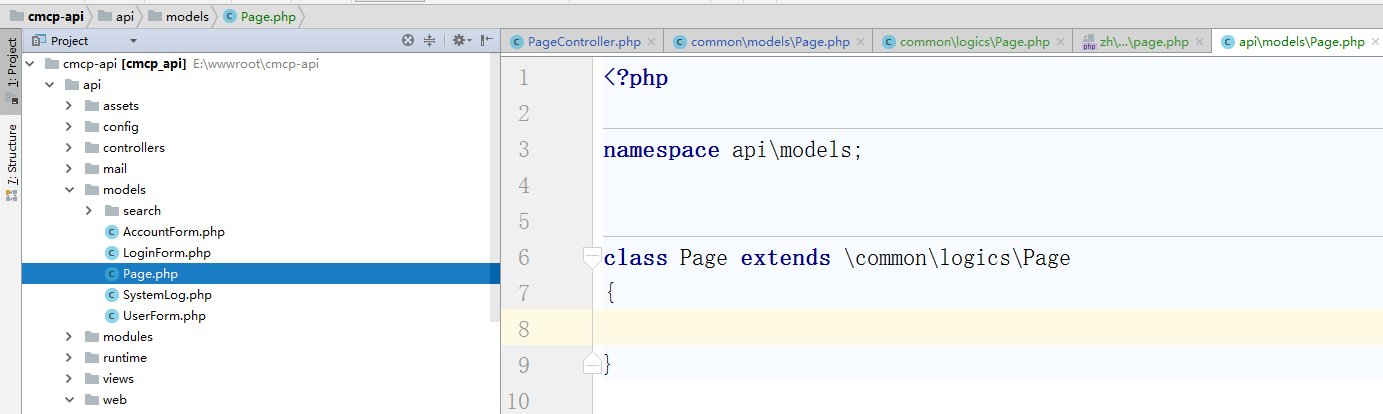

29、新建 \api\models\Page.php，在api/models目录中的MySQL模型文件为业务逻辑相关(仅与api相关)，继承至 \common\logics\Page 逻辑层，如图29
图29

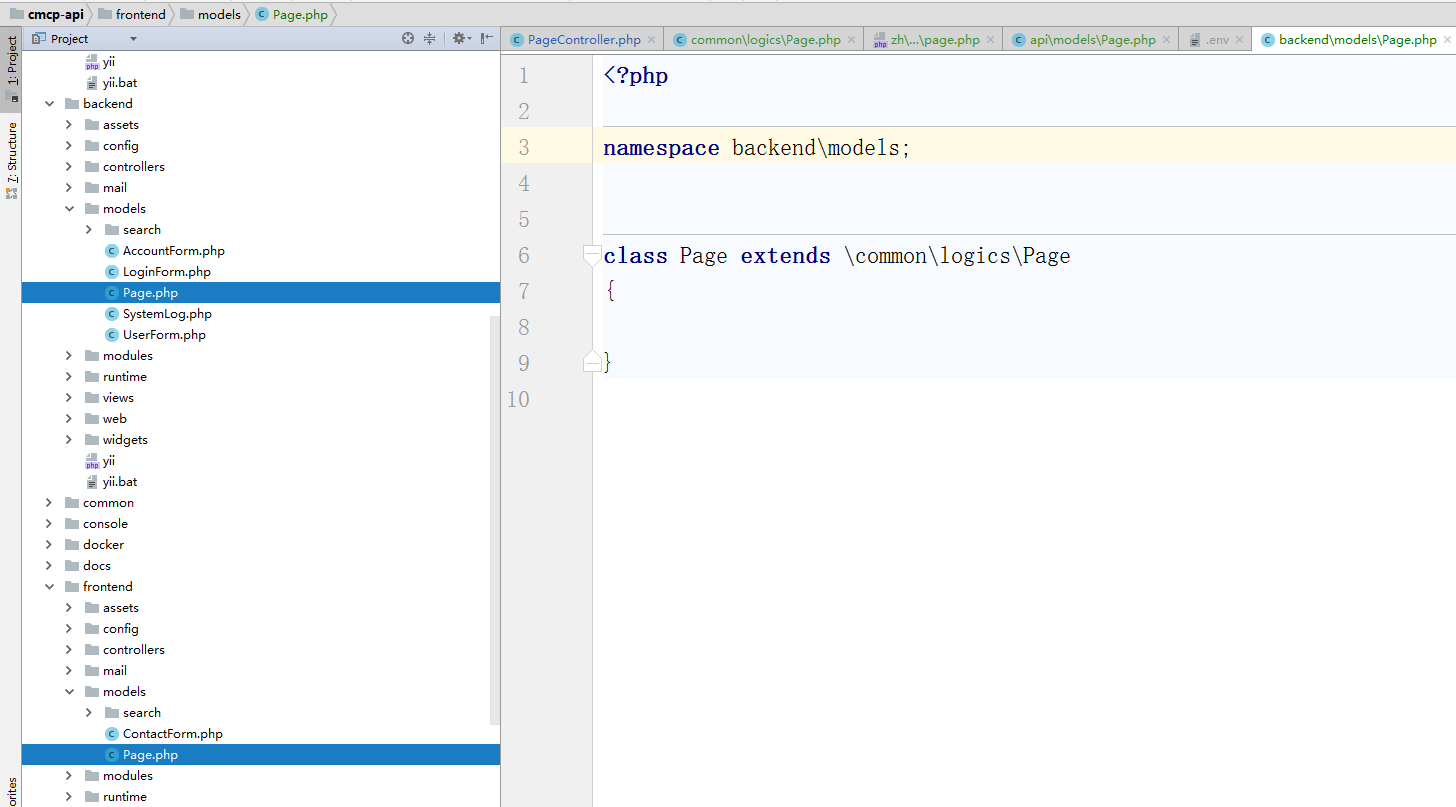

30、复制\api\models\Page.php 至 \frontend\models\Page.php、\backend\models\Page.php，调整为各自的命名空间，如图30
图30

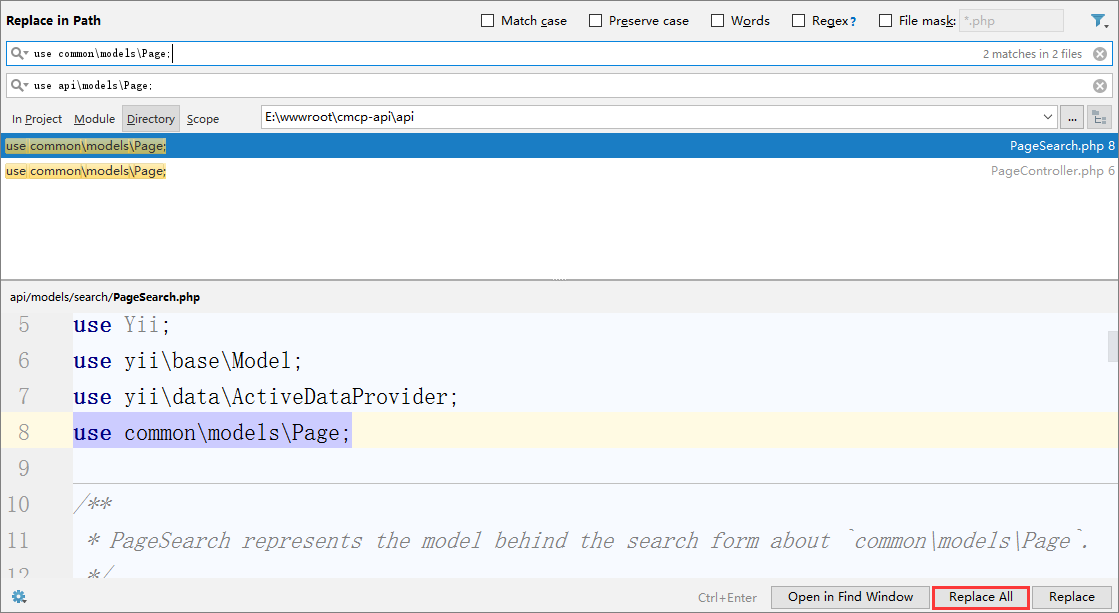

31、在 api 应用中搜索 use common\models\Page;，替换为：use api\models\Page;，在前台、后台应用中同样类似处理，如图31
图31

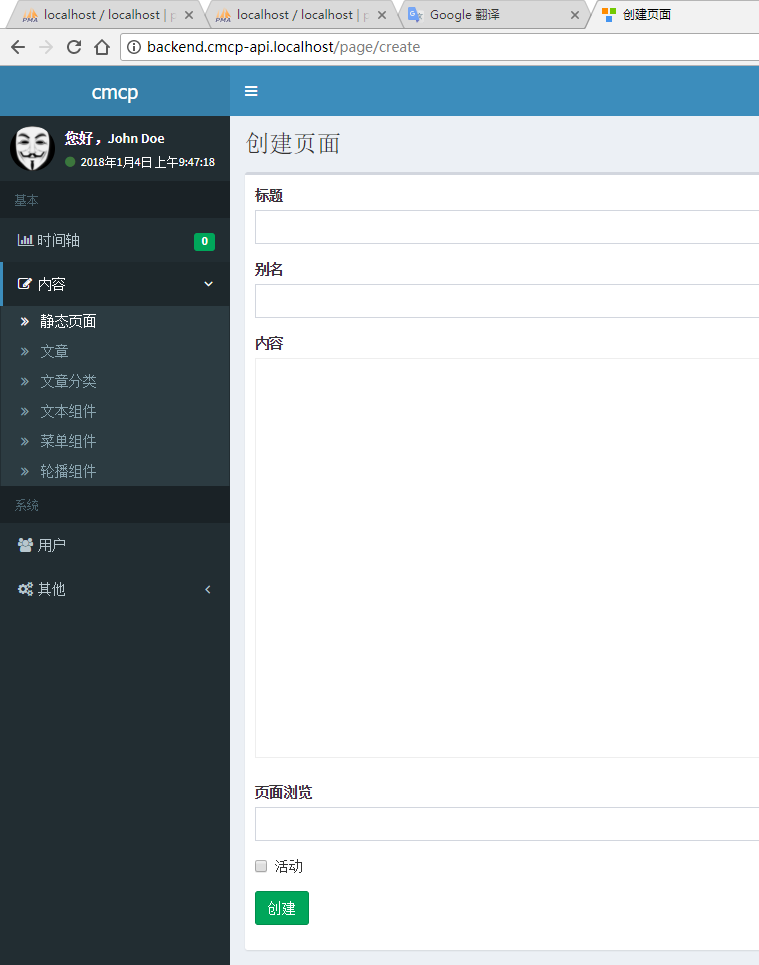

32、当本地设置为简体中文时，打开 http://backend.cmcp-api.localhost/page/create ，翻译功能可用，如图32
图32

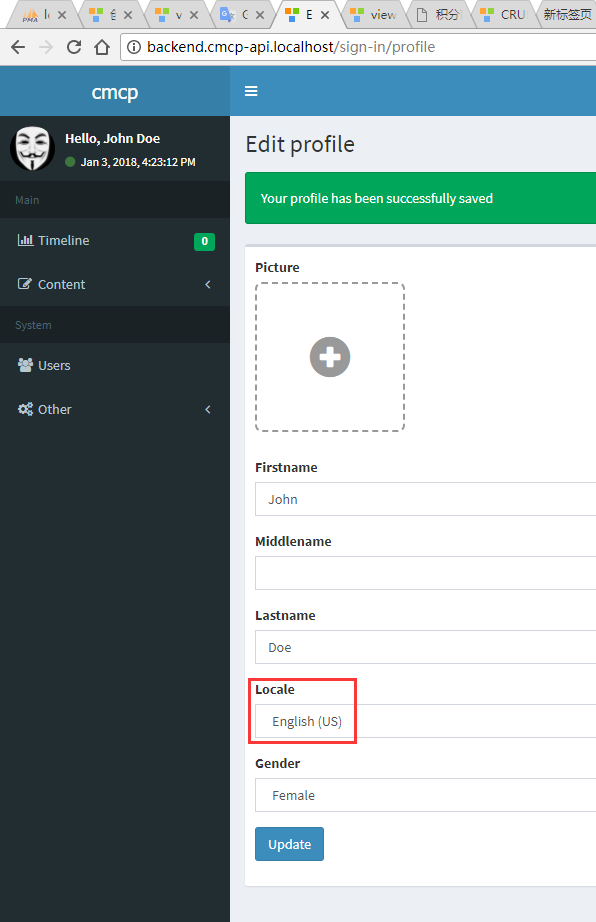

33、编辑个人信息，设置本地为英语美国，如图33
图33
34、当本地设置为英语美国时，再次打开 http://backend.cmcp-api.localhost/page/create ，翻译功能可用，如图34
图34

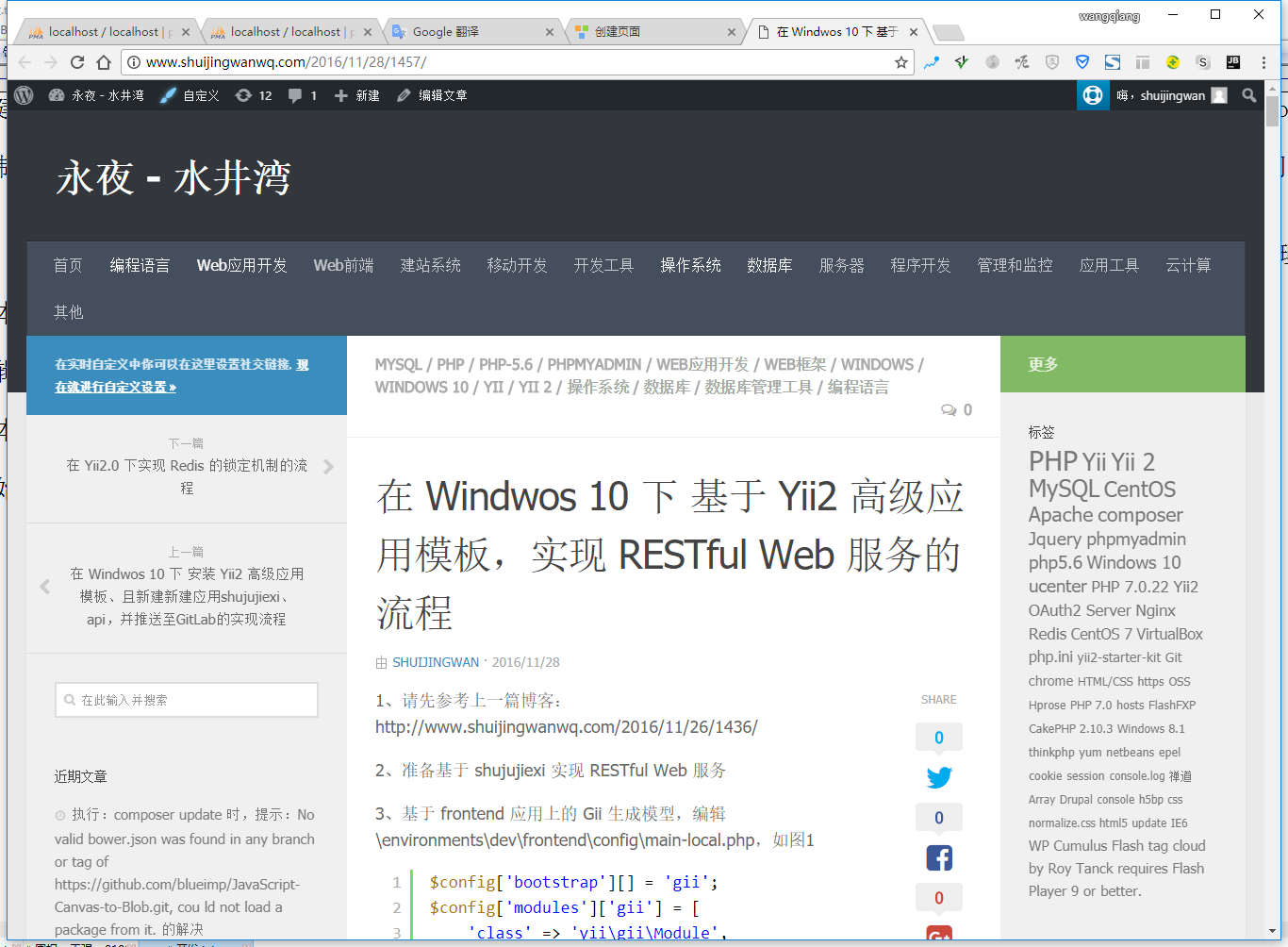

35、开始实现 RESTful Web 服务，参考网址：http://www.shuijingwanwq.com/2016/11/28/1457/ ，如图35
图35

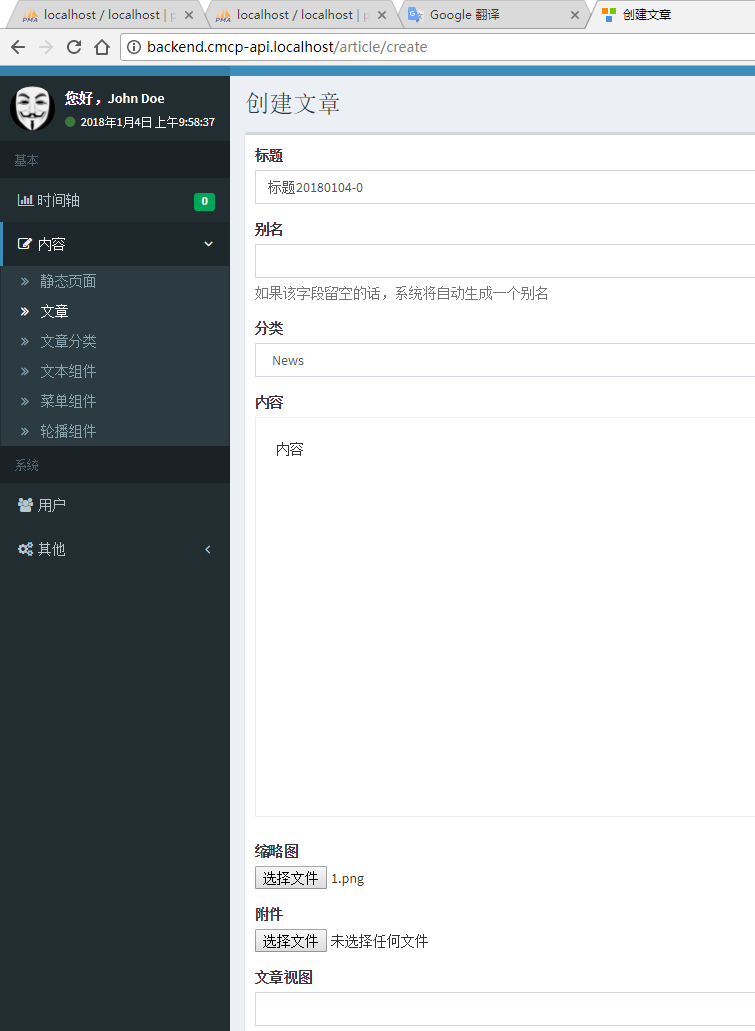

36、打开网址：http://backend.cmcp-api.localhost/article/create ，创建文章，如图36
图36

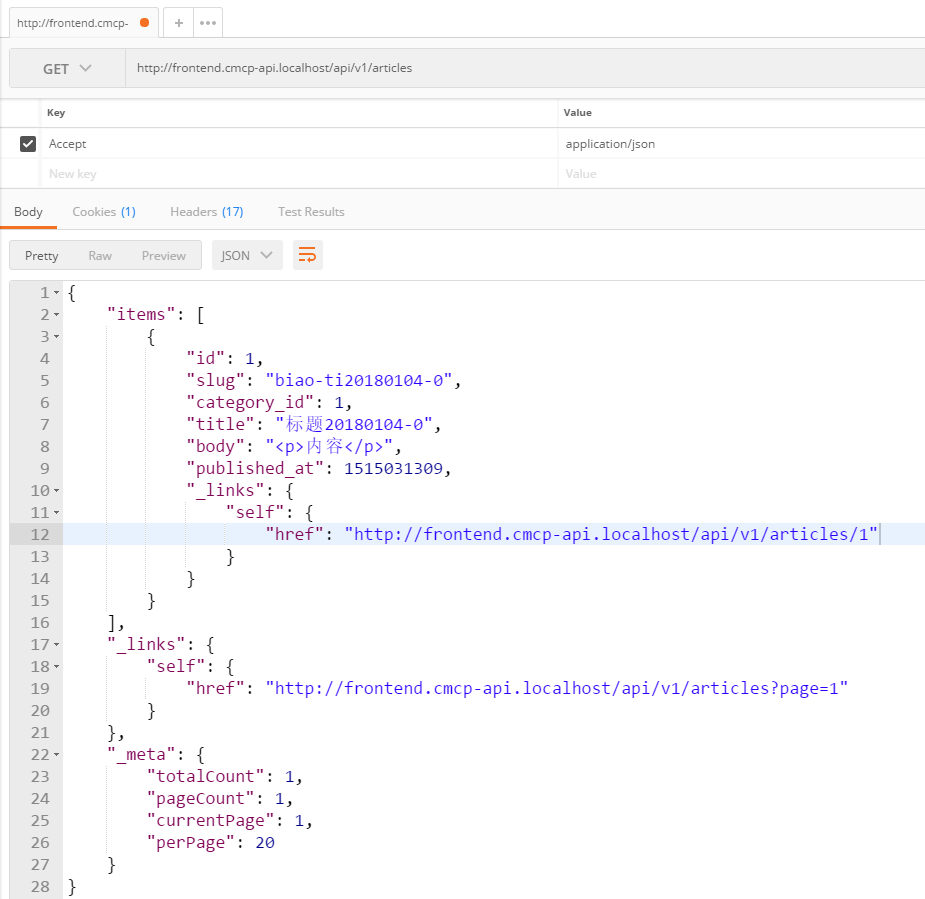

37、在 Postman 中，GET http://frontend.cmcp-api.localhost/api/v1/articles ，此为自带的RESTful Web 服务，响应结果，如图37
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 | { "items": [ { "id": 1, "slug": "biao-ti20180104-0", "category_id": 1, "title": "标题20180104-0", "body": "内容", "published_at": 1515031309, "_links": { "self": { } } } ], "_links": { "self": { } }, "_meta": { "totalCount": 1, "pageCount": 1, "currentPage": 1, "perPage": 20 }} |
图37
38、RESTful Web 服务，建议基于一个单独的接口应用来实现，而不是基于前台应用中的一个api模块来实现，这样可以更为方便地维护你的WEB应用程序，如图38
图38

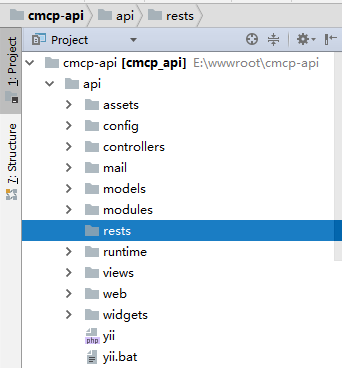

39、新建目录：\api\rests，此目录将做为 RESTful Web 服务的操作方法类目录，如图39
图39

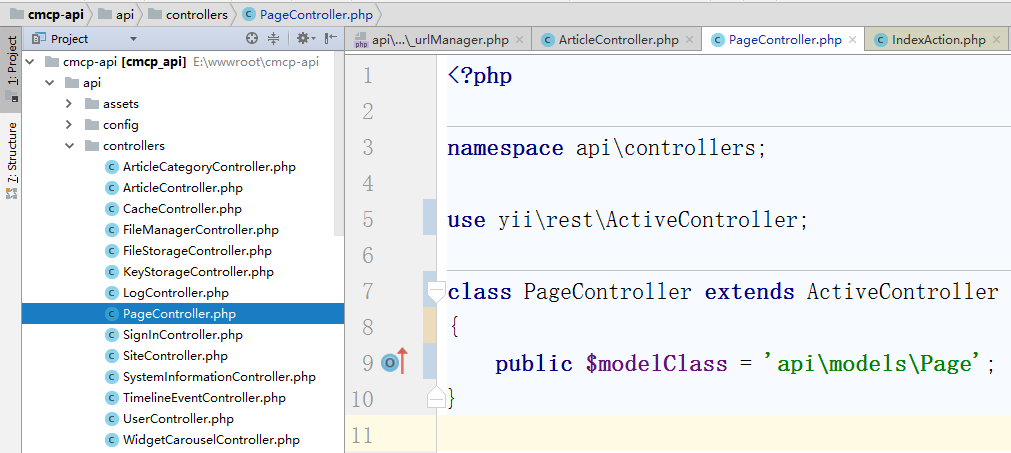

40、编辑控制器类 \api\controllers\PageController.php ，控制器类扩展自 [[yii\rest\ActiveController]]。 通过指定 [[yii\rest\ActiveController::modelClass|modelClass]] 作为 api\models\Page， 控制器就能知道使用哪个模型去获取和处理数据。如图40
1 2 3 4 5 6 7 8 | namespace api\controllers;use yii\rest\ActiveController;class PageController extends ActiveController{ public $modelClass = 'api\models\Page';} |
![编辑控制器类 \api\controllers\PageController.php ，控制器类扩展自 [[yii\rest\ActiveController]]。 通过指定 [[yii\rest\ActiveController::modelClass|modelClass]] 作为 api\models\Page， 控制器就能知道使用哪个模型去获取和处理数据。](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/40.png)
图40
41、配置URL规则，修改有关在应用程序配置的urlManager组件的配置，编辑：\api\config\_urlManager.php，如图41
1 2 3 4 5 6 7 8 9 10 11 | return [ 'class' => yii\web\UrlManager::class, 'enablePrettyUrl' => true, 'showScriptName' => false, 'rules' => [ [ 'class' => 'yii\rest\UrlRule', 'controller' => ['page'], ], ],]; |
图41

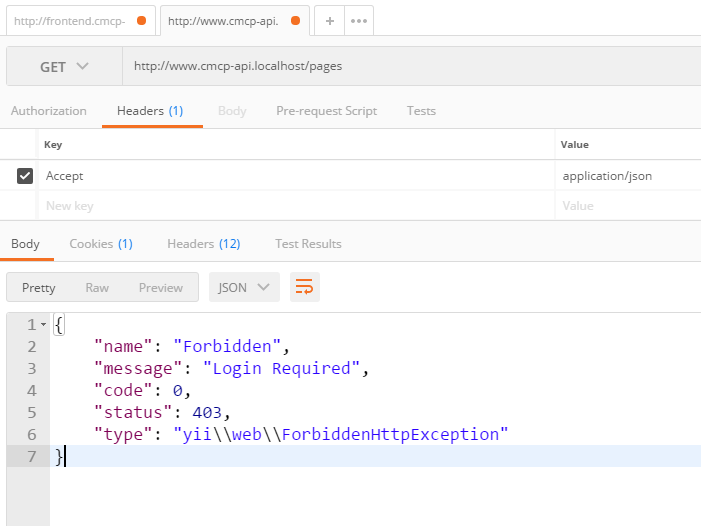

42、在 Postman 中，GET http://www.cmcp-api.localhost/pages ，403响应，如图42
1 2 3 4 5 6 7 | { "name": "Forbidden", "message": "Login Required", "code": 0, "status": 403, "type": "yii\\web\\ForbiddenHttpException"} |
图42

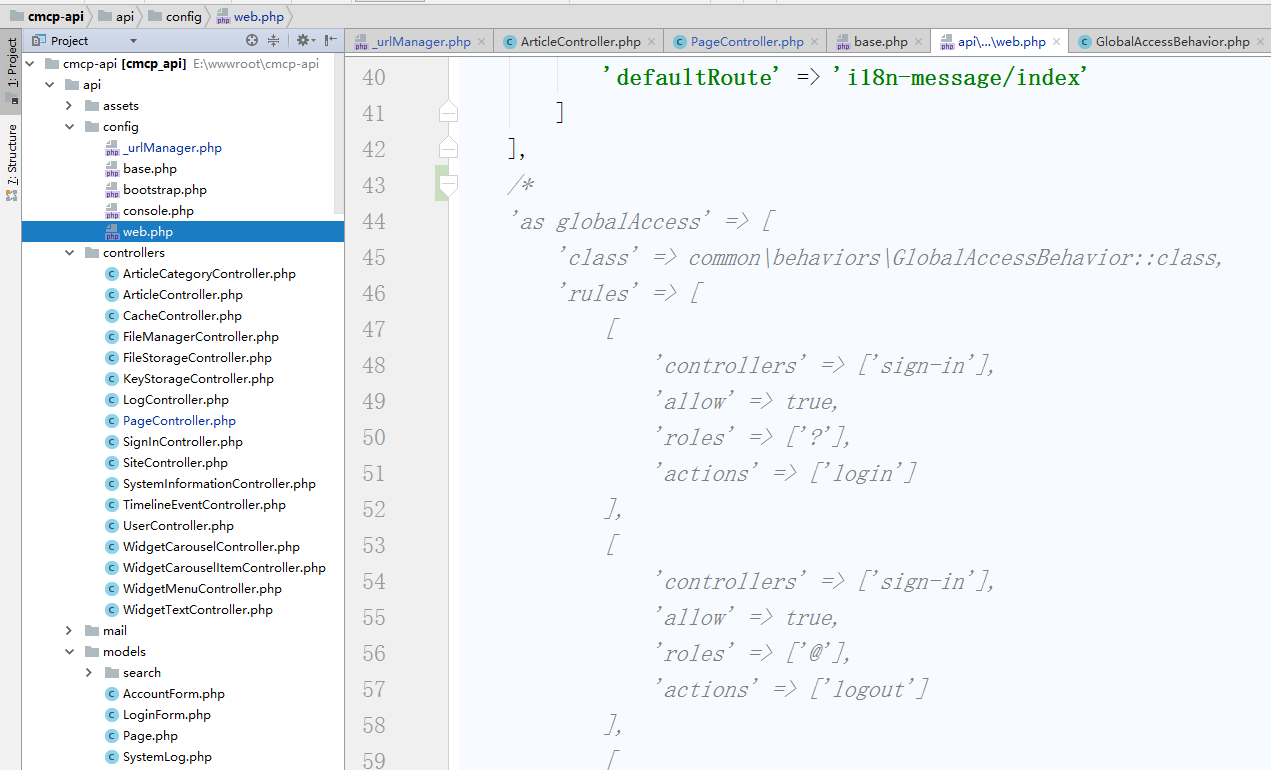

43、编辑 \api\config\web.php，注释附加的行为globalAccess，有待后期调整(验证、授权)，如图43
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 | /*'as globalAccess' => [ 'class' => common\behaviors\GlobalAccessBehavior::class, 'rules' => [ [ 'controllers' => ['sign-in'], 'allow' => true, 'roles' => ['?'], 'actions' => ['login'] ], [ 'controllers' => ['sign-in'], 'allow' => true, 'roles' => ['@'], 'actions' => ['logout'] ], [ 'controllers' => ['site'], 'allow' => true, 'roles' => ['?', '@'], 'actions' => ['error'] ], [ 'controllers' => ['debug/default'], 'allow' => true, 'roles' => ['?'], ], [ 'controllers' => ['user'], 'allow' => true, 'roles' => ['administrator'], ], [ 'controllers' => ['user'], 'allow' => false, ], [ 'allow' => true, 'roles' => ['manager'], ] ]]*/ |
图43

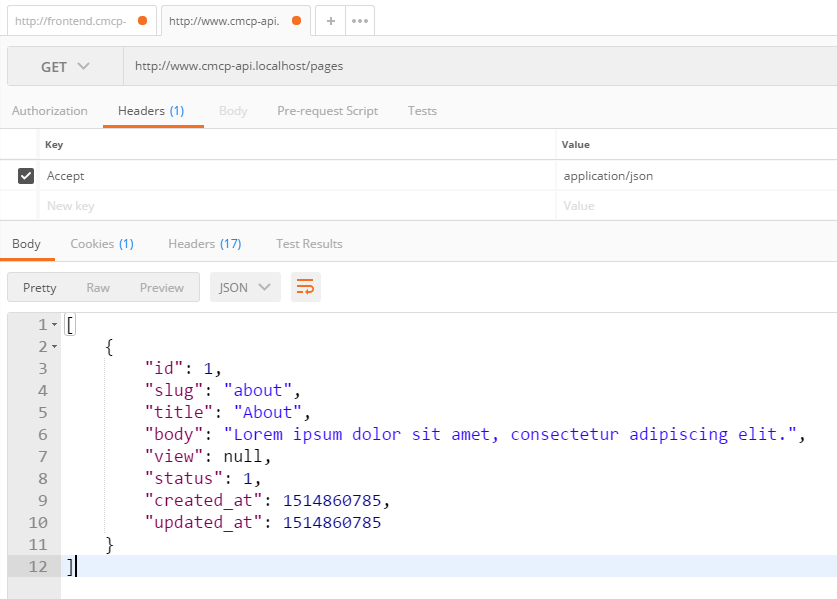

44、在 Postman 中，GET http://www.cmcp-api.localhost/pages ，200响应，如图44
1 2 3 4 5 6 7 8 9 10 11 12 | [ { "id": 1, "slug": "about", "title": "About", "body": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.", "view": null, "status": 1, "created_at": 1514860785, "updated_at": 1514860785 }] |
图44

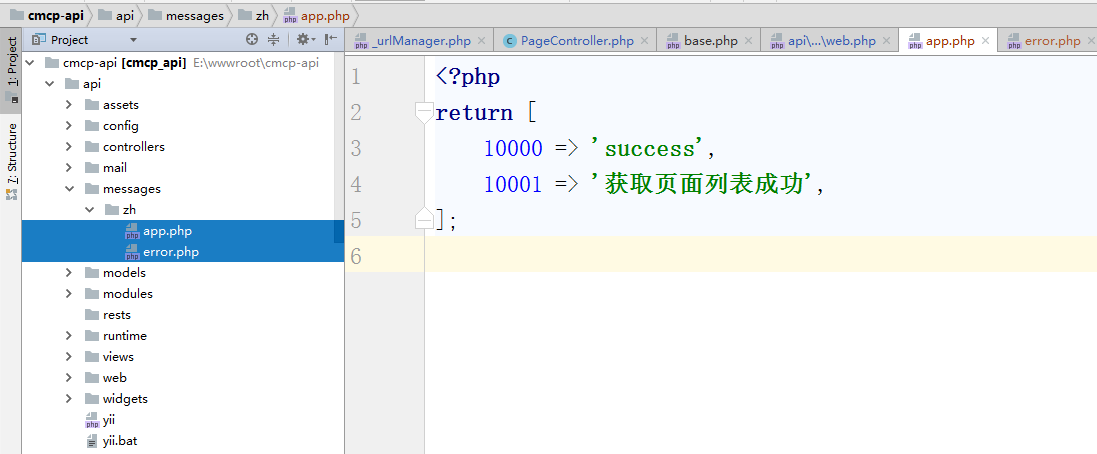

45、调用API服务后返回数据采用统一格式，返回的HTTP状态码为20x，代表调用成功；返回4xx或5xx的HTTP状态码代表调用失败。调整200响应的返回数据格式，与403响应一致，至少包含：”message”,”code”，新建语言包文件：\api\messages\zh\app.php(响应成功)、\api\messages\zh\error.php(响应失败)，如图45
1 2 3 4 | return [ 10000 => 'success', 10001 => '获取页面列表成功',]; |
图45
46、版本化的实现，参考网址：https://github.com/yiisoft/yii2/blob/master/docs/guide-zh-CN/rest-versioning.md ，编辑 \api\controllers\PageController.php，删除 modelClass，如图46
1 2 3 4 5 6 7 8 9 | <?phpnamespace api\controllers;use yii\rest\ActiveController;class PageController extends ActiveController{} |
图46

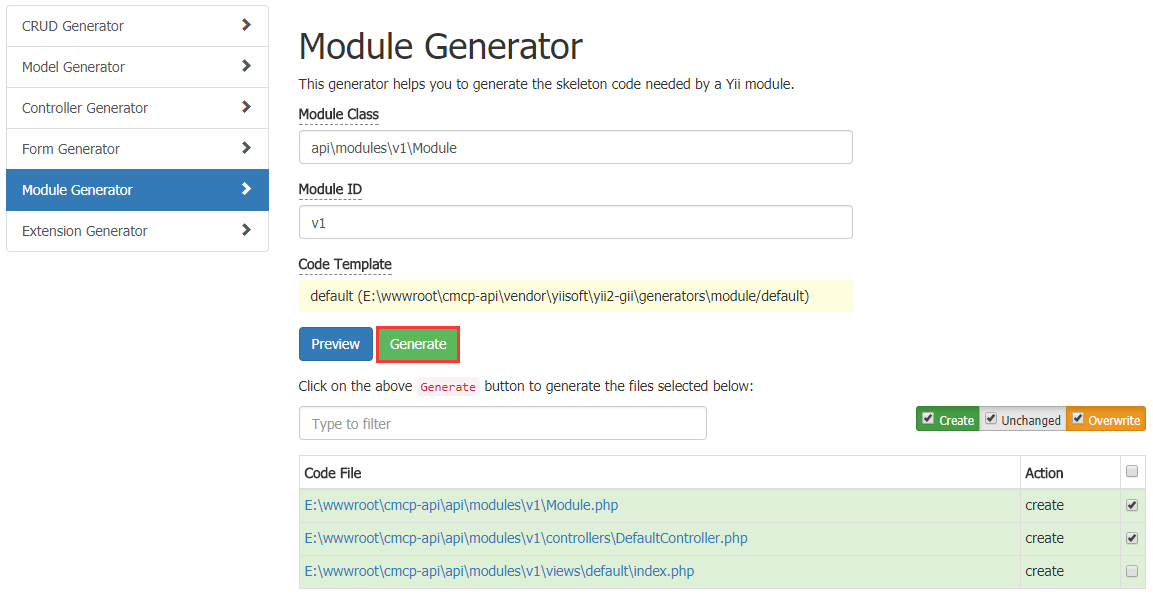

47、把每个主要版本的 API 实现在一个单独的模块 ID 的主版本号，基于 Gii 生成模块 v1，打开网址：http://frontend.cmcp-api.localhost/gii/module ，如图47
图47

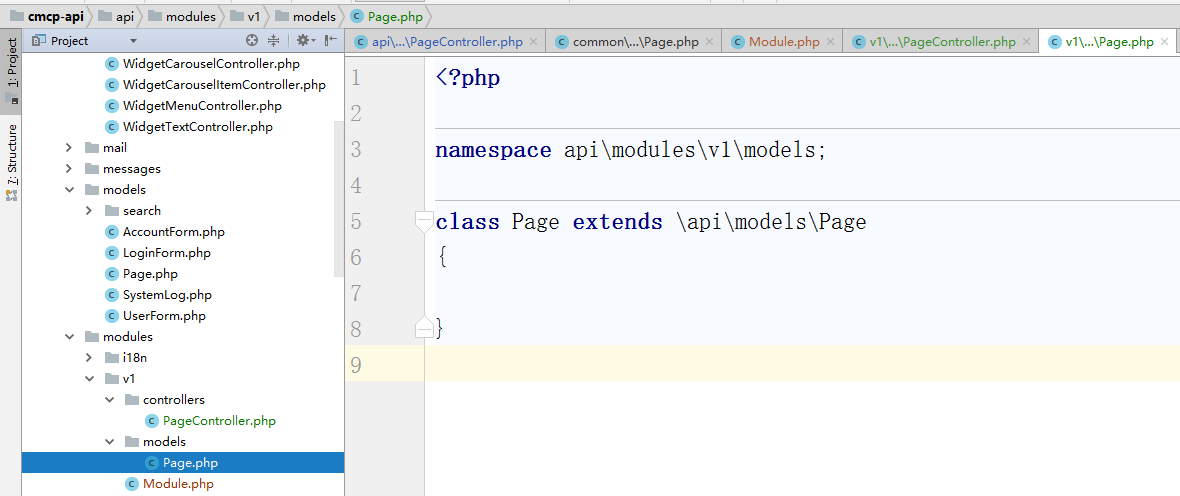

48、新建 \api\modules\v1\models\Page.php，继承至 \api\models\Page.php，如图48
注：\api\modules\v1\models\Page(仅用于 v1 模块) > \api\models\Page(仅用于 api 应用) > \common\logics\Page.php(可用于 api、frontend 等多个应用) > \common\models\Page.php(仅限于 Gii 生成) > \yii\db\ActiveRecord
1 2 3 4 5 6 7 8 | <?phpnamespace api\modules\v1\models;class Page extends \api\models\Page{} |
图48

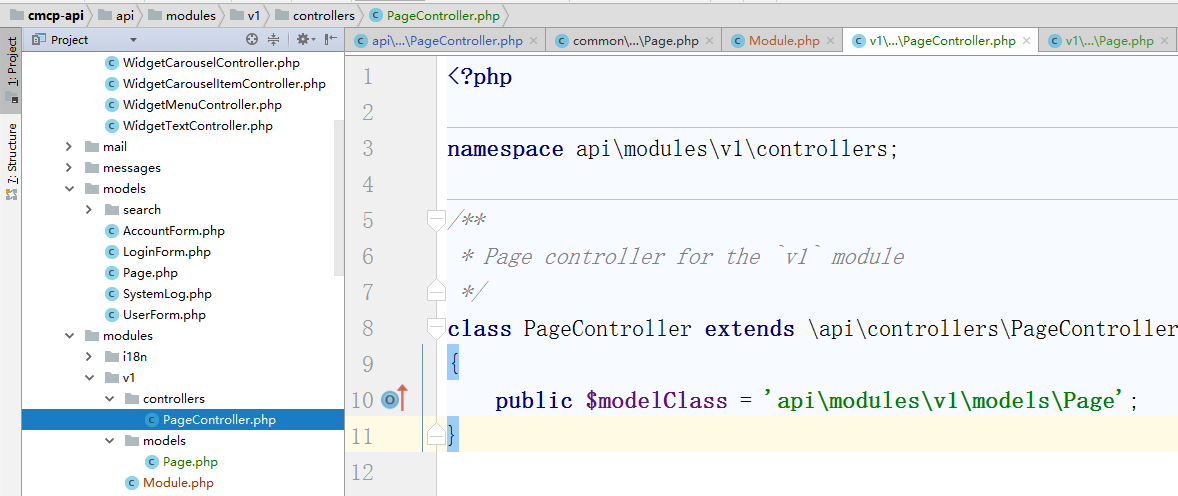

49、\api\modules\v1\controllers\DefaultController.php 重命名为 \api\modules\v1\controllers\PageController.php，编辑代码，如图49
注：\api\modules\v1\controllers\PageController.php(仅用于 v1 模块) > \api\controllers\PageController.php(仅用于 api 应用) > \yii\rest\ActiveController
1 2 3 4 5 6 7 8 9 10 11 | <?phpnamespace api\modules\v1\controllers;/** * Page controller for the `v1` module */class PageController extends \api\controllers\PageController{ public $modelClass = 'api\modules\v1\models\Page';} |
图49

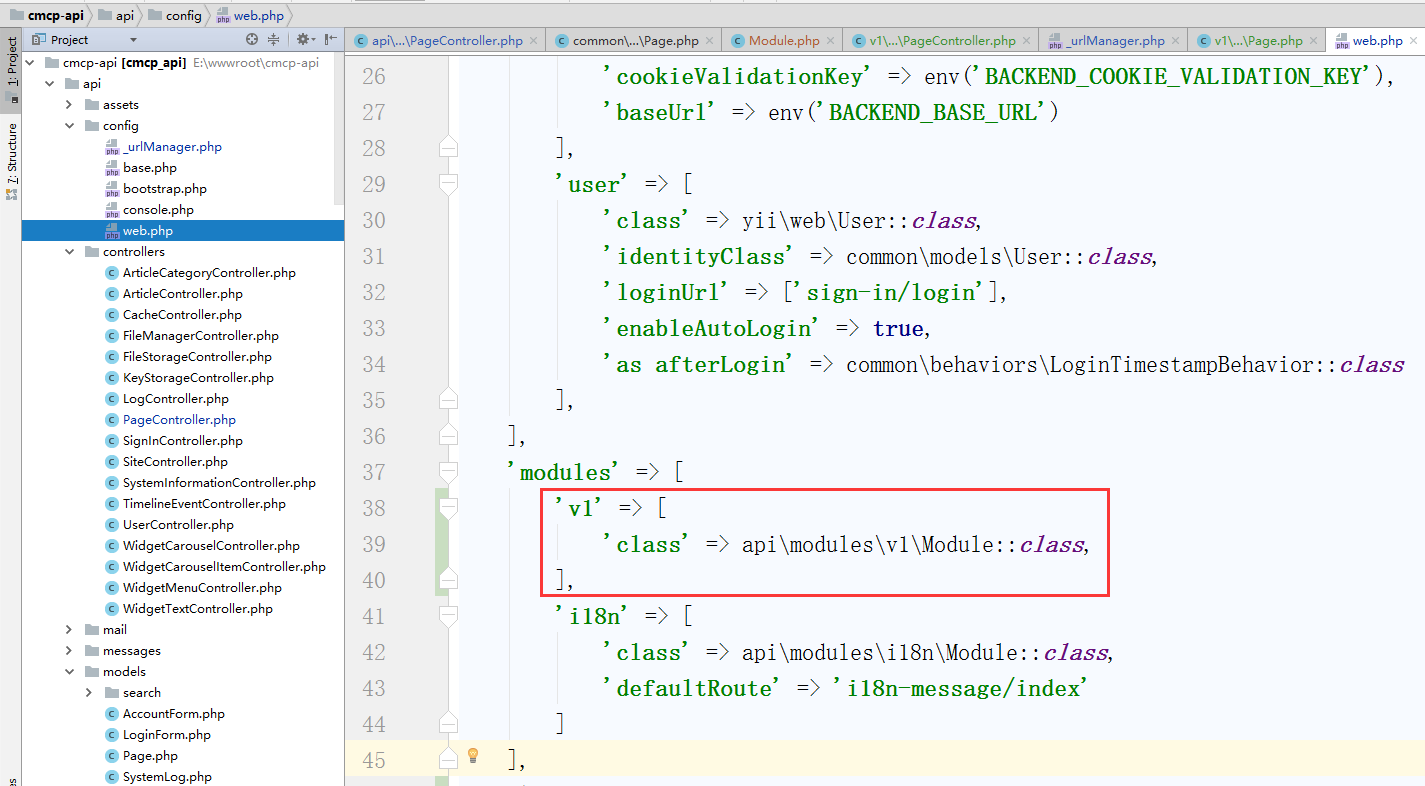

50、要在应用中使用模块，只需要将模块加入到应用主体配置的[[yii\base\Application::modules|modules]]属性的列表中， 如下代码的应用主体配置 使用 v1 模块，编辑 \api\config\web.php，如图50
1 2 3 4 5 6 7 8 9 | 'modules' => [ 'v1' => [ 'class' => api\modules\v1\Module::class, ], 'i18n' => [ 'class' => api\modules\i18n\Module::class, 'defaultRoute' => 'i18n-message/index' ]], |
![要在应用中使用模块，只需要将模块加入到应用主体配置的[[yii\base\Application::modules|modules]]属性的列表中， 如下代码的应用主体配置 使用 v1 模块，编辑 \api\config\web.php](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/50.png)
图50

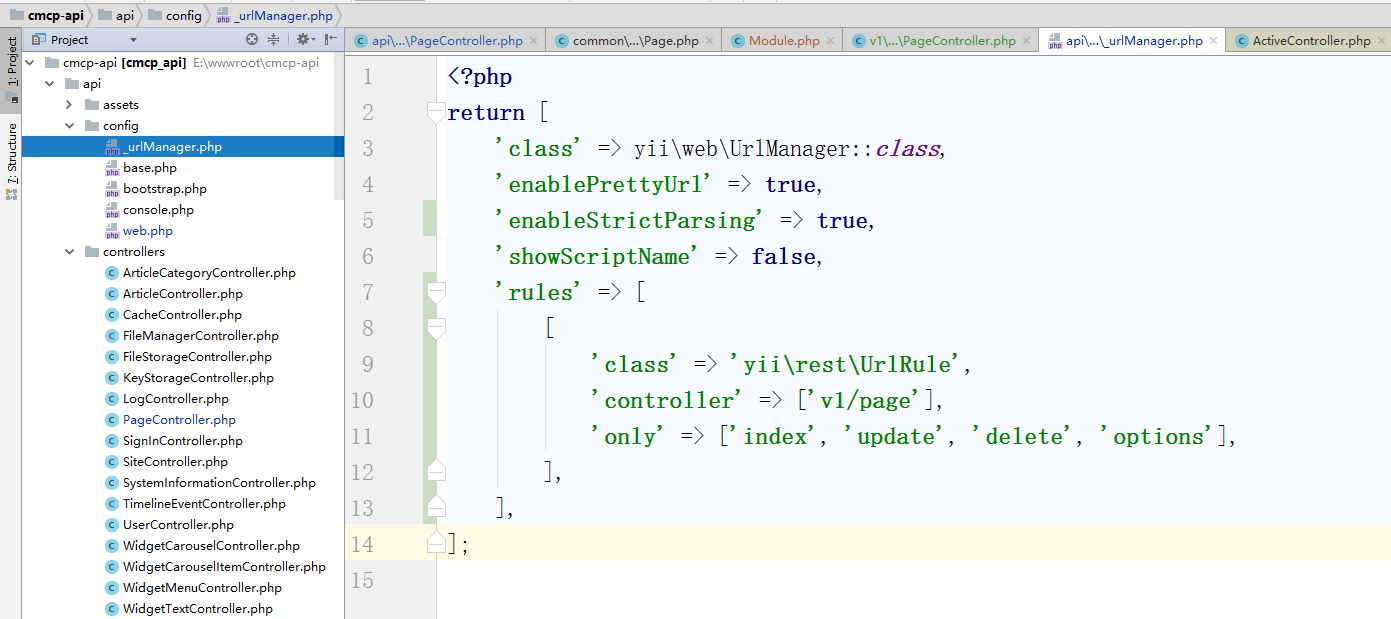

注：通过配置 only 选项来明确列出哪些行为支持，v1/page 仅支持：’index’, ‘update’, ‘delete’, ‘options’
1 2 3 4 5 6 7 8 9 10 11 12 | <?php return [ 'class' => yii\web\UrlManager::class, 'enablePrettyUrl' => true, 'enableStrictParsing' => true, 'showScriptName' => false, 'rules' => [ [ 'class' => 'yii\rest\UrlRule', 'controller' => ['v1/page'], 'only' => ['index', 'update', 'delete', 'options'], ], ],]; |
图51

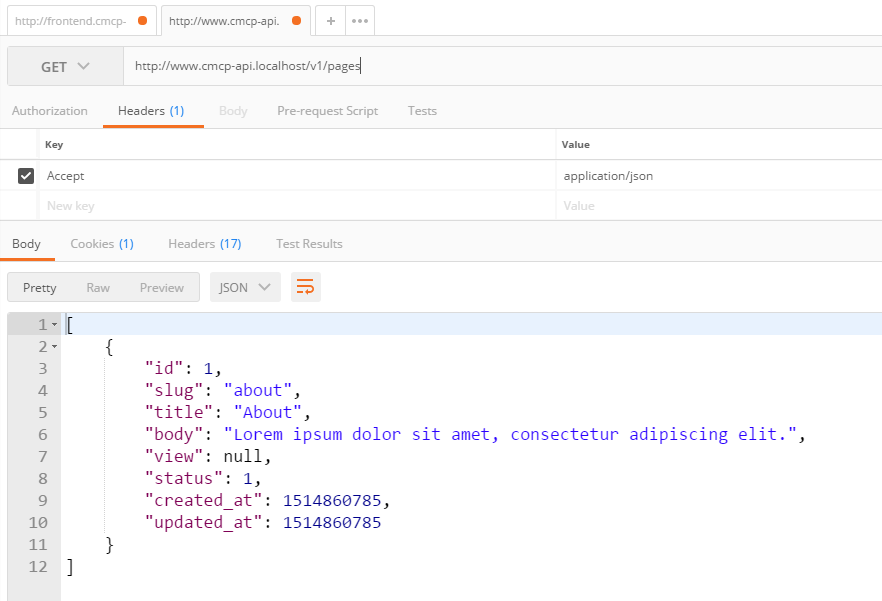

52、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，如图52
1 2 3 4 5 6 7 8 9 10 11 12 | [ { "id": 1, "slug": "about", "title": "About", "body": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.", "view": null, "status": 1, "created_at": 1514860785, "updated_at": 1514860785 }] |
图52

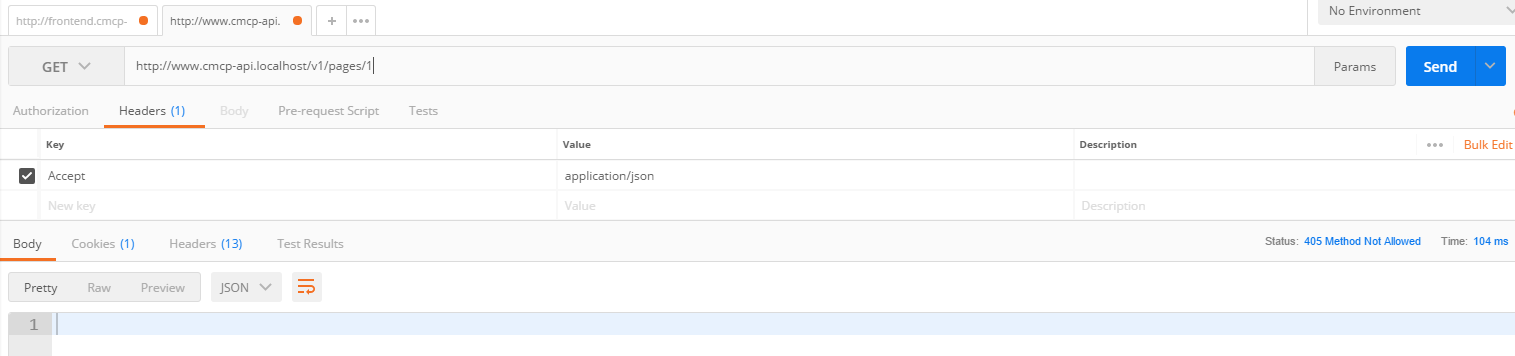

53、测试 only 选项，在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages/1 ，405响应(不被允许的方法。因为 ‘view’ 行为不被支持)，测试通过，如图53
图53

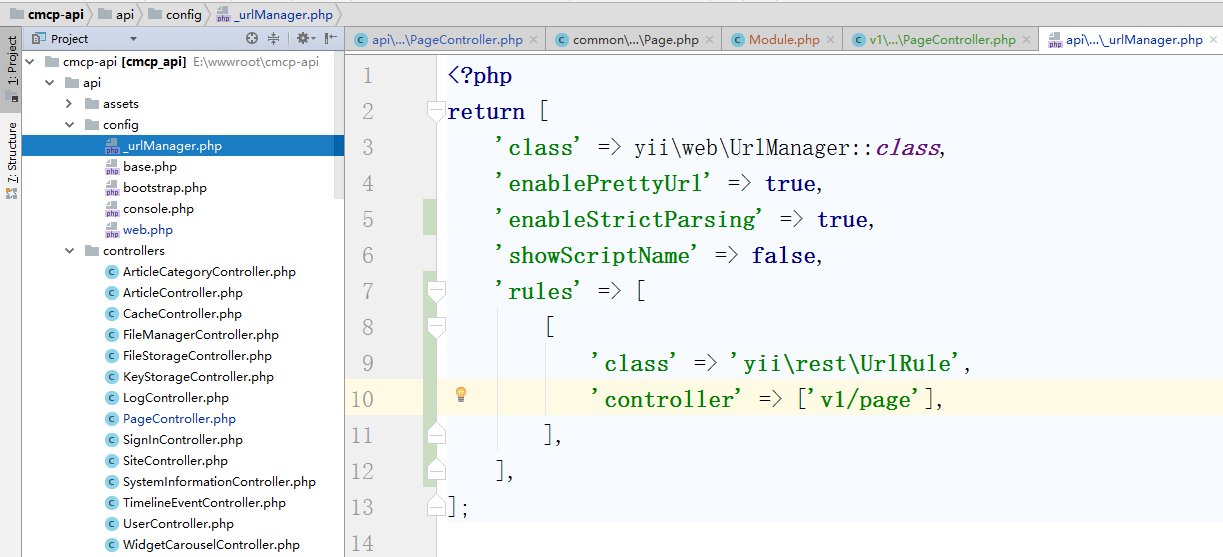

54、配置URL规则，修改有关在应用程序配置的urlManager组件的配置，以支持 v1 模块，编辑：\api\config\_urlManager.php，如图54
注：取消配置 only 选项，以后续支持所有行为
1 2 3 4 5 6 7 8 9 10 11 | <?php return [ 'class' => yii\web\UrlManager::class, 'enablePrettyUrl' => true, 'enableStrictParsing' => true, 'showScriptName' => false, 'rules' => [ [ 'class' => 'yii\rest\UrlRule', 'controller' => ['v1/page'], ], ],]; |
图54

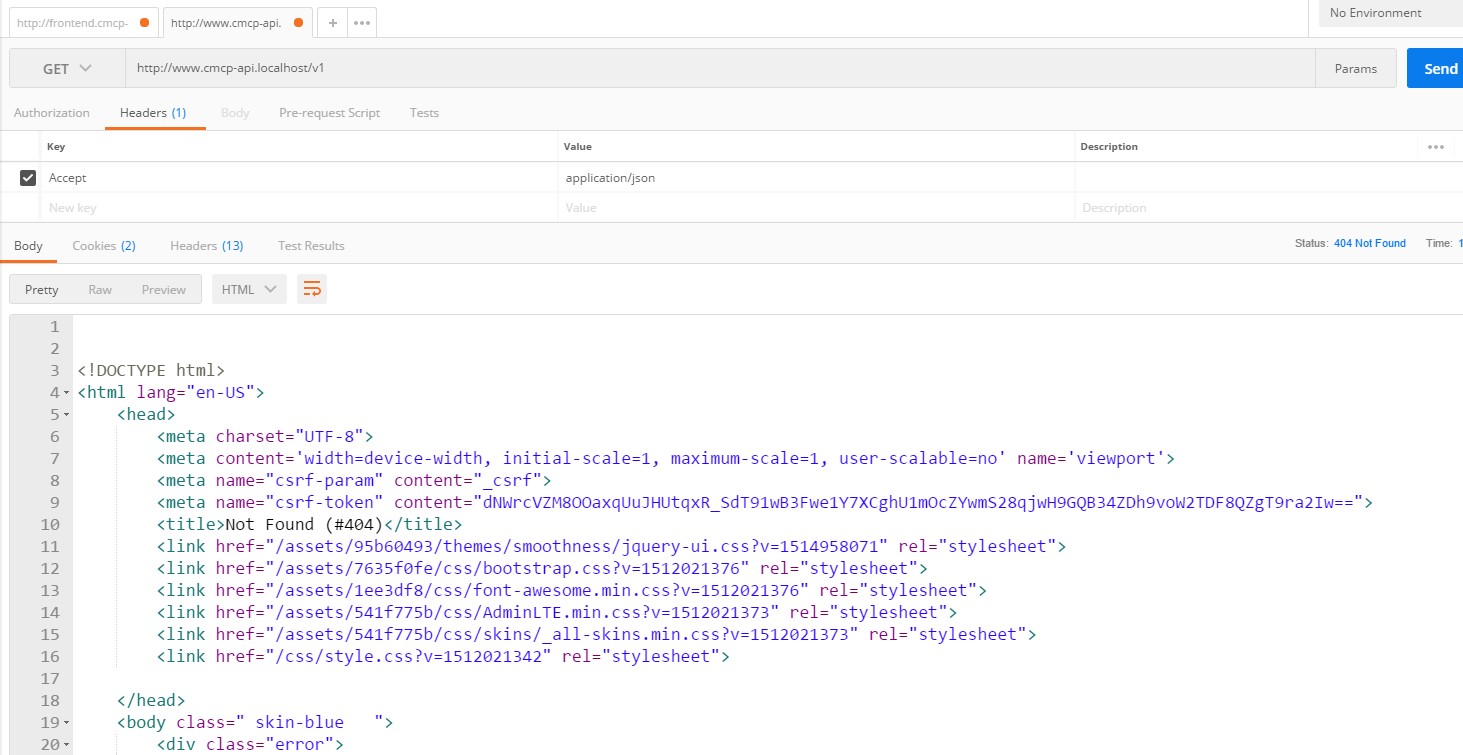

55、在 Postman 中，GET http://www.cmcp-api.localhost/v1 ，404响应，格式为HMTL，如图55
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 | <!DOCTYPE html><html lang="en-US"> <head> <meta charset="UTF-8"> <meta content='width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no' name='viewport'> <meta name="csrf-param" content="_csrf"> <meta name="csrf-token" content="MtUm8pVxEHfmqhYMruxdUyScsktaMyFDc350jW_XR7dzmGqaoDRyT7bPc13M2W0AVNuGISJSbQUYOFn9LKNzgQ=="> <title>Not Found (#404)</title> <link href="/assets/95b60493/themes/smoothness/jquery-ui.css?v=1514958071" rel="stylesheet"> <link href="/assets/7635f0fe/css/bootstrap.css?v=1512021376" rel="stylesheet"> <link href="/assets/1ee3df8/css/font-awesome.min.css?v=1512021376" rel="stylesheet"> <link href="/assets/541f775b/css/AdminLTE.min.css?v=1512021373" rel="stylesheet"> <link href="/assets/541f775b/css/skins/_all-skins.min.css?v=1512021373" rel="stylesheet"> <link href="/css/style.css?v=1512021342" rel="stylesheet"> </head> <body class=" skin-blue "> </body></html> |
图55

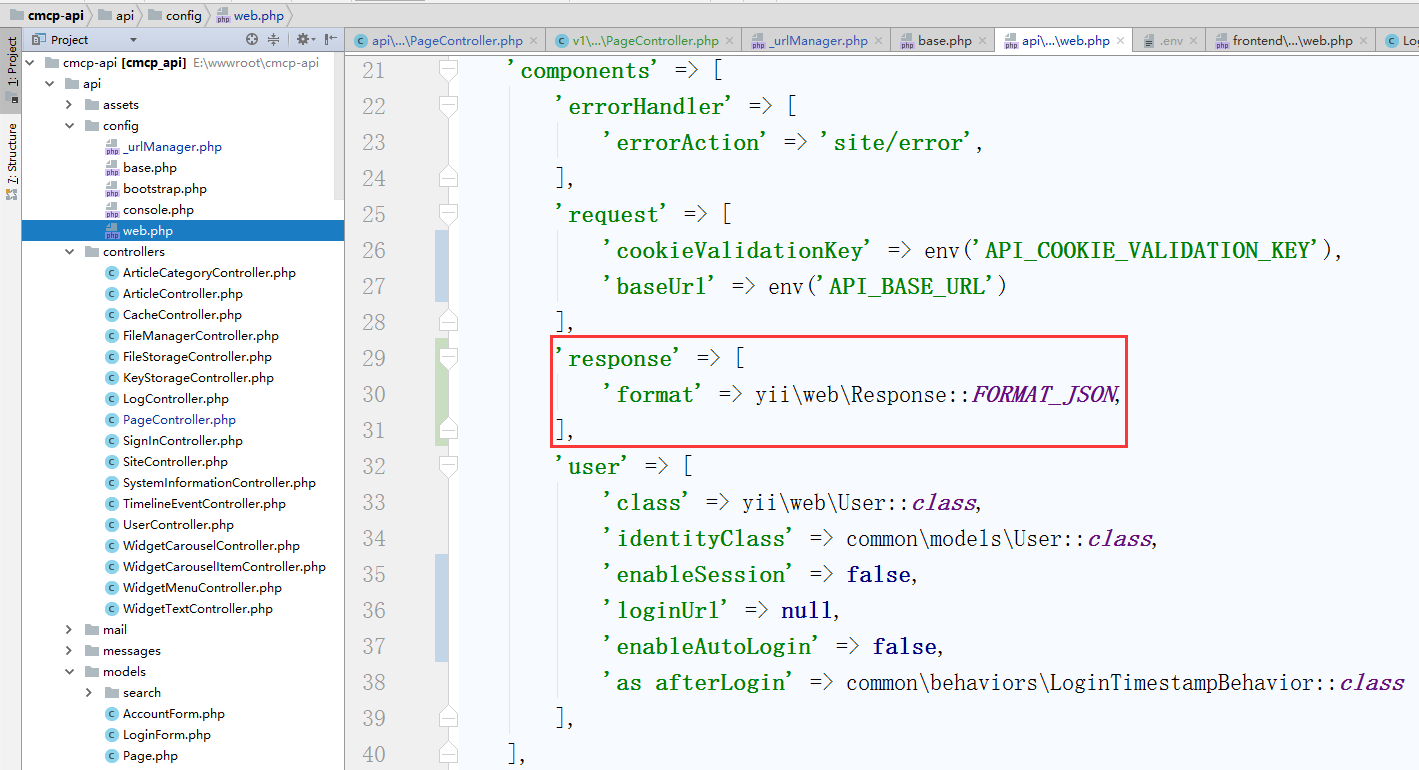

56、对于404响应格式为HTML的解决，编辑 \api\config\web.php，设置默认的响应格式为JSON，如图56
1 2 3 | 'response' => [ 'format' => yii\web\Response::FORMAT_JSON,], |
图56

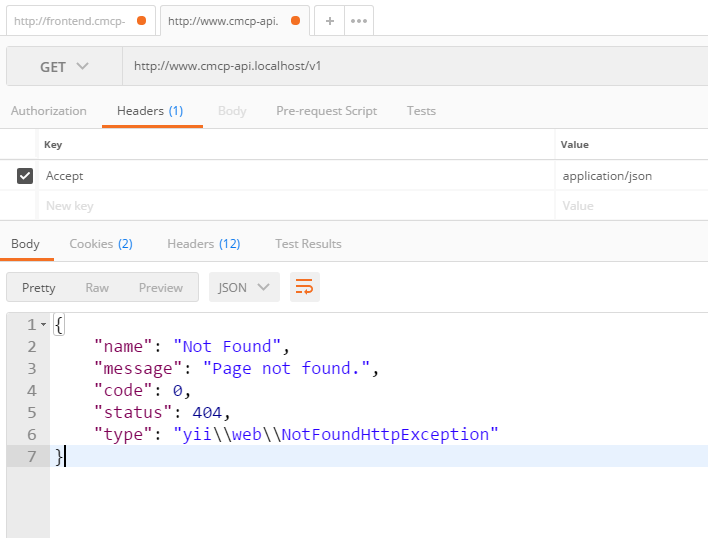

57、在 Postman 中，GET http://www.cmcp-api.localhost/v1 ，404响应，格式为JSON，如图57
1 2 3 4 5 6 7 | { "name": "Not Found", "message": "Page not found.", "code": 0, "status": 404, "type": "yii\\web\\NotFoundHttpException"} |
图57

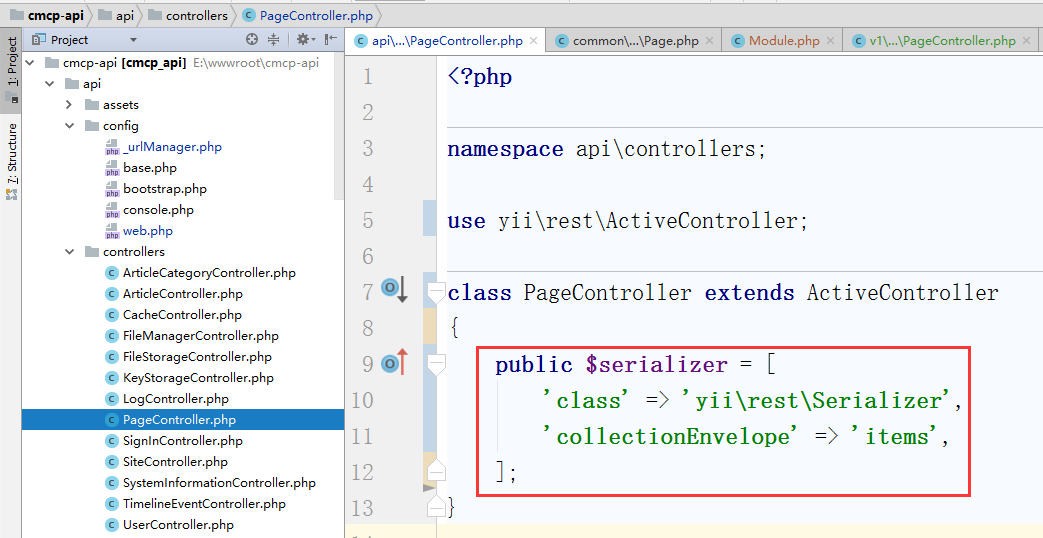

58、数据序列化的实现，在响应主体内包含分页信息来简化客户端的开发工作，编辑 \api\controllers\PageController.php，如图58
1 2 3 4 | <?php namespace api\controllers; use yii\rest\ActiveController; class PageController extends ActiveController { public $serializer = [ 'class' => 'yii\rest\Serializer', 'collectionEnvelope' => 'items', ];} |
图58

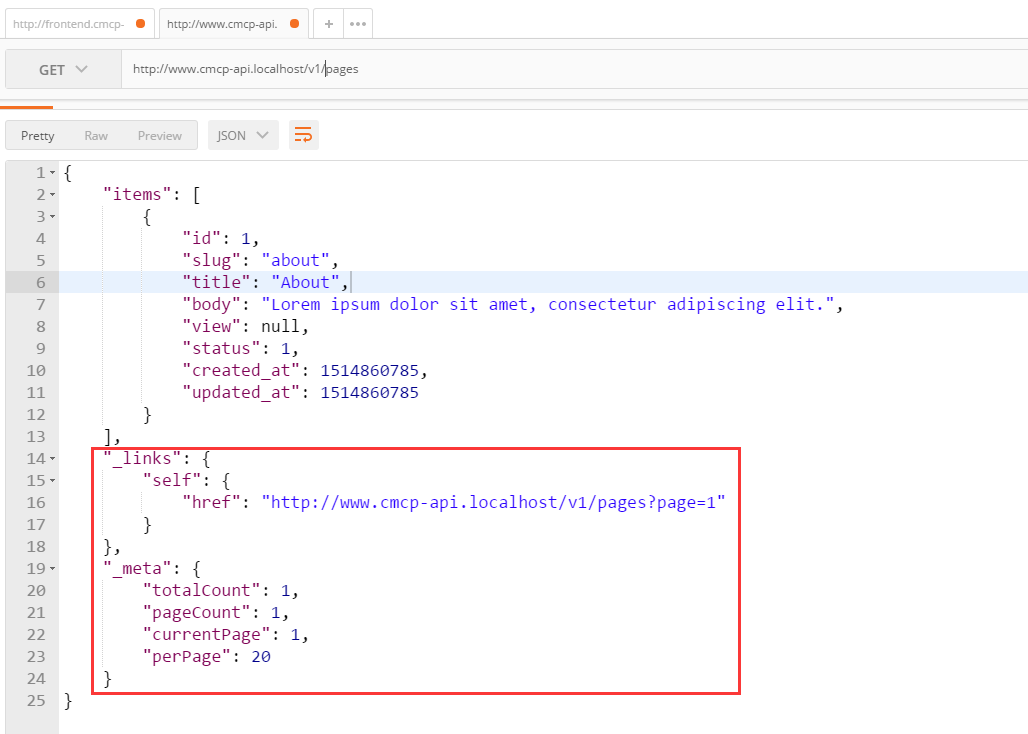

59、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，在响应主体内包含分页信息，如图59
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 | { "items": [ { "id": 1, "slug": "about", "title": "About", "body": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.", "view": null, "status": 1, "created_at": 1514860785, "updated_at": 1514860785 } ], "_links": { "self": { } }, "_meta": { "totalCount": 1, "pageCount": 1, "currentPage": 1, "perPage": 20 }} |
图59

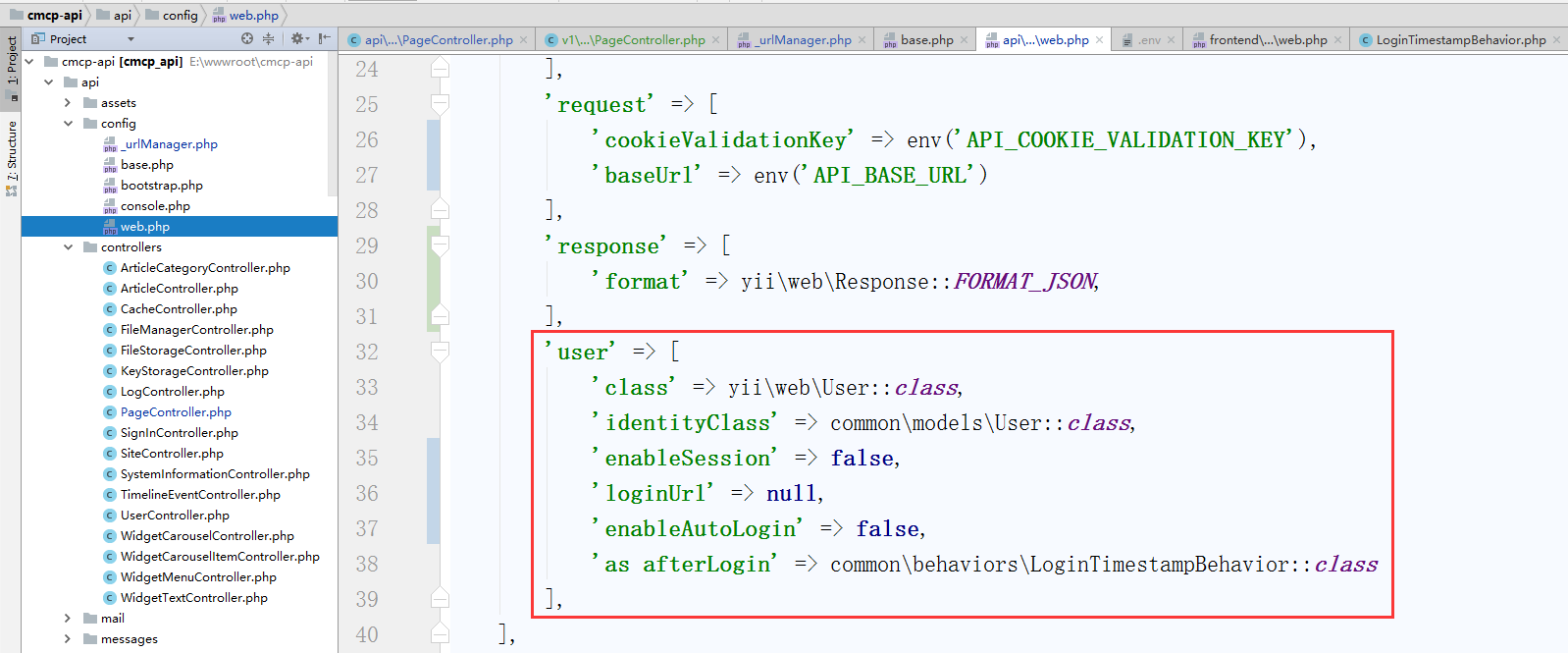

60、RESTful APIs 通常是无状态的，因此，配置 user 应用组件，编辑 \api\config\web.php，如图60
注：配置user 应用组件:
设置 [[yii\web\User::enableSession|enableSession]] 属性为 false.
设置 [[yii\web\User::loginUrl|loginUrl]] 属性为null 显示一个HTTP 403 错误而不是跳转到登录界面.
1 2 3 4 5 6 7 8 | 'user' => [ 'class' => yii\web\User::class, 'identityClass' => common\models\User::class, 'enableSession' => false, 'loginUrl' => null, 'enableAutoLogin' => false, 'as afterLogin' => common\behaviors\LoginTimestampBehavior::class], |
图60

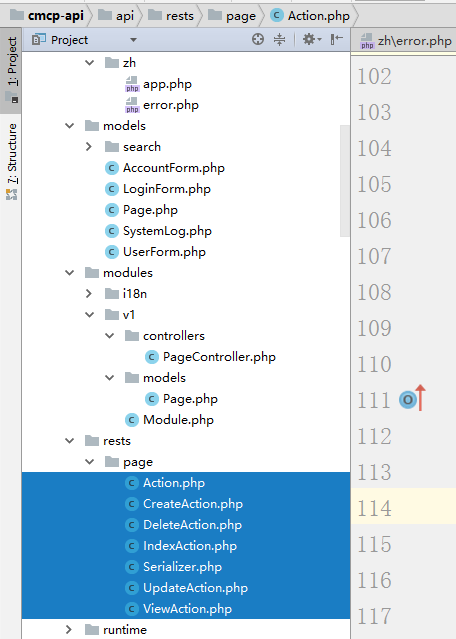

61、复制目录 \vendor\yiisoft\yii2\rest 下的 Action.php、IndexAction.php、ViewAction.php、CreateAction.php、UpdateAction.php、DeleteAction.php、Serializer.php 至目录 \api\rests\page，如图61
图61

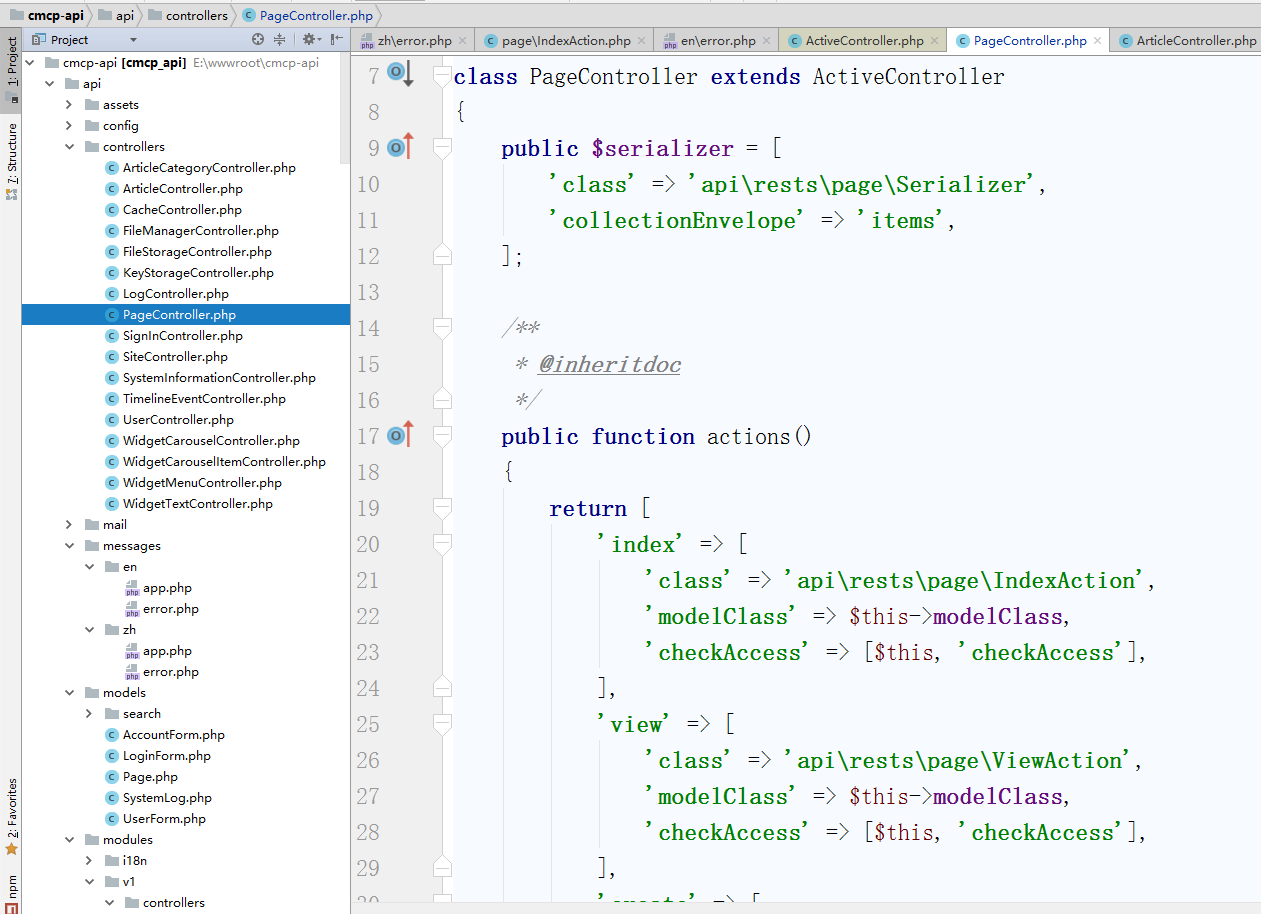

62、如果为多个单词组合的目录，建议目录使用小写+下划线，参考网址：https://github.com/hfcorriez/fig-standards/blob/master/accepted/zh_CN/PSR-0.md ，编辑 \api\controllers\PageController.php，如图62
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 | <?php namespace api\controllers; use yii\rest\ActiveController; class PageController extends ActiveController { public $serializer = [ 'class' => 'api\rests\page\Serializer', 'collectionEnvelope' => 'items', ]; /** * @inheritdoc */ public function actions() { return [ 'index' => [ 'class' => 'api\rests\page\IndexAction', 'modelClass' => $this->modelClass, 'checkAccess' => [$this, 'checkAccess'], ], 'view' => [ 'class' => 'api\rests\page\ViewAction', 'modelClass' => $this->modelClass, 'checkAccess' => [$this, 'checkAccess'], ], 'create' => [ 'class' => 'api\rests\page\CreateAction', 'modelClass' => $this->modelClass, 'checkAccess' => [$this, 'checkAccess'], 'scenario' => $this->createScenario, ], 'update' => [ 'class' => 'api\rests\page\UpdateAction', 'modelClass' => $this->modelClass, 'checkAccess' => [$this, 'checkAccess'], 'scenario' => $this->updateScenario, ], 'delete' => [ 'class' => 'api\rests\page\DeleteAction', 'modelClass' => $this->modelClass, 'checkAccess' => [$this, 'checkAccess'], ], 'options' => [ 'class' => 'yii\rest\OptionsAction', ], ]; }} |
注：如果仅支持较少的行为，可以选择下面的方案，例
1 2 3 4 5 6 7 8 | public function actions(){ $actions = parent::actions(); $actions['view']['class'] = 'api\rests\page\ViewAction'; return $actions;} |
图62

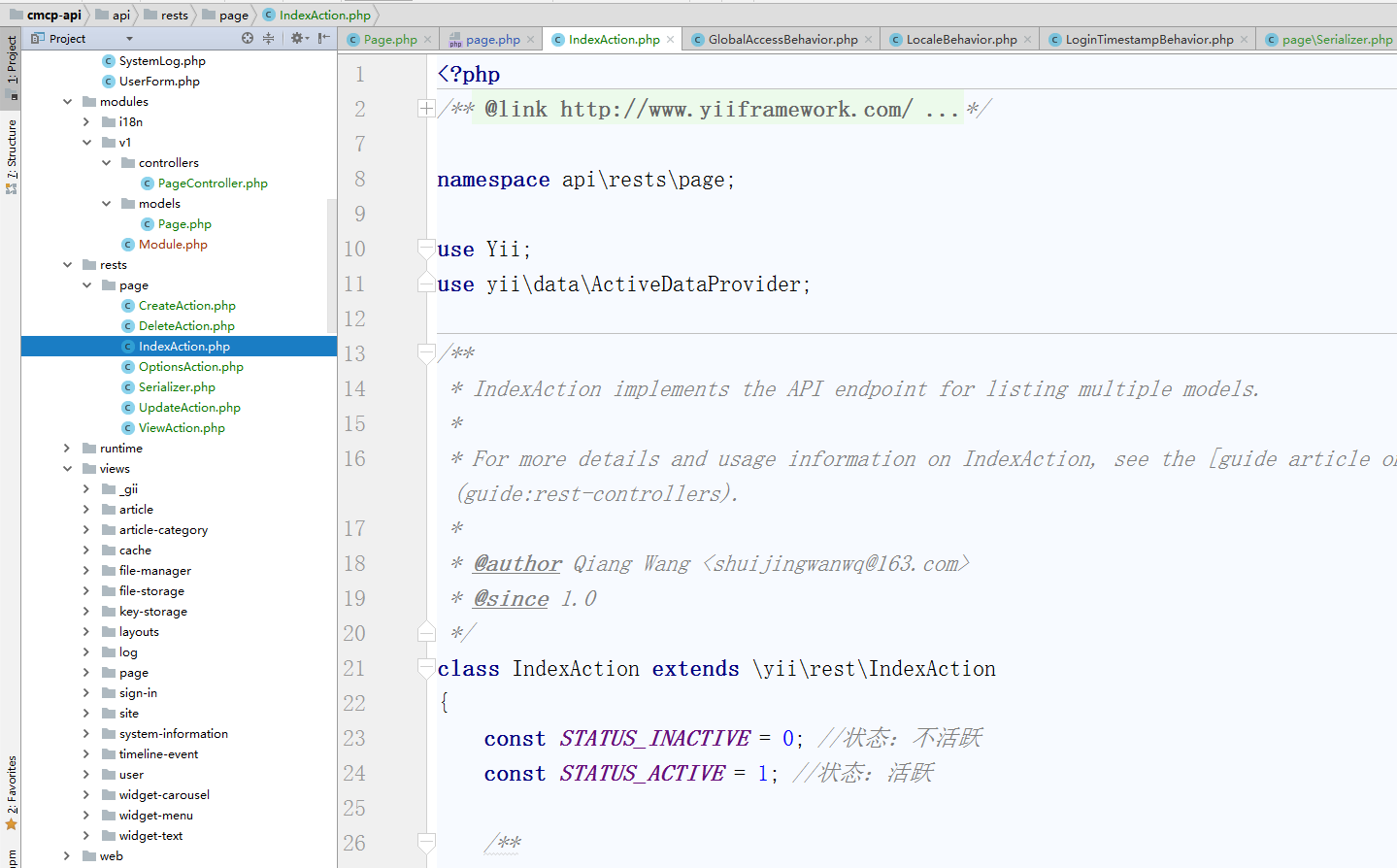

63、编辑 \api\rests\page\IndexAction.php，调整命名空间、继承关系、查询条件等，如图63
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;use yii\data\ActiveDataProvider;/** * IndexAction implements the API endpoint for listing multiple models. * * For more details and usage information on IndexAction, see the [guide article on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class IndexAction extends \yii\rest\IndexAction{ const STATUS_INACTIVE = 0; //状态：不活跃 const STATUS_ACTIVE = 1; //状态：活跃 /** * Prepares the data provider that should return the requested collection of the models. * @return ActiveDataProvider */ protected function prepareDataProvider() { $requestParams = Yii::$app->getRequest()->getBodyParams(); if (empty($requestParams)) { $requestParams = Yii::$app->getRequest()->getQueryParams(); } $filter = null; if ($this->dataFilter !== null) { $this->dataFilter = Yii::createObject($this->dataFilter); if ($this->dataFilter->load($requestParams)) { $filter = $this->dataFilter->build(); if ($filter === false) { return $this->dataFilter; } } } if ($this->prepareDataProvider !== null) { return call_user_func($this->prepareDataProvider, $this, $filter); } /* @var $modelClass \yii\db\BaseActiveRecord */ $modelClass = $this->modelClass; $query = $modelClass::find()->where(['status' => self::STATUS_ACTIVE]); if (!empty($filter)) { $query->andWhere($filter); } return Yii::createObject([ 'class' => ActiveDataProvider::className(), 'query' => $query, 'pagination' => [ 'params' => $requestParams, ], 'sort' => [ 'params' => $requestParams, ], ]); }} |
图63

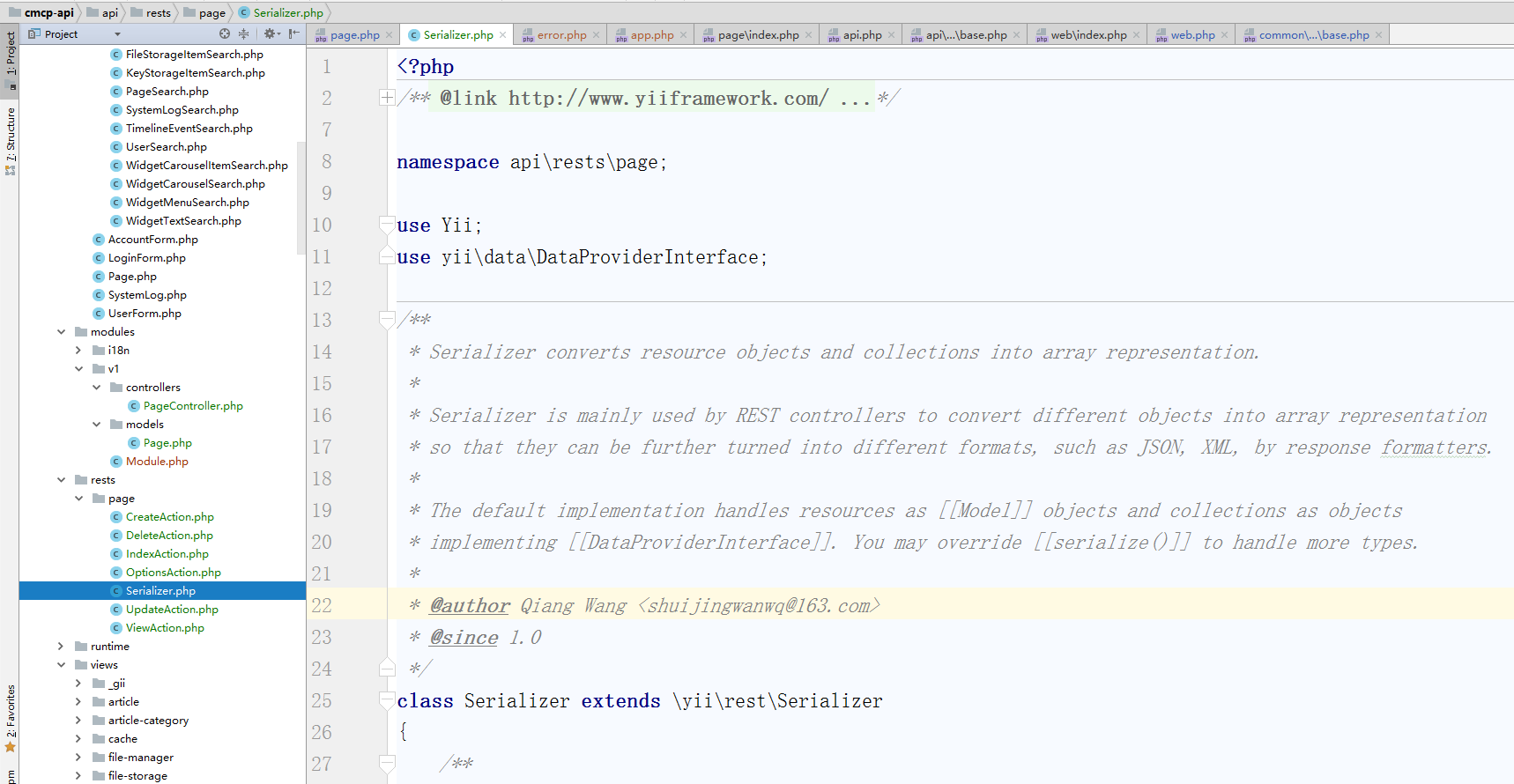

64、编辑 \api\rests\page\Serializer.php，调整命名空间、继承关系、响应结构(响应成功：”code”: 10000,”message”,”data”；响应失败：”code”: 不等于10000的其他数字,”message”)等，如图64
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;use yii\data\DataProviderInterface;/** * Serializer converts resource objects and collections into array representation. * * Serializer is mainly used by REST controllers to convert different objects into array representation * so that they can be further turned into different formats, such as JSON, XML, by response formatters. * * The default implementation handles resources as [[Model]] objects and collections as objects * implementing [[DataProviderInterface]]. You may override [[serialize()]] to handle more types. * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Serializer extends \yii\rest\Serializer{ /** * Serializes a data provider. * @param DataProviderInterface $dataProvider * @return array the array representation of the data provider. */ protected function serializeDataProvider($dataProvider) { if ($this->preserveKeys) { $models = $dataProvider->getModels(); } else { $models = array_values($dataProvider->getModels()); } $models = $this->serializeModels($models); if (($pagination = $dataProvider->getPagination()) !== false) { $this->addPaginationHeaders($pagination); } if ($this->request->getIsHead()) { return null; } elseif ($this->collectionEnvelope === null) { return $models; } $result = [ $this->collectionEnvelope => $models, ]; if (empty($result['items'])) { return ['code' => 20001, 'message' => Yii::t('error', '20001')]; } if ($pagination !== false) { return ['code' => 10000, 'message' => Yii::t('app', '10001'), 'data' => array_merge($result, $this->serializePagination($pagination))]; } return ['code' => 10000, 'message' => Yii::t('app', '10001'), 'data' => $result]; }} |
图64

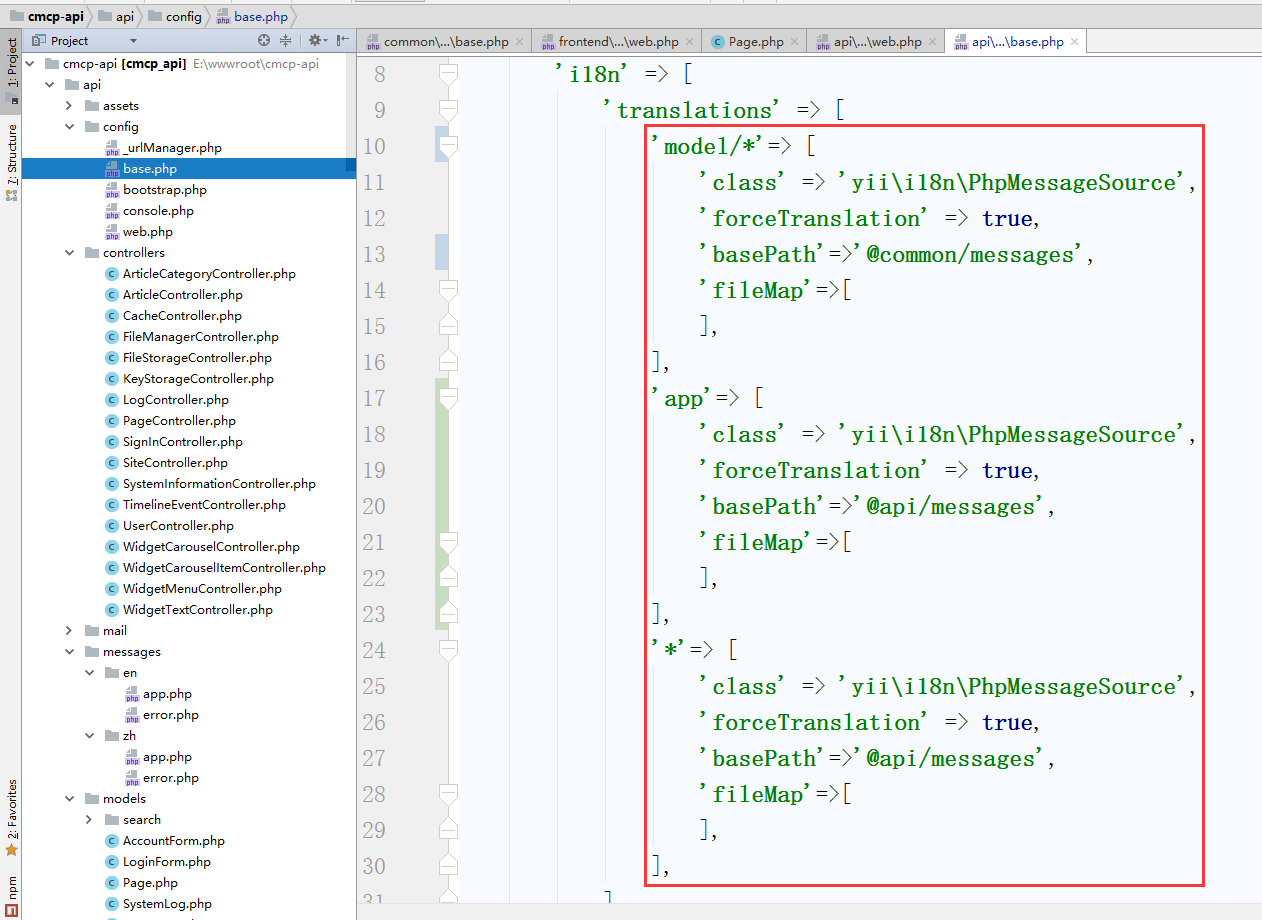

65、编辑 \api\config\base.php，配置接口应用的 i18n 应用组件 ，如图65
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 | 'i18n' => [ 'translations' => [ 'model/*'=> [ 'class' => 'yii\i18n\PhpMessageSource', 'forceTranslation' => true, 'basePath'=>'@common/messages', 'fileMap'=>[ ], ], 'app'=> [ 'class' => 'yii\i18n\PhpMessageSource', 'forceTranslation' => true, 'basePath'=>'@api/messages', 'fileMap'=>[ ], ], '*'=> [ 'class' => 'yii\i18n\PhpMessageSource', 'forceTranslation' => true, 'basePath'=>'@api/messages', 'fileMap'=>[ ], ], ],], |
图65

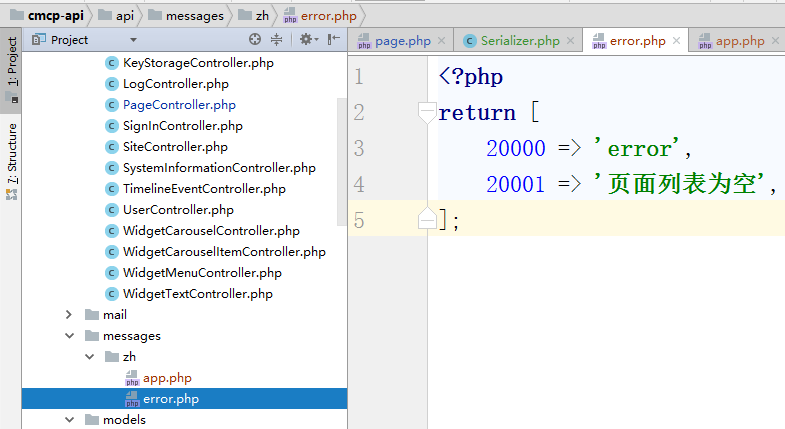

66、新建语言包文件：\api\messages\zh\error.php(简体中文、响应失败)，如图66
1 2 3 4 | return [ 20000 => 'error', 20001 => '页面列表为空',]; |
图66

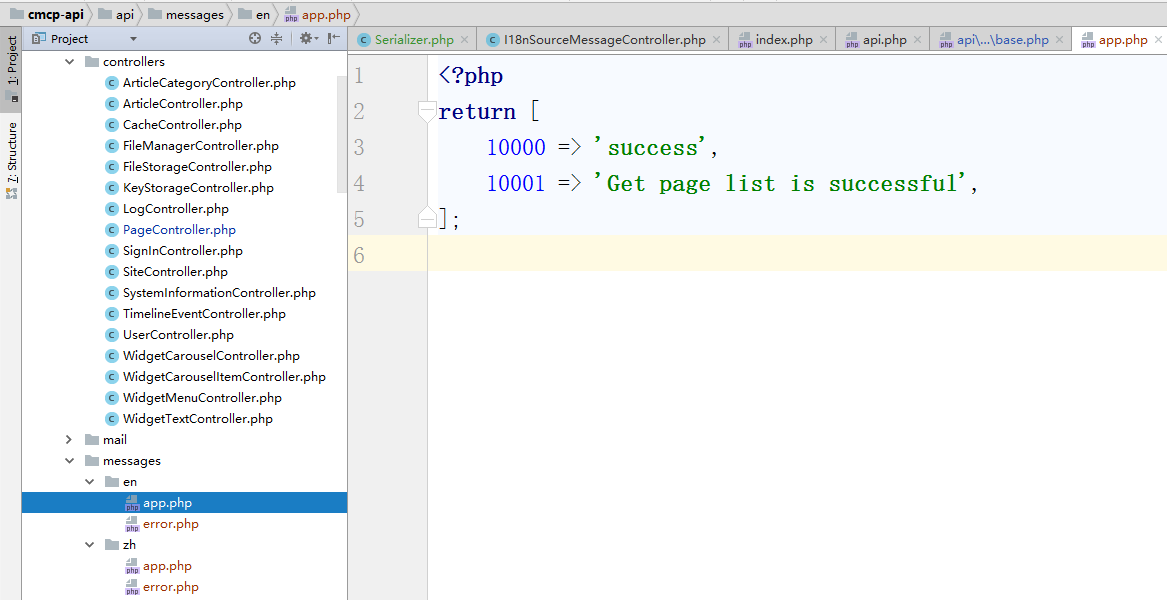

67、新建语言包文件：\api\messages\en\app.php(英语美国、响应成功)，如图67
1 2 3 4 | return [ 10000 => 'success', 10001 => 'Get page list is successful',]; |
图67

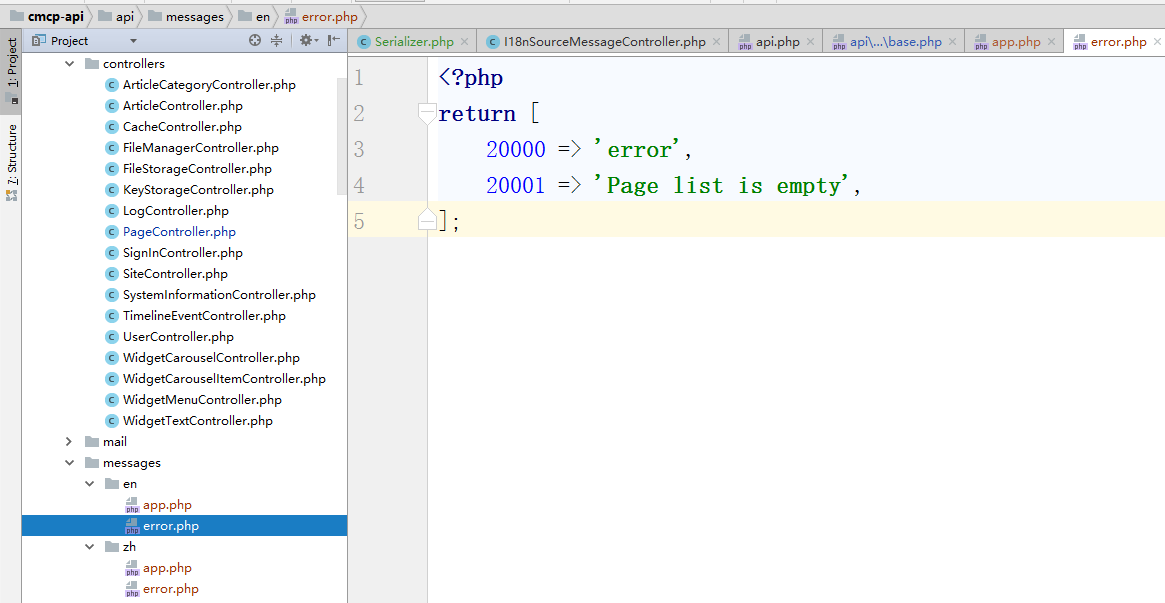

68、新建语言包文件：\api\messages\en\error.php(英语美国、响应失败)，如图68
1 2 3 4 | return [ 20000 => 'error', 20001 => 'Page list is empty',]; |
图68

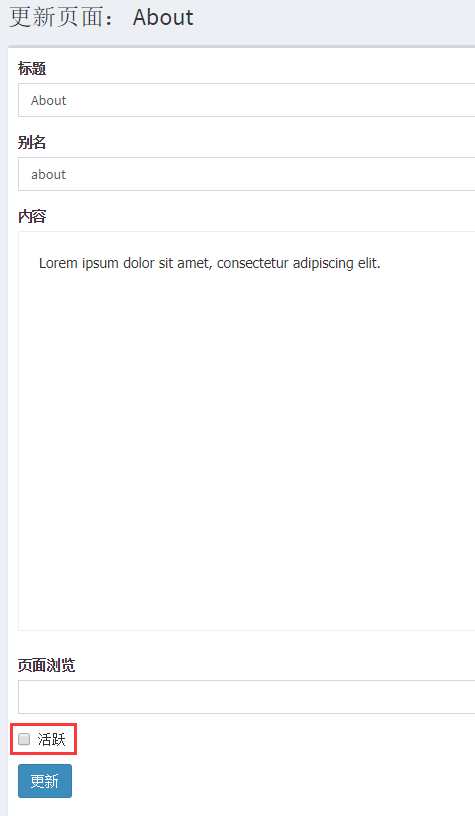

69、打开网址：http://backend.cmcp-api.localhost/page/update?id=1 ，编辑文章，活跃复选框取消选中，如图69
图69

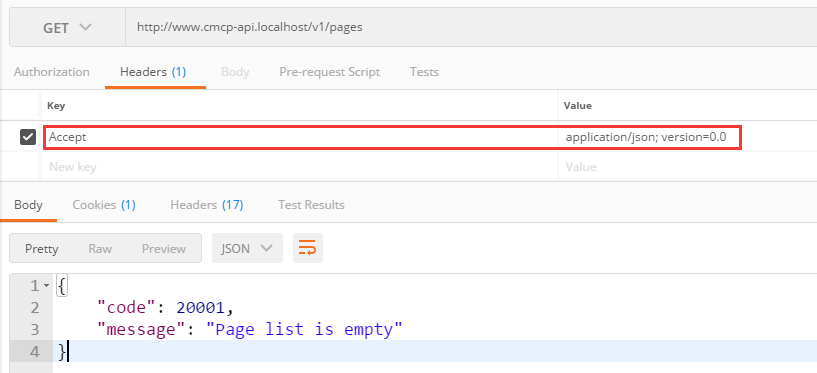

70、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，状态为活跃的页面列表为空，如图70
注：
Accept application/json; version=0.0
1 2 3 4 | { "code": 20001, "message": "Page list is empty"} |
图70

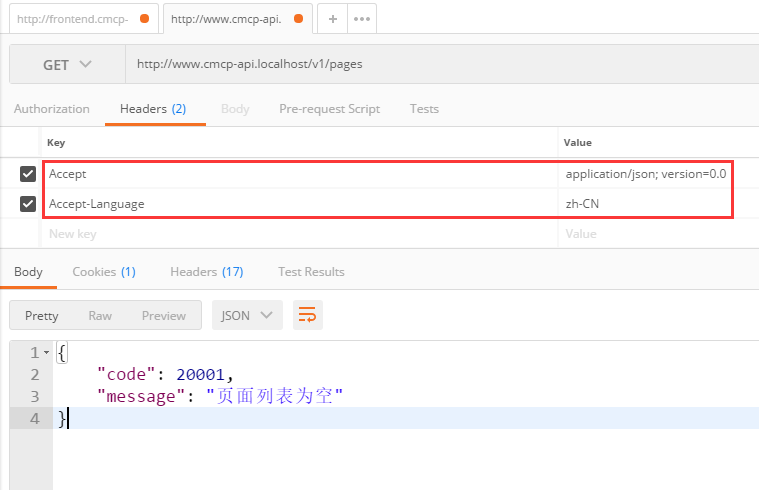

71、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，状态为活跃的页面列表为空，如图71
注：
Accept application/json; version=0.0
Accept-Language zh-CN
1 2 3 4 | { "code": 20001, "message": "页面列表为空"} |
图71

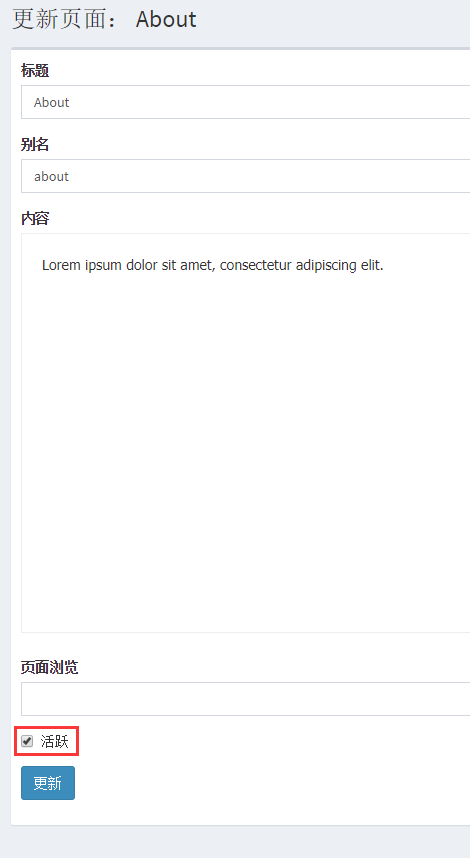

72、打开网址：http://backend.cmcp-api.localhost/page/update?id=1 ，编辑文章，活跃复选框勾选，如图72
图72

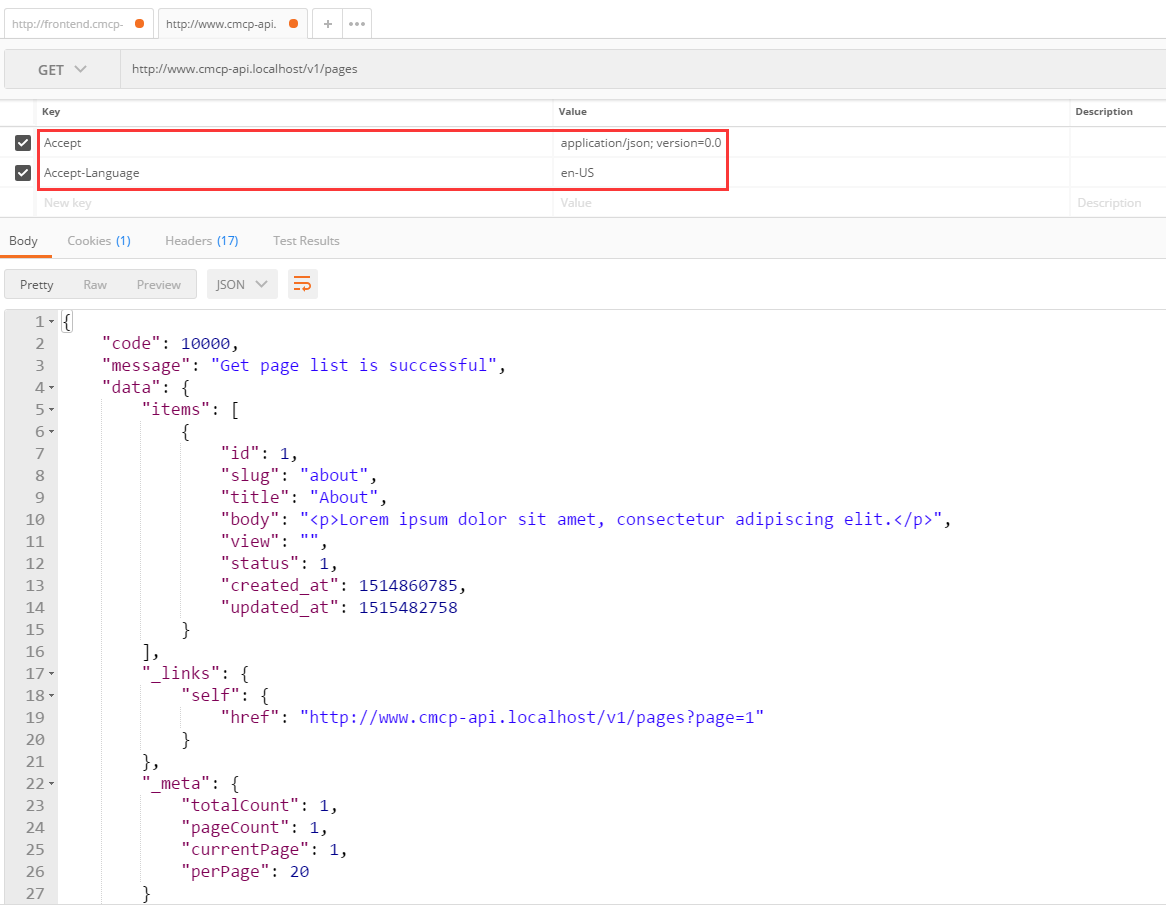

73、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，状态为活跃的页面列表不为空，如图73
注：
Accept application/json; version=0.0
Accept-Language en-US
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 | { "code": 10000, "message": "Get page list is successful", "data": { "items": [ { "id": 1, "slug": "about", "title": "About", "body": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.", "view": "", "status": 1, "created_at": 1514860785, "updated_at": 1515482758 } ], "_links": { "self": { } }, "_meta": { "totalCount": 1, "pageCount": 1, "currentPage": 1, "perPage": 20 } }} |
图73

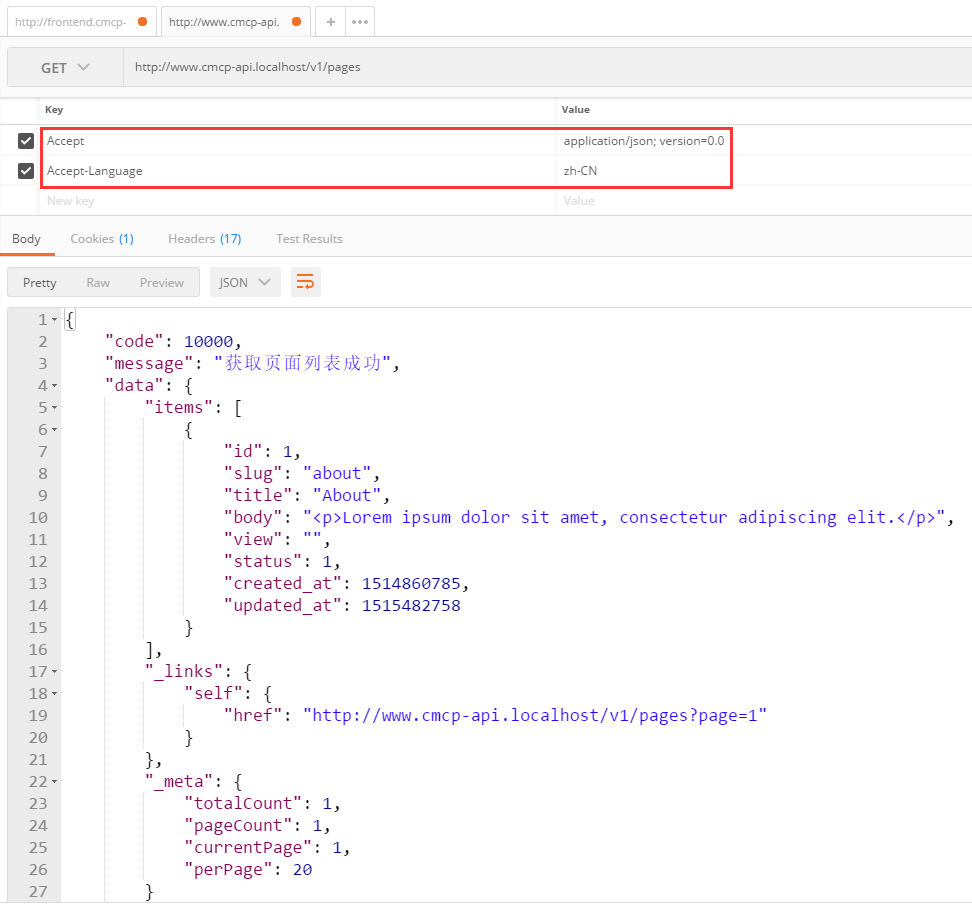

74、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages ，200响应，状态为活跃的页面列表不为空，如图74
注：
Accept application/json; version=0.0
Accept-Language zh-CN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 | { "code": 10000, "message": "获取页面列表成功", "data": { "items": [ { "id": 1, "slug": "about", "title": "About", "body": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.", "view": "", "status": 1, "created_at": 1514860785, "updated_at": 1515482758 } ], "_links": { "self": { } }, "_meta": { "totalCount": 1, "pageCount": 1, "currentPage": 1, "perPage": 20 } }} |
图74

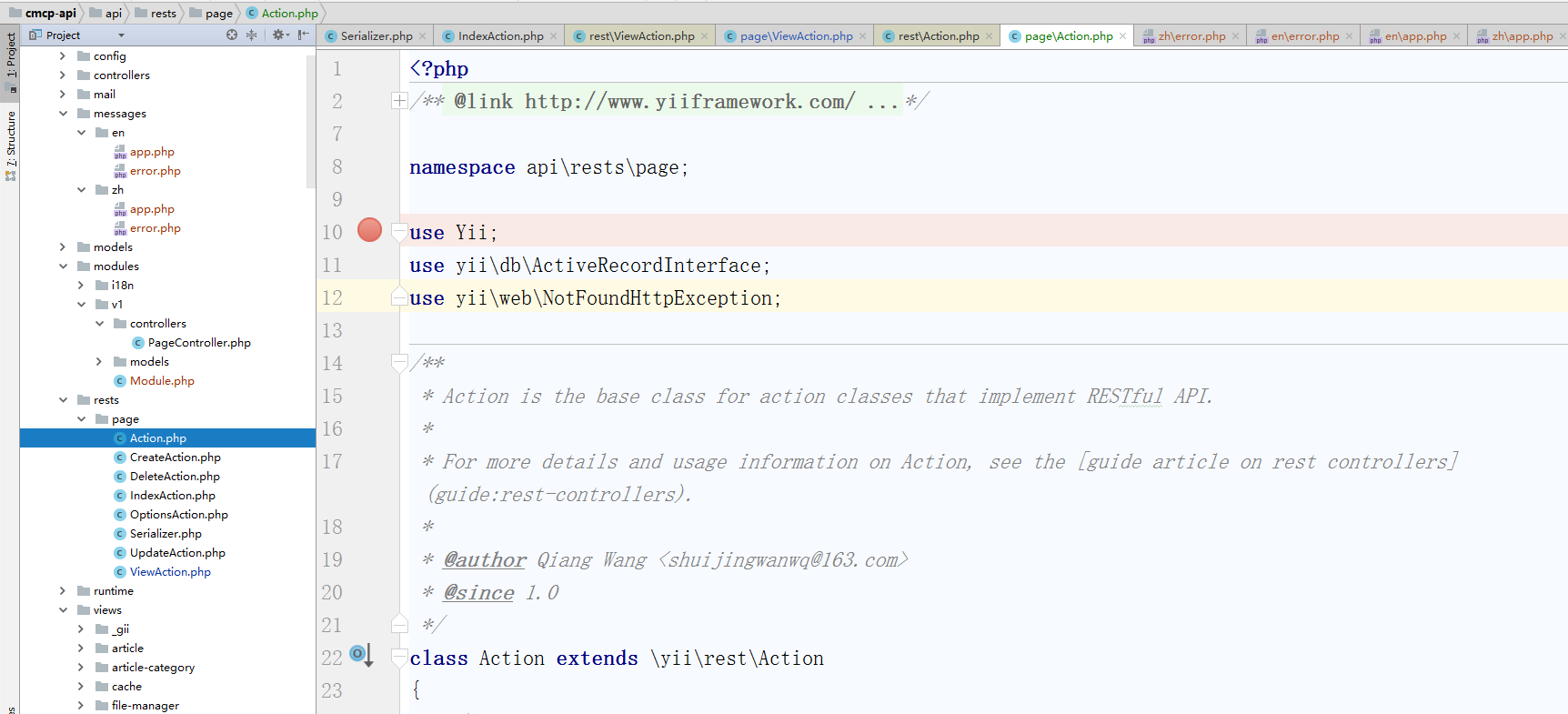

75、GET /pages/1: 返回页面 1 的详细信息，编辑 \api\rests\page\Action.php，调整命名空间、继承关系、响应结构等，如图75
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;use yii\db\ActiveRecordInterface;use yii\web\NotFoundHttpException;/** * Action is the base class for action classes that implement RESTful API. * * For more details and usage information on Action, see the [guide article on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class Action extends \yii\rest\Action{ /** * Returns the data model based on the primary key given. * If the data model is not found, a 404 HTTP exception will be raised. * @param string $id the ID of the model to be loaded. If the model has a composite primary key, * the ID must be a string of the primary key values separated by commas. * The order of the primary key values should follow that returned by the `primaryKey()` method * of the model. * @return ActiveRecordInterface the model found * @throws NotFoundHttpException if the model cannot be found */ public function findModel($id) { if ($this->findModel !== null) { return call_user_func($this->findModel, $id, $this); } /* @var $modelClass ActiveRecordInterface */ $modelClass = $this->modelClass; $keys = $modelClass::primaryKey(); if (count($keys) > 1) { $values = explode(',', $id); if (count($keys) === count($values)) { $model = $modelClass::findOne(array_combine($keys, $values)); } } elseif ($id !== null) { $model = $modelClass::findOne($id); } if (isset($model)) { return $model; } throw new NotFoundHttpException(Yii::t('error', Yii::t('error', Yii::t('error', '20002'), ['id' => $id])), 20002); }} |
图75

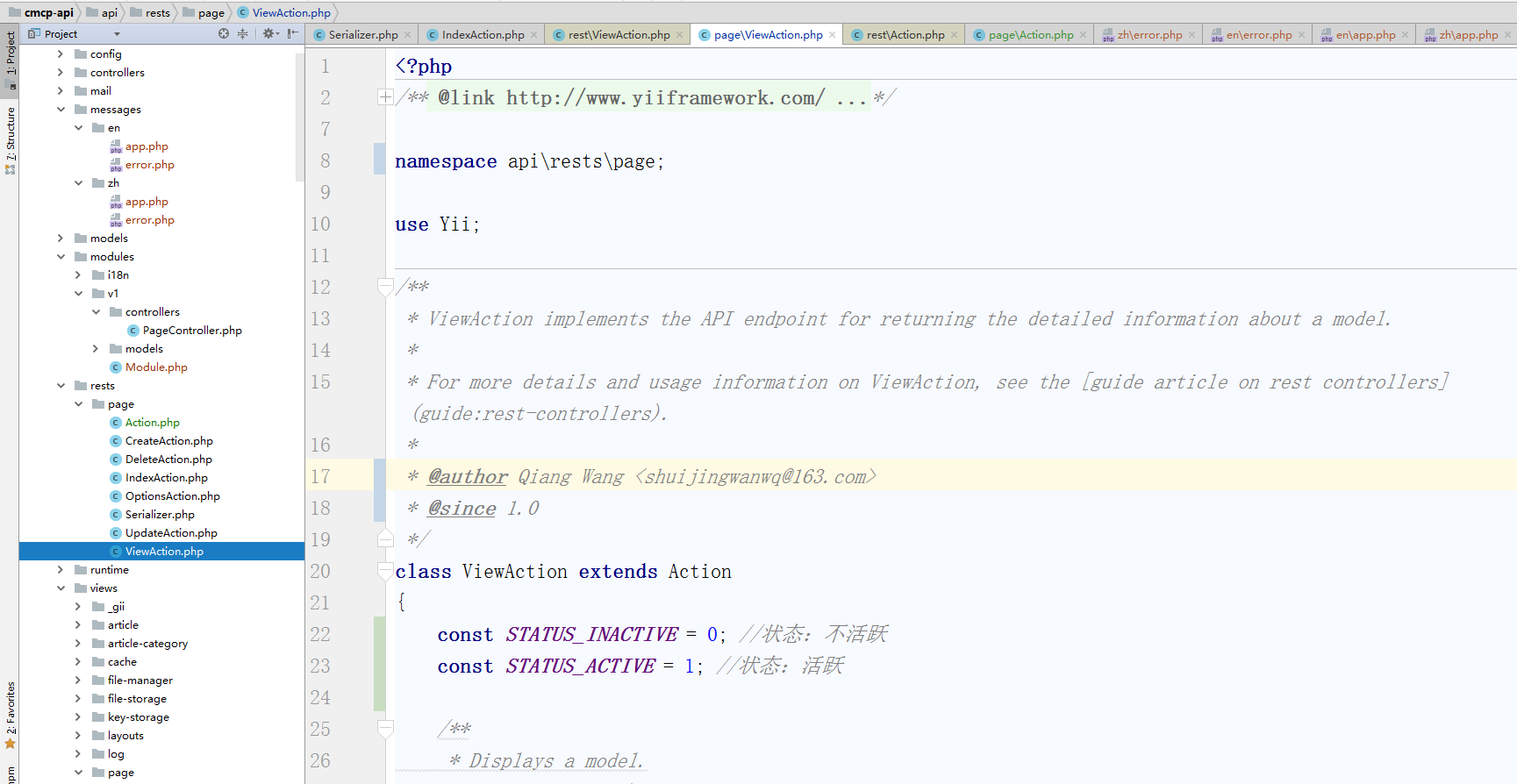

76、编辑 \api\rests\page\ViewAction.php，调整命名空间、继承关系、响应结构等，如图76
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;/** * ViewAction implements the API endpoint for returning the detailed information about a model. * * For more details and usage information on ViewAction, see the [guide article on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class ViewAction extends Action{ const STATUS_INACTIVE = 0; //状态：不活跃 const STATUS_ACTIVE = 1; //状态：活跃 /** * Displays a model. * @param string $id the primary key of the model. * @return \yii\db\ActiveRecordInterface the model being displayed */ public function run($id) { $model = $this->findModel($id); if ($this->checkAccess) { call_user_func($this->checkAccess, $this->id, $model); } /* 判断状态，如果为不活跃，则返回失败 */ if ($model->status === self::STATUS_INACTIVE) { return ['code' => 20003, 'message' => Yii::t('error', Yii::t('error', Yii::t('error', '20003'), ['id' => $id]))]; } return ['code' => 10000, 'message' => Yii::t('app', '10002'), 'data' => $model]; }} |
图76

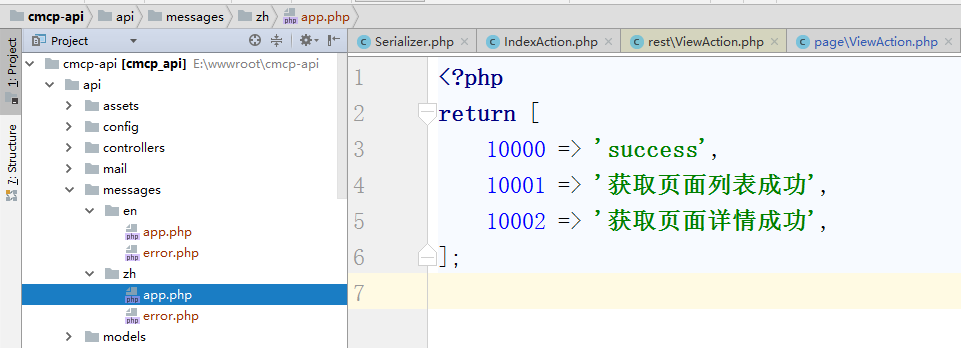

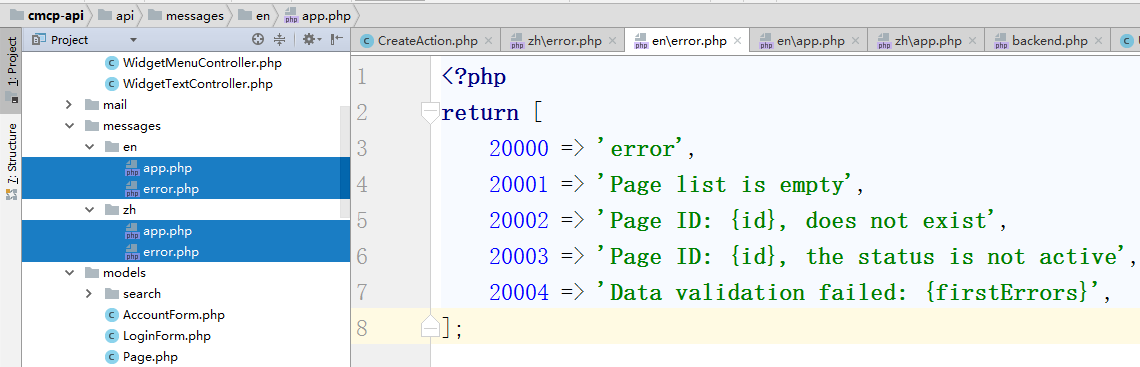

77、编辑语言包文件：\api\messages\zh\app.php(简体中文、响应成功)、\api\messages\zh\error.php(简体中文、响应失败)、\api\messages\en\app.php(英语美国、响应成功)、\api\messages\en\error.php(英语美国、响应失败)，如图77
\api\messages\zh\app.php
1 2 3 4 5 | return [ 10000 => 'success', 10001 => '获取页面列表成功', 10002 => '获取页面详情成功',]; |
\api\messages\zh\error.php
1 2 3 4 5 6 | return [ 20000 => 'error', 20001 => '页面列表为空', 20002 => '页面ID：{id}，不存在', 20003 => '页面ID：{id}，的状态不活跃',]; |
\api\messages\en\app.php
1 2 3 4 5 | return [ 10000 => 'success', 10001 => 'Get page list is successful', 10002 => 'Get page details succeeded',]; |
\api\messages\en\error.php
1 2 3 4 5 6 | return [ 20000 => 'error', 20001 => 'Page list is empty', 20002 => 'Page ID: {id}, does not exist', 20003 => 'Page ID: {id}, the status is not active',]; |
图77
78、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages/1 ，200响应，其状态为活跃，如图78
注：
Accept application/json; version=0.0
Accept-Language zh-CN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 | { "code": 10000, "message": "获取页面详情成功", "data": { "id": 2, "slug": "contact", "title": "Contact", "body": "Contact", "view": "", "status": 1, "created_at": 1515488912, "updated_at": 1515488912 }} |
图78
79、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages/1 ，200响应，其状态为活跃，如图79
注：
Accept application/json; version=0.0
Accept-Language en-US
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 | { "code": 10000, "message": "Get page details succeeded", "data": { "id": 2, "slug": "contact", "title": "Contact", "body": "Contact", "view": "", "status": 1, "created_at": 1515488912, "updated_at": 1515488912 }} |
图79

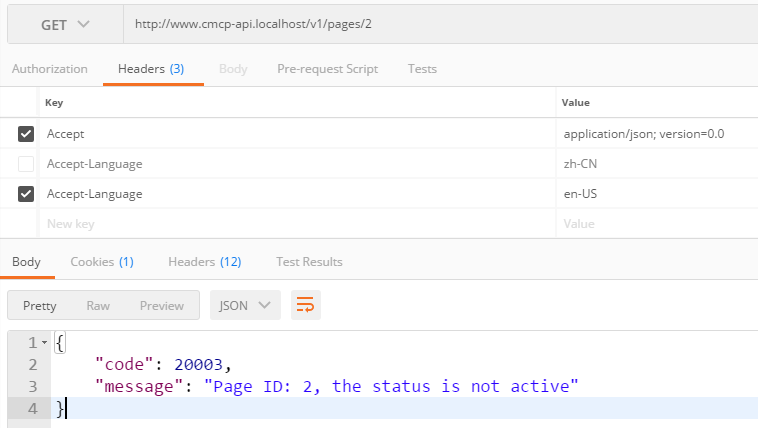

80、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages/2 ，200响应，其状态为不活跃，如图80
注：
Accept application/json; version=0.0
Accept-Language en-US
1 2 3 4 | { "code": 20003, "message": "Page ID: 2, the status is not active"} |
图80

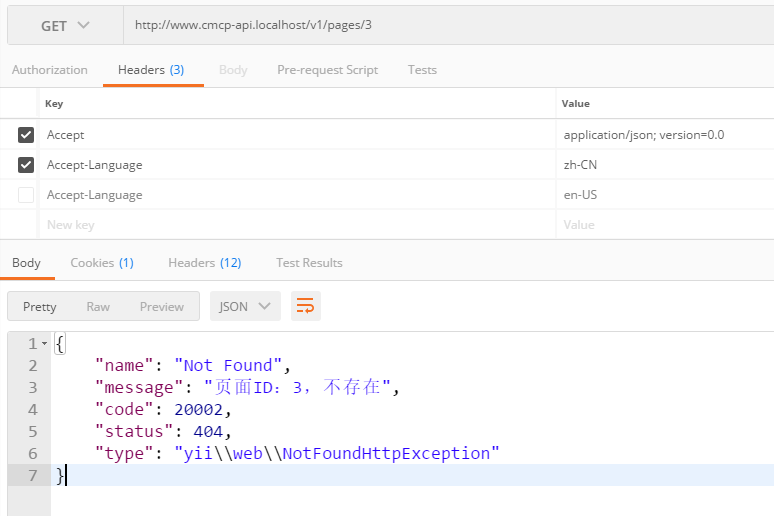

81、在 Postman 中，GET http://www.cmcp-api.localhost/v1/pages/3 ，404响应，页面不存在，如图81
注：
Accept application/json; version=0.0
Accept-Language zh-CN
1 2 3 4 5 6 7 | { "name": "Not Found", "message": "页面ID：3，不存在", "code": 20002, "status": 404, "type": "yii\\web\\NotFoundHttpException"} |
图81

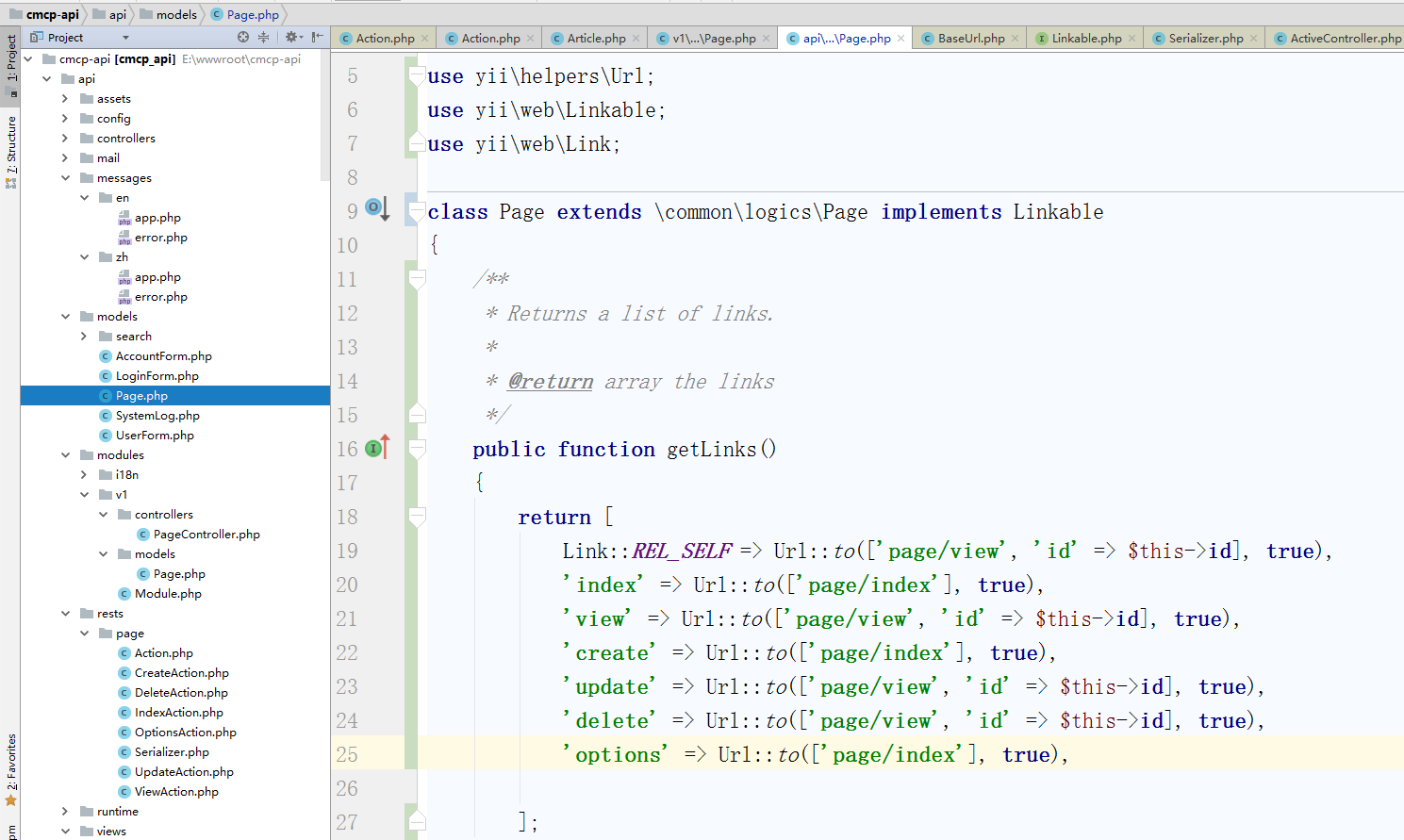

82、实现[[yii\web\Linkable]] 接口来支持HATEOAS，返回与本资源对象的相关链接，编辑资源类 \api\models\Page.php，如图82
1 2 3 4 5 6 7 8 9 10 11 | <?php namespace api\models; use yii\helpers\Url; use yii\web\Linkable; use yii\web\Link; class Page extends \common\logics\Page implements Linkable { /** * Returns a list of links. * * @return array the links */ public function getLinks() { return [ Link::REL_SELF => Url::to(['page/view', 'id' => $this->id], true), 'index' => Url::to(['page/index'], true), 'view' => Url::to(['page/view', 'id' => $this->id], true), 'create' => Url::to(['page/index'], true), 'update' => Url::to(['page/view', 'id' => $this->id], true), 'delete' => Url::to(['page/view', 'id' => $this->id], true), 'options' => Url::to(['page/index'], true), ]; }} |
![实现[[yii\web\Linkable]] 接口来支持HATEOAS，返回与本资源对象的相关链接，编辑资源类 \api\models\Page.php](http://www.shuijingwanwq.com/wp-content/uploads/2018/01/82.png)
图82
注：
Accept application/json; version=0.0
Accept-Language zh-CN
Accept-Encoding gzip, deflate, br
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 | { "code": 10000, "message": "获取页面详情成功", "data": { "id": 1, "slug": "about", "title": "About", "body": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.", "view": "", "status": 1, "created_at": 1514860785, "updated_at": 1515548927, "_links": { "self": { "href": "http://www.cmcp-api.localhost/v1/pages/1" }, "index": { "href": "http://www.cmcp-api.localhost/v1/pages" }, "view": { "href": "http://www.cmcp-api.localhost/v1/pages/1" }, "create": { "href": "http://www.cmcp-api.localhost/v1/pages" }, "update": { "href": "http://www.cmcp-api.localhost/v1/pages/1" }, "delete": { "href": "http://www.cmcp-api.localhost/v1/pages/1" }, "options": { "href": "http://www.cmcp-api.localhost/v1/pages" } } }} |
图83

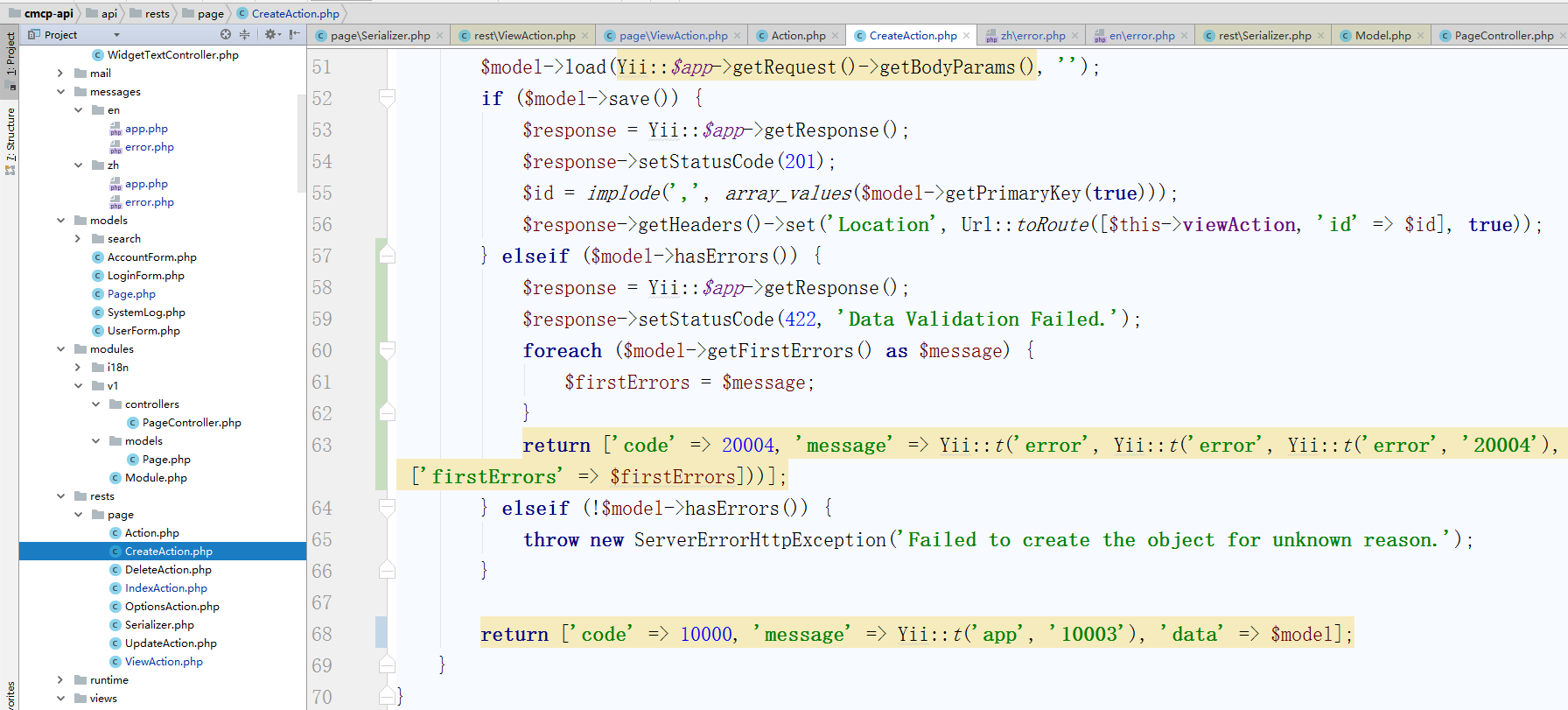

84、POST /pages: 创建一个新页面，编辑 \api\rests\page\CreateAction.php，如图84
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;use yii\base\Model;use yii\helpers\Url;use yii\web\ServerErrorHttpException;/** * CreateAction implements the API endpoint for creating a new model from the given data. * * For more details and usage information on CreateAction, see the [guide article on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class CreateAction extends Action{ /** * @var string the scenario to be assigned to the new model before it is validated and saved. */ public $scenario = Model::SCENARIO_DEFAULT; /** * @var string the name of the view action. This property is need to create the URL when the model is successfully created. */ public $viewAction = 'view'; /** * Creates a new model. * @return \yii\db\ActiveRecordInterface the model newly created * @throws ServerErrorHttpException if there is any error when creating the model */ public function run() { if ($this->checkAccess) { call_user_func($this->checkAccess, $this->id); } /* @var $model \yii\db\ActiveRecord */ $model = new $this->modelClass([ 'scenario' => $this->scenario, ]); $model->load(Yii::$app->getRequest()->getBodyParams(), ''); if ($model->save()) { $response = Yii::$app->getResponse(); $response->setStatusCode(201); $id = implode(',', array_values($model->getPrimaryKey(true))); $response->getHeaders()->set('Location', Url::toRoute([$this->viewAction, 'id' => $id], true)); } elseif ($model->hasErrors()) { $response = Yii::$app->getResponse(); $response->setStatusCode(422, 'Data Validation Failed.'); foreach ($model->getFirstErrors() as $message) { $firstErrors = $message; } return ['code' => 20004, 'message' => Yii::t('error', Yii::t('error', Yii::t('error', '20004'), ['firstErrors' => $firstErrors]))]; } elseif (!$model->hasErrors()) { throw new ServerErrorHttpException('Failed to create the object for unknown reason.'); } return ['code' => 10000, 'message' => Yii::t('app', '10003'), 'data' => $model]; }} |
图84

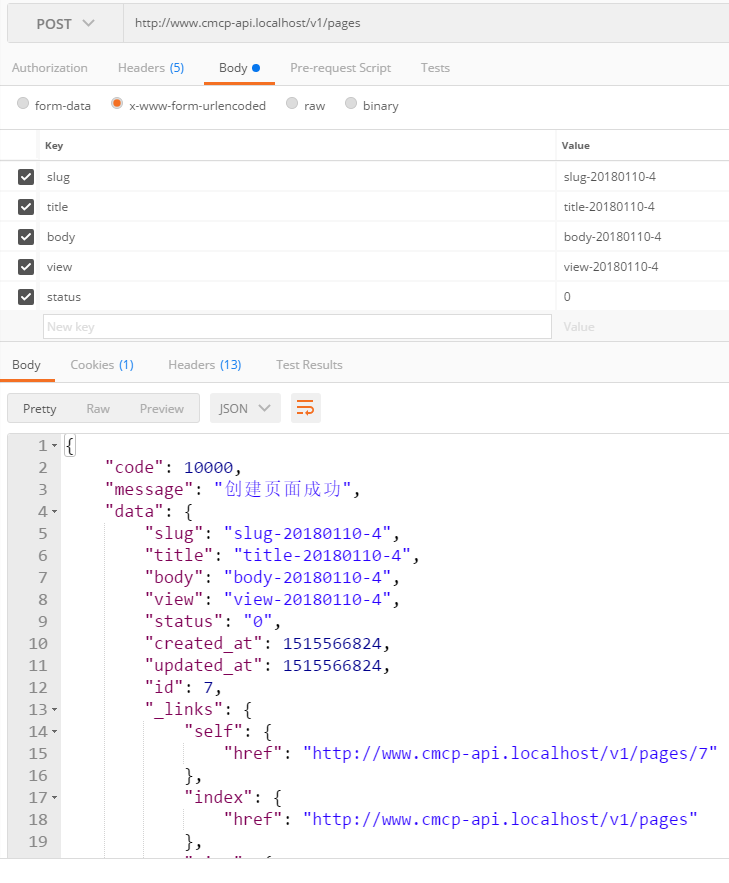

85、在 Postman 中，POST http://www.cmcp-api.localhost/v1/pages ，201响应，如图85
注：
Accept application/json; version=0.0
Accept-Language zh-CN
Accept-Encoding gzip, deflate, br
Content-Type application/x-www-form-urlencoded
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 | { "code": 10000, "message": "创建页面成功", "data": { "slug": "slug-20180110-4", "title": "title-20180110-4", "body": "body-20180110-4", "view": "view-20180110-4", "status": "0", "created_at": 1515566824, "updated_at": 1515566824, "id": 7, "_links": { "self": { "href": "http://www.cmcp-api.localhost/v1/pages/7" }, "index": { "href": "http://www.cmcp-api.localhost/v1/pages" }, "view": { "href": "http://www.cmcp-api.localhost/v1/pages/7" }, "create": { "href": "http://www.cmcp-api.localhost/v1/pages" }, "update": { "href": "http://www.cmcp-api.localhost/v1/pages/7" }, "delete": { "href": "http://www.cmcp-api.localhost/v1/pages/7" }, "options": { "href": "http://www.cmcp-api.localhost/v1/pages" } } }} |
图85

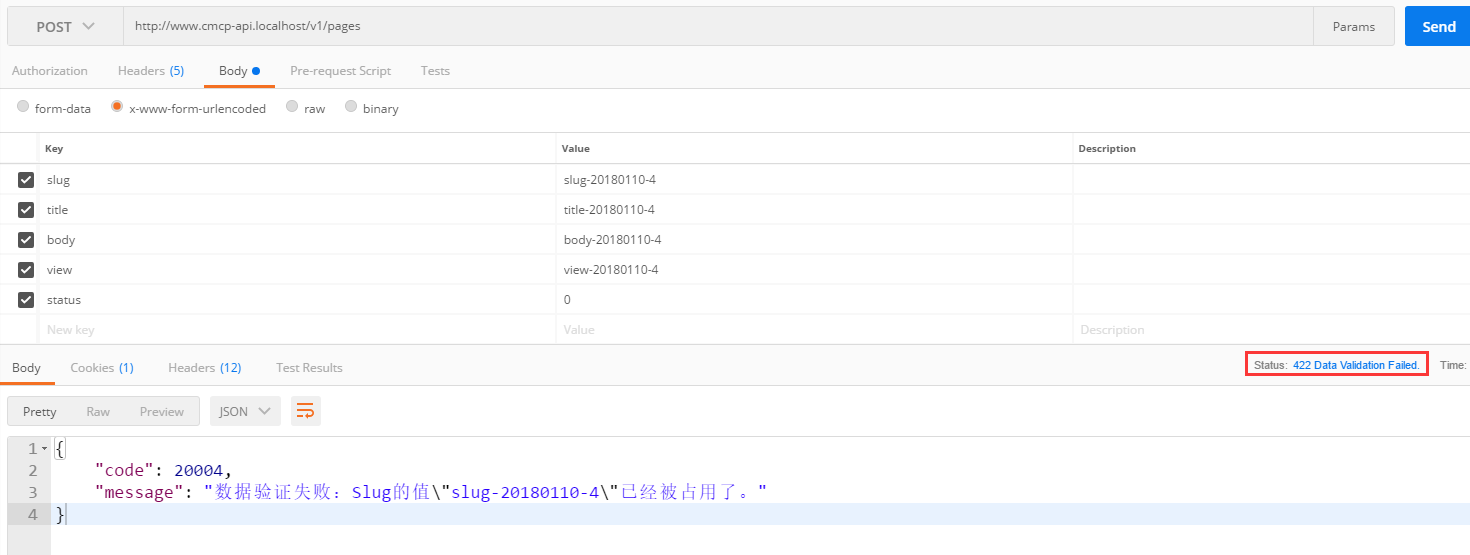

86、在 Postman 中，POST http://www.cmcp-api.localhost/v1/pages ，参数保持原样，422响应，如图86
注：
Accept application/json; version=0.0
Accept-Language zh-CN
Accept-Encoding gzip, deflate, br
Content-Type application/x-www-form-urlencoded
1 2 3 4 | { "code": 20004, "message": "数据验证失败：Slug的值\"slug-20180110-4\"已经被占用了。"} |
图86

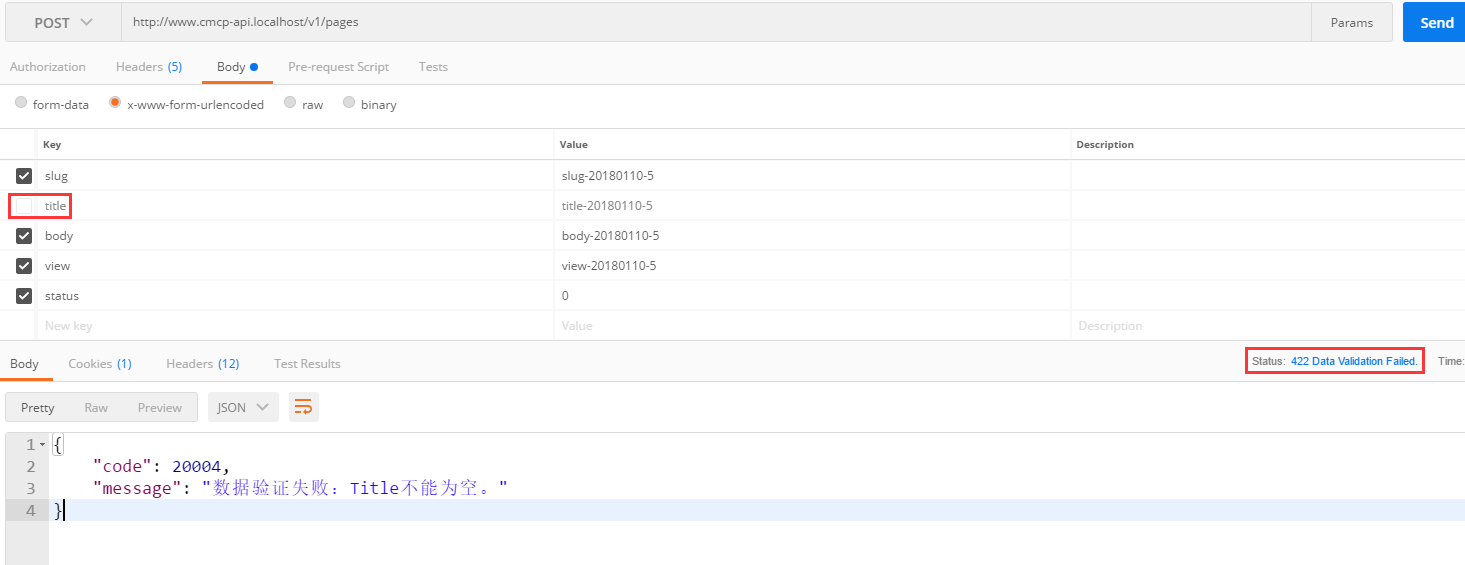

87、在 Postman 中，POST http://www.cmcp-api.localhost/v1/pages ，422响应(数据验证失败 (例如，响应一个 POST 请求)。 请检查响应体内详细的错误消息。)，如图87
注：
Accept application/json; version=0.0
Accept-Language zh-CN
Accept-Encoding gzip, deflate, br
Content-Type application/x-www-form-urlencoded
Body
缺少 title 参数
1 2 3 4 | { "code": 20004, "message": "数据验证失败：Title不能为空。"} |
图87
88、在 Postman 中，POST http://www.cmcp-api.localhost/v1/pages ，422响应，如图88
注：
Accept application/json; version=0.0
Accept-Language en-US
Accept-Encoding gzip, deflate, br
Content-Type application/x-www-form-urlencoded
Body
缺少 title 参数
1 2 3 4 | { "code": 20004, "message": "Data validation failed: Title cannot be blank."} |
图88

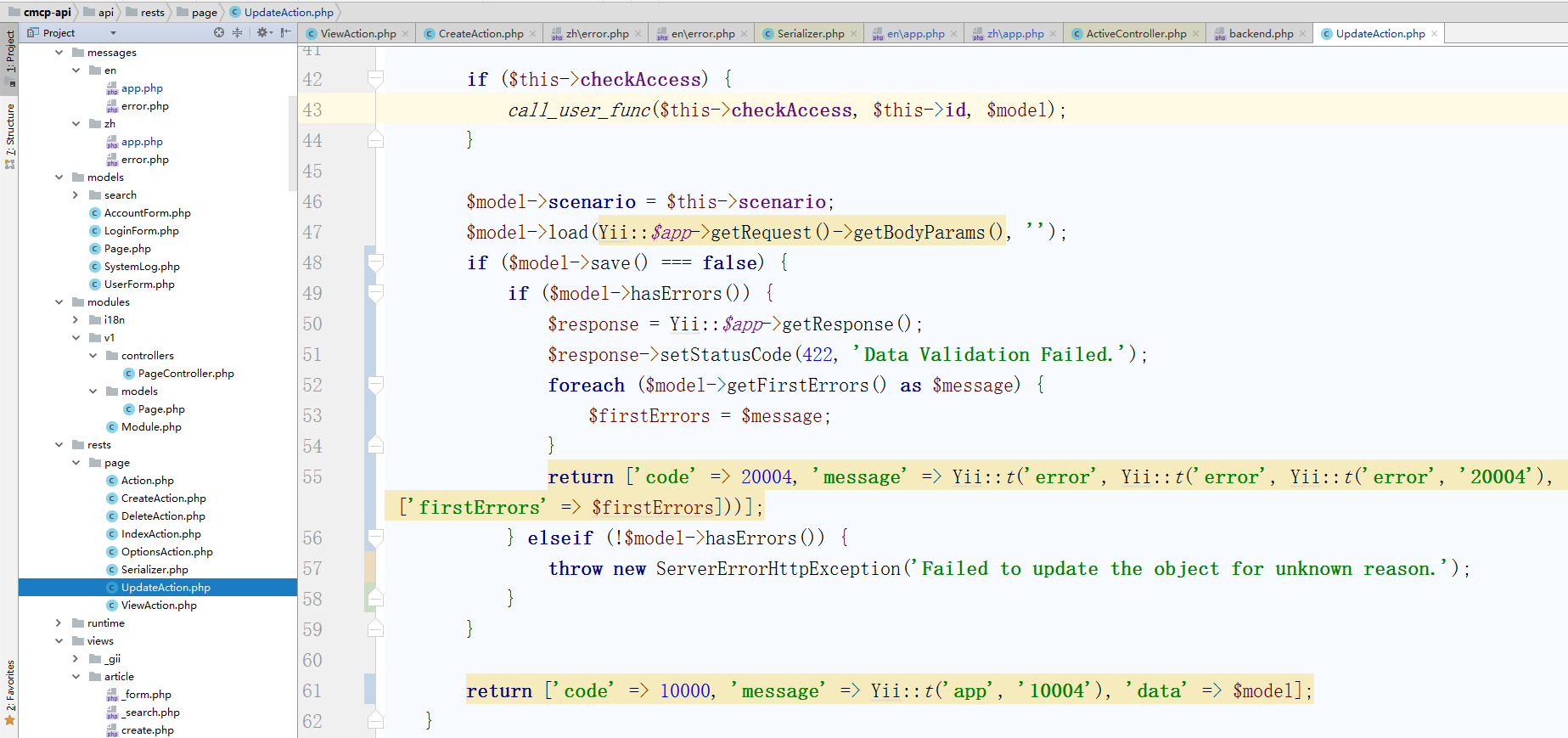

89、PUT /pages/4: 更新一个页面，编辑 \api\rests\page\UpdateAction.php，如图89
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;use yii\base\Model;use yii\db\ActiveRecord;use yii\web\ServerErrorHttpException;/** * UpdateAction implements the API endpoint for updating a model. * * For more details and usage information on UpdateAction, see the [guide article on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class UpdateAction extends Action{ /** * @var string the scenario to be assigned to the model before it is validated and updated. */ public $scenario = Model::SCENARIO_DEFAULT; /** * Updates an existing model. * @param string $id the primary key of the model. * @return \yii\db\ActiveRecordInterface the model being updated * @throws ServerErrorHttpException if there is any error when updating the model */ public function run($id) { /* @var $model ActiveRecord */ $model = $this->findModel($id); if ($this->checkAccess) { call_user_func($this->checkAccess, $this->id, $model); } $model->scenario = $this->scenario; $model->load(Yii::$app->getRequest()->getBodyParams(), ''); if ($model->save() === false) { if ($model->hasErrors()) { $response = Yii::$app->getResponse(); $response->setStatusCode(422, 'Data Validation Failed.'); foreach ($model->getFirstErrors() as $message) { $firstErrors = $message; } return ['code' => 20004, 'message' => Yii::t('error', Yii::t('error', Yii::t('error', '20004'), ['firstErrors' => $firstErrors]))]; } elseif (!$model->hasErrors()) { throw new ServerErrorHttpException('Failed to update the object for unknown reason.'); } } return ['code' => 10000, 'message' => Yii::t('app', '10004'), 'data' => $model]; }} |
图89

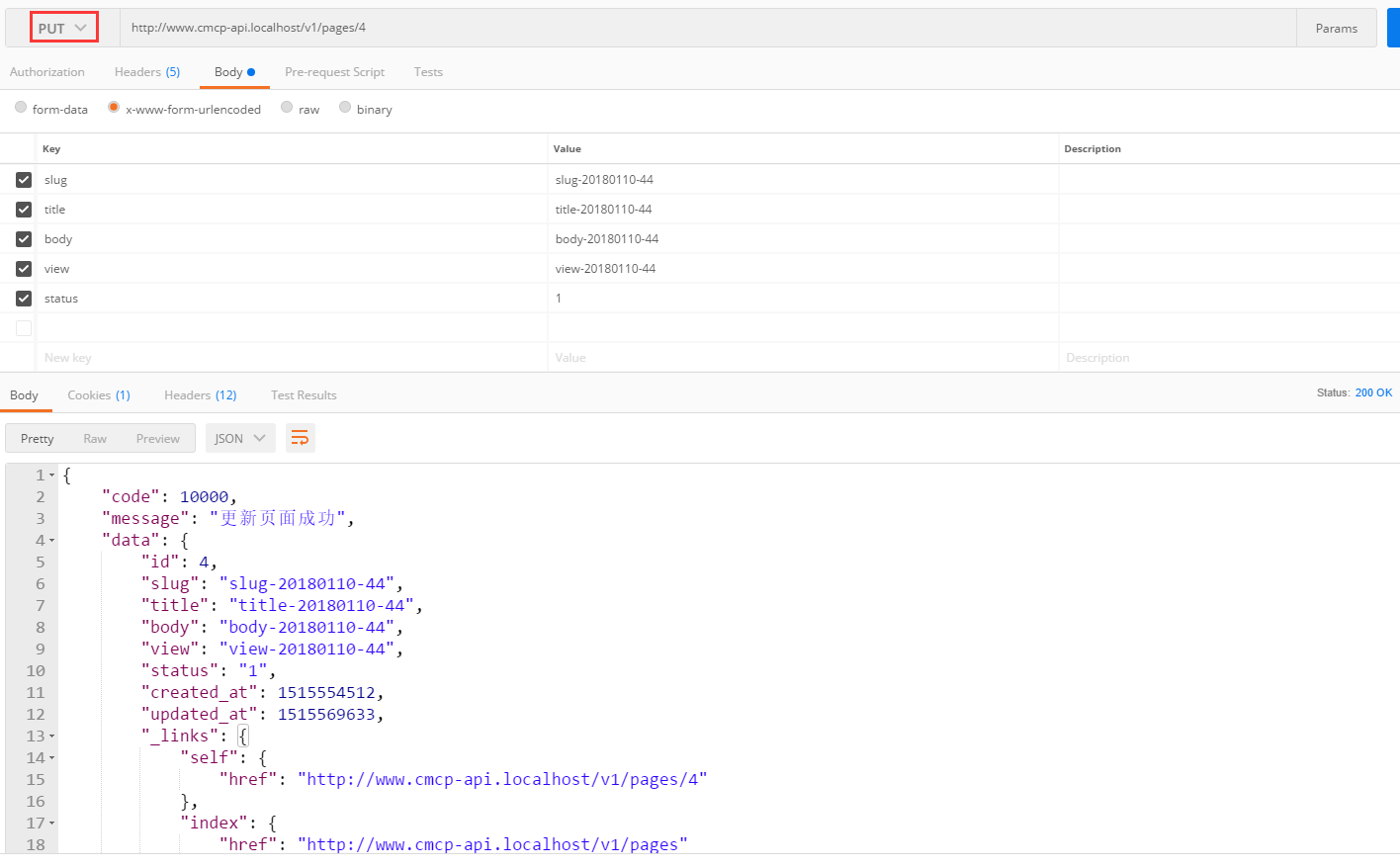

90、在 Postman 中，PUT http://www.cmcp-api.localhost/v1/pages/4 ，200响应，如图90
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 | { "code": 10000, "message": "更新页面成功", "data": { "id": 4, "slug": "slug-20180110-44", "title": "title-20180110-44", "body": "body-20180110-44", "view": "view-20180110-44", "status": "1", "created_at": 1515554512, "updated_at": 1515569633, "_links": { "self": { "href": "http://www.cmcp-api.localhost/v1/pages/4" }, "index": { "href": "http://www.cmcp-api.localhost/v1/pages" }, "view": { "href": "http://www.cmcp-api.localhost/v1/pages/4" }, "create": { "href": "http://www.cmcp-api.localhost/v1/pages" }, "update": { "href": "http://www.cmcp-api.localhost/v1/pages/4" }, "delete": { "href": "http://www.cmcp-api.localhost/v1/pages/4" }, "options": { "href": "http://www.cmcp-api.localhost/v1/pages" } } }} |
图90

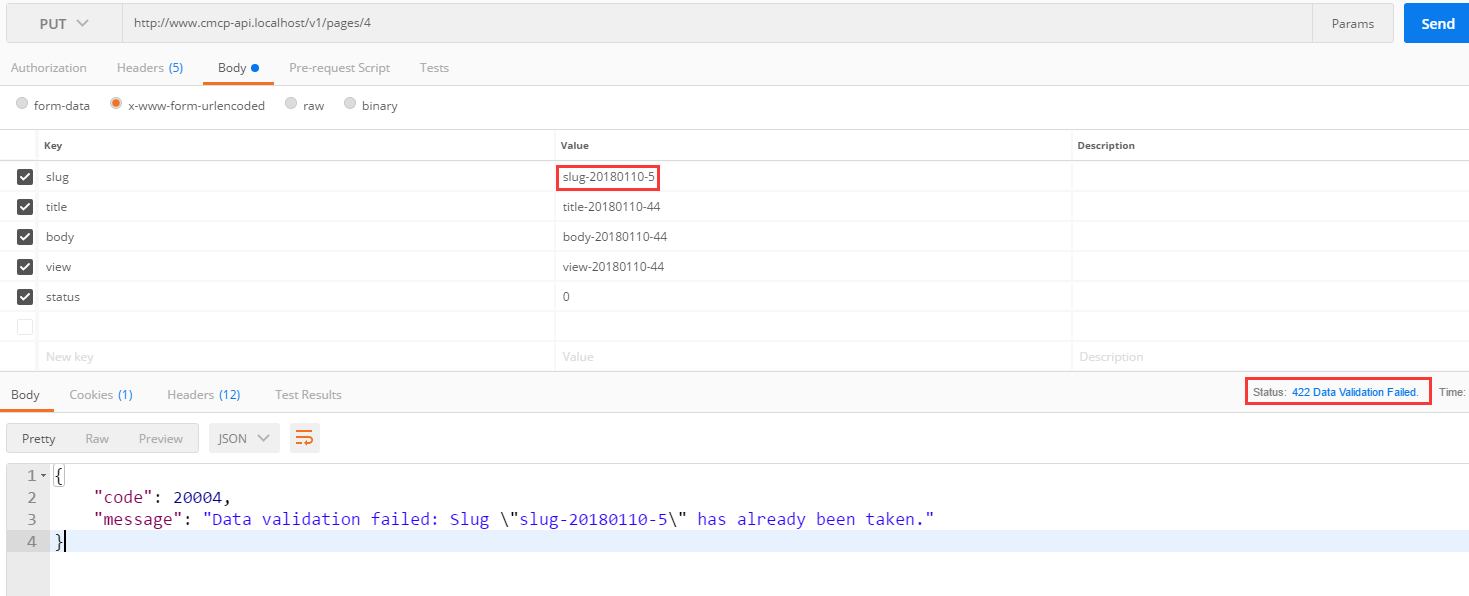

91、在 Postman 中，PUT http://www.cmcp-api.localhost/v1/pages/4 ，422响应，如图91
注：
Accept application/json; version=0.0
Accept-Language en-US
Accept-Encoding gzip, deflate, br
Content-Type application/x-www-form-urlencoded
Body
slug 的值已经被另一页面占用
1 2 3 4 | { "code": 20004, "message": "Data validation failed: Slug \"slug-20180110-5\" has already been taken."} |
图91

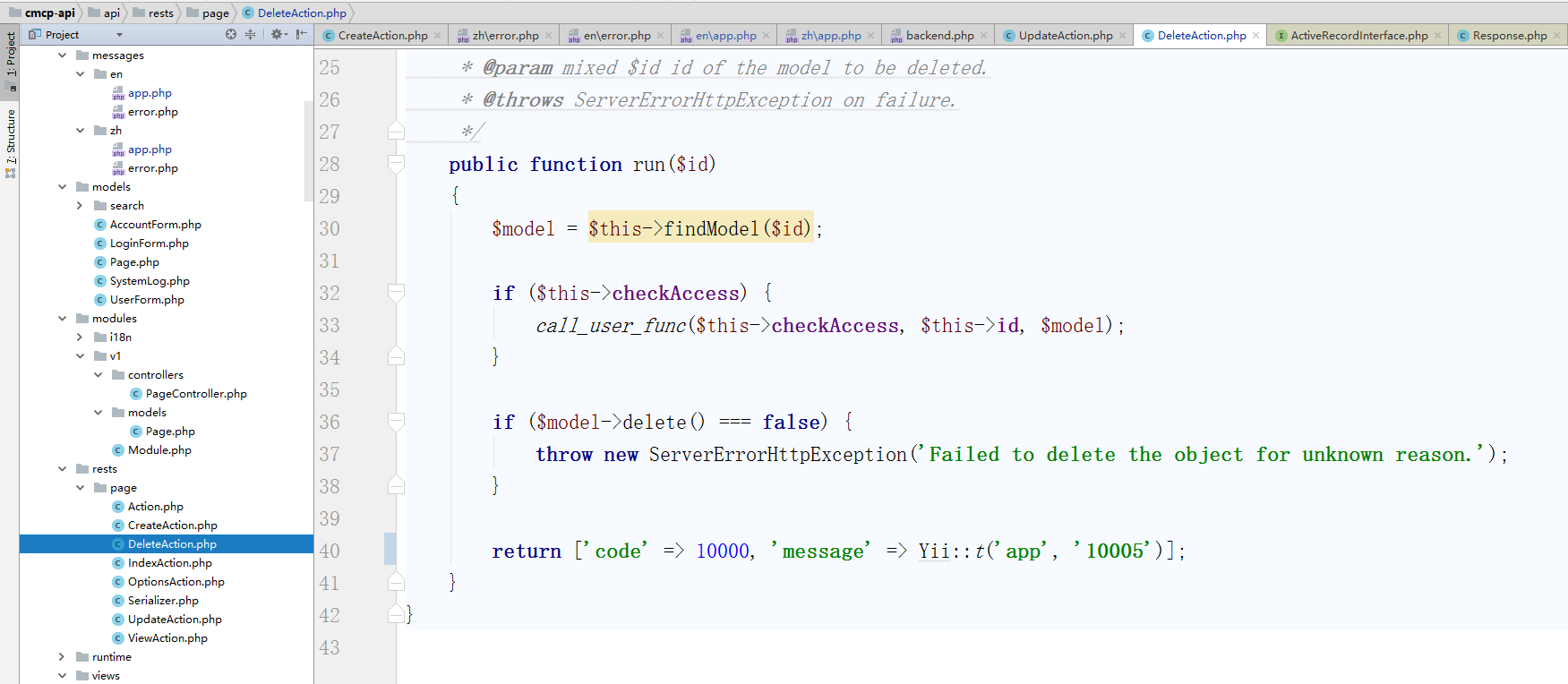

92、DELETE /pages/4: 删除页面4，编辑 \api\rests\page\DeleteAction.php，如图92
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 | <?php/** * @link http://www.yiiframework.com/ * @copyright Copyright (c) 2008 Yii Software LLC * @license http://www.yiiframework.com/license/ */namespace api\rests\page;use Yii;use yii\web\ServerErrorHttpException;/** * DeleteAction implements the API endpoint for deleting a model. * * For more details and usage information on DeleteAction, see the [guide article on rest controllers](guide:rest-controllers). * * @author Qiang Wang <shuijingwanwq@163.com> * @since 1.0 */class DeleteAction extends Action{ /** * Deletes a model. * @param mixed $id id of the model to be deleted. * @throws ServerErrorHttpException on failure. */ public function run($id) { $model = $this->findModel($id); if ($this->checkAccess) { call_user_func($this->checkAccess, $this->id, $model); } if ($model->delete() === false) { throw new ServerErrorHttpException('Failed to delete the object for unknown reason.'); } return ['code' => 10000, 'message' => Yii::t('app', '10005')]; }} |
图92

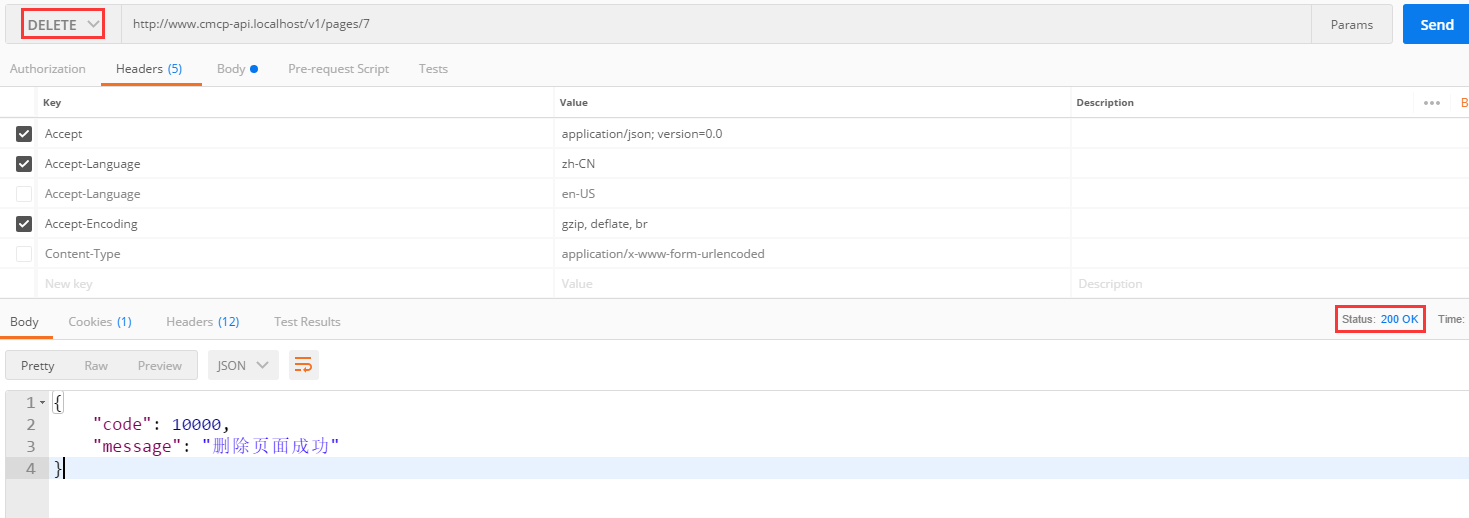

93、在 Postman 中，DELETE http://www.cmcp-api.localhost/v1/pages/7 ，200响应，如图93
注：
Accept application/json; version=0.0
Accept-Language zh-CN
Accept-Encoding gzip, deflate, br
1 2 3 4 | { "code": 10000, "message": "删除页面成功"} |
图93
94、展示一下语言包文件的最后内容，如图94
\api\messages\zh\app.php
1 2 3 4 5 6 7 8 | return [ 10000 => 'success', 10001 => '获取页面列表成功', 10002 => '获取页面详情成功', 10003 => '创建页面成功', 10004 => '更新页面成功', 10005 => '删除页面成功',]; |
\api\messages\zh\error.php
1 2 3 4 5 6 7 | return [ 20000 => 'error', 20001 => '页面列表为空', 20002 => '页面ID：{id}，不存在', 20003 => '页面ID：{id}，的状态不活跃', 20004 => '数据验证失败：{firstErrors}',]; |
\api\messages\en\app.php
1 2 3 4 5 6 7 8 | return [ 10000 => 'success', 10001 => 'Get page list is successful', 10002 => 'Get page details succeeded', 10003 => 'Create a page success', 10004 => 'Update page success', 10005 => 'Delete page success',]; |
\api\messages\en\error.php
1 2 3 4 5 6 7 | return [ 20000 => 'error', 20001 => 'Page list is empty', 20002 => 'Page ID: {id}, does not exist', 20003 => 'Page ID: {id}, the status is not active', 20004 => 'Data validation failed: {firstErrors}',]; |
图94

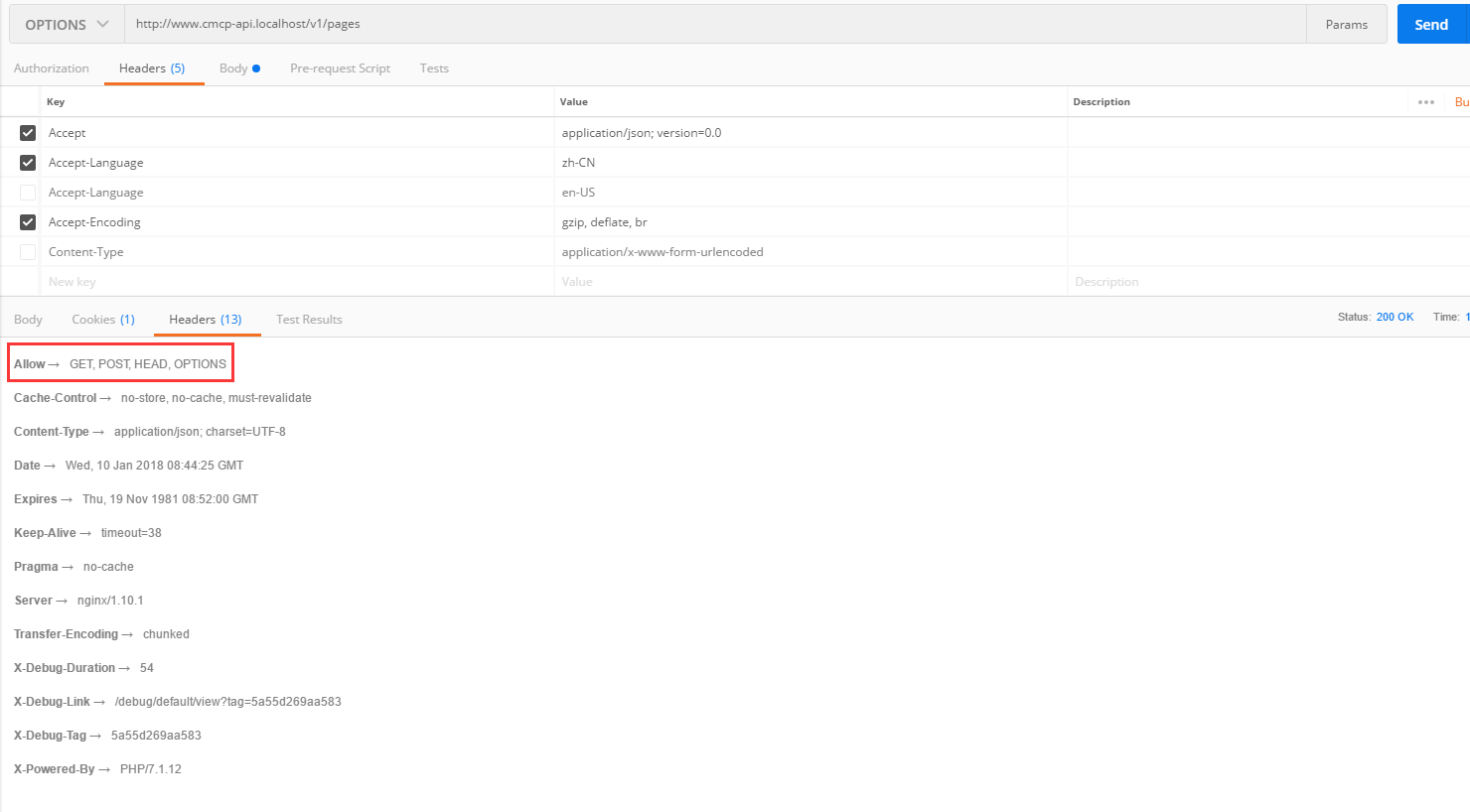

95、OPTIONS /pages: 显示关于末端 /pages 支持的动词，在 Postman 中，OPTIONS http://www.cmcp-api.localhost/v1/pages ，200响应，如图95
图95
96、OPTIONS /pages/1: 显示关于末端 /pages/1 支持的动词，在 Postman 中，OPTIONS http://www.cmcp-api.localhost/v1/pages/1 ，200响应，如图96
图96
97、总结：现在支持的行为：index、view、create、update、delete、options，除 options 之外，基本上是继承之后，再次覆写实现具体的需求了的。
1 条回复
[…] […]
